/4.4" Diameter/D1006 Fasco 1/4HP Electric Motor, 4.4" Diameter, 1600RPM
Click Image to Expand

Product ID: D1006

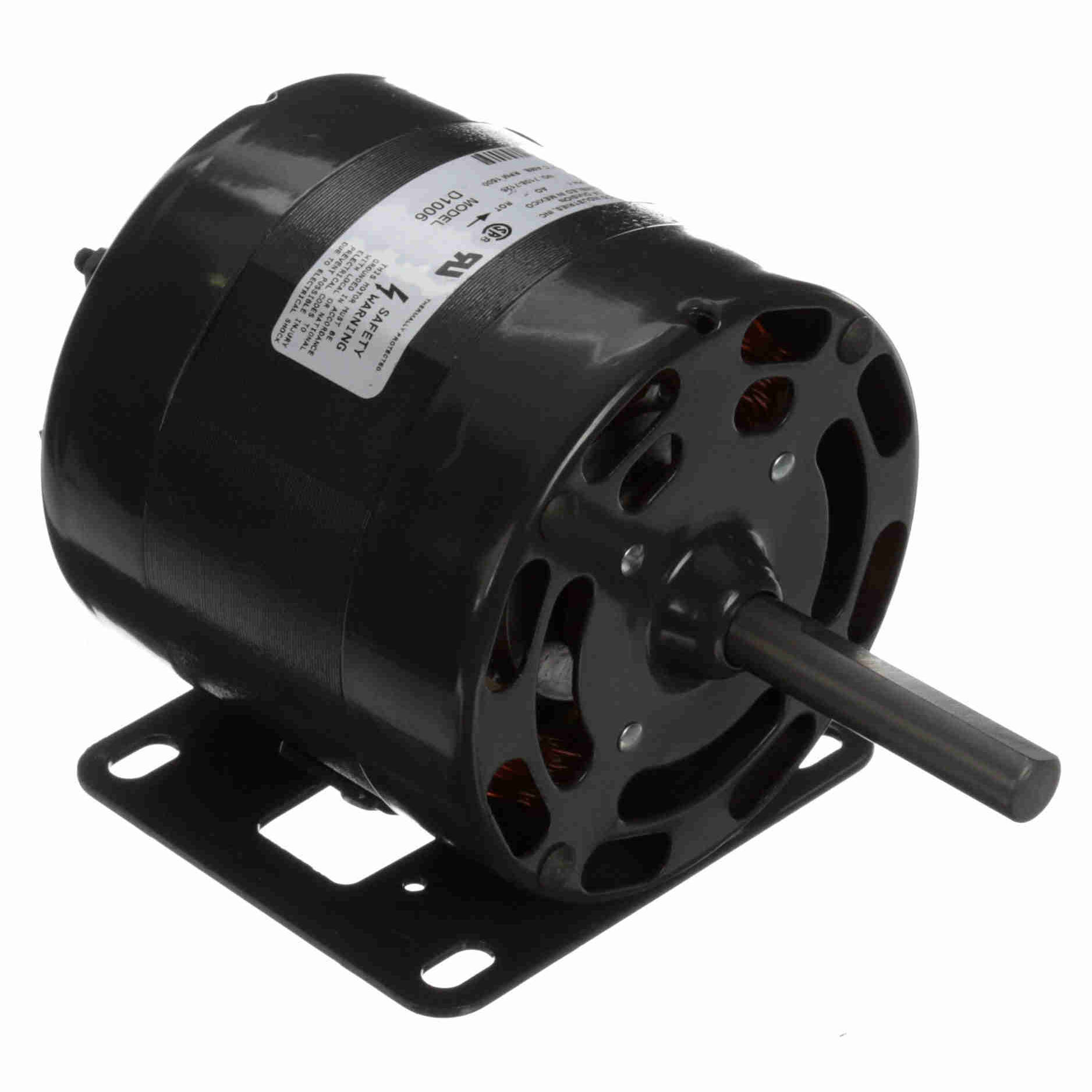

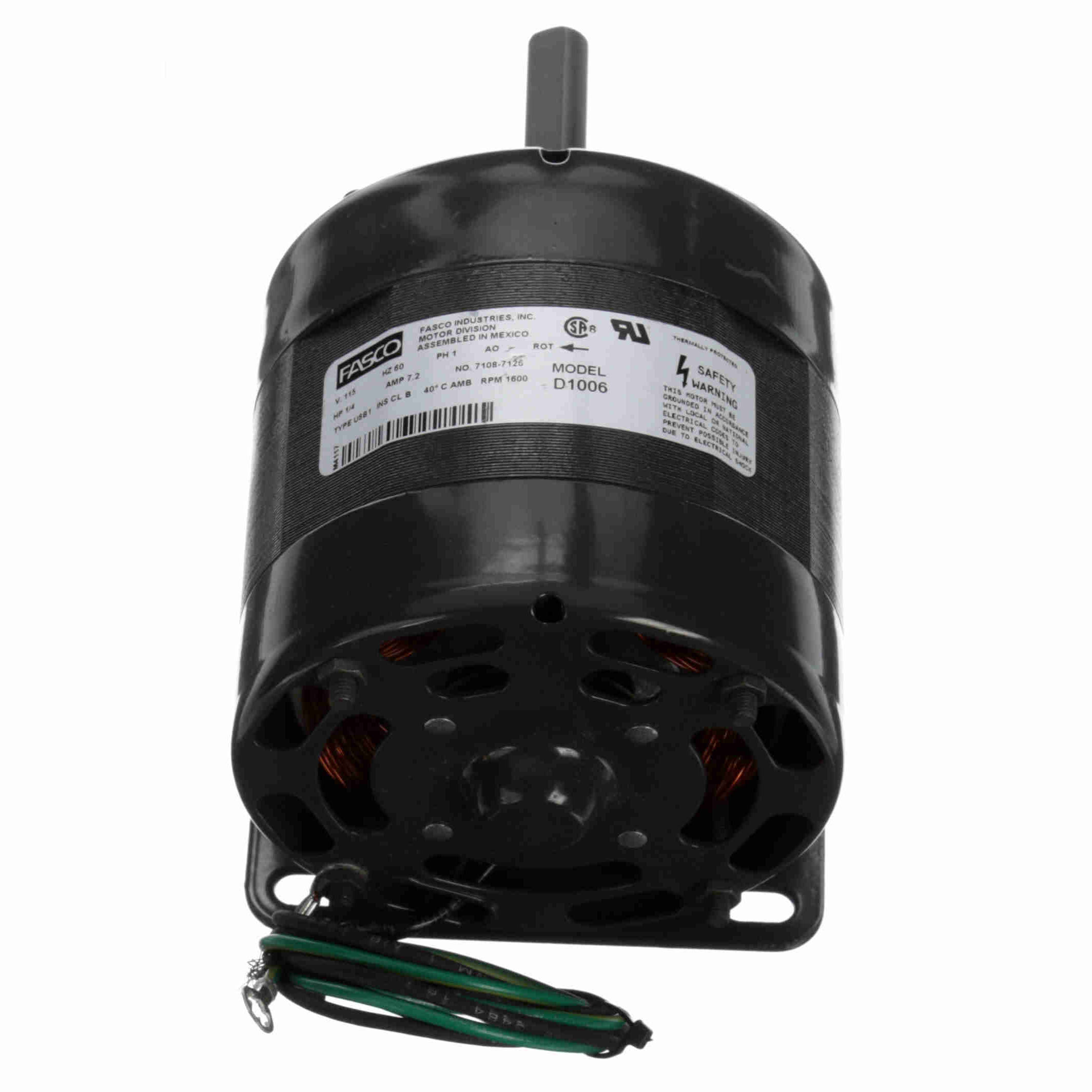

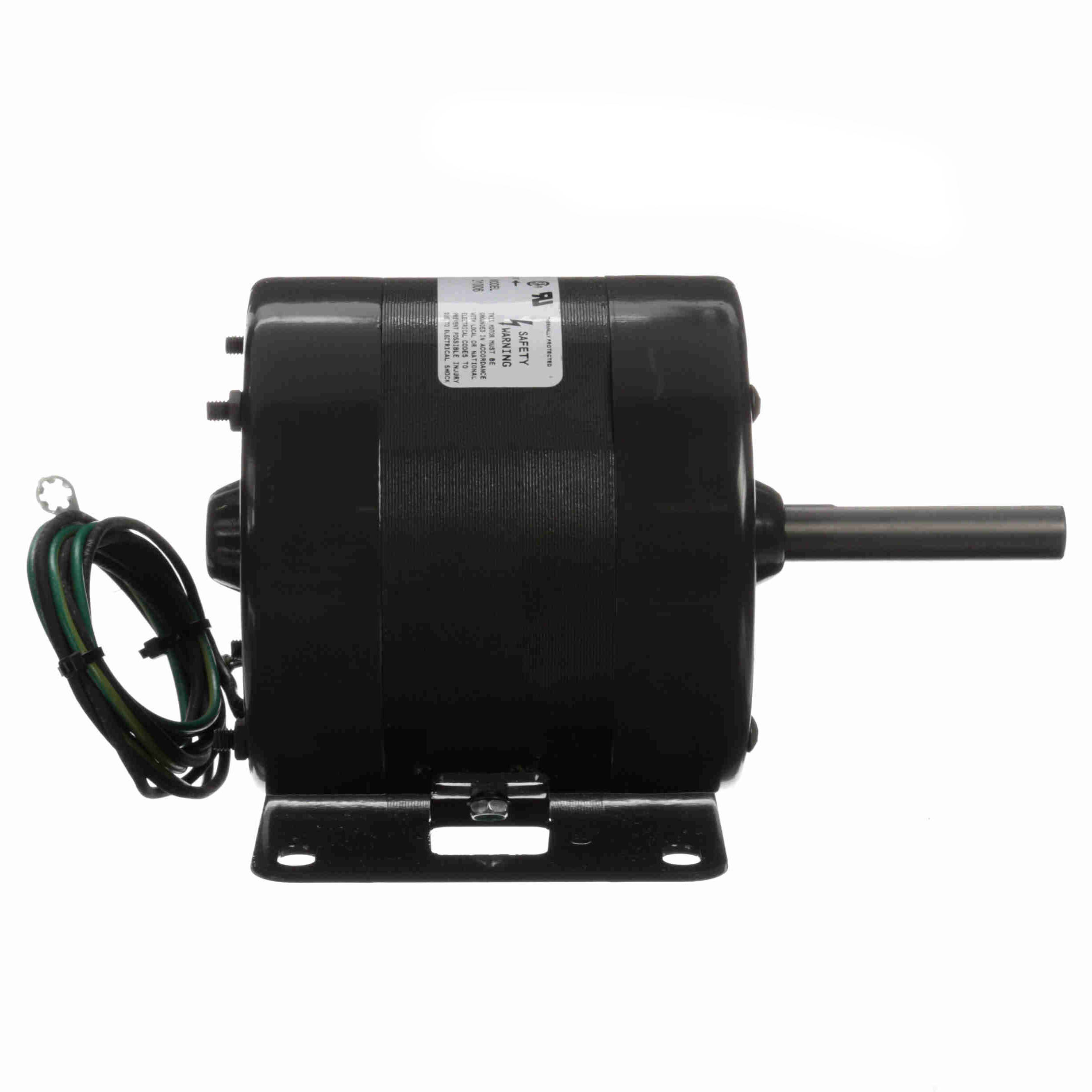

D1006 Fasco 1/4HP Electric Motor, 4.4" Diameter, 1600RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1006

Selected accessories will also be added to cart
$312.97 / Each
Quantity:
Open Air Over, 115VAC Single Phase 60Hz, CWSE, 0.50" x 2.75" Shaft, Sleeve Bearing, Shaded Pole

Features

Features
  • OEM Direct Replacement Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 24" Leads
  • Rigid Base

General Specifications

General Specifications
Model : Catalog No : D1006
Part Description : 71087126.MOTOR.4.40" DIA..1/4 HP.1 SPD. Category : OEM Replacement
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/4 HP Output KW : 0.19 kW
Frequency : 60 Hz Voltage : 115 V
Current : 7.2 A Speed : 1600 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 4.4 Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 4 Rotation : Clockwise Shaft End
Mounting : Rigid Base Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat Overall Length : 7.37 in
Shaft Diameter : 0.500 in Shaft Extension : 2.75 in
UPC : 815585027492 Weight : 9.00 LB
