3.3" Diameter
/
D0746 Fasco 1/12HP OEM Replacement Electric Motor, 1550/1300RPM
Click Image to Expand
Previous
Next
Product ID: D0746

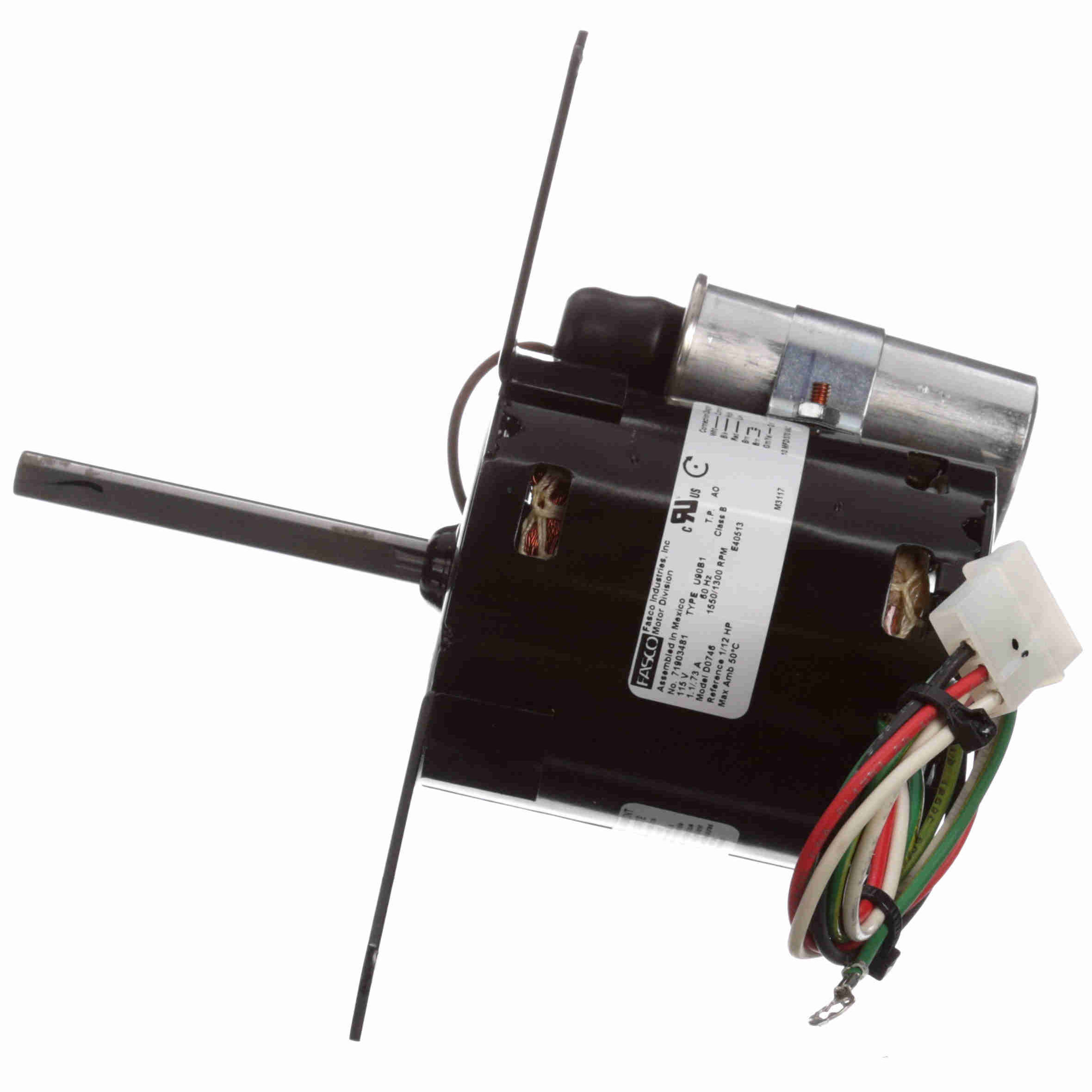

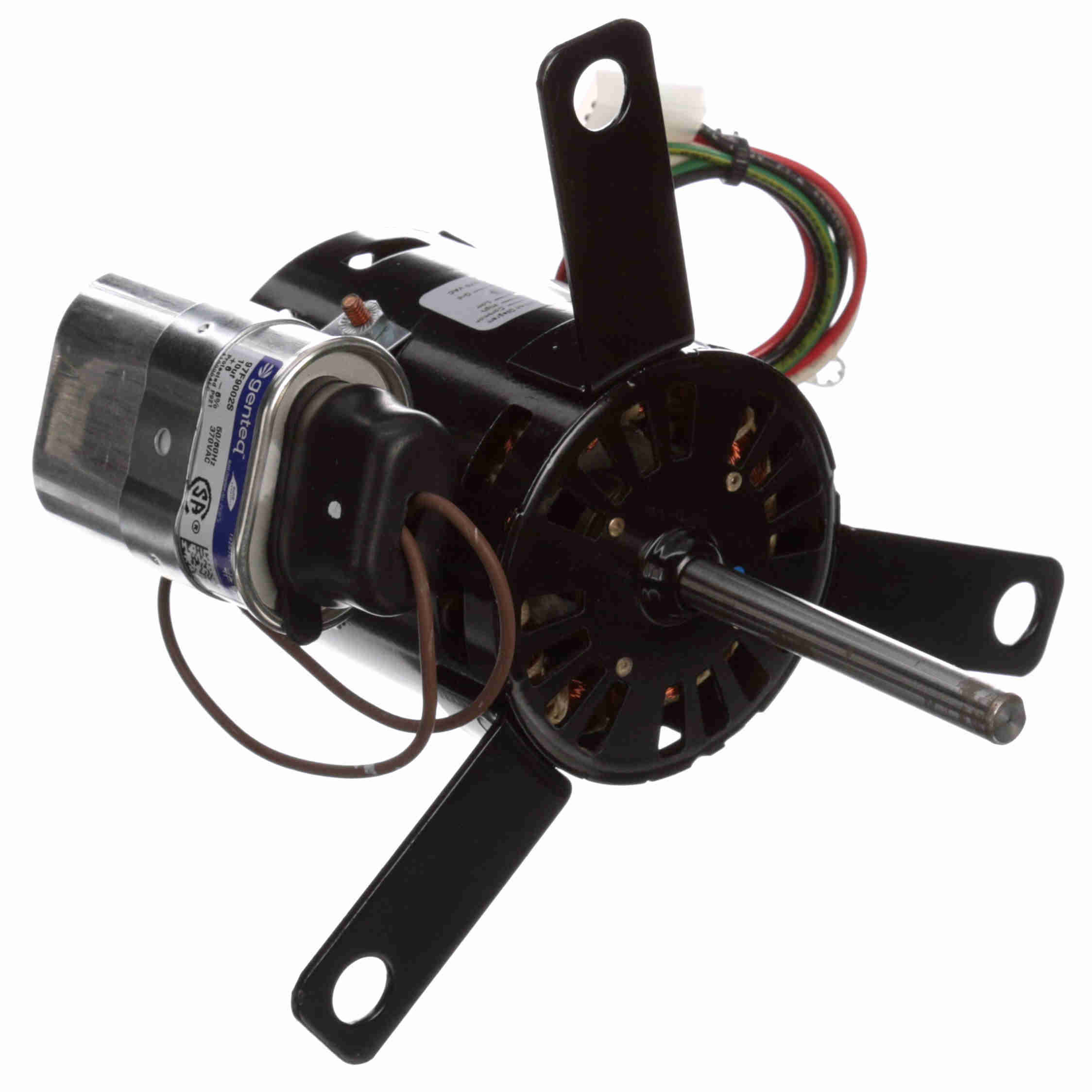

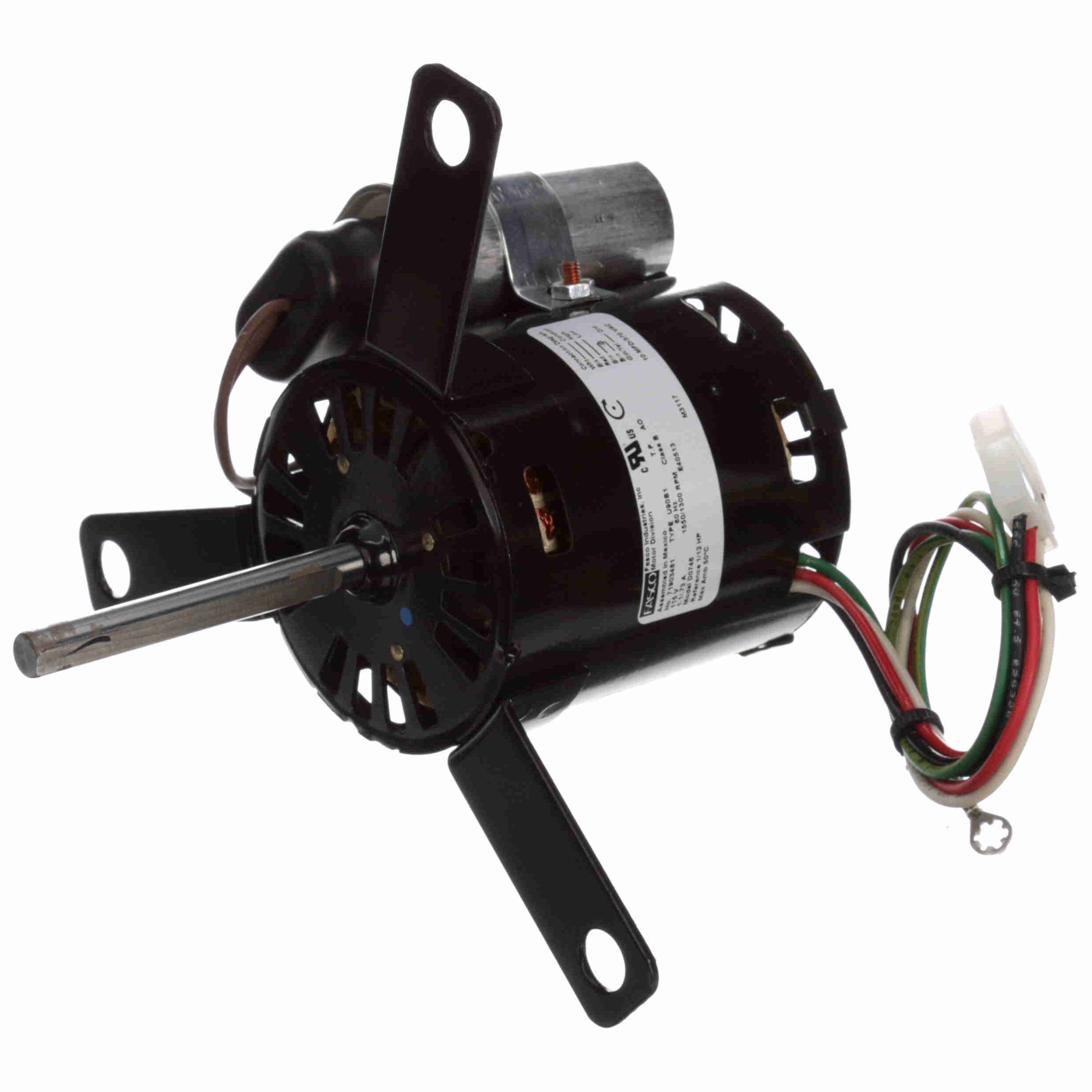

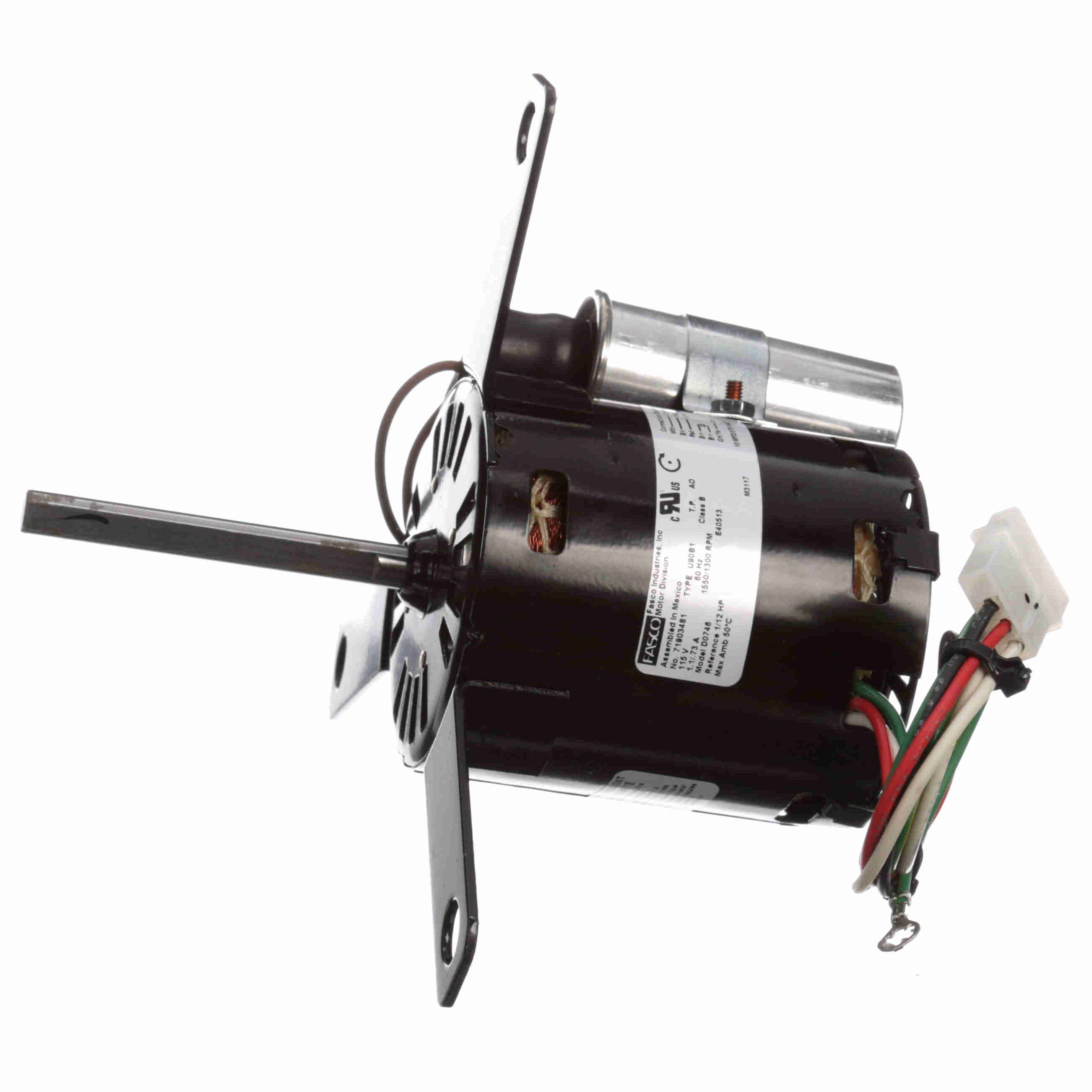

D0746 Fasco 1/12HP OEM Replacement Electric Motor, 1550/1300RPM
MFG: Fasco (RegalRexnord)
MFG Part Number: D0746
Selected accessories will also be added to cart
$171.97 / Each
Quantity:
OAO, 3.3" Diameter, 115VAC 60Hz Single Phase, 2 Speed, Lug Mounting, Sleeve Bearings, 3/8" x 3.45" Shaft, CWSE
Details
Features
OEM Direct Replacement Motor
3.3" Diameter
Permanent Split Capacitor
Thermally Protected
Open Air Over
Class B Insulation, 50°C Ambient
Sleeve Bearing
3/8" Diameter Shaft with Flat
12" Leads with Plug Assembly
Lug Mounting
General Specifications
UPC:
815585027393
Weight:
5 LB
Packaged Length:
8.13 IN
Packaged Width:
8.13 IN
Packaged Height:
8.38 IN
Nameplate Specifications
Output HP:
1/12 Hp
Output KW:
0.06 kW
Frequency:
60 Hz
Voltage:
115 V
Current:
1.10/0.73 A
Speed:
1550/1300 rpm
Service Factor:
1
Phase:
1
Duty:
Air Over
Insulation Class:
B
Frame:
3.3
Enclosure:
Open Air Over
Thermal Protection:
Thermally Protected
Ambient Temperature:
50 °C
UL:
Recognized
CSA:
N
CE:
N
Technical Specifications
Electrical Type:
Permanent Split Capacitor
Starting Method:
Across The Line
Poles:
4
Rotation:
Clockwise Shaft End
Mounting:
Lug
Drive End Bearing:
Sleeve
Opp Drive End Bearing:
Sleeve
Frame Material:
Steel
Shaft Type:
Flat
Overall Length:
7.38 in
Frame Length:
3.93 in
Shaft Diameter:
0.375 in
Shaft Extension:
3.45 in
