/3.3" Diameter/D0314 Fasco 1/40HP Ventilation Electric Motor, 1550RPM
Click Image to Expand

Product ID: D0314

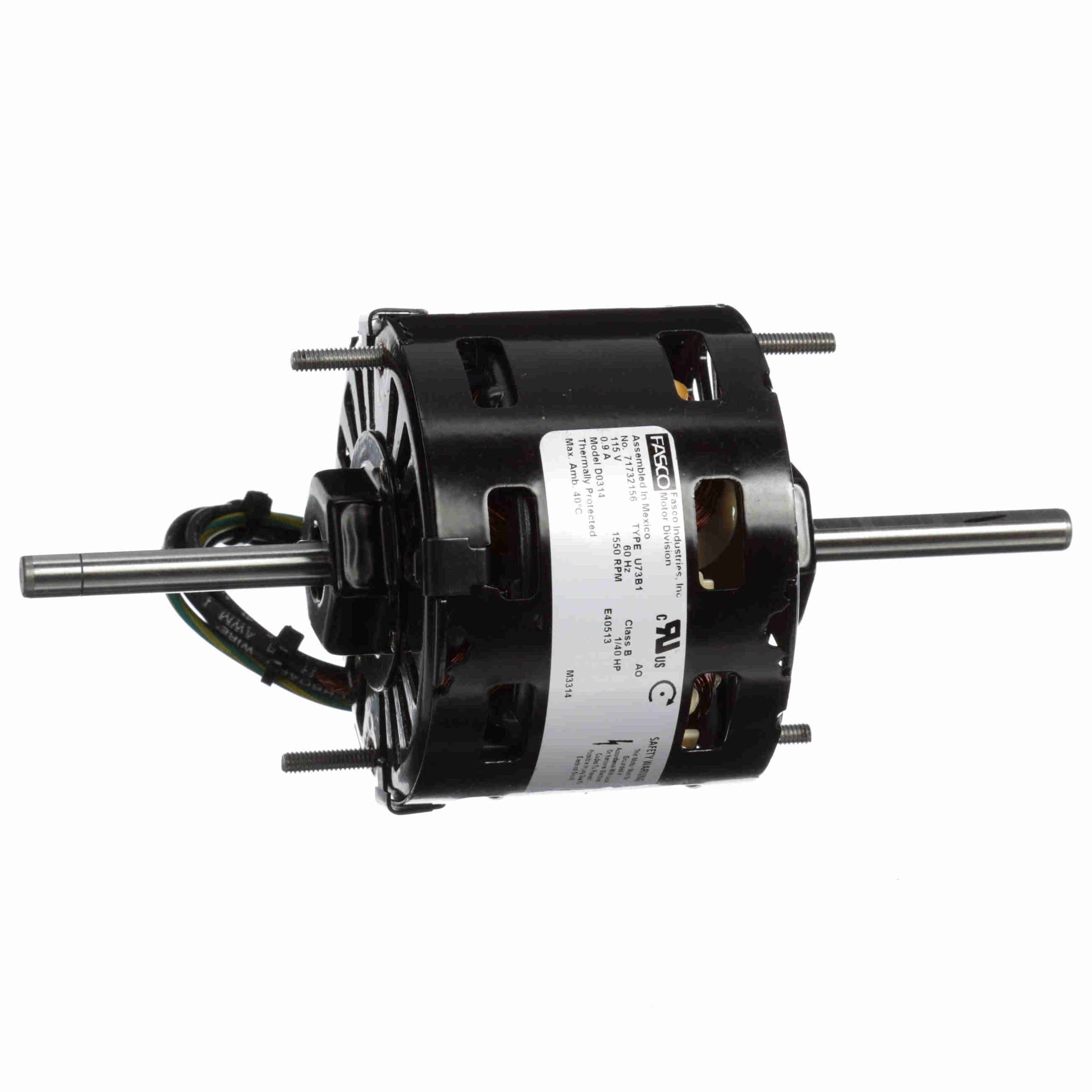

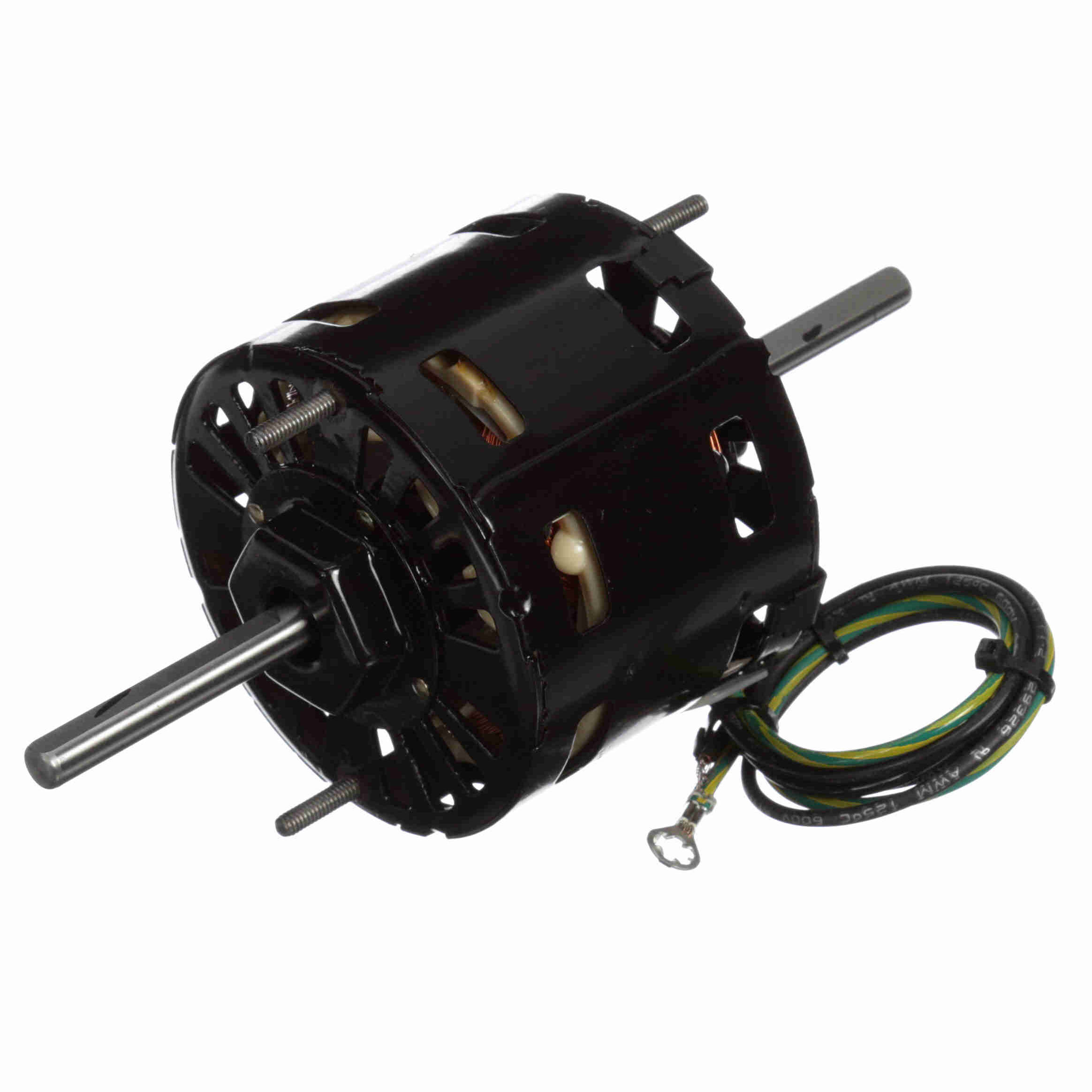

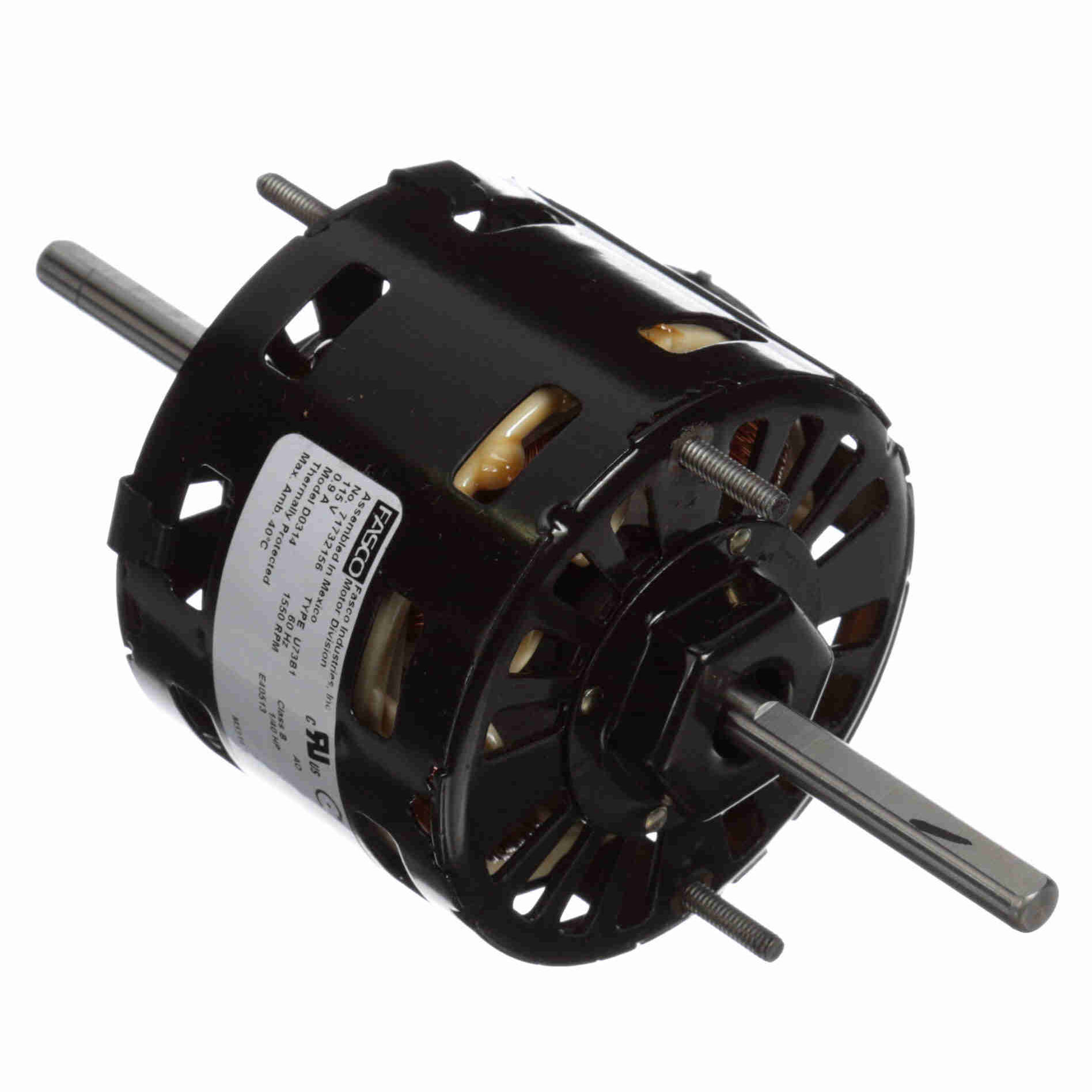

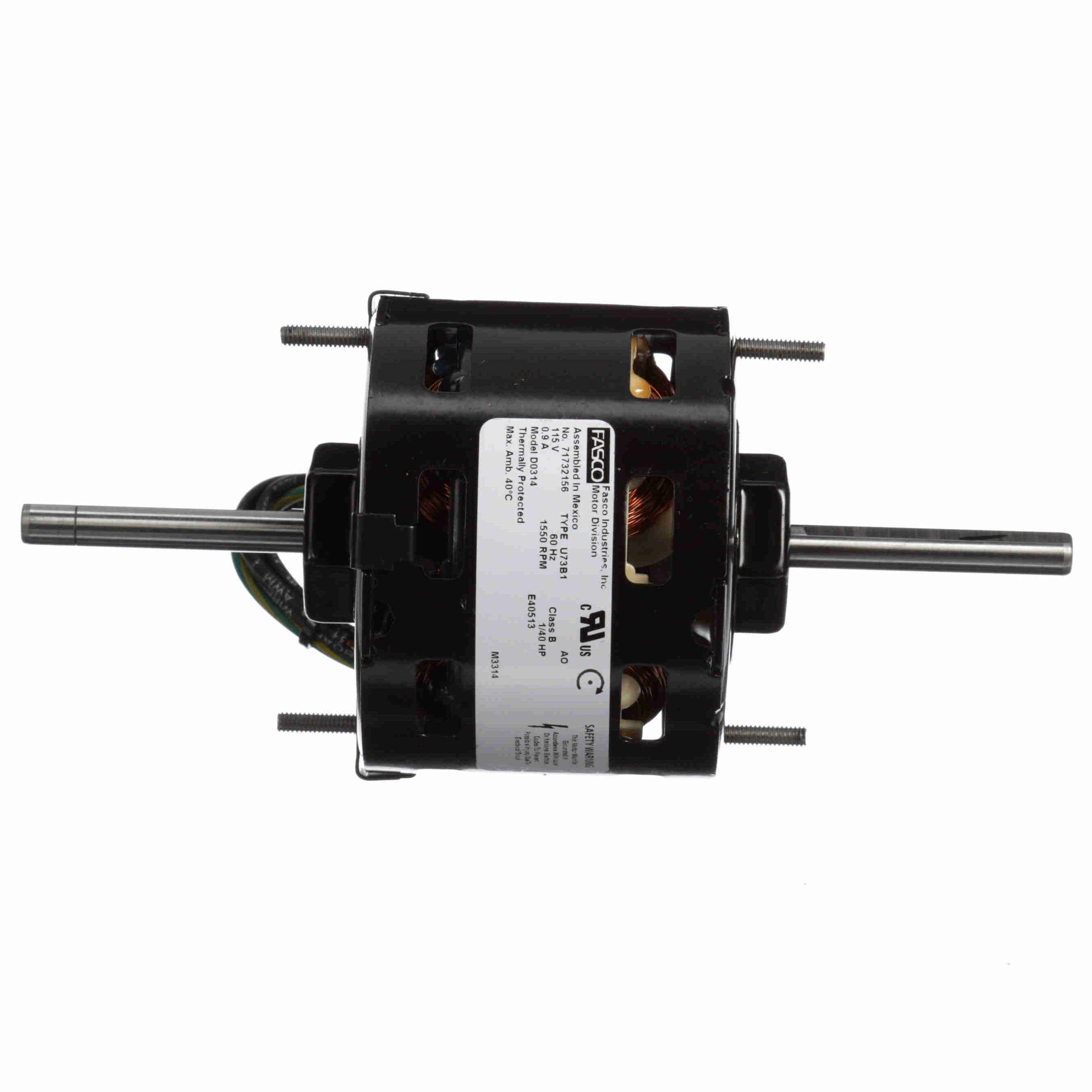

D0314 Fasco 1/40HP Ventilation Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D0314

Selected accessories will also be added to cart
$124.97 / Each
Quantity:
OAO, 3.3" Diameter, 115VAC 60Hz Single Phase, Single Speed, Extended Studs, Sleeve Bearing, 5/16" x 2.44" Shaft, CWSE

Features

  • Room Air Conditioning and Double Blower Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Double Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End, Belly Band

General Specifications

UPC: 815585027256 Weight: 3 LB
Packaged Length: 11 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN

Nameplate Specifications

Output HP: 1/40 Hp Output KW: 0.02 kW
Frequency: 60 Hz Voltage: 115 V
Current: 0.90 A Speed: 1550 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: N
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 7.38 in
Frame Length: 2.56 in Shaft Diameter: 0.313 in
Shaft Extension: 2.44 in
