/Products/Electric Motors/Single Phase/Century/Century US1036 Unit Heater Fan Motor, 1/3HP
Click Image to Expand

Product ID: US1036

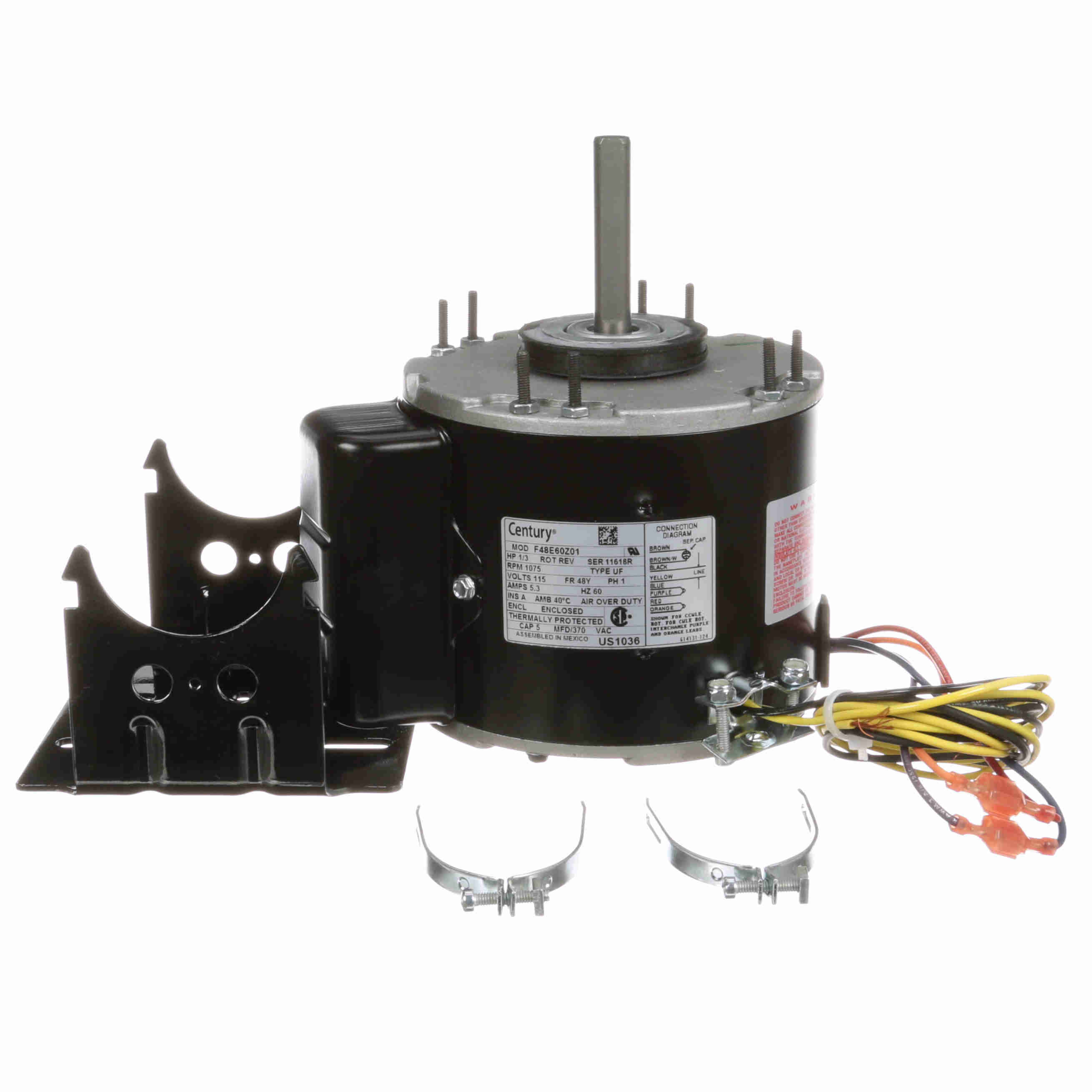

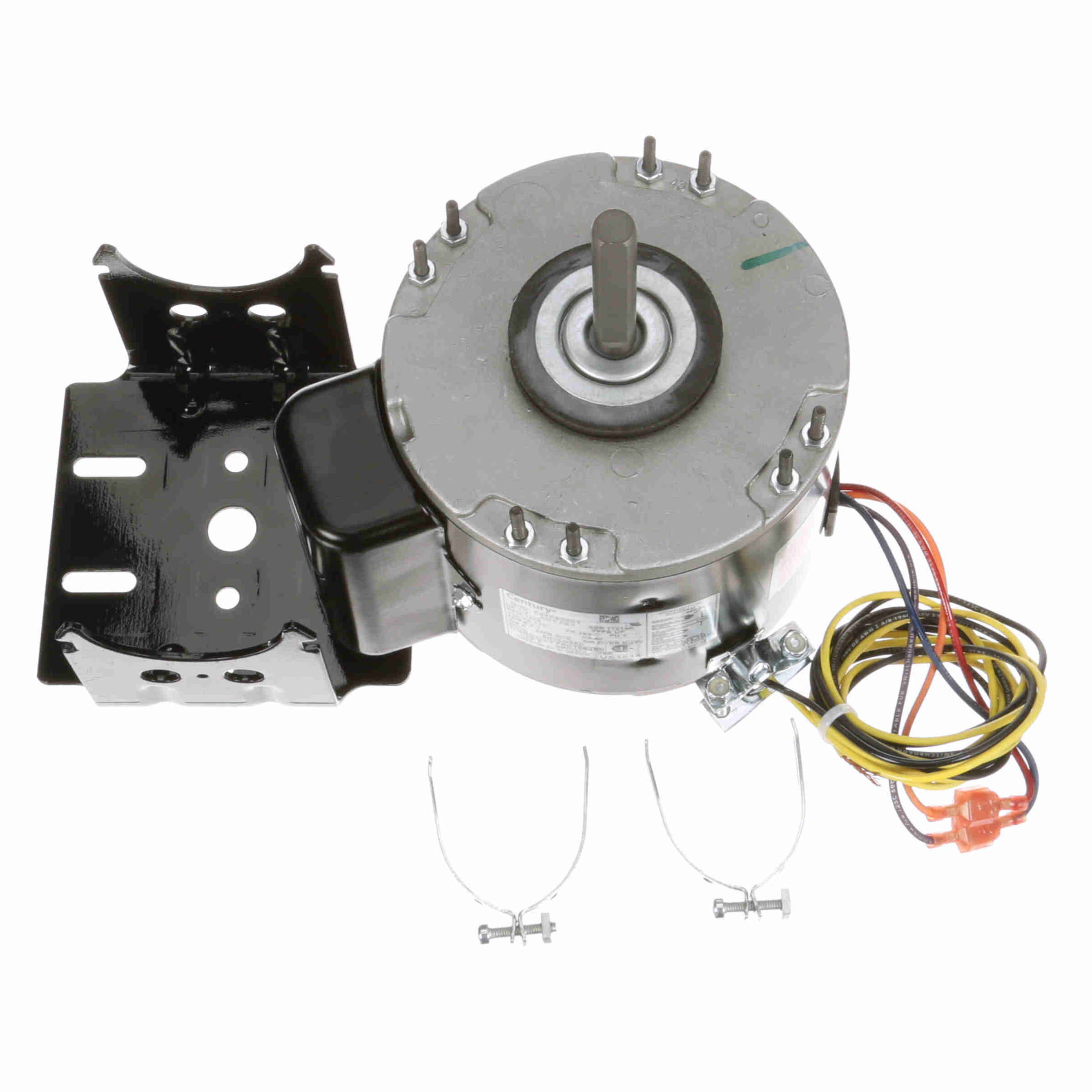

Century US1036 Unit Heater Fan Motor, 1/3HP

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: US1036

Selected accessories will also be added to cart
$259.97 / Each
Quantity:
48Y, 1075RPM, 115Vac 60Hz 1-Phase, Air Over
Features
  • Unit Heater Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 58" Leads
  • Extended Studs Shaft End, Resilient Rings, Resilient Base
General Specifications
Model : Catalog No :US1036
Part Description :MODEL-RFHP-48FR Category :Unit Heater
Stock :Yes
Nameplate Specifications
Output HP :1/3 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :115 V
Current :5.3 A Speed :1075 rpm
Service Factor :1 Phase :1
Duty :Air Over Insulation Class :A
Frame :48Y Enclosure :Totally Enclosed
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N
Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Induction Run
Poles :6 Rotation :Reversible
Mounting :Resilient Rings Motor Orientation :Horizontal
Drive End Bearing :Sleeve Opp Drive End Bearing :Sleeve
Frame Material :Rolled Steel Shaft Type :Flat
Overall Length :8.10 in Frame Length :4.00 in
Shaft Diameter :0.500 in Shaft Extension :2.9 in
UPC :786674033154 Weight :15.00 LB
