/Products/Electric Motors/Single Phase/Century/Oil Burner/Century OL1072D Oil Burner Motor, 3/4HP 3450RPM
Click Image to Expand

Product ID: OL1072D

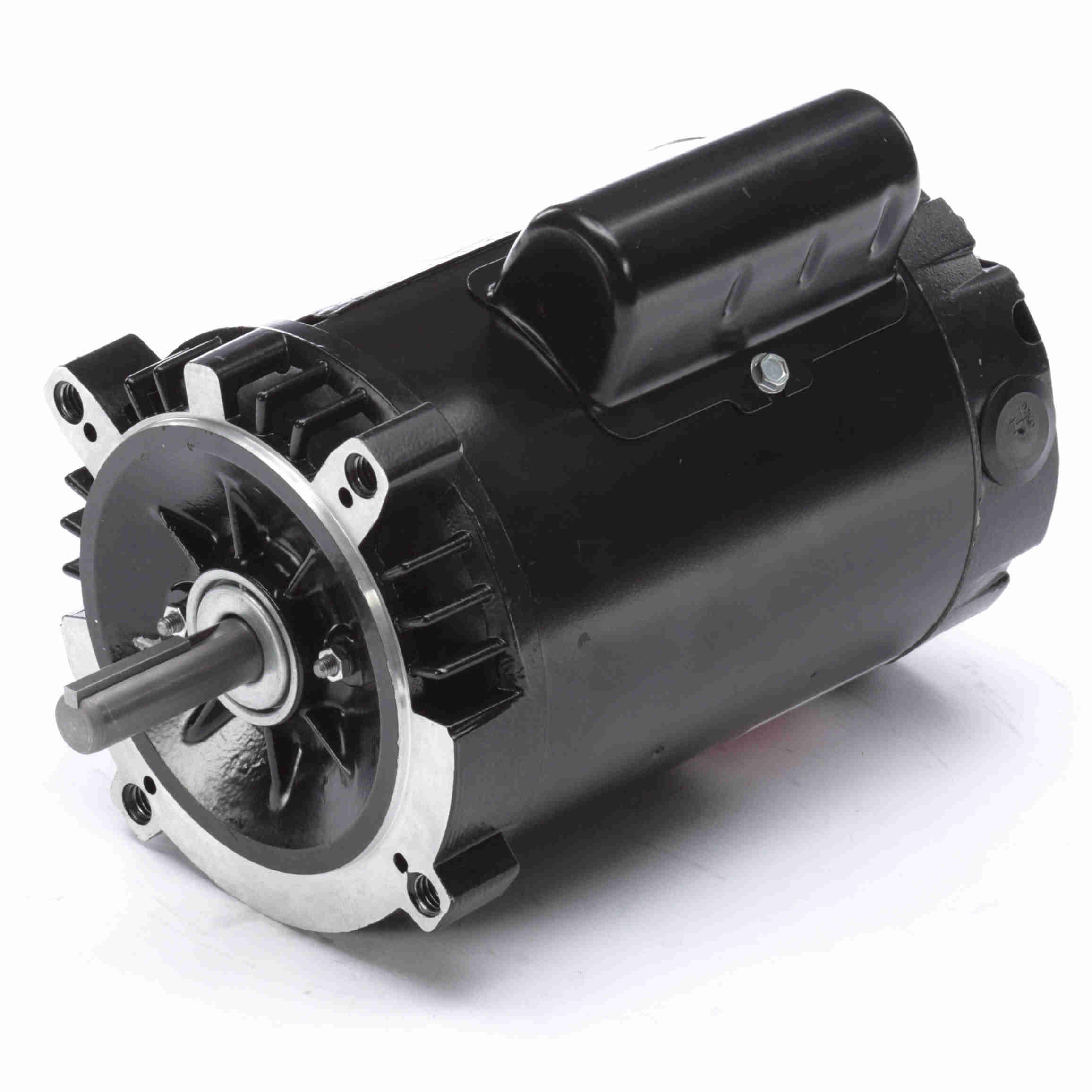

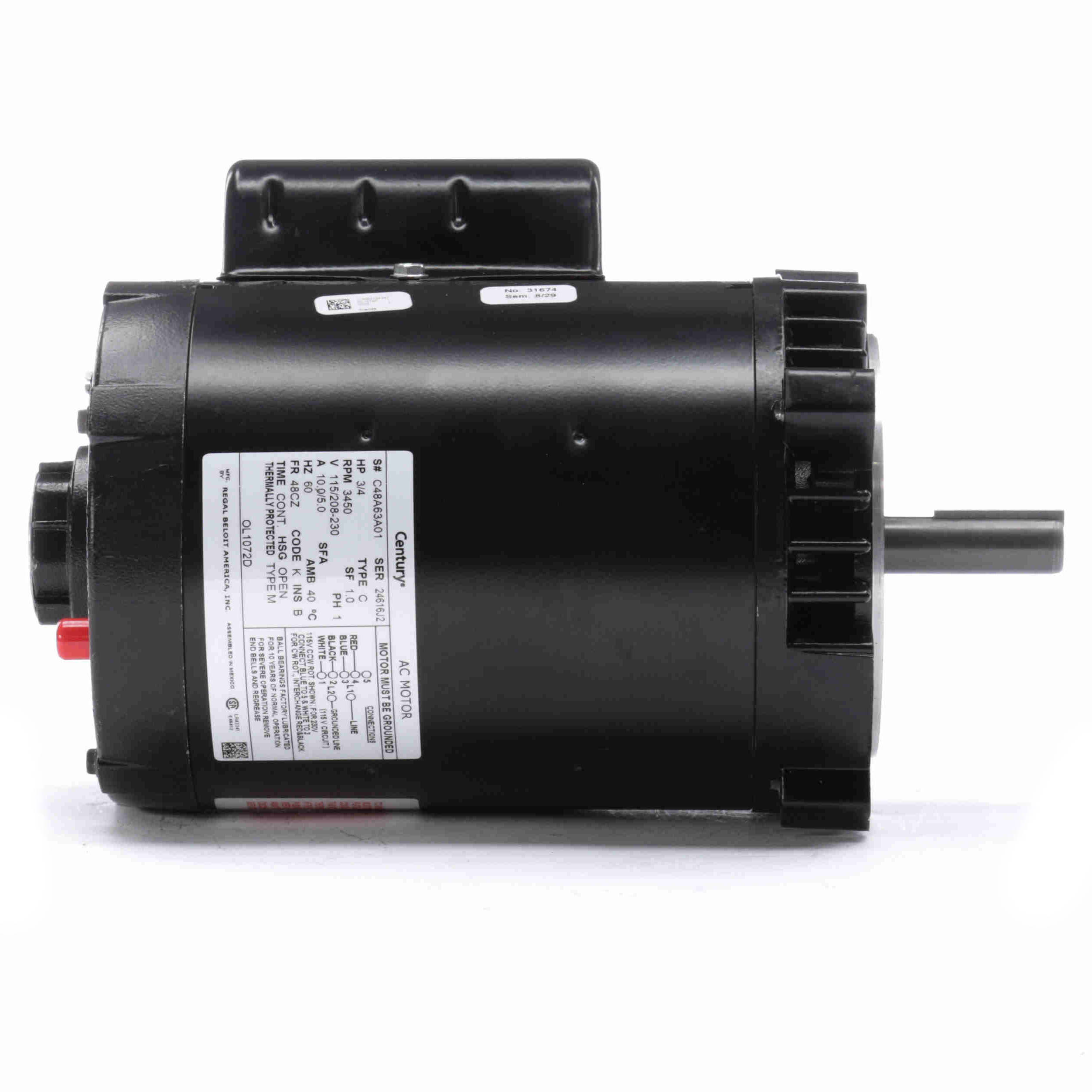

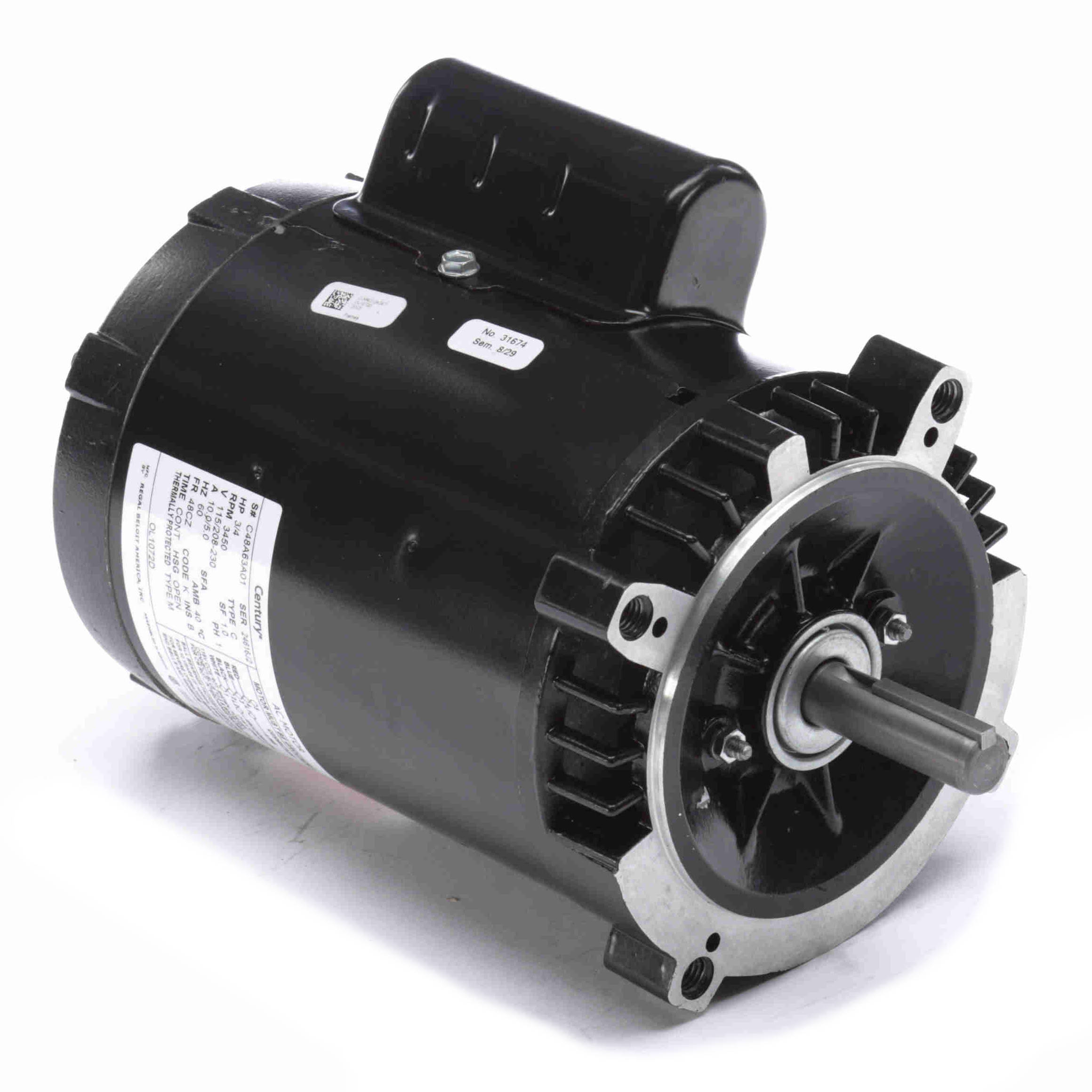

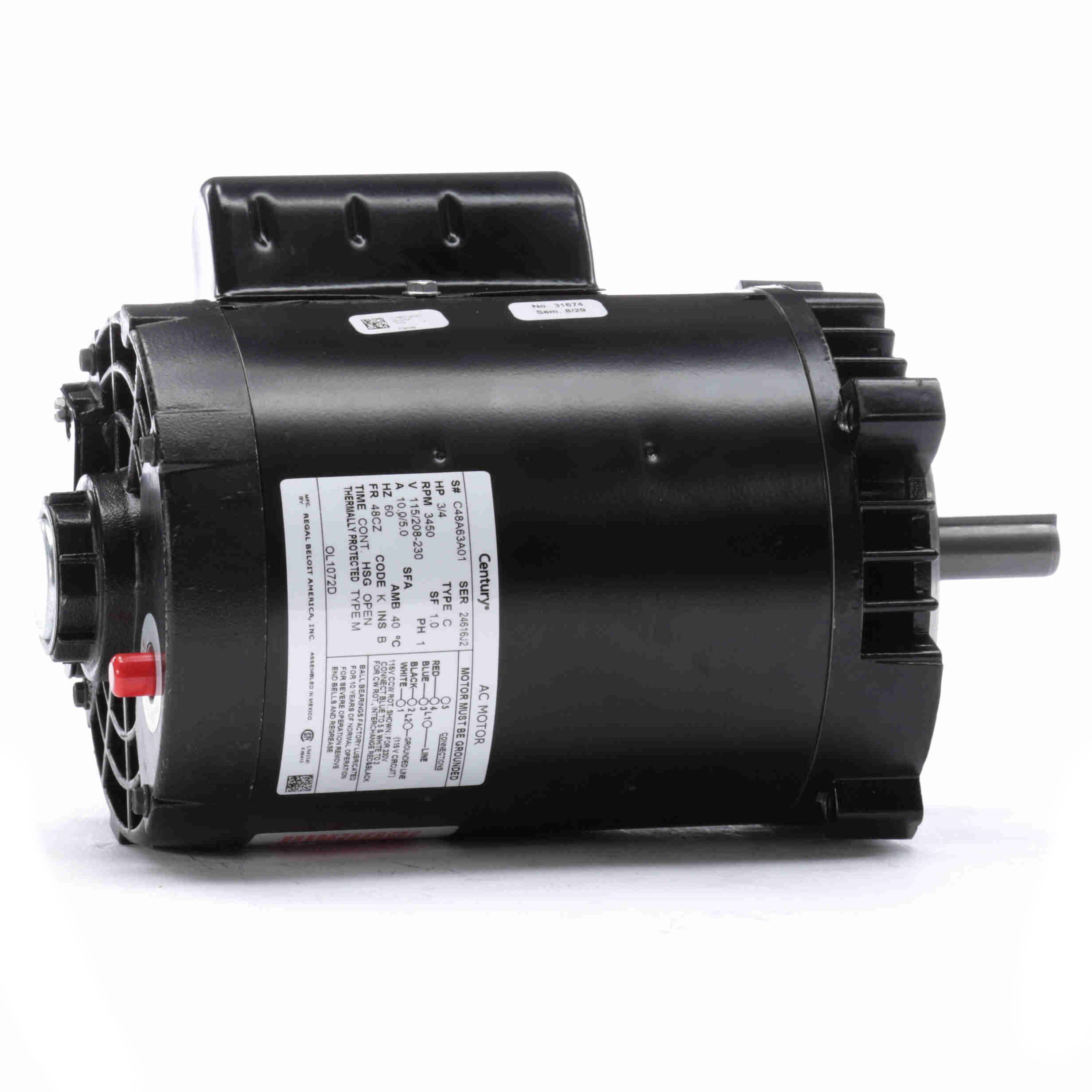

Century OL1072D Oil Burner Motor, 3/4HP 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: OL1072D

Selected accessories will also be added to cart
$93.97 / Each
Quantity:
48CZ Frame, 115/208-230VAC 60Hz Single Phase, Round Body, C-Face, Rolled Steel, 5/8" Shaft
Features
  • 5/8” keyed shaft
  • "Quick connect" terminal board
General Specifications
Model : Catalog No :OL1072D
Part Description :3/4,3450,OPEN,48CZ,1/60/115/208-230 Category :Oil Burner
Stock :Yes
Nameplate Specifications
Output HP :3/4 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :10.0/5.0 A Speed :3450 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :48CZ Enclosure :Open Enclosed
Overload Protector :Manual Ambient Temperature :40 °C
UL :No CSA :Y
CE :N
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :C Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :10.81 in
Frame Length :5.94 in Shaft Diameter :0.625 in
Shaft Extension :2.06 in UPC :786674027801
Weight :20.00 LB
