/Products/Electric Motors/Single Phase/Century/Oil Burner/Century OL1032D Oil Burner Motor, 1/3HP 3450RPM
Click Image to Expand

Product ID: OL1032D

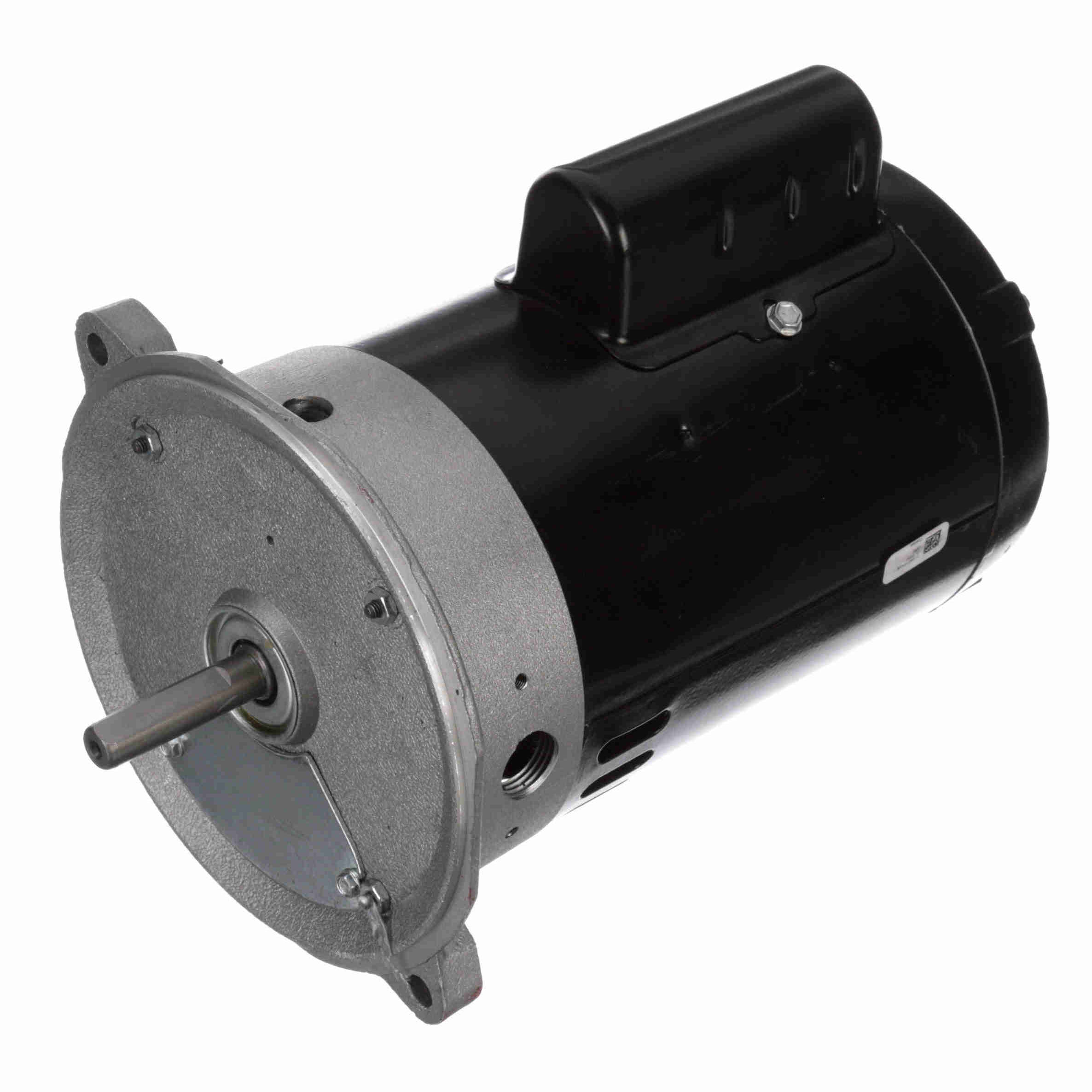

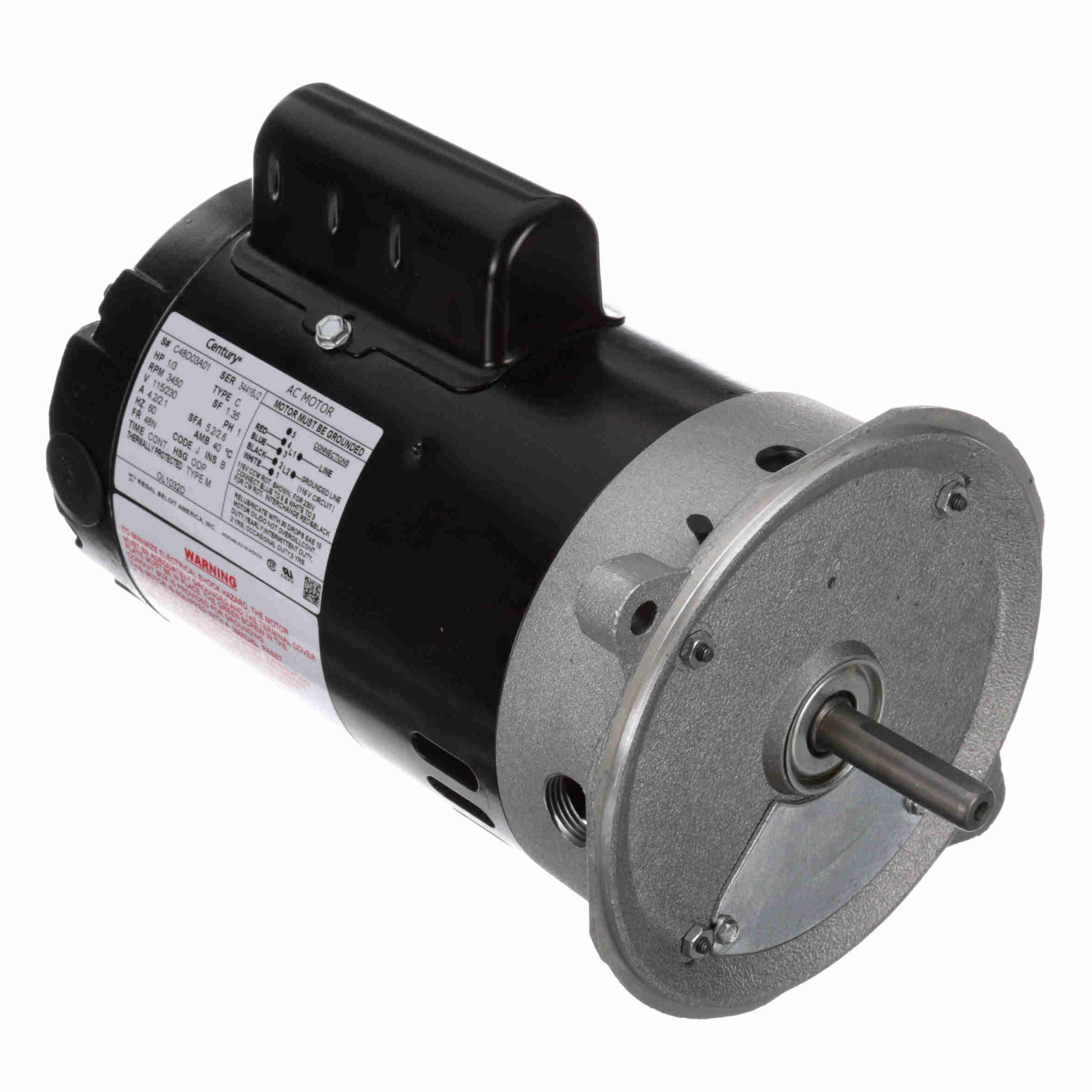

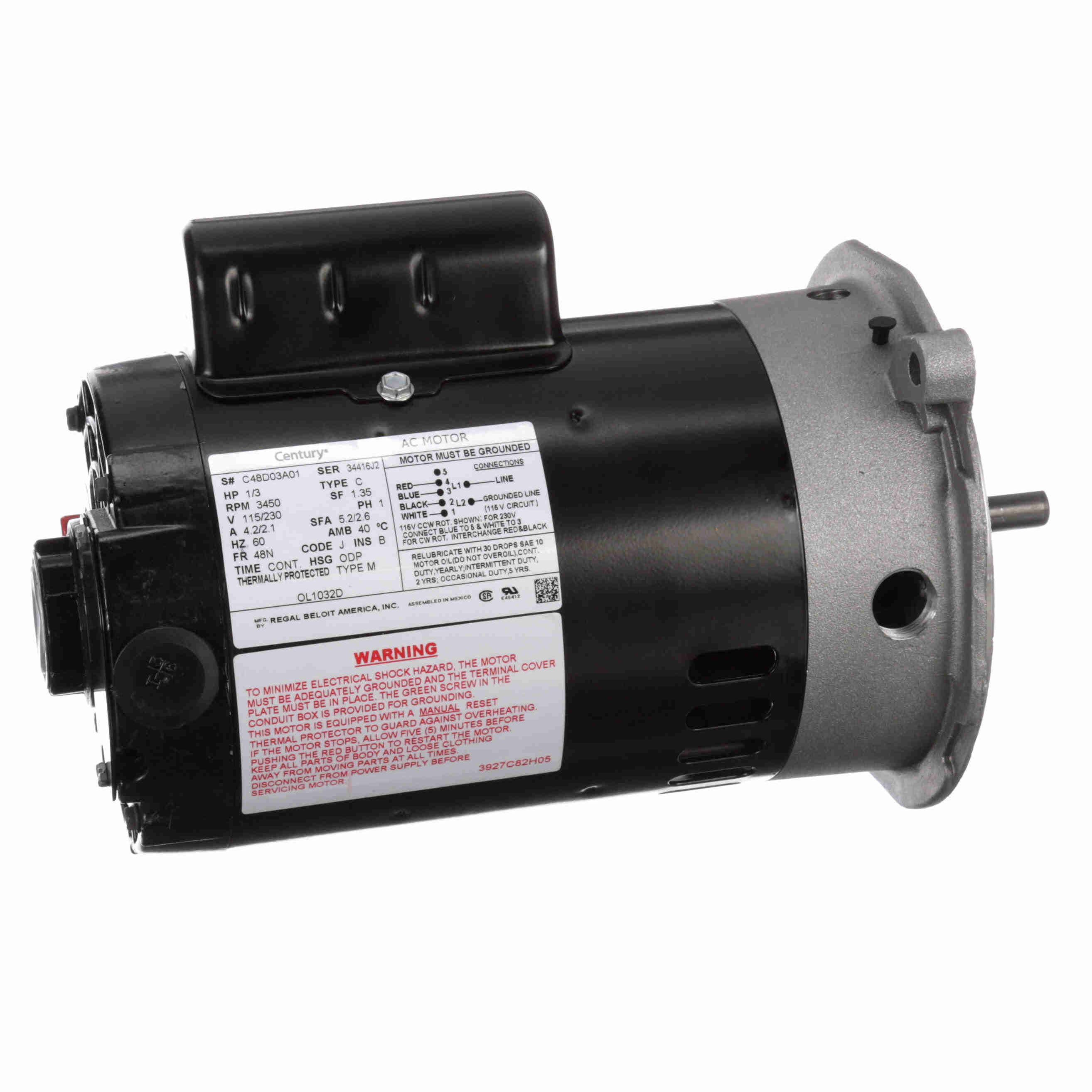

Century OL1032D Oil Burner Motor, 1/3HP 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: OL1032D

Selected accessories will also be added to cart
$291.97 / Each
Quantity:
48N Frame, 115/230V 60Hz 1-Phase, Open Drip Proof
Features
  • Sleeve bearing
  • "Quick connect" terminal board
General Specifications
Model : Catalog No :OL1032D
Part Description :1/3,3450,ODP,48N,1/60/115/230 Category :Oil Burner
Stock :Yes
Nameplate Specifications
Output HP :1/3 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :115/230 V
Current :4.2/2.1 A Speed :3450 rpm
Service Factor :1.35 Phase :1
Duty :Continuous Insulation Class :B
Frame :48N Enclosure :Open Drip Proof
Overload Protector :Manual Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :N Drive End Bearing :Sleeve
Opp Drive End Bearing :Sleeve Frame Material :Rolled Steel
Shaft Type :Flat Overall Length :11.91 in
Frame Length :6.44 in Shaft Diameter :0.500 in
Shaft Extension :2 in UPC :786674027788
Weight :20.00 LB
