/Products/Electric Motors/Single Phase/Century/Convection Oven/Century F268V1 Convection Oven Motor, 1/2HP 1725RP
Click Image to Expand

Product ID: F268V1

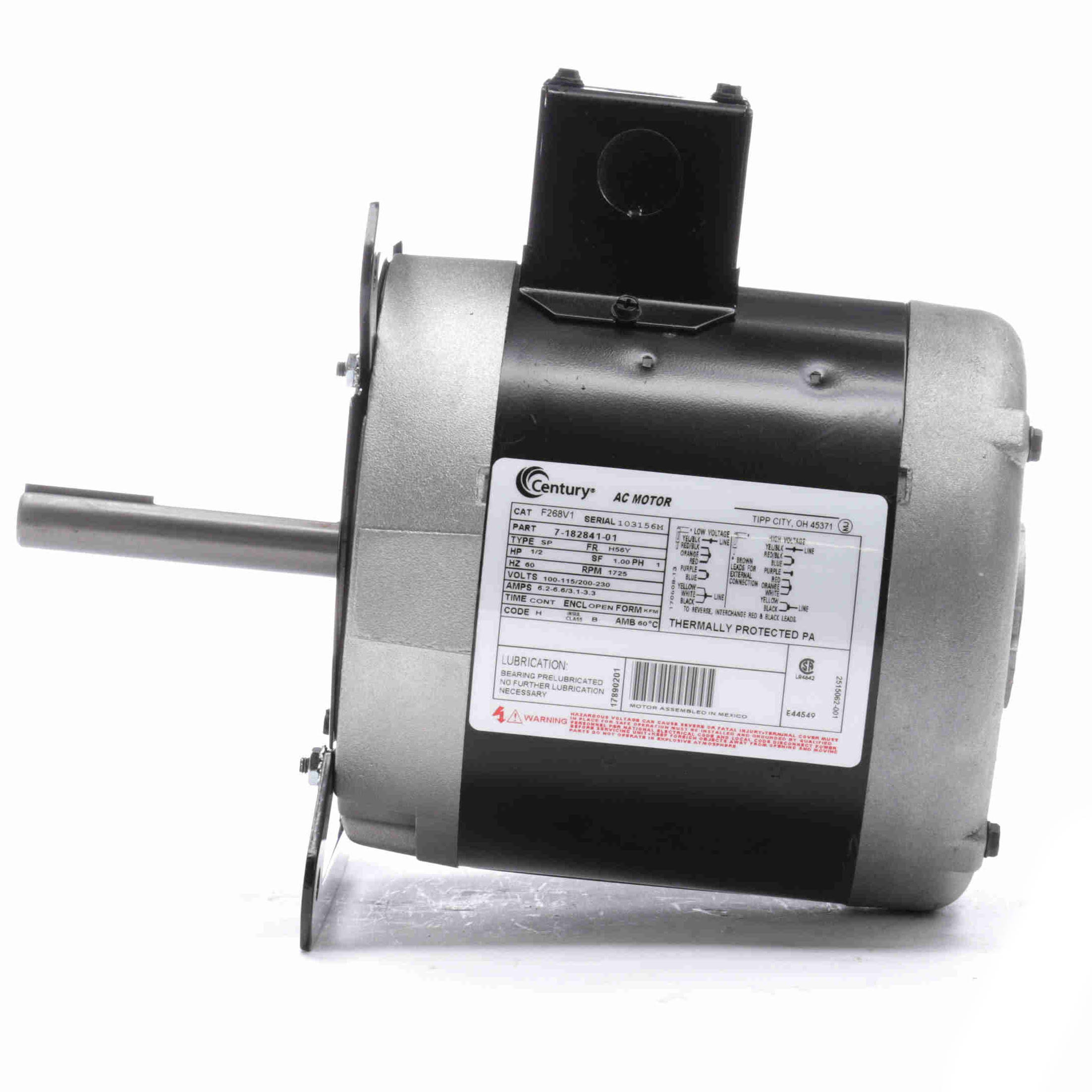

Century F268V1 Convection Oven Motor, 1/2HP 1725RP

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: F268V1

Selected accessories will also be added to cart
$764.97 / Each
Quantity:
H56Y Frame, 100-115/200-230V 60Hz 1-Phase
Features
  • Double sealed ball bearings
  • Automatic reset overload protector
  • Proofing switch included
General Specifications
Model : Catalog No :F268V1
Part Description :1/2,1725,OPEN,56Y,1/60/100-115/200-230 Category :Convection and Pizza Oven
Stock :Yes
Nameplate Specifications
Output HP :1/2 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :100-115/200-230 V
Current :6.2-6.6/3.1-3.3 A Speed :1725 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :H56Y Enclosure :Open Enclosed
Overload Protector :Thermally Protected Ambient Temperature :60 °C
UL :Recognized CSA :Y
CE :N
Technical Specifications
Electrical Type :Split Phase, Induction Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :4 Rotation :Reversible Clockwise
Mounting :Round Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :10.62 in
Frame Length :4.13 in Shaft Diameter :0.625 in
Shaft Extension :3.5 in UPC :786674070470
Weight :21.00 LB
