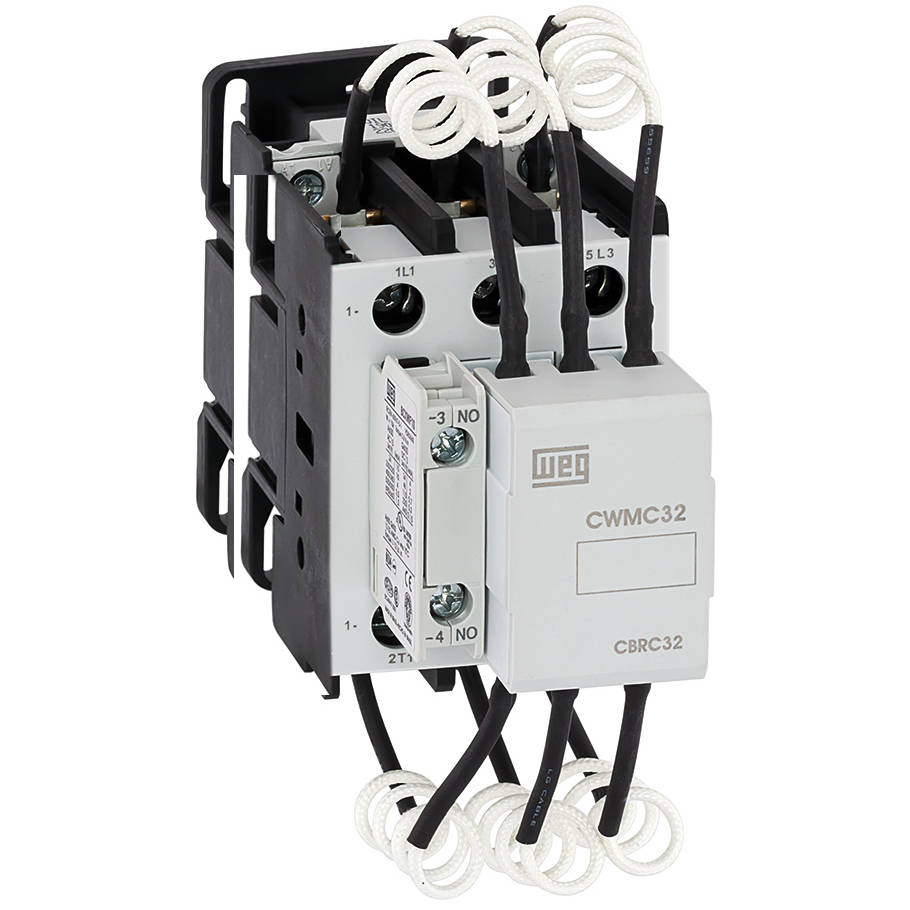

CWMC32-10-30C34 WEG Capacitor Switching Contactor, 3 NO Power Poles, 32 Amps
Enlarge Photo

Product ID: CWMC32-10-30C34

CWMC32-10-30C34 WEG Capacitor Switching Contactor, 3 NO Power Poles, 32 Amps

MFG: WEG Electric Corporation
MFG Part Number: CWMC32-10-30C34

Selected accessories will also be added to cart
$131.15 / Each
Quantity:
11109983, 24-28VDC Coil, 1 NO Auxiliary Contact
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 10 million
Electrical lifespan Not available
Degree of protection IP (IEC 60529) - Main circuit IP10
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 32 A / (AC-6b - T = 55°C) 40 A
Rated current In - AC-4 Not available
Rated operational Current Ie AC-1 (¿ = 55 ºC) Not available
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 162.5 mm (6.40 in)
Width 55 mm (2.17 in)
Depth 160 mm (6.30 in)
Gross weight 0,79 kg
