/Products/Electrical Components/WEG/Contactors/NEMA Contactors (CWM_N)/Size 00, 9 Amps (9N)/CWM9N-10-30V23 WEG Nema Rated Contactor S-00 208V

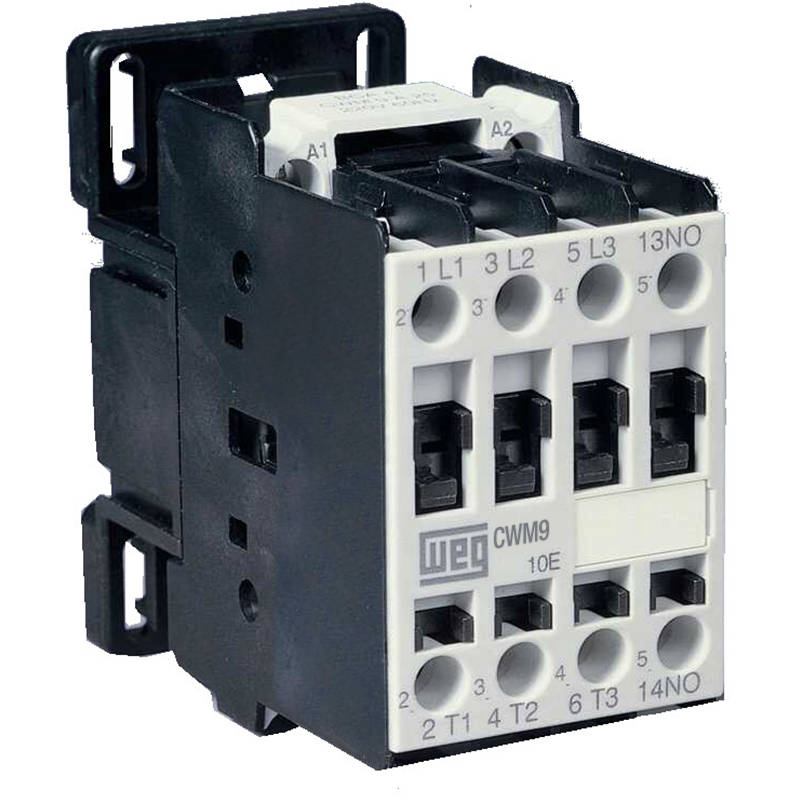

CWM9N-10-30V23 WEG Nema Rated Contactor S-00 208V
Enlarge Photo

Product ID: CWM9N-10-30V23

CWM9N-10-30V23 WEG Nema Rated Contactor S-00 208V

MFG: WEG Electric Corporation
MFG Part Number: CWM9N-10-30V23

Selected accessories will also be added to cart
$44.29 / Each
Quantity:
11697353, 180VAC 50Hz / 208VAC 60Hz Coil, 1 NO Auxiliary Contact
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 10 million
Electrical lifespan 1,5 million
Degree of protection IP (IEC 60529) - Main circuit IP20
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 9 A (N)
Rated current In - AC-4 5 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 25 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 81 mm (3.19 in)
Width 45 mm (1.77 in)
Depth 87 mm (3.43 in)
Gross weight 300 g
