/Products/Electrical Components/WEG/Contactors/IEC Contactors (CWM)/CWM50/CWM50-00-30C34 WEG IEC Contactor, 50 Amp, 3 NO Power Poles

Product ID: CWM50-00-30C34

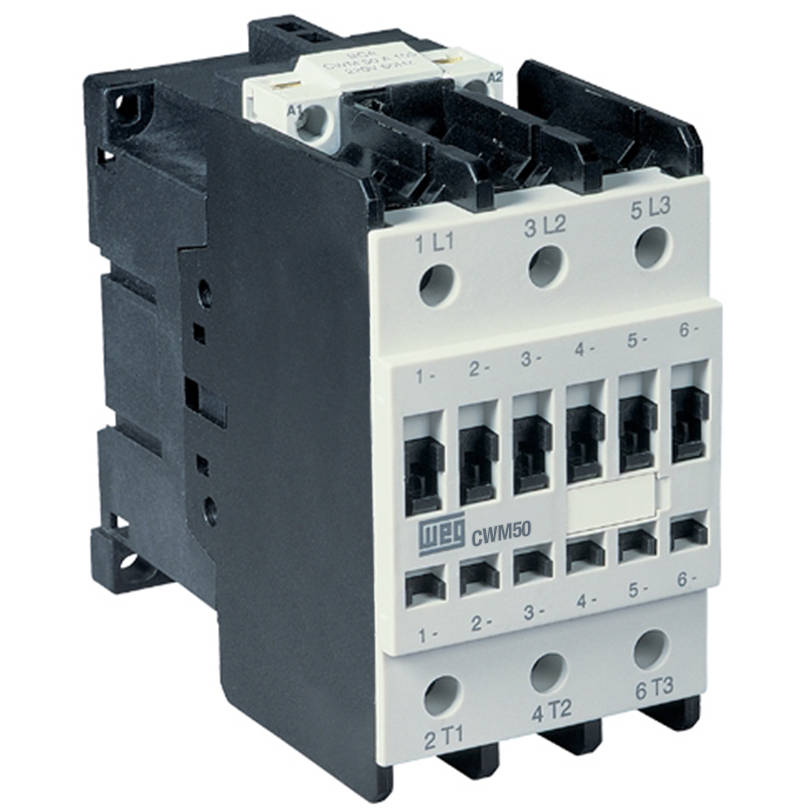

CWM50-00-30C34 WEG IEC Contactor, 50 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWM50-00-30C34

Selected accessories will also be added to cart

$133.30 / Each

Quantity:

24-28VDC Coil, No Auxiliary Contacts

Accessories

Select any of the accessories below to purchase them with this inventory item:

BCXMF01 WEG Auxiliary Contact Block, 1 NC Contact
$4.30 / Each
BCXMF10 WEG Auxiliary Contact Block, 1 NO Contact
$4.30 / Each
BCXML11 WEG Auxillary Contact Block, 1 NO /1 NC Contact
$9.46 / Each
BCXML20 WEG Side Auxiliary Contact Block, 2 NO
$9.46 / Each

Details
Purchase Components

Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1	1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA	600 V
Rated operational frequency - minimum	25 Hz
Rated operational frequency - maximum	400 Hz
Mechanical lifespan (AC)	10 million
Mechanical lifespan (DC)	10 million
Electrical lifespan	1.1 million
Degree of protection IP (IEC 60529) - Main circuit	IP10
Degree of protection IP (IEC 60529) - Control circuit	IP20

Rated current	50 A
Rated current In - AC-4	23 A
Rated operational Current Ie AC-1 (¿ = 55 ºC)	90 A
Rated operational voltage Ue - IEC 60947-4-1	1000 V
Rated operational voltage Ue - UL/CSA	600 V
Height	116.5 mm (4.59 in)
Width	66 mm (2.60 in)
Depth	116 mm (4.57 in)
Gross weight	3 kg
