Product ID: CWM25-00-30V37

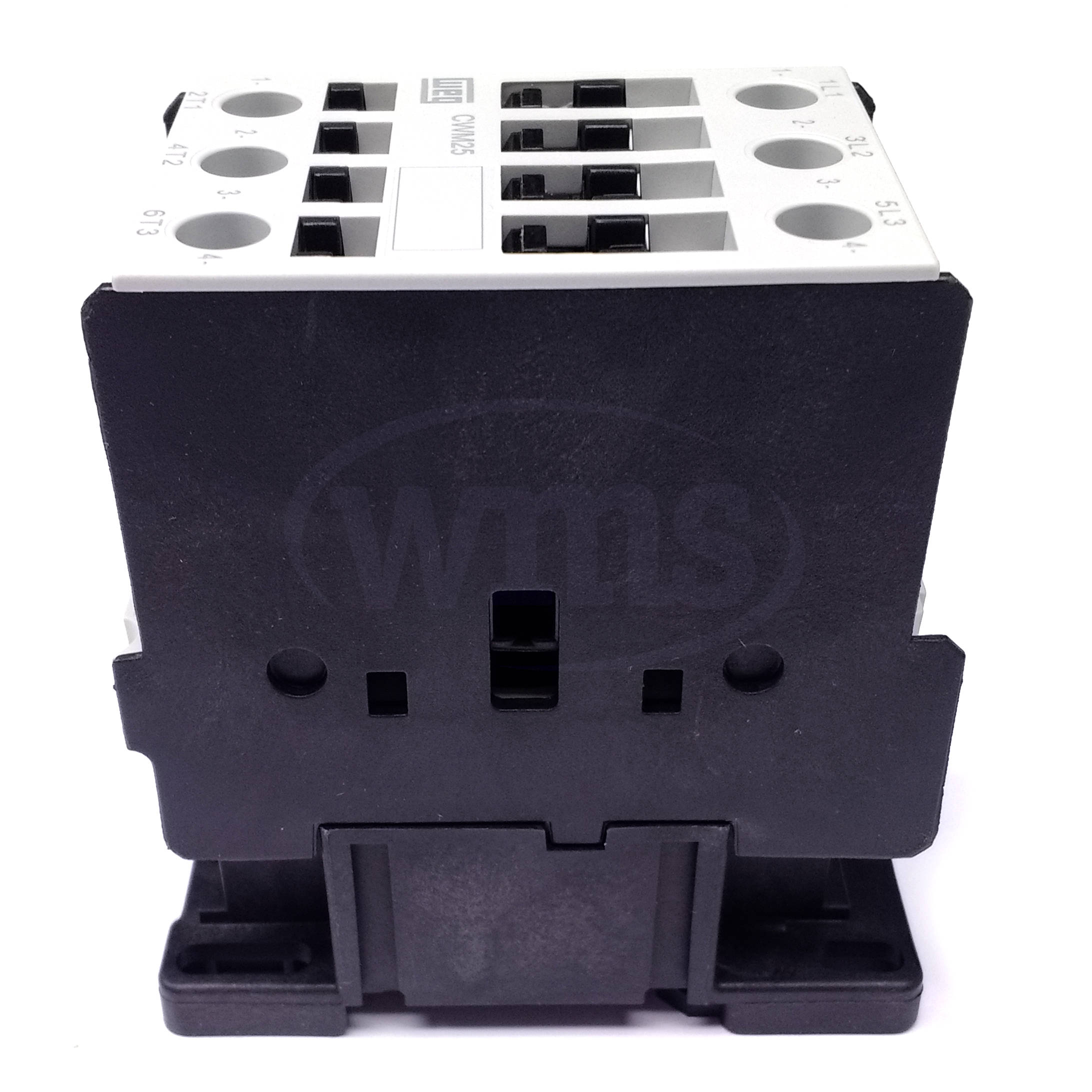

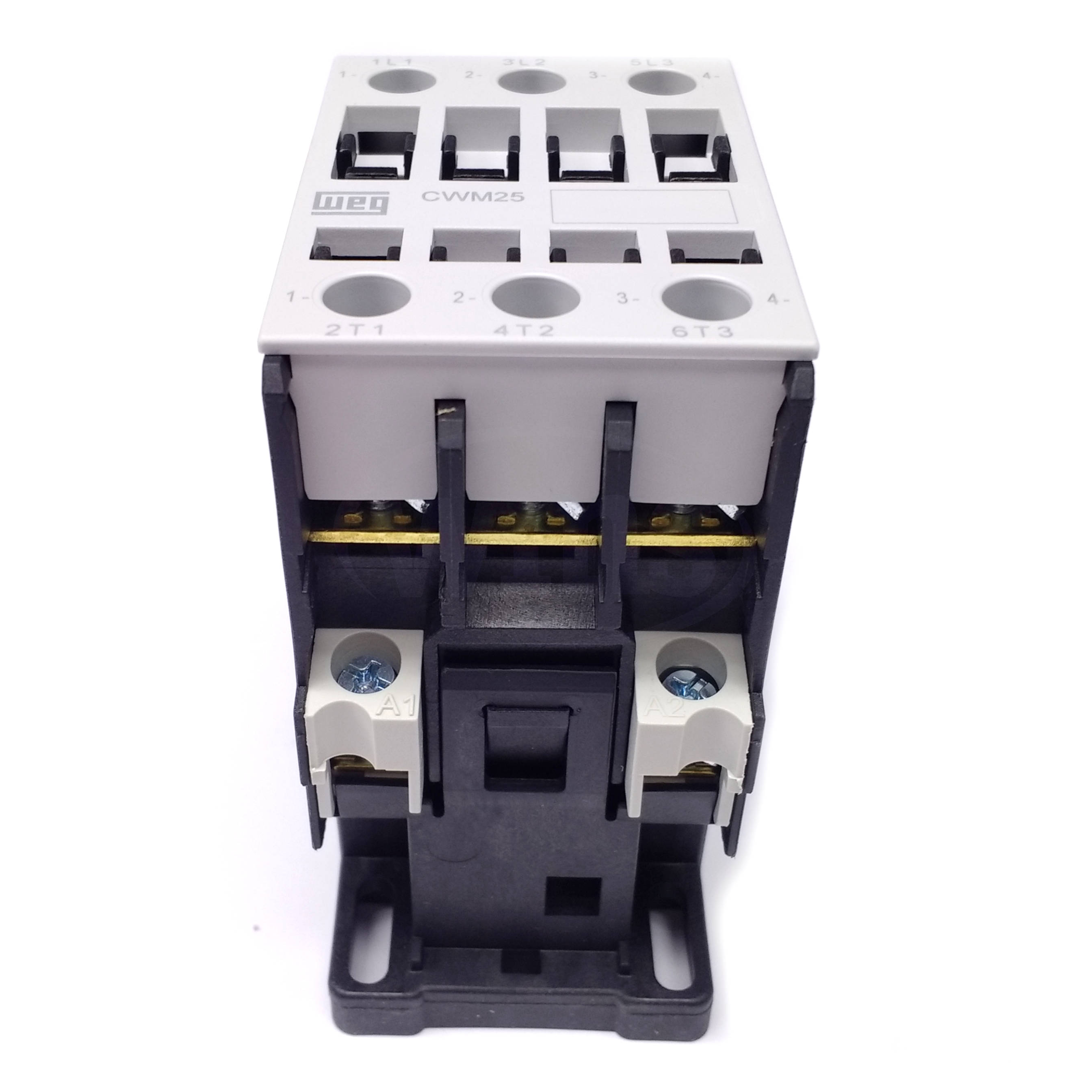

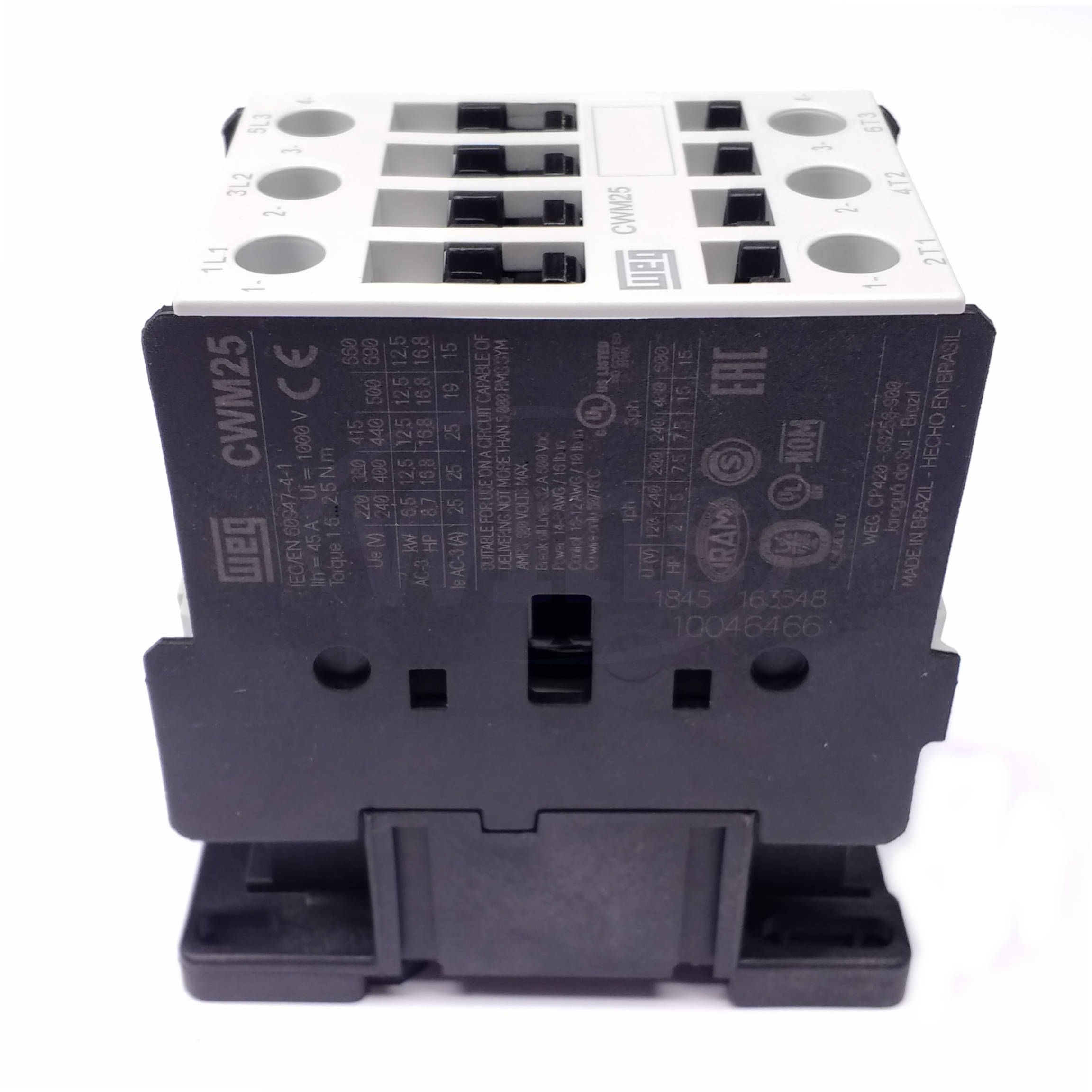

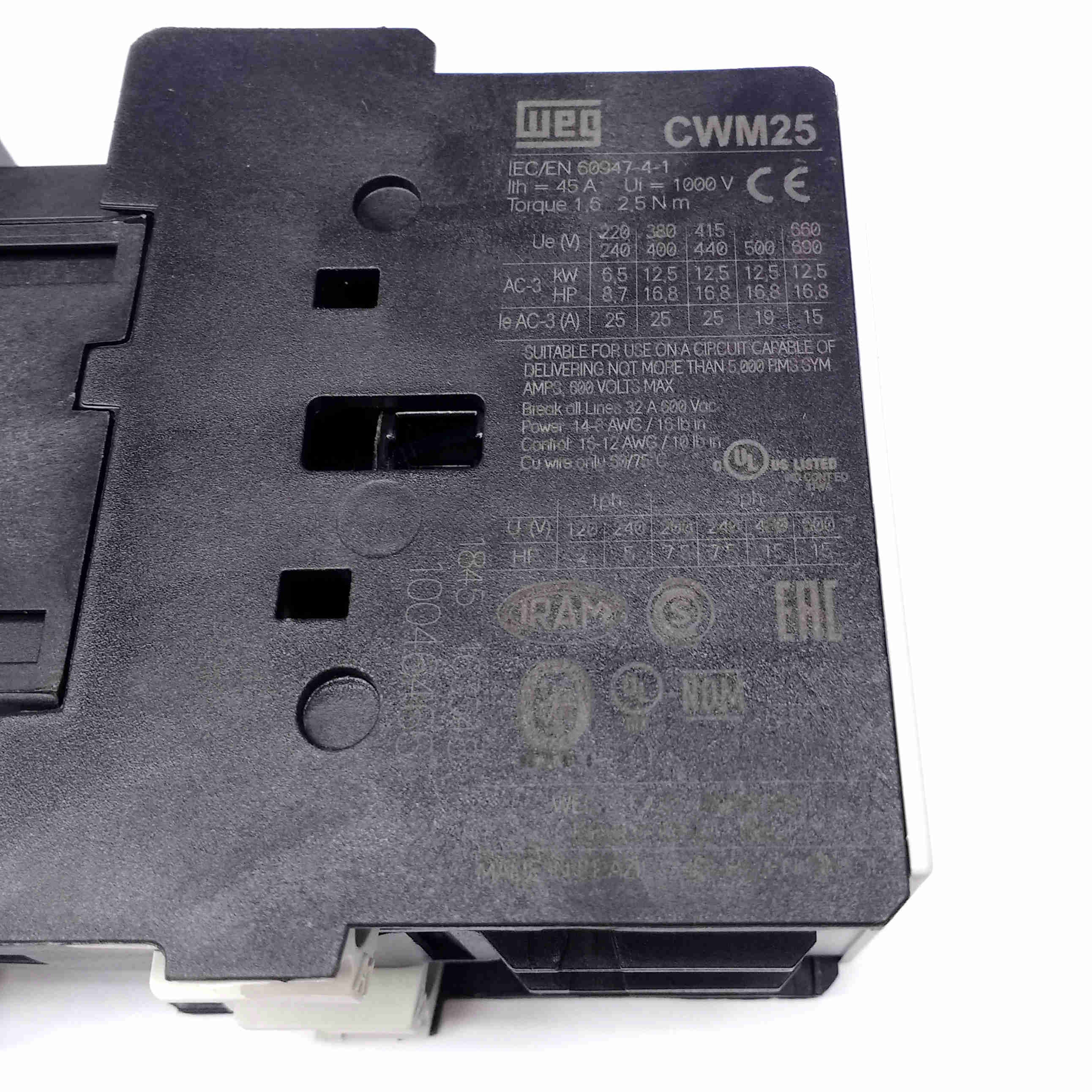

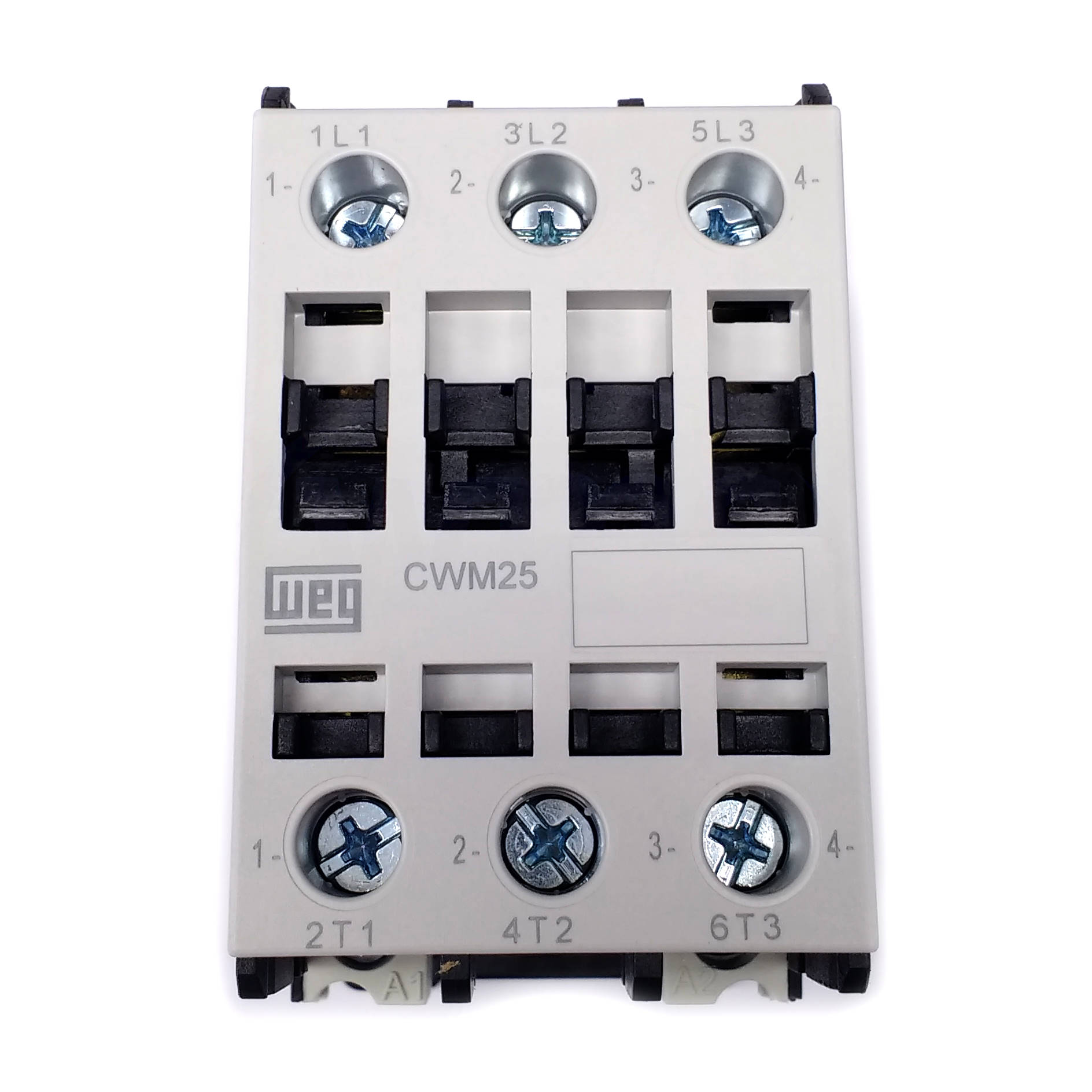

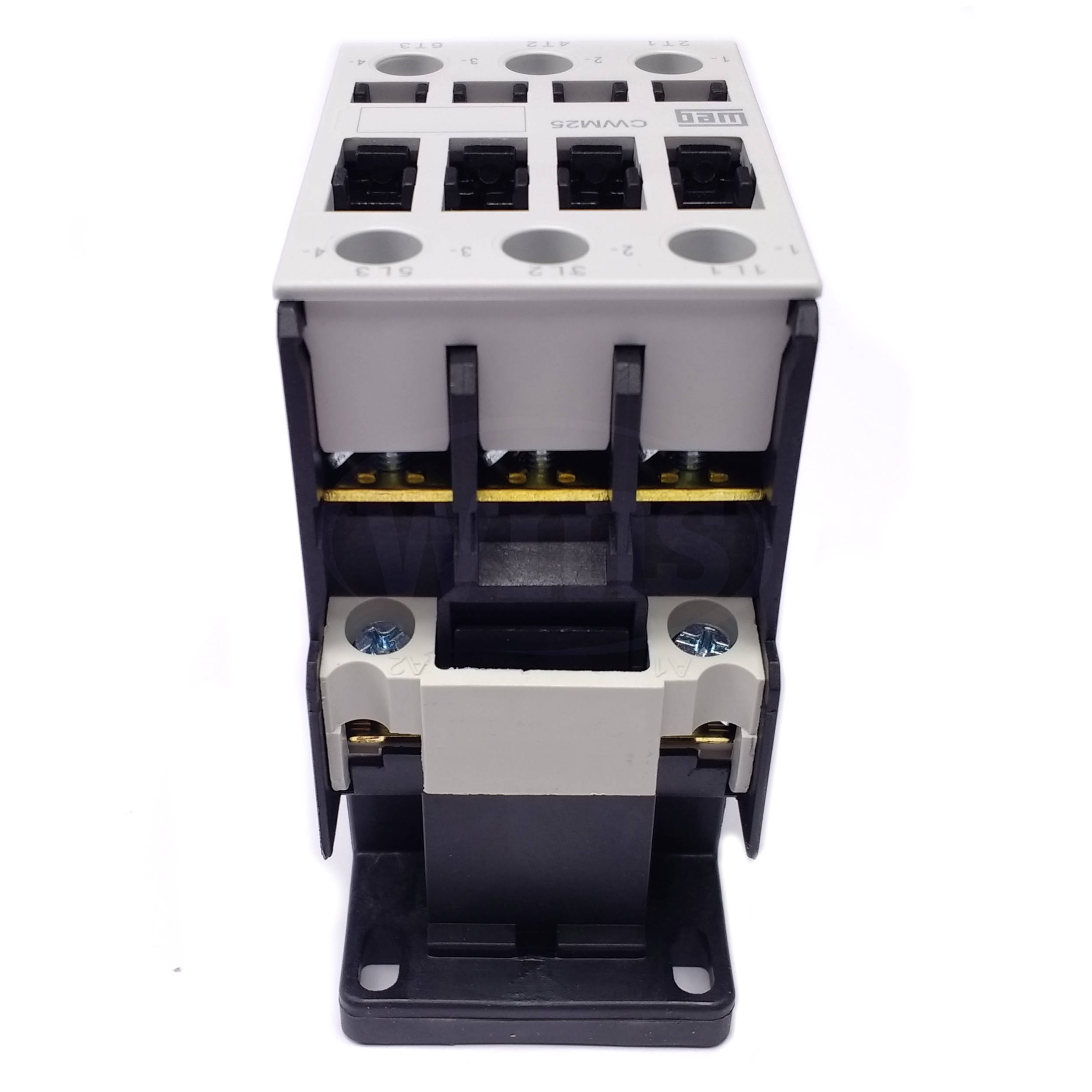

CWM25-00-30V37 WEG IEC Contactor, 25 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWM25-00-30V37

Selected accessories will also be added to cart

$50.74 / Each

Quantity:

230-240V 50Hz/277V 60Hz Coil, No Auxiliary Contact

Details
Purchase Components

Description :

The CWM Series IEC Contactor was designed as a general purpose contactor taking into consideration the heavy demands and need for high reliability in modern industry. They are rated for inductive loads up to 800 AMPS @ 460V. CWM Contactors are compact in frame size allowing for optimization of valuable internal space within electrical enclosures. Reducing inventory is a “Snap” away with the CWM Series’ common accessories.

Standard Features :

Panel mountable or 35mm DIN Rail
Front and Side Mounting Auxiliary Contacts
Finger-Touch IP20 Protection
Wide Coil Voltage Protection AC or DC
Mirror Contacts for “Safety-Related” Applications
Mechanically linked Auxiliary Contacts

Overview :

Brand	WEG
Catalog Number(s)	CWM25-00-30V37
Type	CWM25
Auxiliary Contacts	N/A
Current Rating	25 Amps
Coil Voltage	277VAC 60Hz
Power Poles	3
Operating Temperature	-25 to +55°C -13 to +131°F
Terminals	Screwdriver – Philips #2 14.2-26.6 lb-in (1.6-3Nm)
Terminal Capacity	Top: 2X18-12 AWG or Bottom: 2X12-8 AWG
UPC	7894171679898
Weight	0.65 lbs

Standard UL/CSA Ratings :

Rated Operating Voltage	600 Volts
General Purpose Amp Rating (AC-1)	32 Amps
Rated Operational Power, Single Phase, Full Voltage 50/60Hz	2 HP or 24 Amps @ 115VAC 5 HP or 28 Amps @ 230VAC
Rated Operational Power, Three Phase, Full Voltage 50/60Hz	7.5 HP or 25 Amps @ 200VAC 7.5 HP or 22 Amps @ 230VAC 15 HP or 21 Amps @ 460VAC 15 HP or 17 Amps @ 575VAC
Short Circuit Rating	5 kA @ 600V

Standard IEC Ratings (IEC EN 60947) :

Rated Operating Voltage	690 Volts
Rated Thermal Current Ith	45 Amps
Rated Operational Power, Three Phase, AC-3, 50/60Hz	7.5kW or 25 Amps @ 220-240V 11kW or 25 Amps @ 380-400V 11kW or 25 Amps @ 415-440V 15kW or 19 Amps @ 500V 15kW or 15 Amps @ 660-690V
Maximum Switch Rate	AC-1: 1,200 ops/hr AC-3: 1,200 ops/hr No Load: 9,000 ops/hr
AC-4 (200,000 Operations; 50/60Hz)	3kW/4HP @ 220-230V 5.5kW/7.5HP @ 380-400V 5.5kW/7.5HP @ 415-440V 7.5kW/10HP @ 500V 7.5kW/10HP @ 660-690V 12 Amps @ ≥ 690V
Breaking Capacity	Ue=400V: 450 Amps Ue=500V: 320 Amps Ue=690V: 170 Amps
Impedance Per Pole	1.65 mW
Power Dissipation per Pole	AC-1: 3.34 W AC-3: 1.03 W
Short Time Current Icw	1 Second: 630 Amps 5 Seconds: 280 Amps 10 Seconds: 200 Amps 30 Seconds: 115 Amps 1 Minute: 80 Amps 3 Minutes: 50 Amps Rec. Time: 10 minutes
Short Circuit Coordination	Coordination Type “1”: 63 gL/gG Coordination Type “2”: 50 gL/gG Acc. To UL/CSA: 45 J Type

Control Circuit Ratings – AC Coil :

Rated Insulation Voltage (Ui)	IEC; VDE 0660: 1000 Volts UL; CSA: 600 Volts
Rated Operating Voltage (Ue)	IEC; VDE 0660: 690 Volts UL; CSA: 600 Volts
Coil Operating Limits	Pick-up xUc: 0.4-0.76 Drop-out xUc: 0.25-0.65
Operating Time	Coil Energization – N.O.: 8-20 ms Coil de-energization – N.O.: 6-13 ms
Coil Consumption	Sealed: 4-7.2 VA Inrush: 70 VA
Thermal Power Dissipation	60Hz: 2.6 W
Power Factor	Closed: 0.28 Cos phi Opened: 0.85 Cos phi
Stranded / Solid (UL / CSA)	2x12-10 AWG
