/Products/Electrical Components/WEG/Contactors/IEC Contactors (CWM)/CWM18/CWM18-01-30X47 WEG Contactor 10HP@460V 480V Specia
Click Image to Expand

Product ID: CWM18-01-30X47

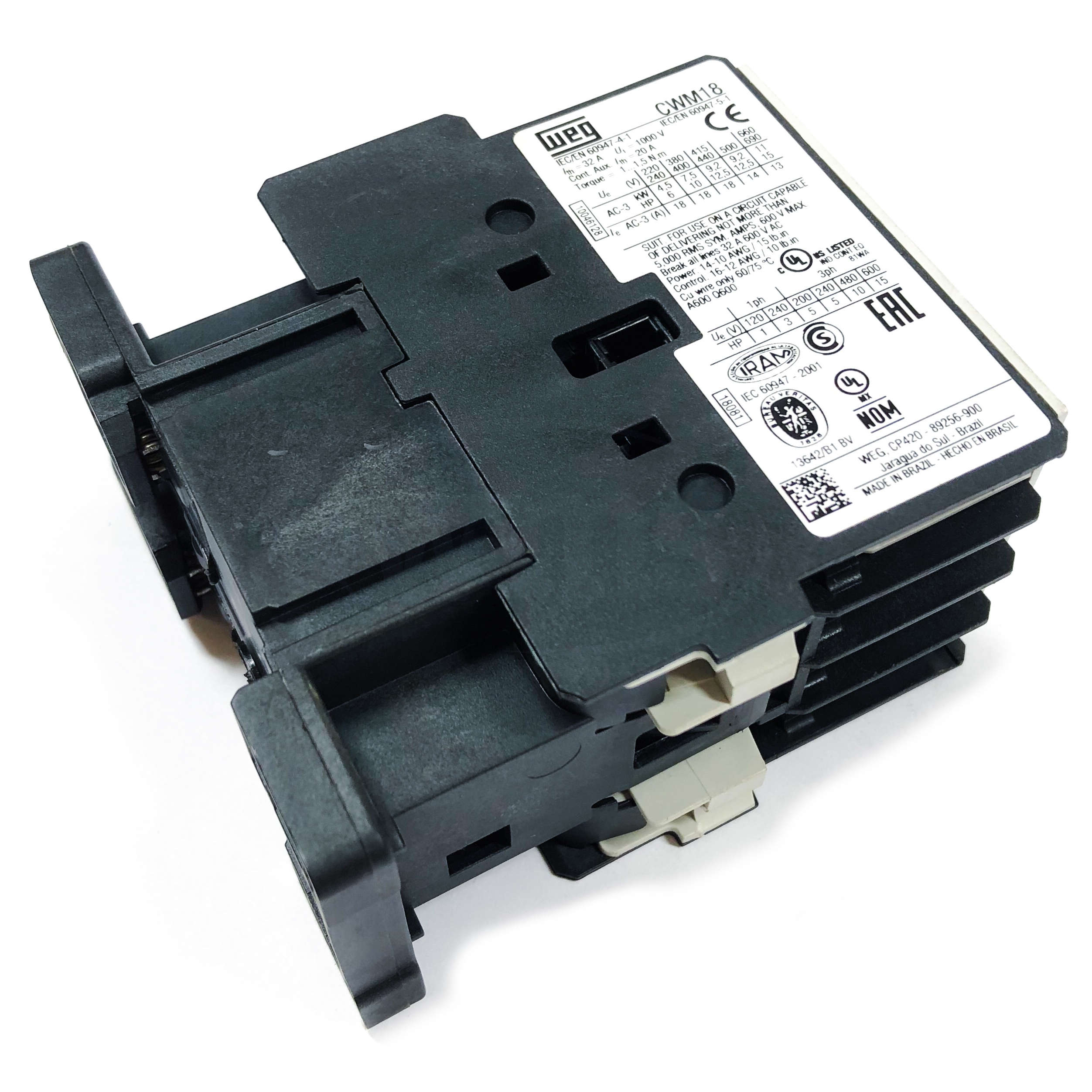

CWM18-01-30X47 WEG Contactor 10HP@460V 480V Specia

MFG: WEG Electric Corporation
MFG Part Number: CWM18-01-30X47

Selected accessories will also be added to cart
$44.29 / Each
Quantity:
400-415V 50Hz/480V 60Hz Coil, 1 NC Auxiliary Contact
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
MECHANICAL LIFESPAN AC 10 million
MECHANICAL LIFESPAN DC 12 million
Electrical lifespan 1,2 million
Degree of protection IP (IEC 60529) - Main circuit IP20
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current In - AC-3 (Ue = 440 V) 18 A
Rated current In - AC-4 8 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 32 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 81 mm (3.19 in)
Width 45 mm (1.77 in)
Depth 87 mm (3.43 in)
Gross weight 300 g
