/Products/Electrical Components/WEG/Contactors/IEC Contactors (CWM)/CWM112/CWM112-22-30E02 WEG Contactor 100HP@460V 24-28VACD

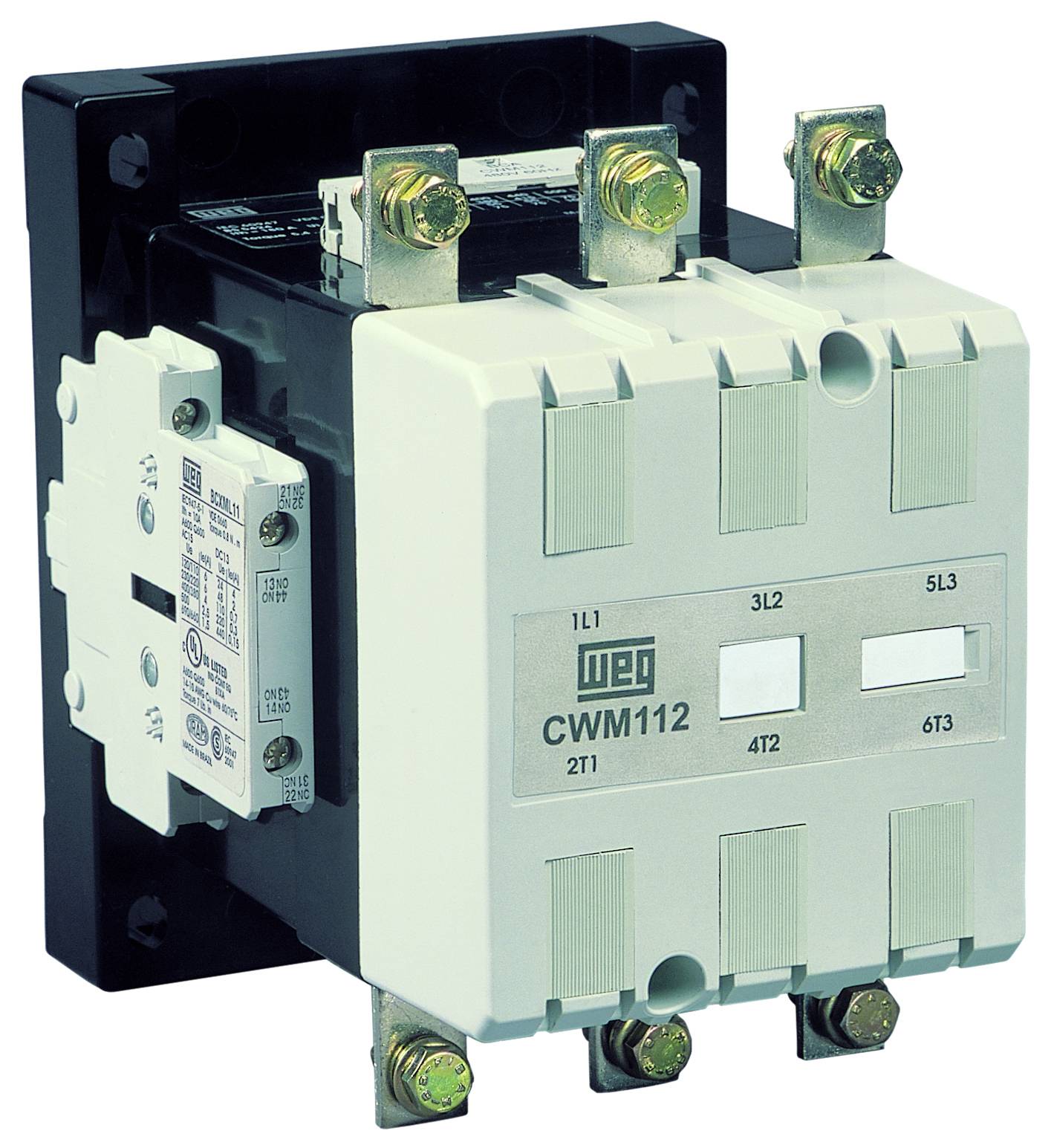

CWM112-22-30E02 WEG Contactor 100HP@460V 24-28VACD
Enlarge Photo

Product ID: CWM112-22-30E02

CWM112-22-30E02 WEG Contactor 100HP@460V 24-28VACD

MFG: WEG Electric Corporation
MFG Part Number: CWM112-22-30E02

Selected accessories will also be added to cart
$371.95 / Each
Quantity:
24-28VAC 50/60Hz Coil, 2NO / 2NC Auxiliary Contacts
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 10 million
Electrical lifespan 1.1 million
Degree of protection IP (IEC 60529) - Main circuit IP00
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 112 A
Rated current In - AC-4 63 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 180 A
Rated operational voltage Ue - IEC 60947-4-1 1000 V
Rated operational voltage Ue - UL/CSA 600 V
Height 162.5 mm (6.40 in)
Width 118 mm (4.65 in)
Depth 147 mm (5.79 in)
Gross weight 3.1 kg
