/Products/Electrical Components/WEG/Contactors/IEC Contactors (CWM)/CWM105/CWM105-00-30C40 WEG 3-Pole IEC Standard Contactor

Click Image to Expand

Previous Next

Product ID: CWM105-00-30C40

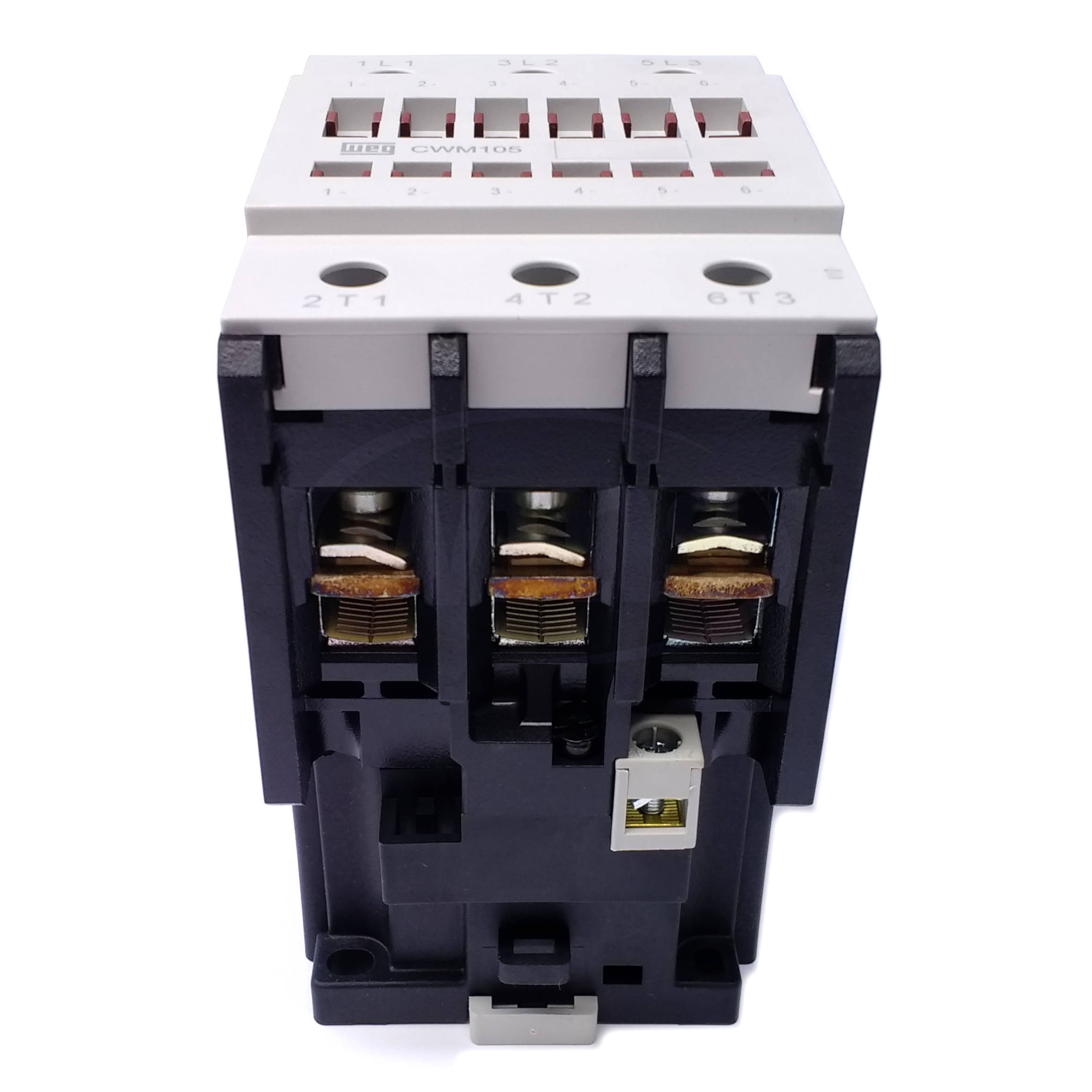

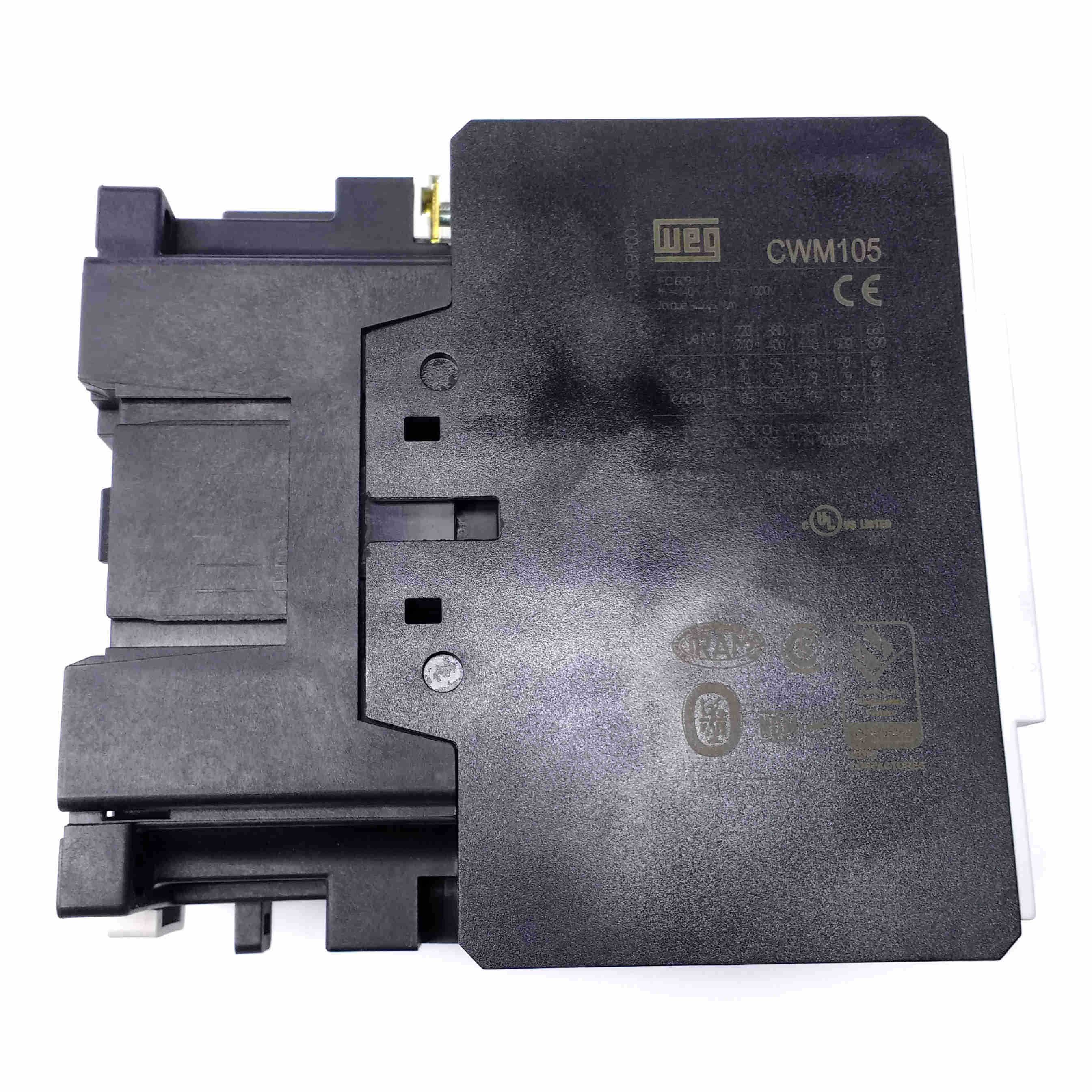

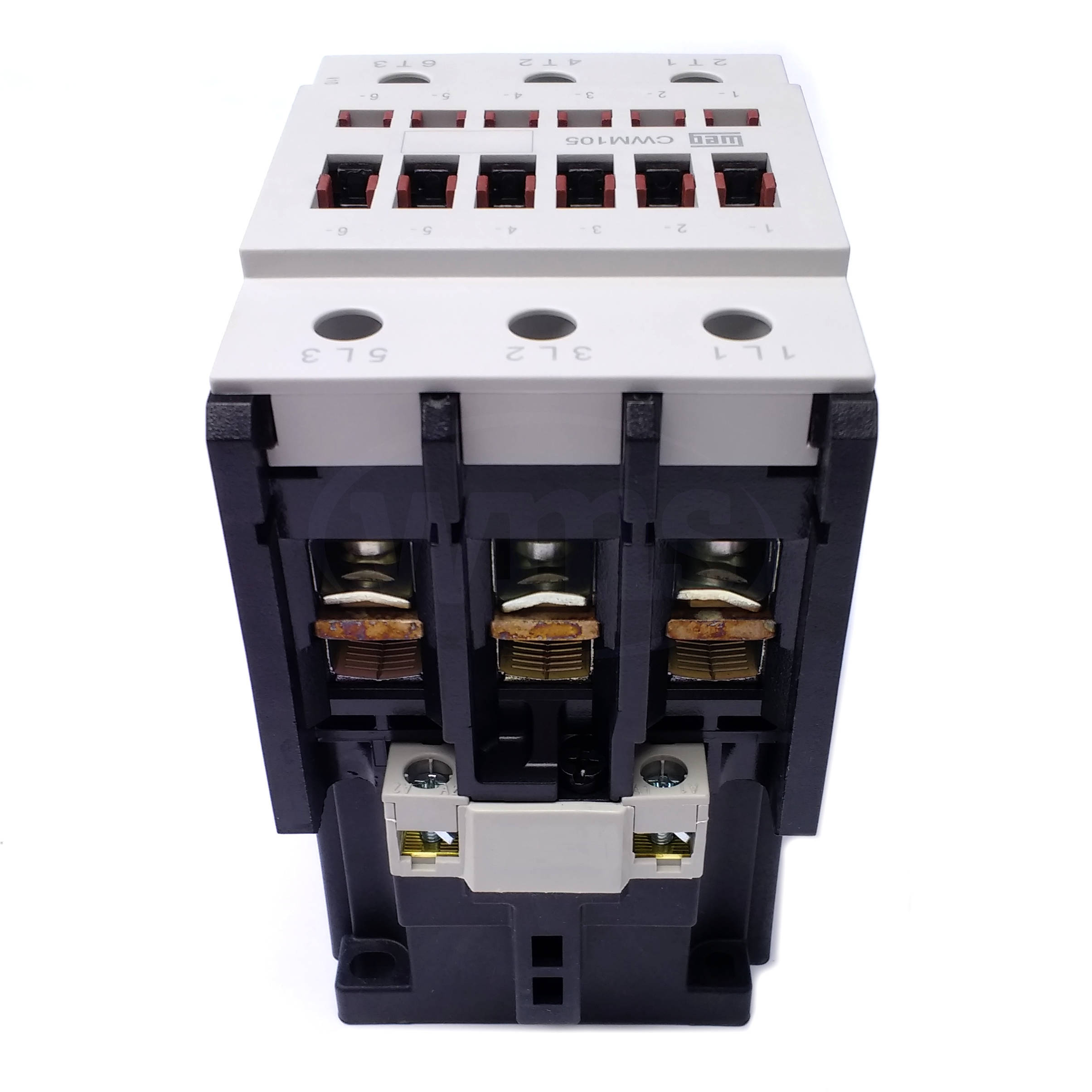

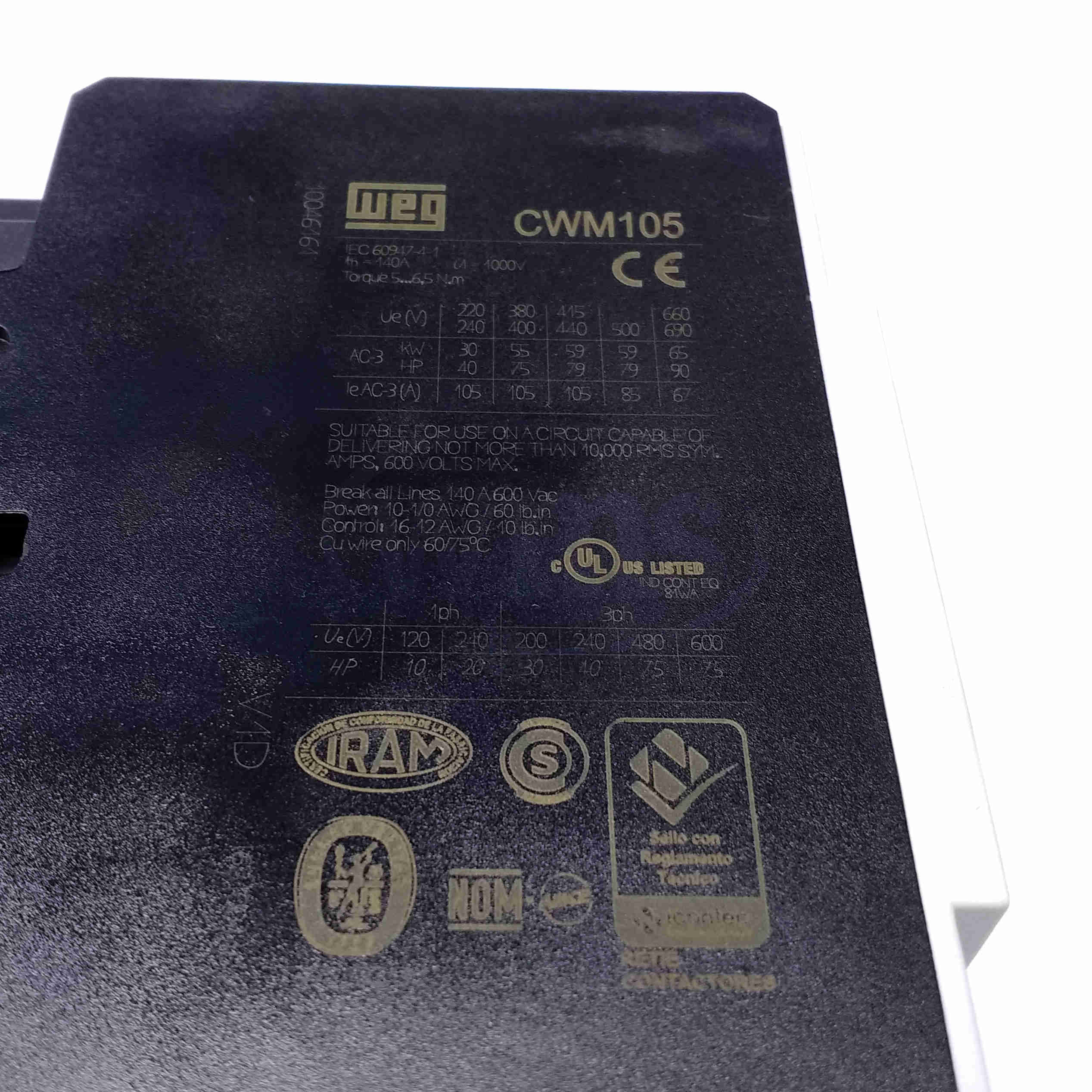

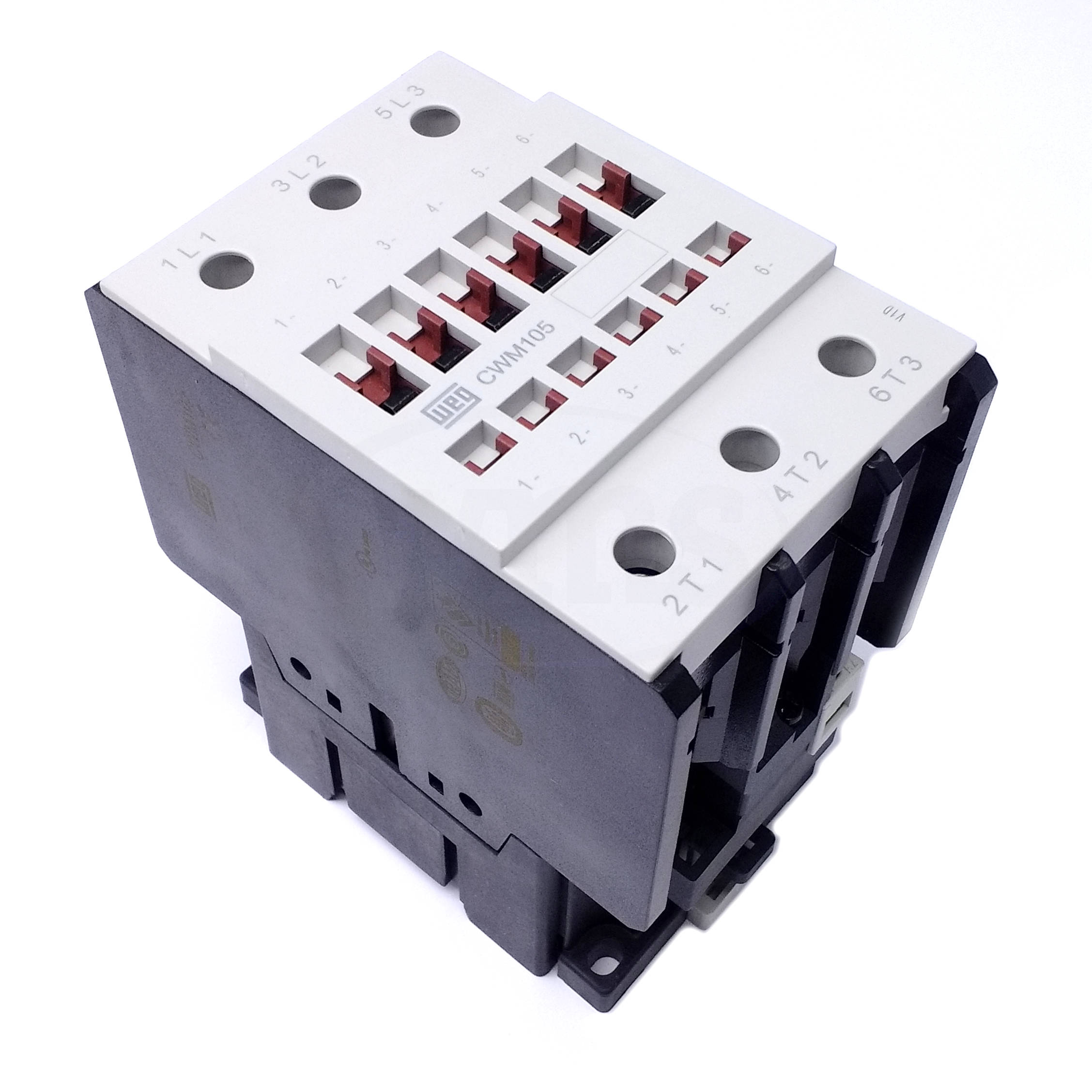

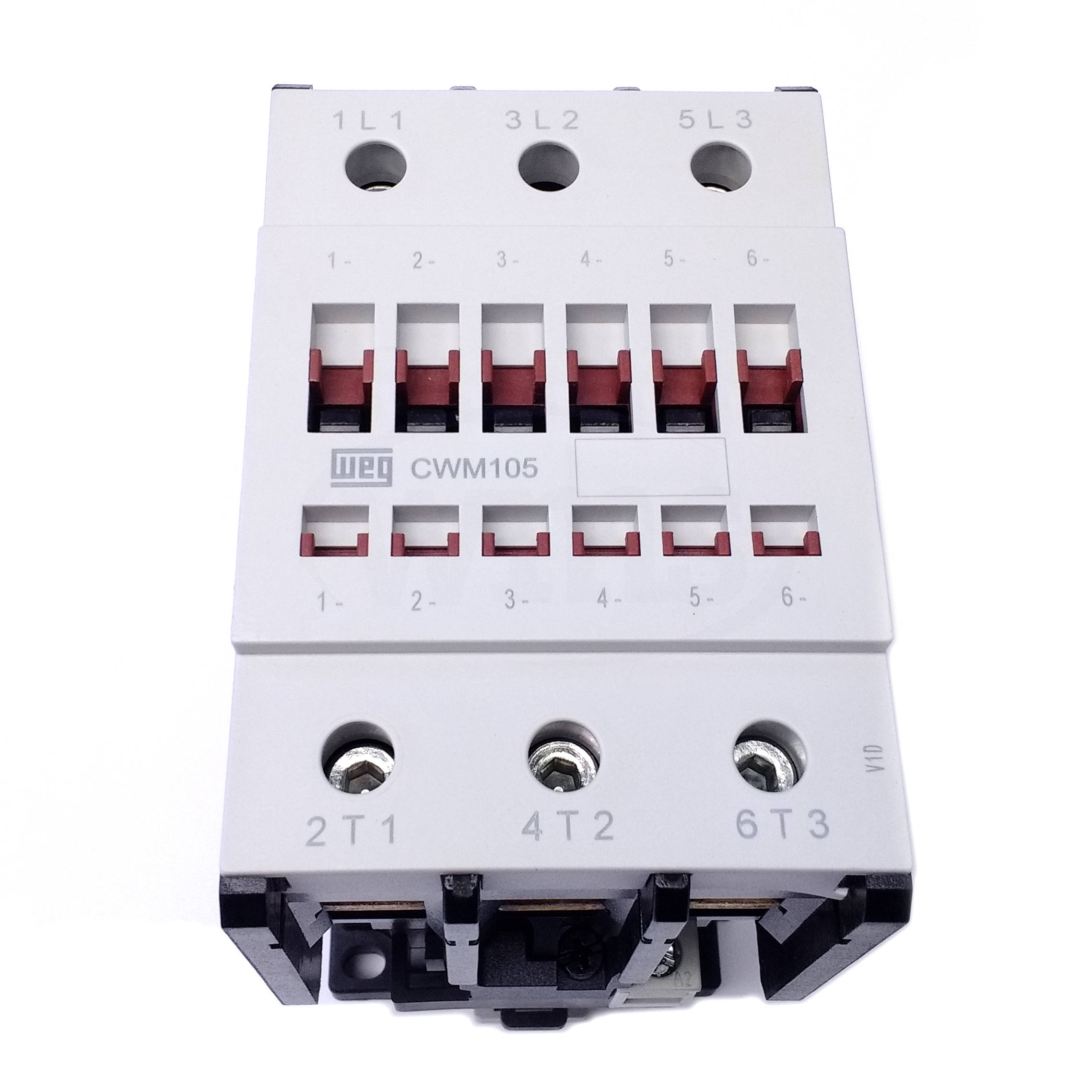

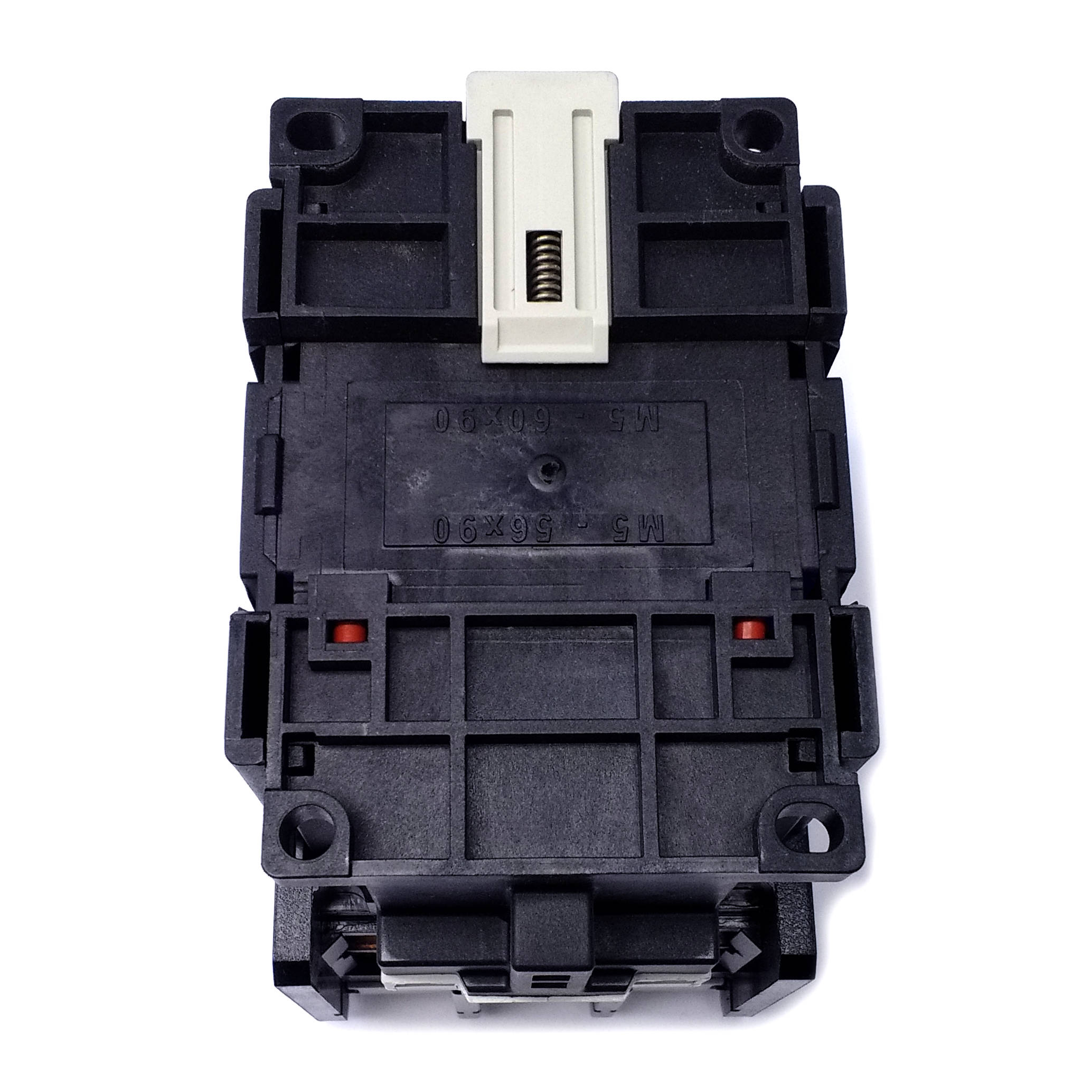

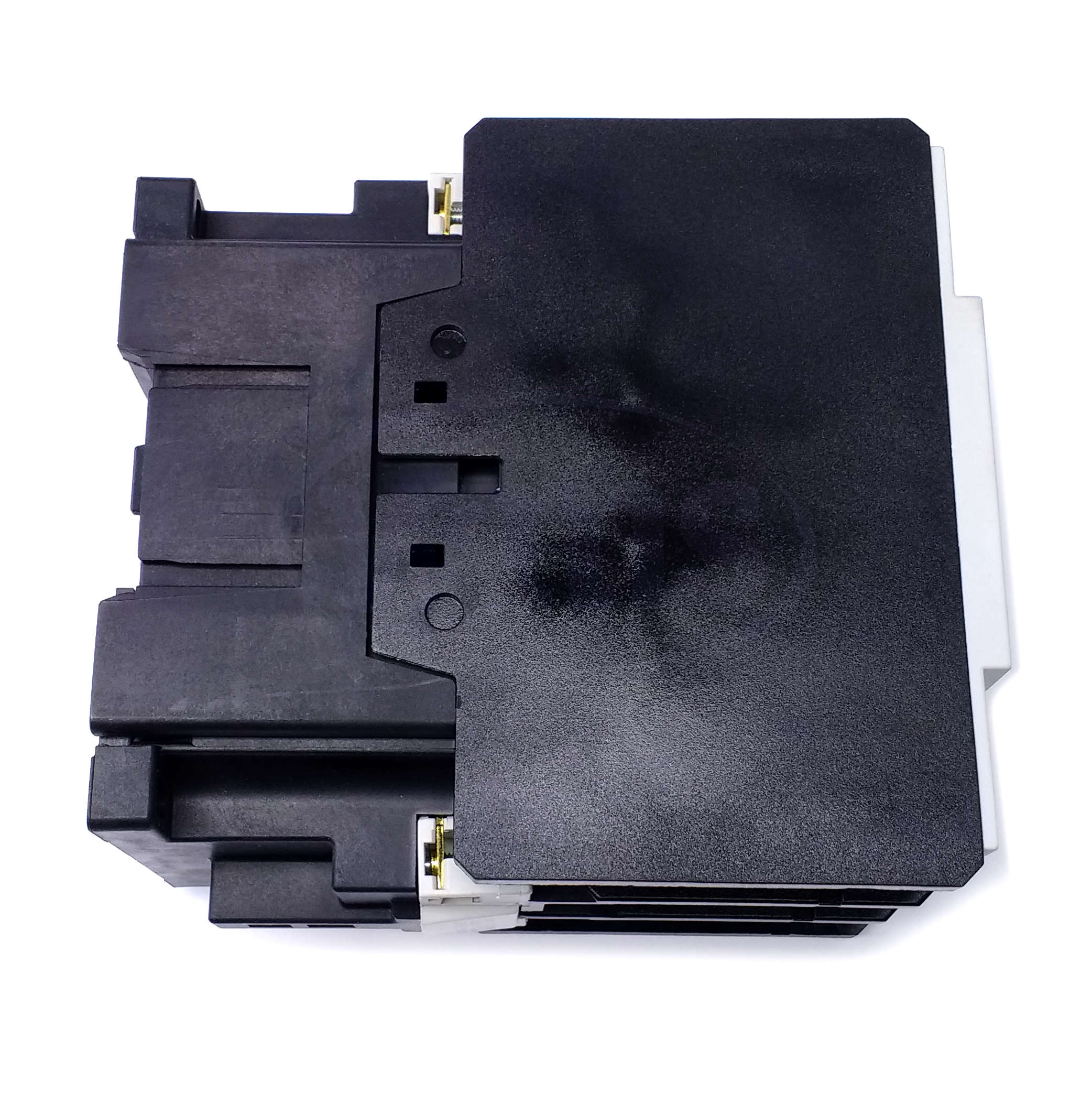

CWM105-00-30C40 WEG 3-Pole IEC Standard Contactor

MFG: WEG Electric Corporation
MFG Part Number: CWM105-00-30C40

Selected accessories will also be added to cart

$232.20 / Each

Quantity:

75HP @ 460V, 110-130VDC Coil, 105 Amp

Details
Purchase Components

Description :

The CWM Series IEC Contactor was designed as a general purpose contactor taking into consideration the heavy demands and need for high reliability in modern industry. They are rated for inductive loads up to 800 AMPS @ 460V. CWM Contactors are compact in frame size allowing for optimization of valuable internal space within electrical enclosures. Reducing inventory is a “Snap” away with the CWM Series’ common accessories.

Standard Features :

Panel mountable or 35mm DIN Rail
Front and Side Mounting Auxiliary Contacts
Finger-Touch IP20 Protection
Wide Coil Voltage Protection AC or DC
Mirror Contacts for “Safety-Related” Applications
Mechanically linked Auxiliary Contacts

Overview :

Brand	WEG
Catalog Number(s)	CWM105-00-30C40
Type	CWM105
Auxiliary Contacts	N/A
Current Rating	105 Amps
Coil Voltage	110-130VDC
Power Poles	3
Operating Temperature	-25 to +55°C -13 to +131°F
Terminals	Allen Head 5/32” (4mm) Drive Size 44.3-57.5 lb-in (5-6.5 Nm)
Terminal Capacity	Top: 16-1 AWG Bottom: 10-2 AWG
UPC	7890355211571
Weight	3.46 lbs

Control Circuit Ratings – DC Coil :

Rated Insulation Voltage (Ui)	IEC; VDE 0660: 1000 Volts UL; CSA: 600 Volts
Coil Operating Limits	Pick-up xUc: 0.7-0.8 Volt Drop-out xUc: 0.4-0.6 Volt
Operating Time	Coil Energization – N.O.: 50-60 ms Coil de-energization – N.O.: 55-60 ms
Coil Consumption	Sealed: 6.5 W Inrush: 340 W
Stranded / Solid (UL / CSA)	2x12-10 AWG

Standard UL/CSA Ratings :

Rated Operating Voltage	600 Volts
General Purpose Amp Rating (AC-1)	140 Amps
Rated Operational Power, Single Phase, Full Voltage 50/60Hz	10 HP or 100 Amps @ 115VAC 20 HP or 88 Amps @ 230VAC
Rated Operational Power, Three Phase, Full Voltage 50/60Hz	30 HP or 92 Amps @ 200VAC 40 HP or 104 Amps @ 230VAC 75 HP or 96 Amps @ 460VAC 75 HP or 77 Amps @ 575VAC
Short Circuit Rating	10 kA @ 600V

Standard IEC Ratings (IEC EN 60947) :

Rated Operating Voltage	1000 Volts
Rated Thermal Current Ith	140 Amps
Rated Operational Power, Three Phase, AC-3, 50/60Hz	30kW or 105 Amps @ 220-240V 55kW or 105 Amps @ 380-400V 55kW or 105 Amps @ 415-440V 65kW or 85 Amps @ 500V 65kW or 80 Amps @ 660-690V
Maximum Switch Rate	AC-1: 1,200 ops/hr AC-3: 600 ops/hr No Load: 5,000 ops/hr
AC-4 (200,000 Operations; 50/60Hz)	12.5kW/17HP @ 220-230V 22kW/30HP @ 380-400V 30kW/40HP @ 415-440V 30kW/40HP @ 500V 33kW/45HP @ 660-690V 50 Amps @ ≥ 690V
Breaking Capacity	Ue=400V: 1050 Amps Ue=500V: 1050 Amps Ue=690V: 950 Amps
Impedance Per Pole	0.76 mW
Power Dissipation per Pole	AC-1: 14.89 W AC-3: 8.37 W
Short Time Current Icw	1 Second: 3,300 Amps 5 Seconds: 1,485 Amps 10 Seconds: 1,050 Amps 30 Seconds: 600Amps 1 Minute: 430 Amps 3 Minutes: 250 Amps Rec. Time: 10 minutes
Short Circuit Coordination	Coordination Type “1”: 250 gL/gG Coordination Type “2”: 200 gL/gG Acc. To UL/CSA: 200 J Type
