/Products/Electrical Components/WEG/Contactors/Compact Contactors (CWC)/CWC09/CWC09-10-30L02 WEG Miniature Contactor, 9 Amp, 3 NO Power Poles

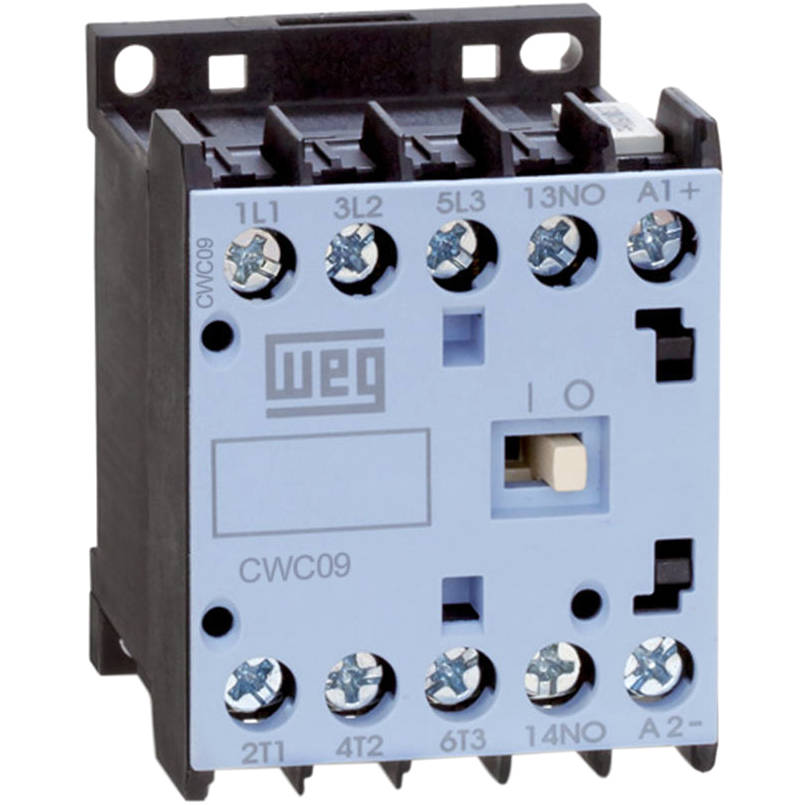

CWC09-10-30L02 WEG Miniature Contactor, 9 Amp, 3 NO Power Poles
Enlarge Photo

Product ID: CWC09-10-30L02

CWC09-10-30L02 WEG Miniature Contactor, 9 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWC09-10-30L02

Selected accessories will also be added to cart
$19.04 / Each
Quantity:
13181235, 12VDC Low Consumption Coil, 1 NO Auxiliary Contact, Screw Terminals
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 690 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 12 million
Electrical lifespan 1,3 million
Degree of protection IP (IEC 60529) - Main circuit IP20
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 9 A
Rated current In - AC-4 3,5 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 20 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 58 mm (2.28 in)
Width 45 mm (1.77 in)
Depth 52 mm (2.05 in)
Gross weight 229 g
