/Products/Electrical Components/WEG/Contactors/Compact Contactors (CWC)/CWC07/CWC07-01-30L03 WEG Miniature Contactor, 7 Amp, 3 NO Power Poles
Click Image to Expand

Product ID: CWC07-01-30L03

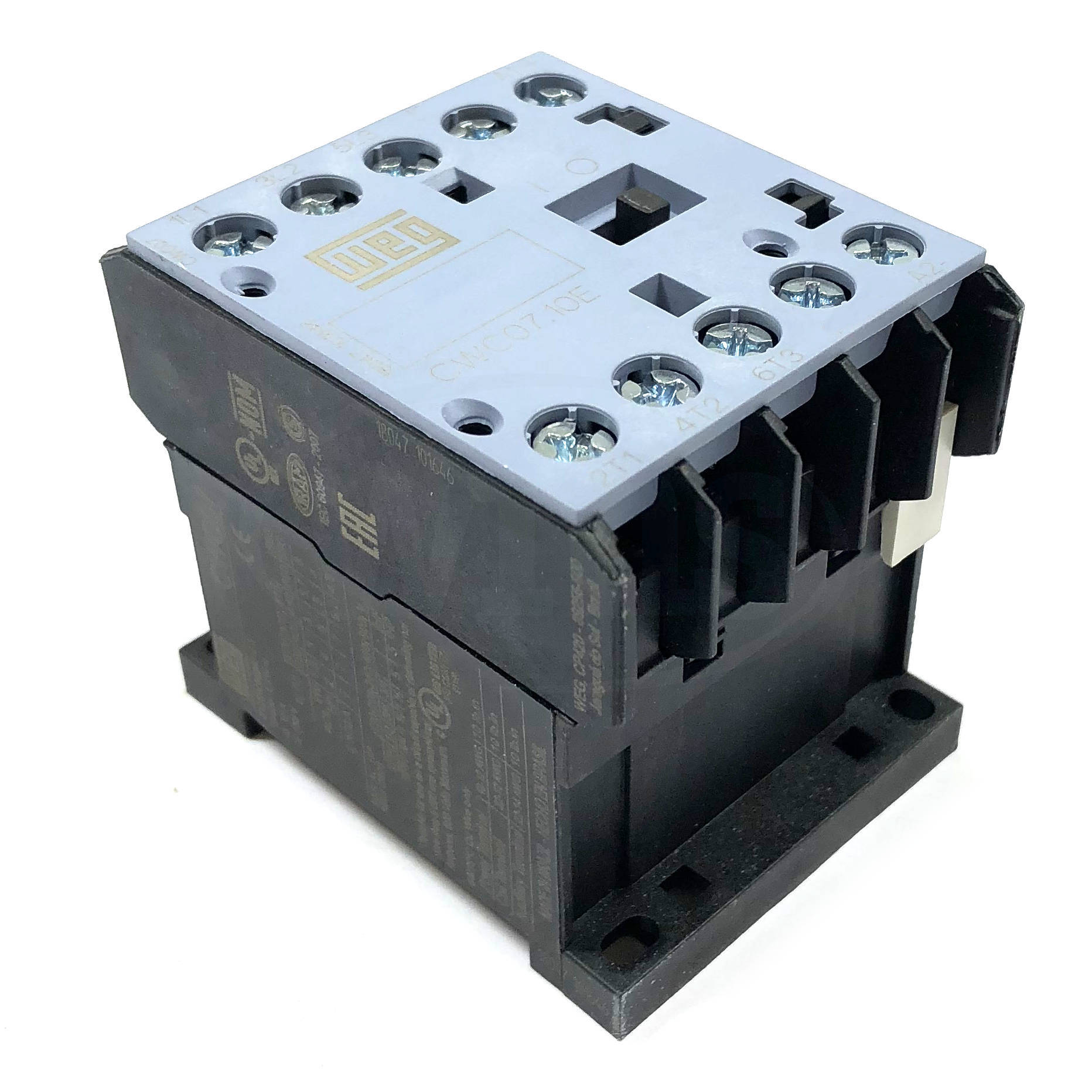

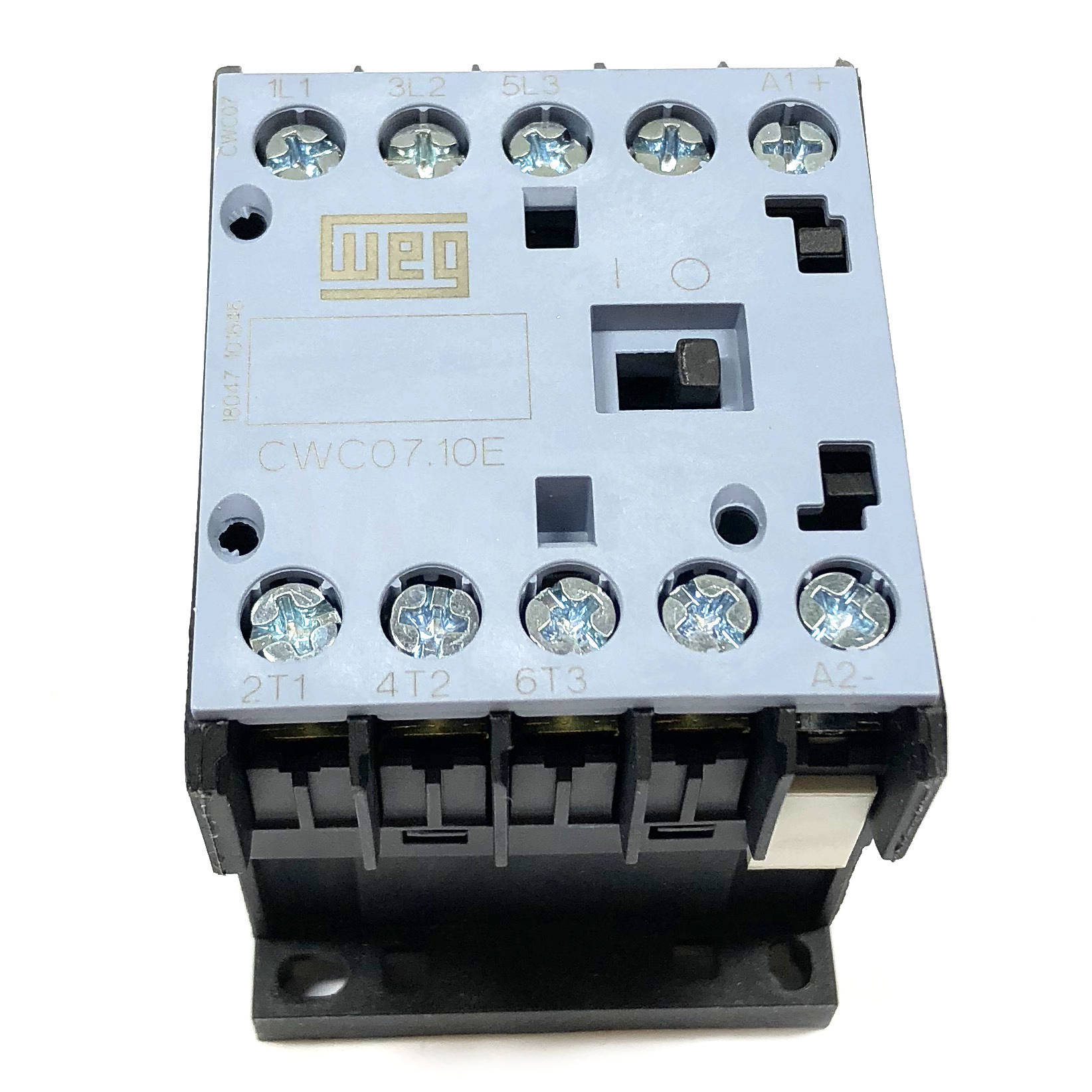

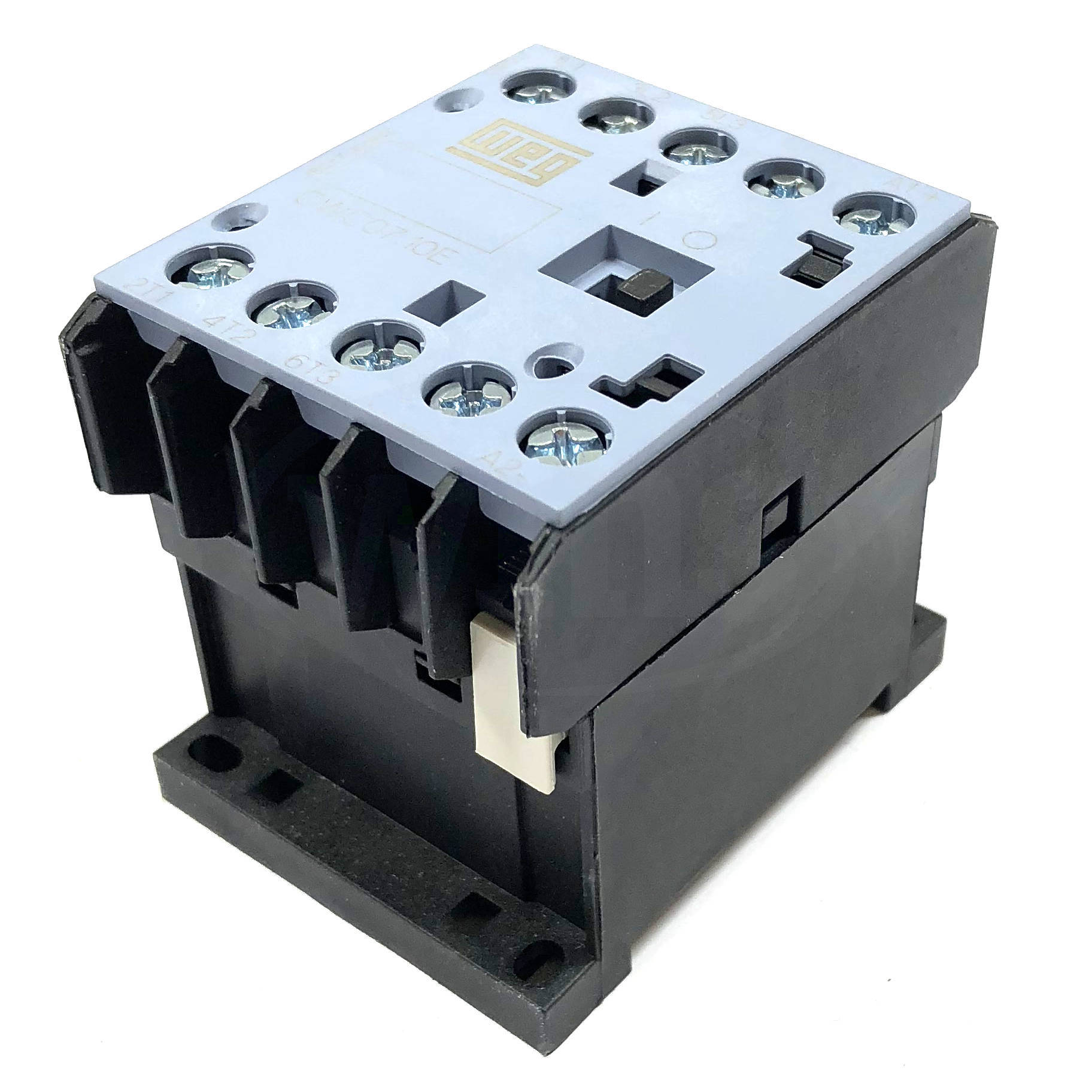

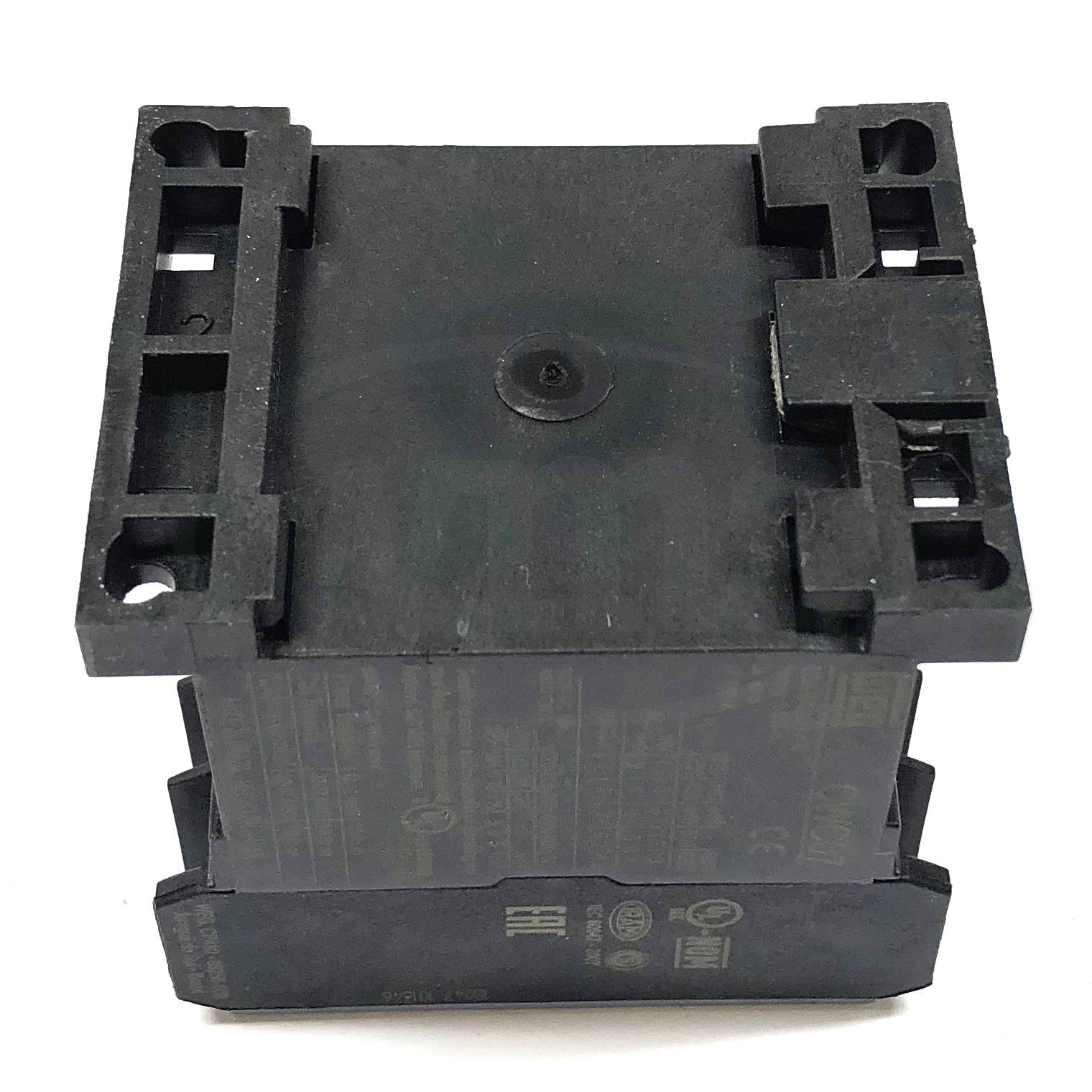

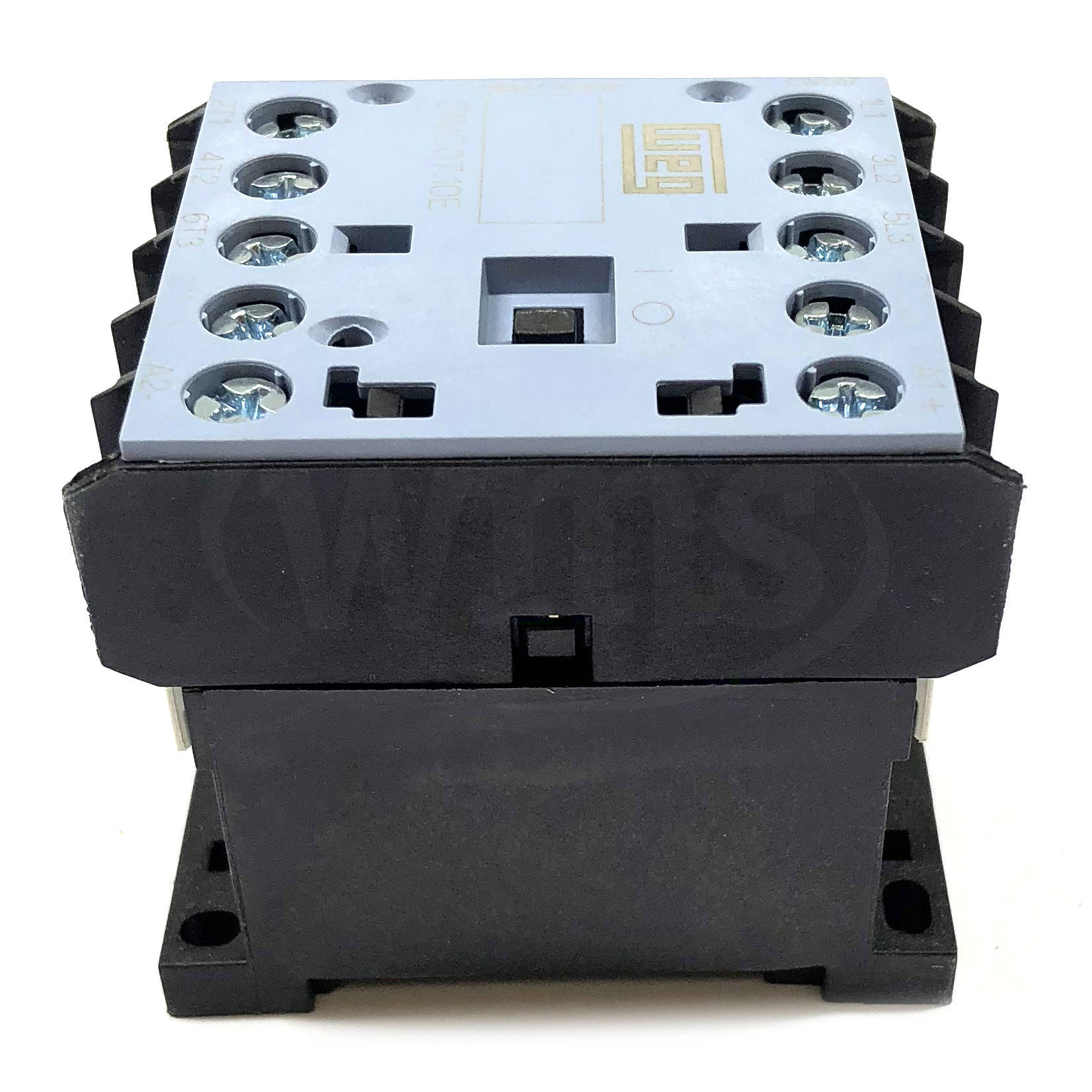

CWC07-01-30L03 WEG Miniature Contactor, 7 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWC07-01-30L03

Selected accessories will also be added to cart
$17.36 / Each
Quantity:
24VDC Coil, 1 NC Auxiliary Contact

Description

The CWC Series Mini Contactor Line is a Compact Solution for the Control and Operation of Circuits. Its extensive lineup of modular and tool-free accessories makes this series the most flexible mini-contactor available today. The CWC Series miniature contactor features more horsepower for its size than any other miniature contactor on the market.

Standard Features

  • Direct Mounting to RW17D Series Thermal Overload Relays
  • Direct Mounting to MPW18 and MPW40 Series Manual Motor Protectors
  • Low Consumption DC Coils
  • Tool Free DIN Rail Mountable
  • Frame size remains the same for AC and DC coil contactors up to 16A
  • Complete line of snap-on accessories

Specifications

Manufacturer WEG
Catalog Number CWC07-01-30L03
Frame Current Rating 7 Amps
Auxiliary Contacts 1 Normally Closed
Power Poles 3
Coil Voltage 24VDC Low Consumption
Maximum UL Horsepower 1/3 HP@115V Single Phase
3/4 HP@230V Single Phase
1.5 HP@200/230V 3-Phase
5 HP@460/575V 3-Phase

Technical Data
