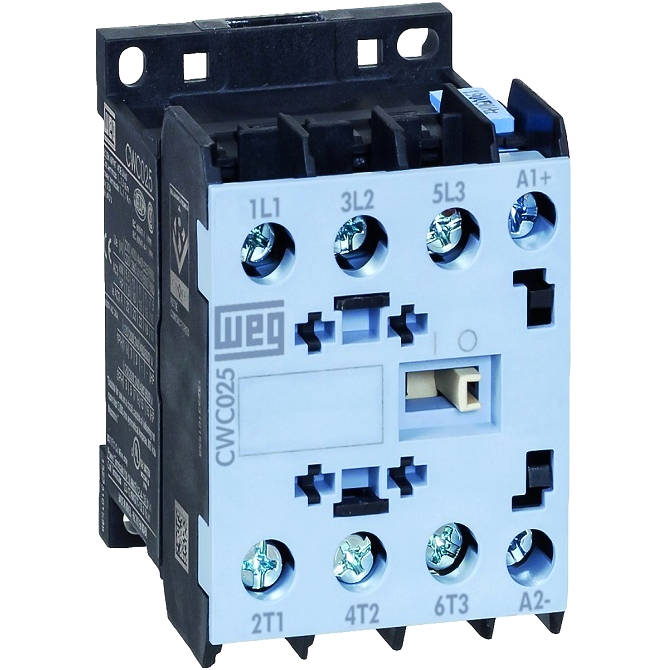

CWC025-00-30V47 WEG Miniature Contactor, 3 NO Power Poles, 25 Amp
Enlarge Photo

Product ID: CWC025-00-30V47

CWC025-00-30V47 WEG Miniature Contactor, 3 NO Power Poles, 25 Amp

MFG: WEG Electric Corporation
MFG Part Number: CWC025-00-30V47

Selected accessories will also be added to cart
$24.42 / Each
Quantity:
12679922, 400-415VAC 50Hz / 480VAC 60Hz Coil, No Auxiliary Contacts, Screw Terminals
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 690 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 3 million
Mechanical lifespan (DC) Not available
Electrical lifespan 0,6 million
Degree of protection IP (IEC 60529) - Main circuit IP20
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 22 A
Rated current In - AC-4 9 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 32 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 58,1 mm (2.29 in)
Width 45 mm (1.77 in)
Depth 56 mm (2.20 in)
Gross weight 202 g
