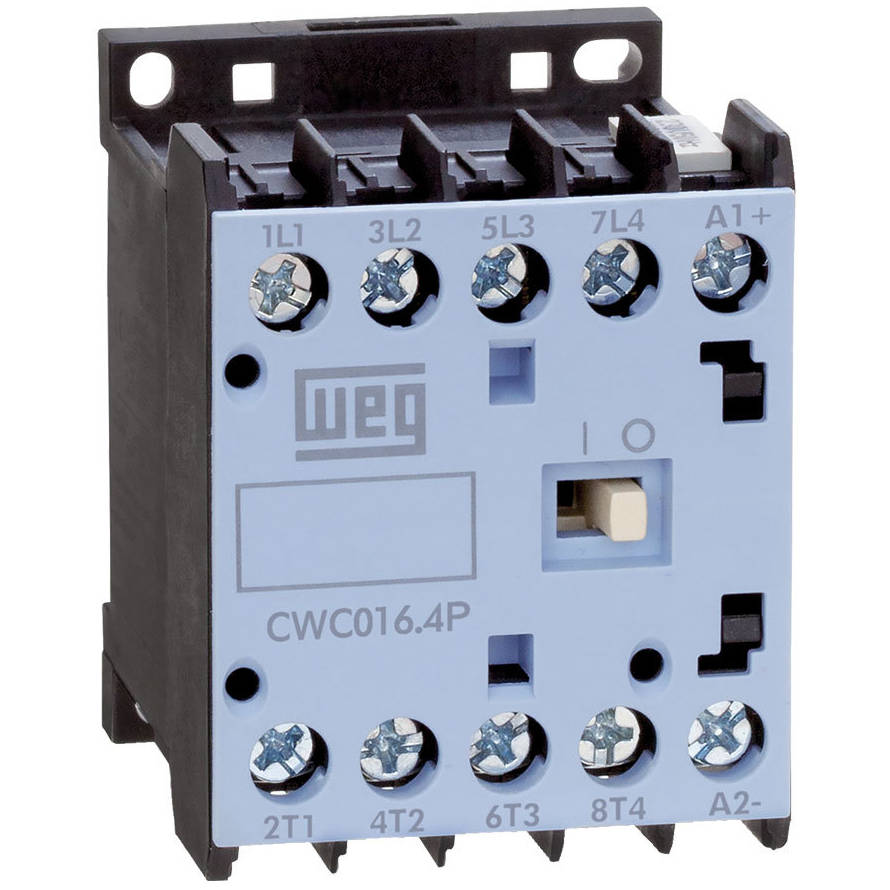

CWC016-00-40C03 WEG Miniature Contactor, 4 NO Power Poles, 16 Amp
Enlarge Photo

Product ID: CWC016-00-40C03

CWC016-00-40C03 WEG Miniature Contactor, 4 NO Power Poles, 16 Amp

MFG: WEG Electric Corporation
MFG Part Number: CWC016-00-40C03

Selected accessories will also be added to cart
$22.12 / Each
Quantity:
24VDC Coil, No Auxiliary Contacts
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 690 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 12 million
Electrical lifespan 1 million
Degree of protection IP (IEC 60529) - Main circuit IP20
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 16 A
Rated current In - AC-4 5 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 22 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 58 mm (2.28 in)
Width 45 mm (1.77 in)
Depth 52 mm (2.05 in)
Gross weight 229 g
