/Products/Electrical Components/WEG/Contactors/Compact Contactors (CWC)/CWC012/CWC012-01-30C03I WEG Miniature Contactors, 12A, 3 Pole

Click Image to Expand

Previous Next

Product ID: CWC012-01-30C03I

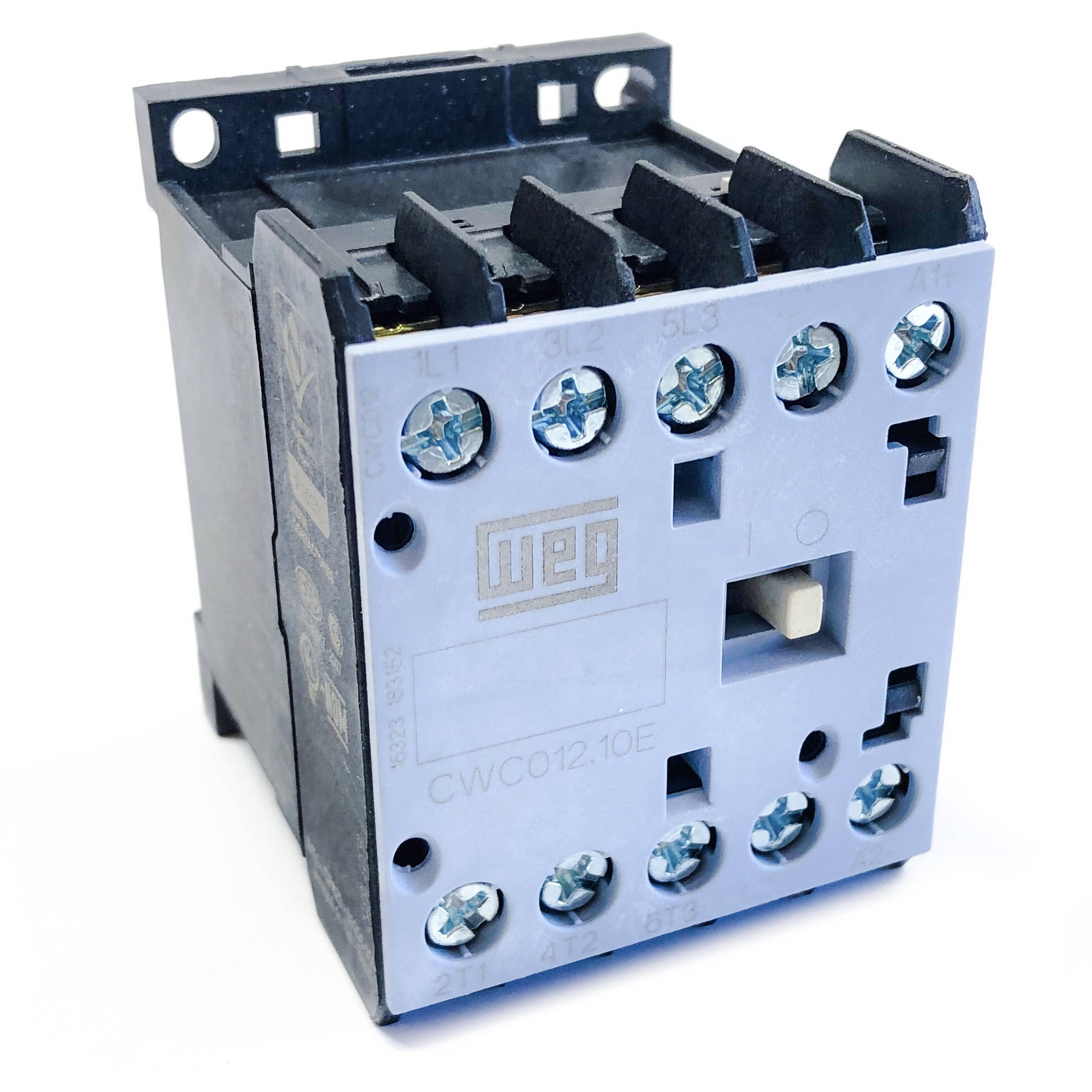

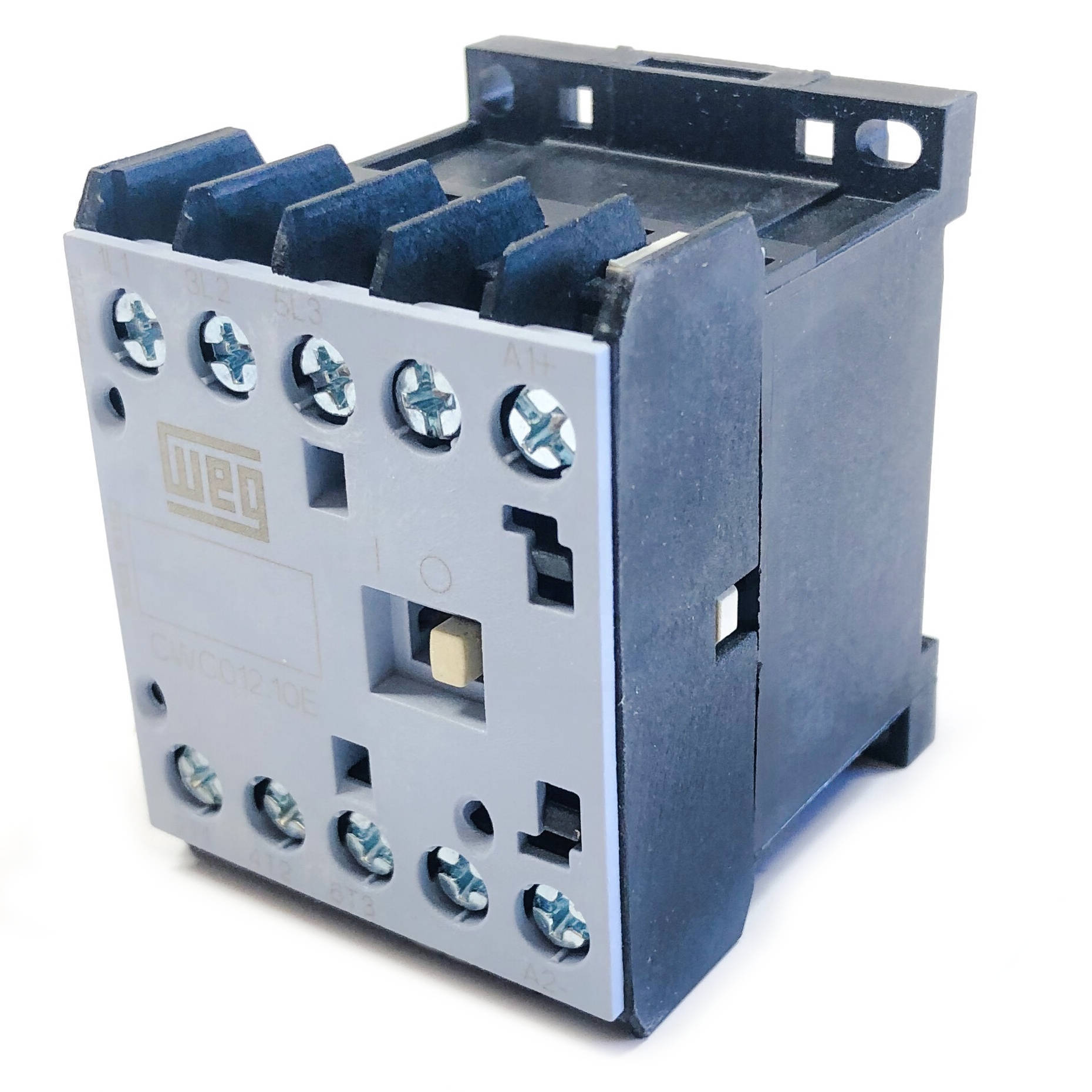

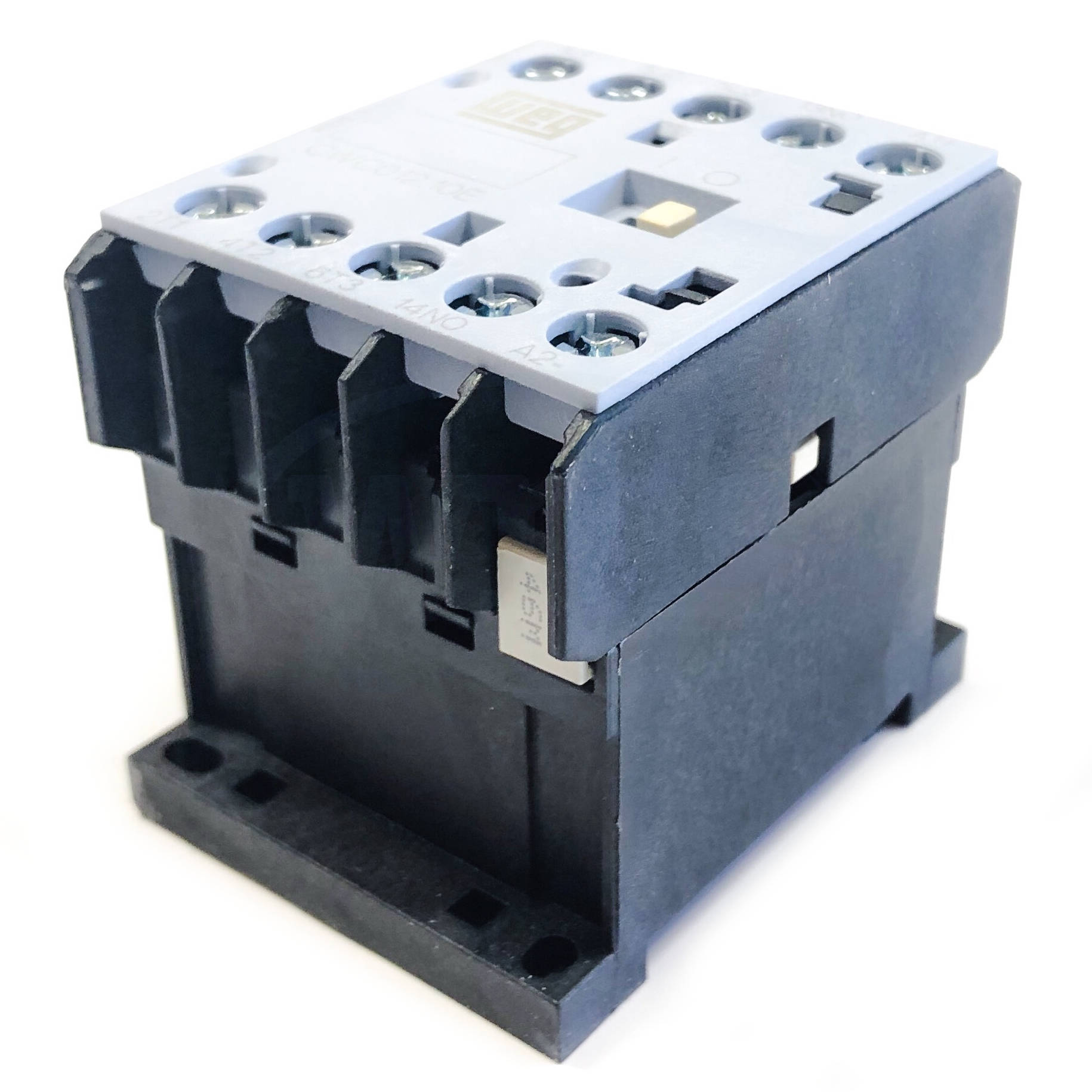

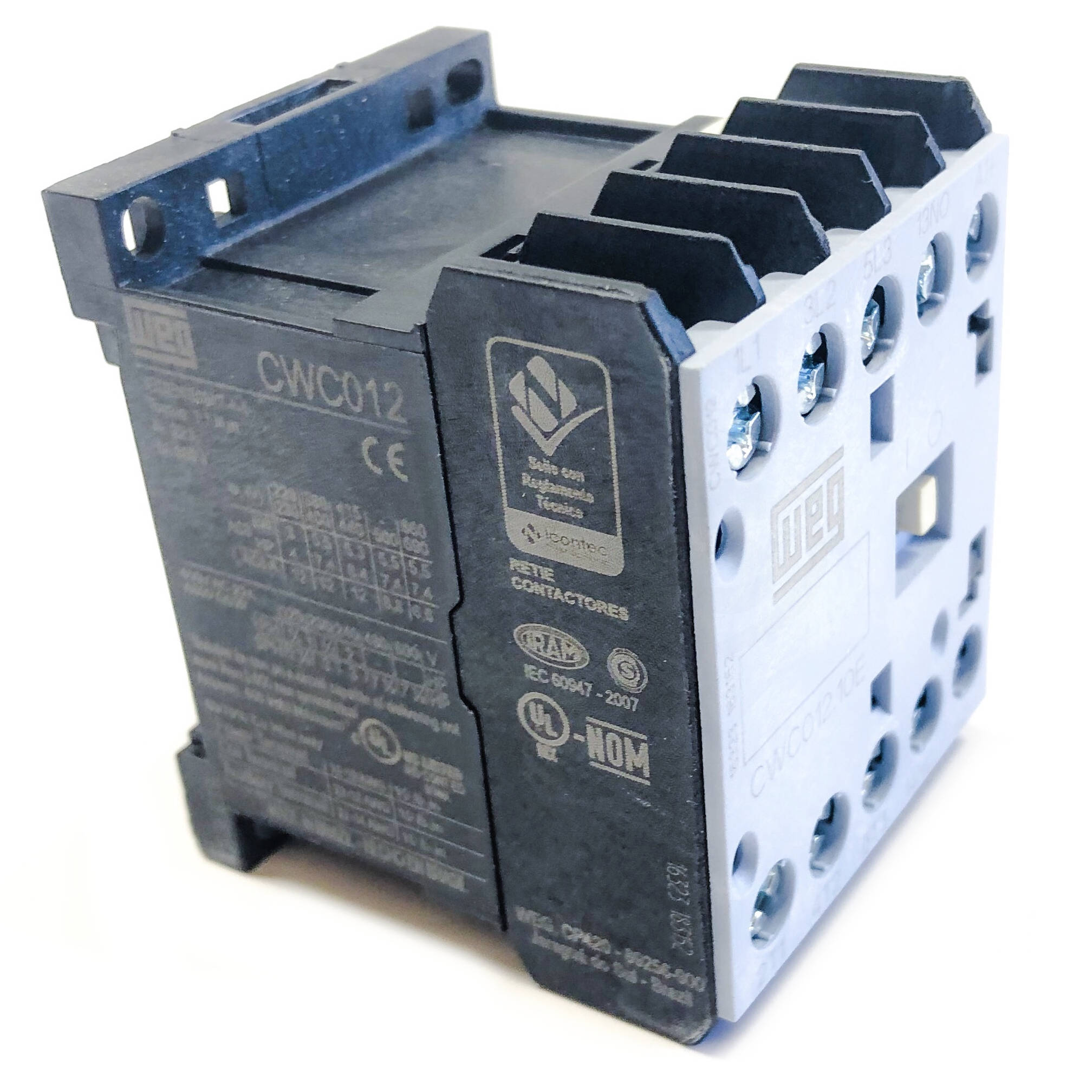

CWC012-01-30C03I WEG Miniature Contactors, 12A, 3 Pole

MFG: WEG Electric Corporation
MFG Part Number: CWC012-01-30C03I

Selected accessories will also be added to cart

$40.98 / Each

Quantity:

24VDC Coil, 1 NC Auxiliary Contact

Details
Purchase Components

Description

The CWC Series Mini Contactor Line is a Compact Solution for the Control and Operation of Circuits. Its extensive lineup of modular and tool-free accessories makes this series the most flexible mini-contactor available today. The CWC Series miniature contactor features more horsepower for its size than any other miniature contactor on the market.

Standard Features

Direct Mounting to RW17D Series Thermal Overload Relays
Direct Mounting to MPW18 and MPW40 Series Manual Motor Protectors
Low Consumption DC Coils
Tool Free DIN Rail Mountable
Frame size remains the same for AC and DC coil contactors up to 16A
Complete line of snap-on accessories

Specifications

Manufacturer	WEG
Catalog Number
Frame Current Rating	12 Amps
Auxiliary Contacts
Power Poles
Coil Voltage
Maximum UL Horsepower	1/2 HP@115V Single Phase 2 HP@230V Single Phase 3 HP@200/230V 3-Phase 7.5 HP@460/575V 3-Phase
