/Products/Electrical Components/WEG/Contactors/Safety Contactors (CWBS)/CWBS9-33-30C03 WEG Safety Contactor, 3 NO Power Poles, 9 Amps

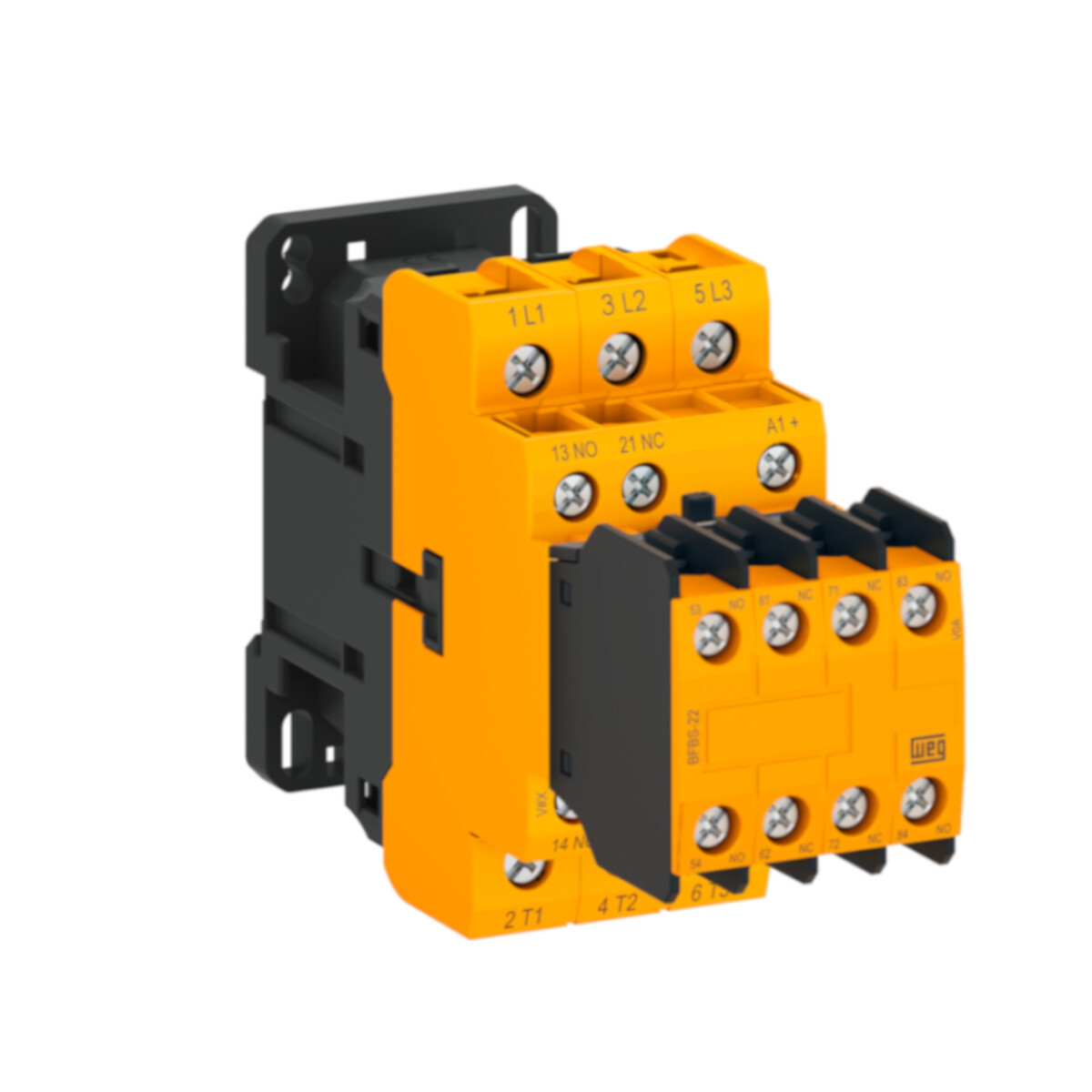

CWBS9-33-30C03 WEG Safety Contactor, 3 NO Power Poles, 9 Amps
Enlarge Photo

Product ID: CWBS9-33-30C03

CWBS9-33-30C03 WEG Safety Contactor, 3 NO Power Poles, 9 Amps

MFG: WEG Electric Corporation
MFG Part Number: CWBS9-33-30C03

Selected accessories will also be added to cart
$96.51 / Each
Quantity:
13793492, 24VDC Coil, 3NO / 3NC Auxiliary Contacts
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 690 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 10 million
Electrical lifespan 2 million
Degree of protection IP (IEC 60529) - Main circuit IP10
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 9 A
Rated current In - AC-4 4,4 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 25 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 78,4 mm (3.09 in)
Width 45 mm (1.77 in)
Depth 134.6 mm (5.30 in)
Gross weight 0.465 kg
