/Products/Electrical Components/WEG/Contactors/IEC Contactors (CWB)/CWB80/CWB80-11-30D39 WEG Low Voltage Contactor, 80 Amp, 3 NO Power Poles

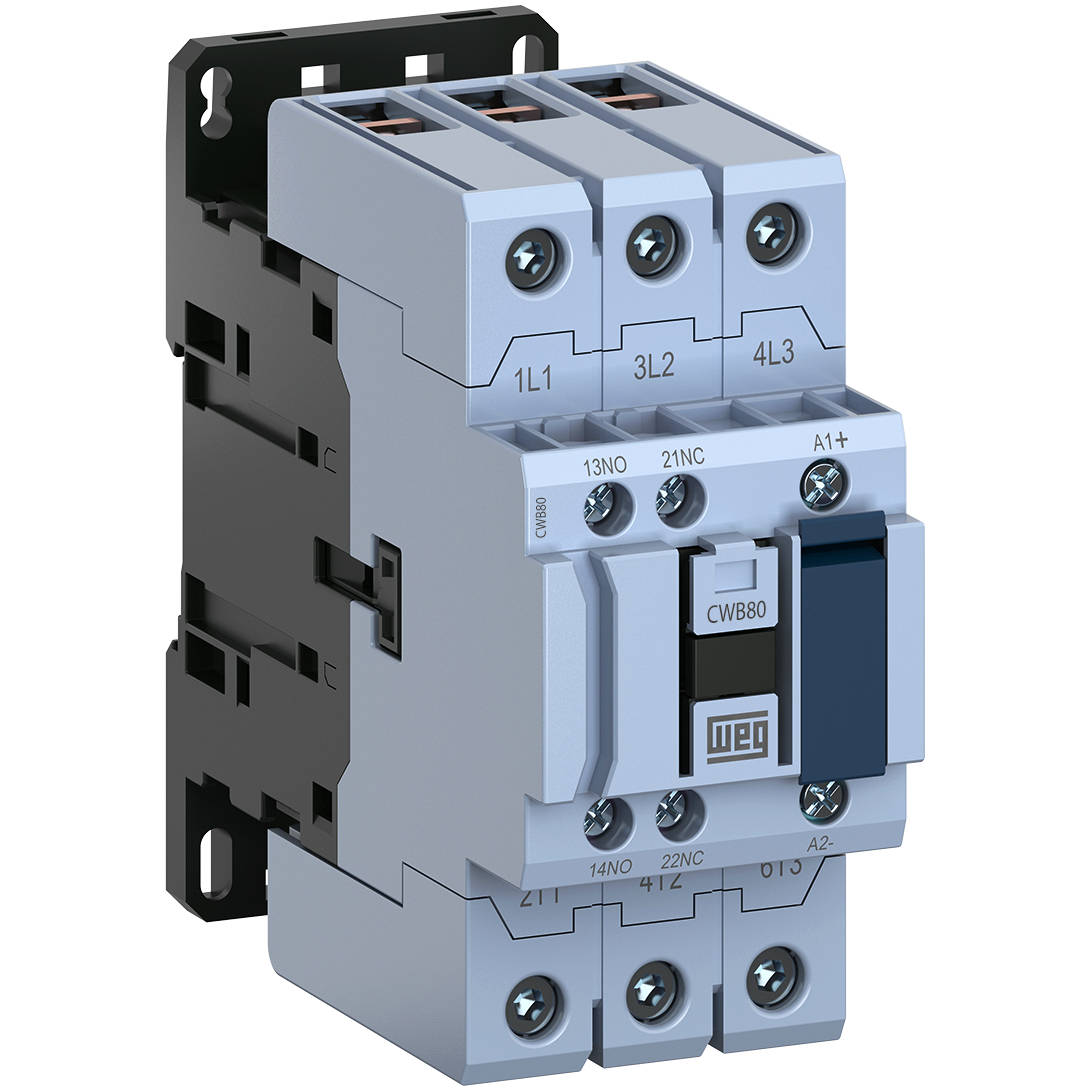

CWB80-11-30D39 WEG Low Voltage Contactor, 80 Amp, 3 NO Power Poles
Enlarge Photo

Product ID: CWB80-11-30D39

CWB80-11-30D39 WEG Low Voltage Contactor, 80 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWB80-11-30D39

Selected accessories will also be added to cart
$105.30 / Each
Quantity:
480VAC 50/60Hz Coil, 1 NO / 1 NC Auxiliary Contact
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 6 million
Mechanical lifespan (DC) 6 million
Electrical lifespan 1,2 million
Degree of protection IP (IEC 60529) - Main circuit IP10
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 80 A
Rated current In - AC-4 32 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 110 A
Rated operational voltage Ue - IEC 60947-4-1 1000 V
Rated operational voltage Ue - UL/CSA 600 V
Height 115 mm (4.53 in)
Width 54 mm (2.13 in)
Depth 120.7 mm (4.75 in)
Gross weight 0.91 kg
