/Products/Electrical Components/WEG/Contactors/IEC Contactors (CWB)/CWB50/CWB50-11-30C03 WEG Low Voltage Contactor, 50 Amp, 3 NO Power Poles

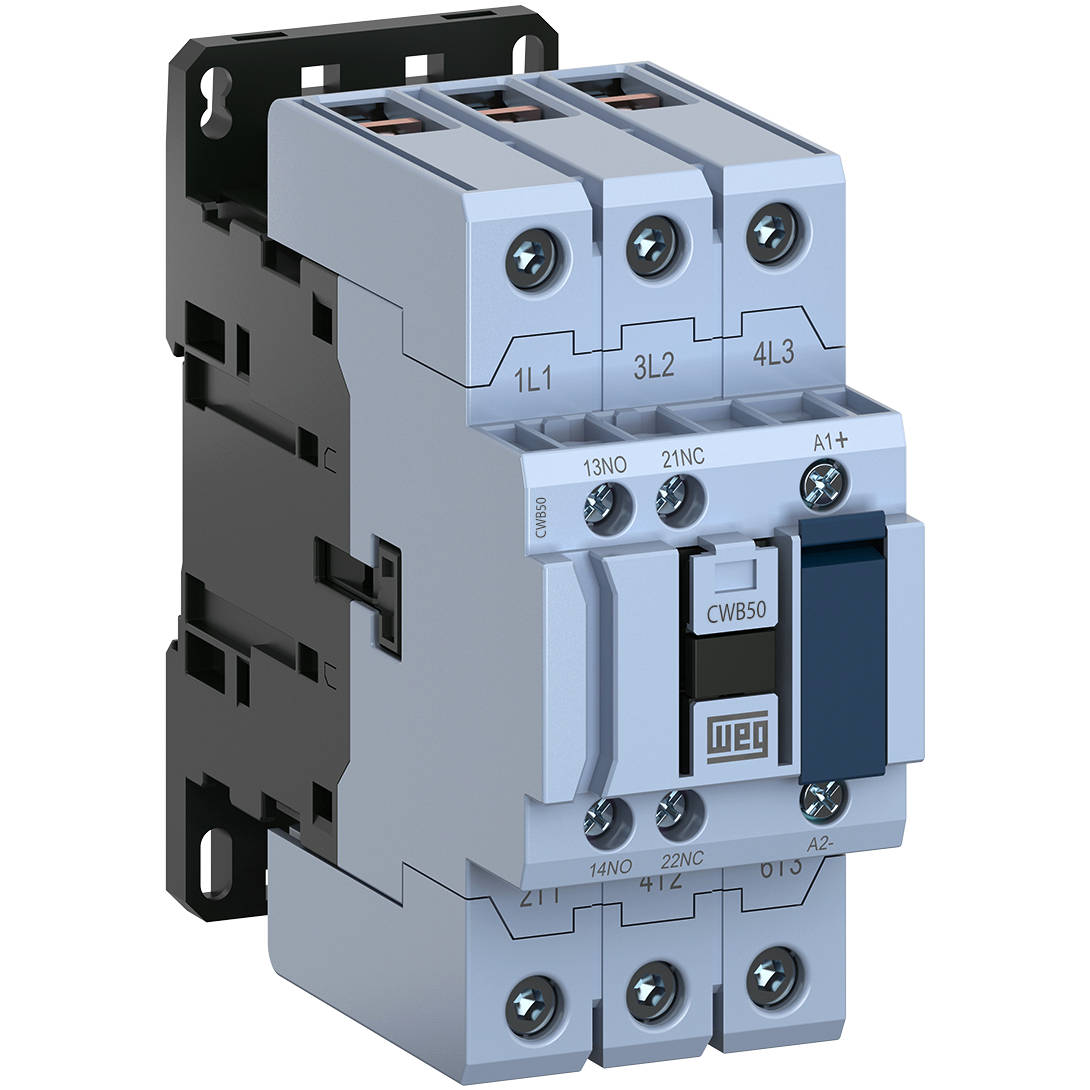

CWB50-11-30C03 WEG Low Voltage Contactor, 50 Amp, 3 NO Power Poles
Enlarge Photo

Product ID: CWB50-11-30C03

CWB50-11-30C03 WEG Low Voltage Contactor, 50 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWB50-11-30C03

Selected accessories will also be added to cart
$120.90 / Each
Quantity:
24VDC Coil, 1NO / 1NC Auxiliary Contact
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 6 million
Mechanical lifespan (DC) 6 million
Electrical lifespan 1.6 million
Degree of protection IP (IEC 60529) - Main circuit IP10
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 50 A
Rated current In - AC-4 18,5 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 90 A
Rated operational voltage Ue - IEC 60947-4-1 1000 V
Rated operational voltage Ue - UL/CSA 600 V
Height 115 mm (4.53 in)
Width 54 mm (2.13 in)
Depth 120.7 mm (4.75 in)
Gross weight 0.98 kg
