/Products/Electrical Components/WEG/Contactors/IEC Contactors (CWB)/CWB18/CWB18-11-30D33 WEG Low Voltage Contactor, 18 Amp, 3 NO Power Poles

Click Image to Expand

Previous Next

Product ID: CWB18-11-30D33

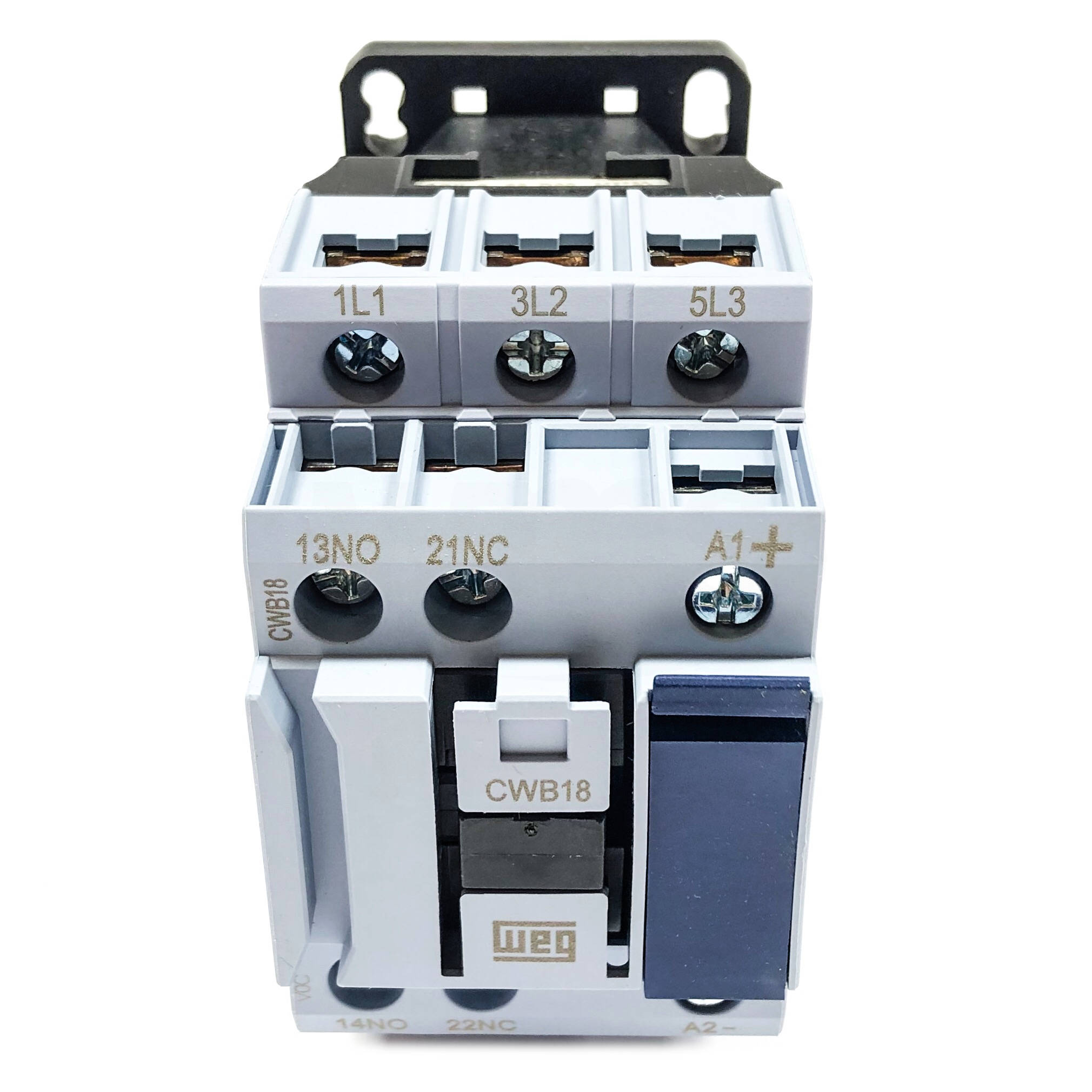

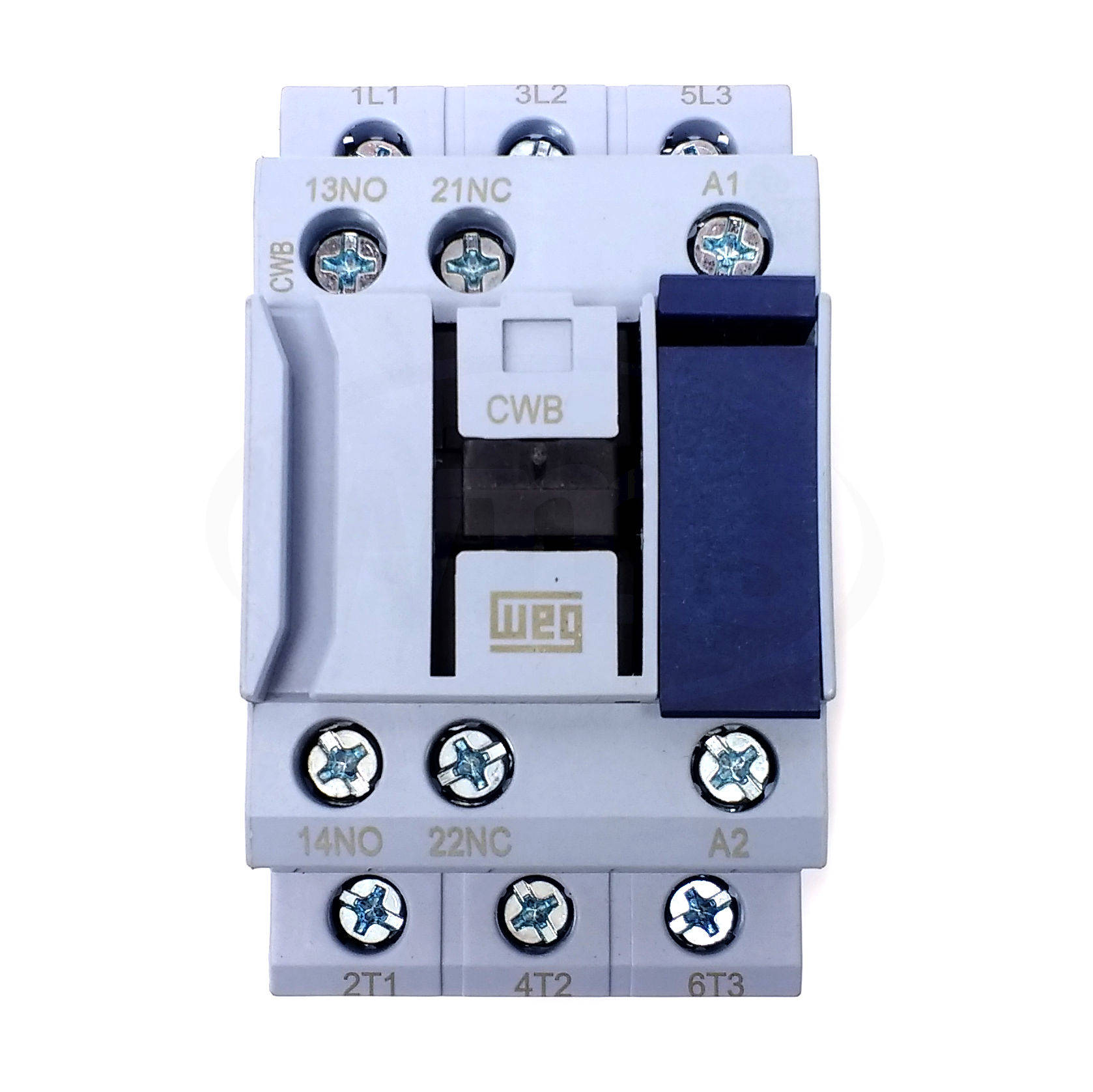

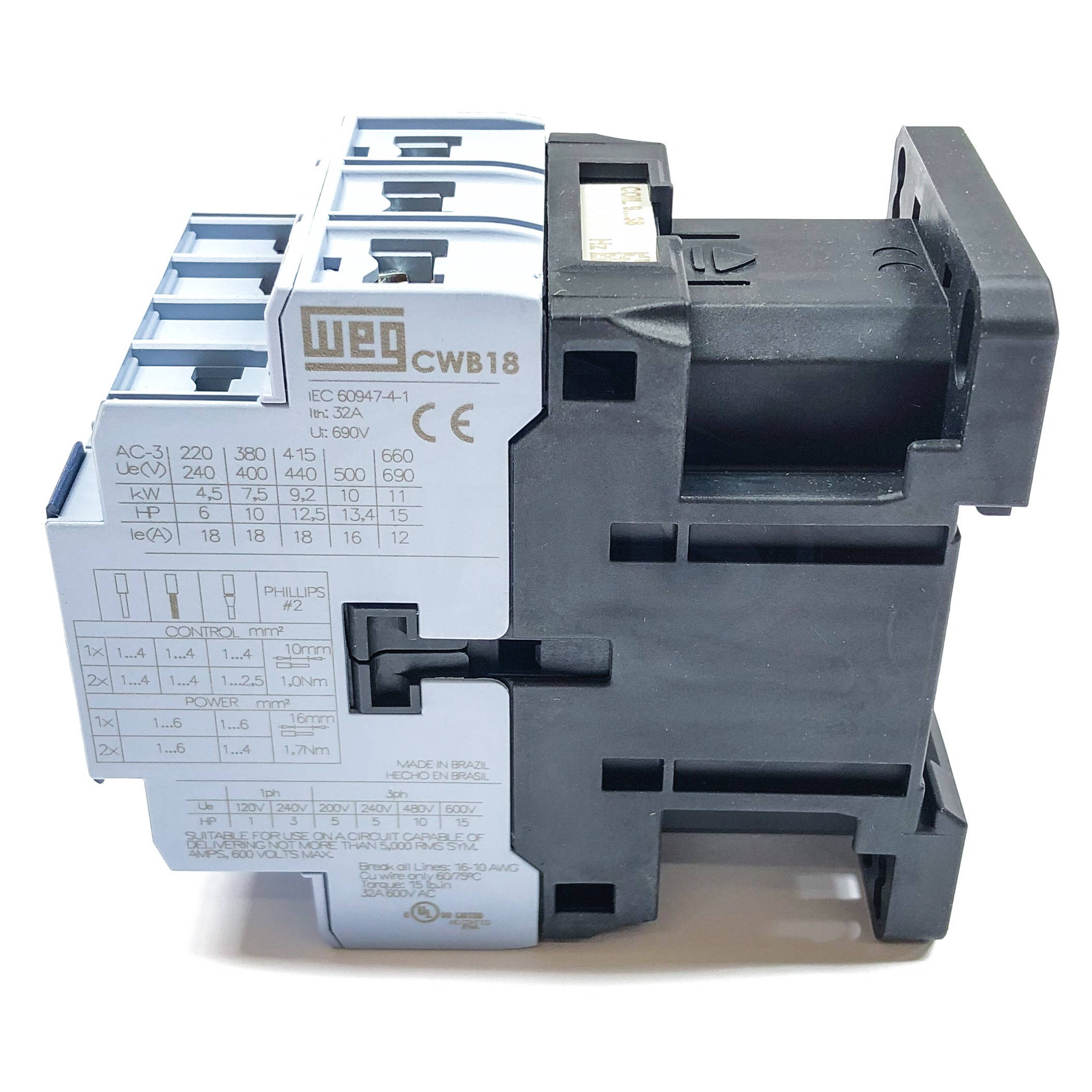

CWB18-11-30D33 WEG Low Voltage Contactor, 18 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWB18-11-30D33

Selected accessories will also be added to cart

$40.17 / Each

Quantity:

380V 50/60Hz Coil, 1NO/1NC Auxiliary Contact

Details
Purchase Components

Description

Specifications

Manufacturer	WEG
Catalog Number	CWB18-11-30D33 12660848
Rated Current	18 Amps
Auxiliary Contacts	1 Normally Open 1 Normally Closed
Power Poles	3
Coil Voltage	380VAC 50/60Hz
Maximum UL Horsepower	5 HP @ 200VAC 5 HP @ 230VAC 10 HP @ 460VAC 15 HP @ 575VAC
UPC	7909158497799
Country of Origin	Brazil

Features

Low Consumption Coils
Eco-Friendly
UL 508, IEC 60947
Compact Solution (45mm Wide)
Built-In Auxiliary Contacts
Easy Access Power and Control Terminals

Technical Data

General Data

Standards	IEC 60947-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Rated Insulation Voltage (Ui)	690V IEC 60947-4-1 600V UL, CSA
Rated inpulse withstand voltage (Uimp)	6kV IEC 60947-1
Rated Operational Frequency	25-400 Hz
Mechanical Lifespan	10 Million Cycles
Electrical Lifespan (Ie AC-3)	1.2 Million Cycles (
Degree of Protection (IEC 60529)	IP20 (front)
Mounting	By Screws or DIN 35mm Rail (EN 50022)
Number of Coil Terminals	2
Vibration Resistance (IEC 60068-2-6)	4 g
Shock Resistance (½ Sine Wave=11ms – IEC 60068-2-27)	Open Contactor: 10 g Closed Contactor at Uc: 15 g
Ambient Temperature	Operating: -25°C to +55°C Storage: -55°C to +80°C
Altitude	rated values up to 3000m

About

Eco-Friendly

The CWB line uses only nontoxic and eco-friendly materials that are safe and sustainable.

Compact Solution

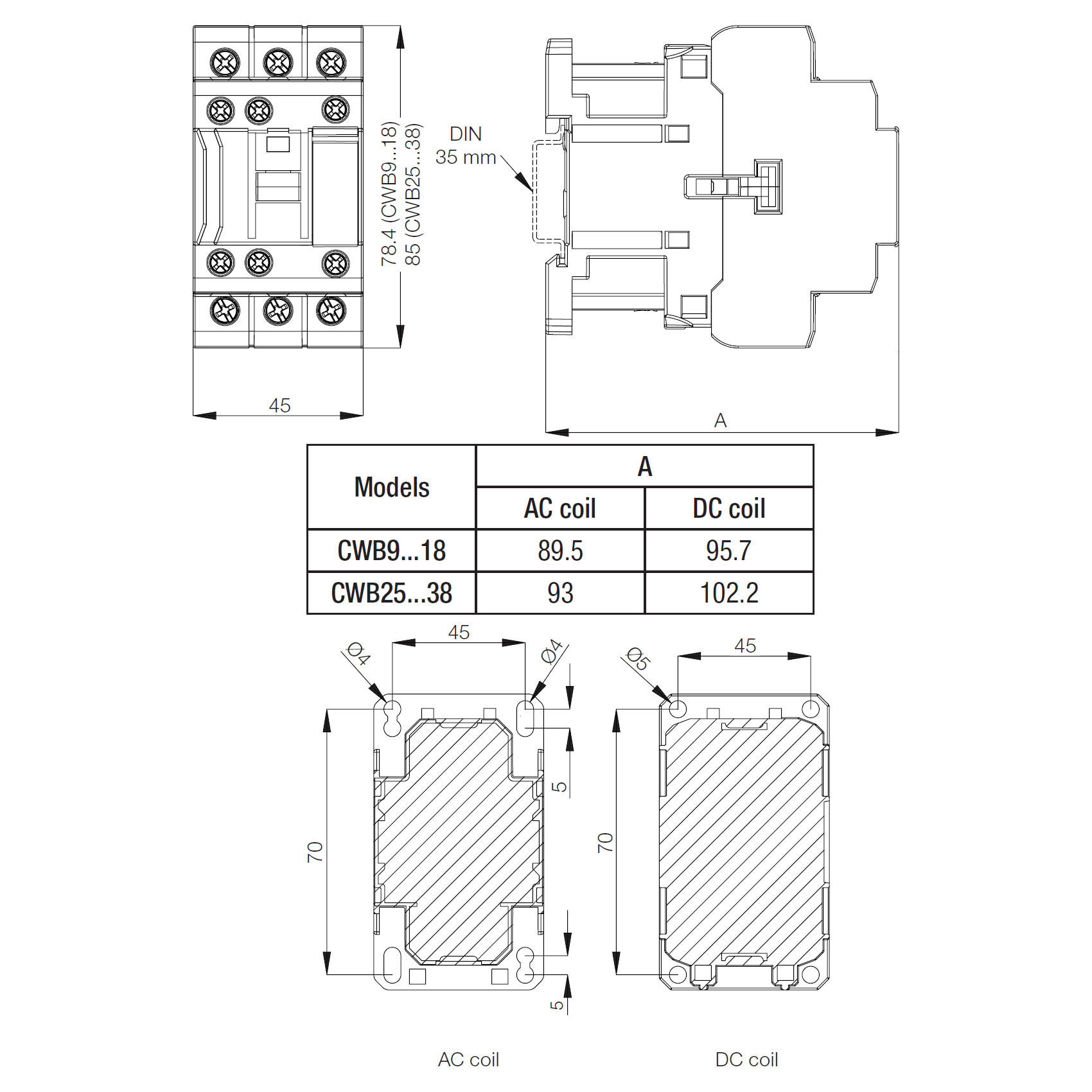

Because they are compact, 45 mm wide and available in up to 38 A, and 54 mm wide available from 40 to 80 A, CWB contactors lead to an overall reduction in size of electric panels if compared to traditional solutions of contactors with the same ratings.

Built-In Auxiliary Contacts 1NO + 1NC

The configuration of two built-in auxiliary contacts (1NO + 1NC) makes the application of CWB contactors more flexible in most automation systems, contributing to the optimization of internal space of electrical panels.

Panel Assembly Flexibility

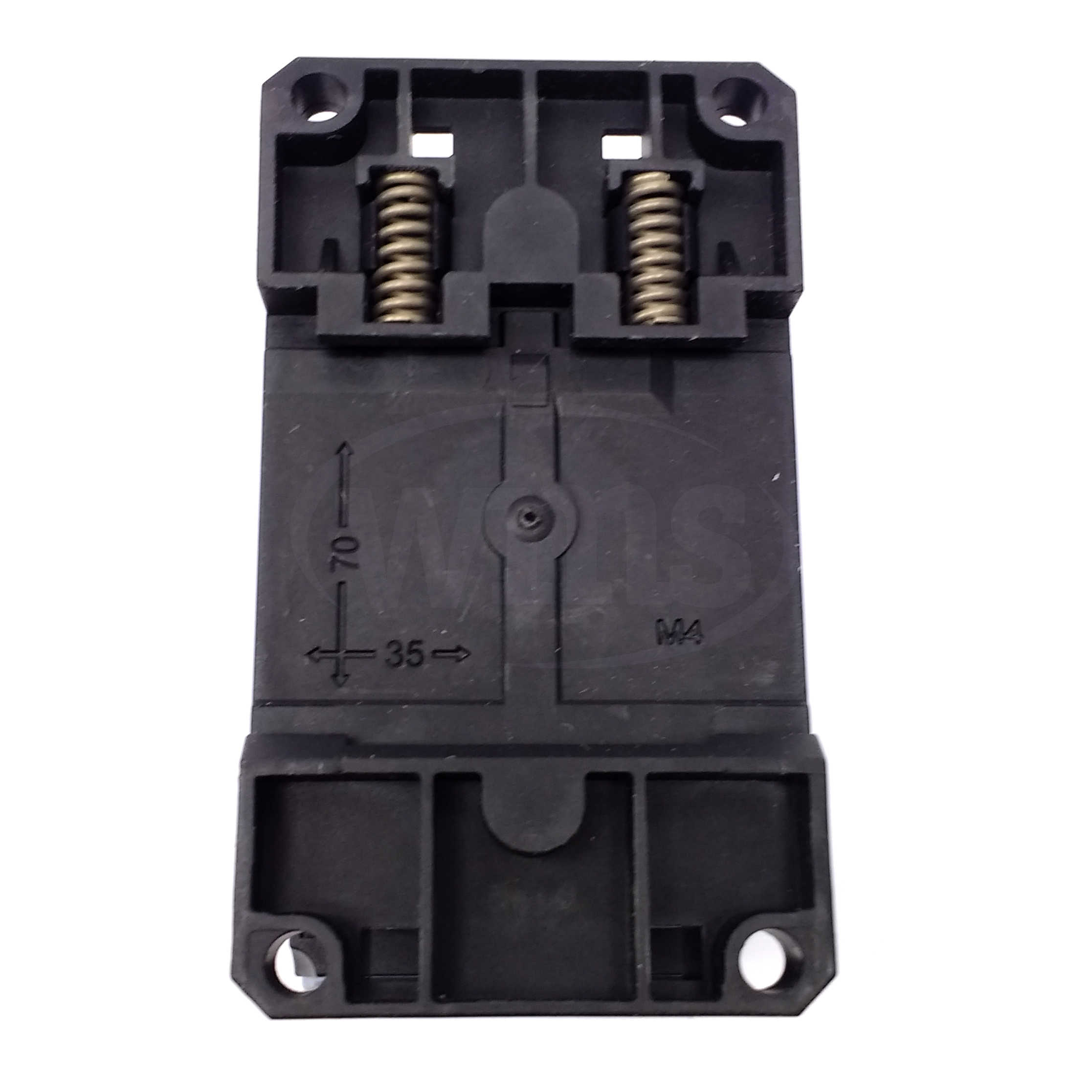

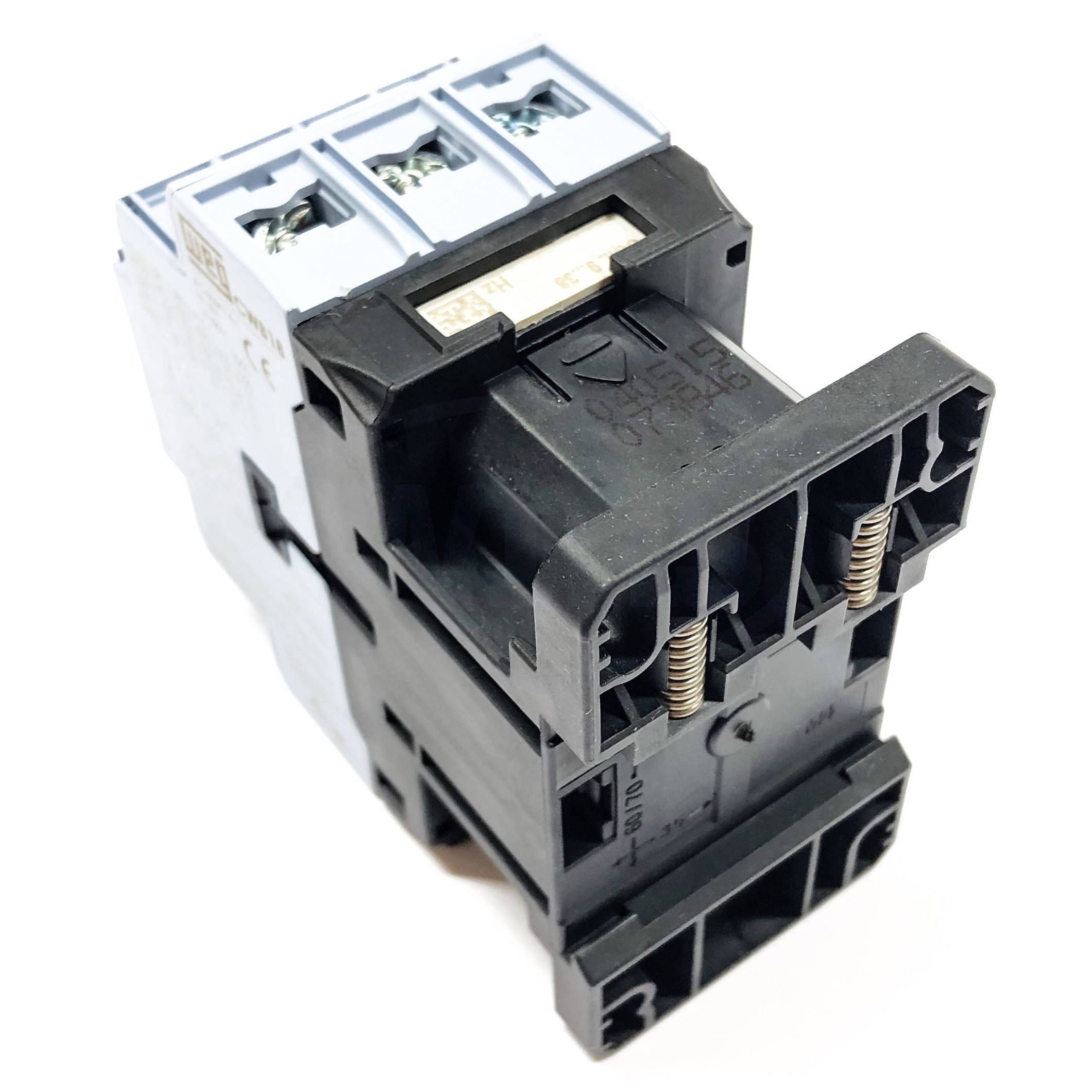

CWB contactors can be easily assembled on panels using 35 mm DIN rails or screws because their oblong holes are compatible with the old and traditional lines of contactors on the market.

“Zero-Width” Mechanical Interlock

For applications which require mechanical interlock between contactors, WEG has developed a new mechanical system that ensures compact and easy mounting without the need of any tools. WEG’s new mechanical interlock system allows the mechanical interlock between two contactors of the CWB line with “zero” additional side space and it is possible to assemble 90 mm wide reversing starters of up to 38 A.

Simple and Compact Mounting of Surge Suppressor Blocks

The coils of CWB contactors operate smoothly with a low level of disturbance in the control circuits. However, in order to reduce voltage surges due to the coil switching even further, WEG has developed surge suppressor blocks especially for the CWB line of contactors, which ensure limitation or even completely eliminate the undesired interferences that may be caused on opening the contactor coil. Surge suppressor blocks are easily mounted on CWB contactors without the need of any kind of tools and also without increasing volume.
