WEG enclosed starters series is designed to meet the requirements and flexibility frequently demanded in industrial applications. Featuring components that meet IEC design standards and UL horsepower ratings, WEG enclosed starters are UL508A approved and CSA certified. This means your panels will fulfill the rigorous requirements of UL508A and will have the quality and performance as for all WEG products.

By having most of the processes in WEG facilities we can manufacture not only standard enclosed starters, but also any other custom panel your application may require. Our Engineers will work together with you to provide the perfect solution for your application.

As standard products, WEG offers options for both: Full Voltage Non-Reversing Non-Combination Starters and Full Voltage Non-Reversing Combination Starters up to 250Hp at 460Vac.

WEG’s UL508A panel shops can manufacture any configuration of Non-Combination or Combination

Starters for any low voltage horsepower ratings. Some examples are listed below: • Enclosed Contactors • Full Voltage Reversing Starters • Reduced Voltage Magnetic Starters (Part-Winding, Wye-Delta) • Reduced Voltage Solid-State Starters (Softstarters, VFD) • Multi-Speed Starters • Explosion Proof Starters • Pump Panel Controllers

Whenever you need a reliable product to control & protect your application, WEG field specialists can help you find the best solution.

Non-Combination Starters :

WEG assembled their reliable CWM contactor and RW bimetallic overload into a metallic NEMA 1 (ESW series) & plastic NEMA 4X (PESW series) enclosures to provide non-reversing full voltage starters suited for just about any application. Both series are available up to 10Hp@230Vac (1ph) & 75Hp@460Vac (3ph).

WEG offers non-reversing and non-combination magnetic starters up to 75Hp@460Vac (105A). Featuring components that meet IEC design standards and UL horsepower ratings, incorporating WEG contactors and overload relays, the magnetic starters are ideal to protect and operate motors, ensuring smooth operation year-after year.

Two series are available off the shelf: • Metallic Type 1 – ESW Series • Non-Metallic Type 4X – PESW Series

WEG ESW and PESW starters are pre-wired from the factory and recommended for all single and three phase applications where D.O.L. magnetic starters can be applied.

Combination Starters :

Combination starters are the most common type of packaged motor controllers. They are called combination because of their construction and combined functions required by the US National Electric Code (NEC): Motor Disconnect, Motor Branch Circuit Protection, Motor Controller and Motor Overload Protection.

WEG’s full voltage non-reversing combination starters represent a competitive alternative to the traditional NEMA starters by offering the following : • Reduced overall dimensions, yet providing reasonable internal wiring space • Rotary through-the-door disconnect instead of the traditional flange operator; • UL/CSA approved performance in more compact components.

Four series are available off the shelf: • Fusible disconnect – ESWA Series • MCCB disconnect – ESWC Series • Manual Motor protector – ESWE & ESWF Series • Pum

Details

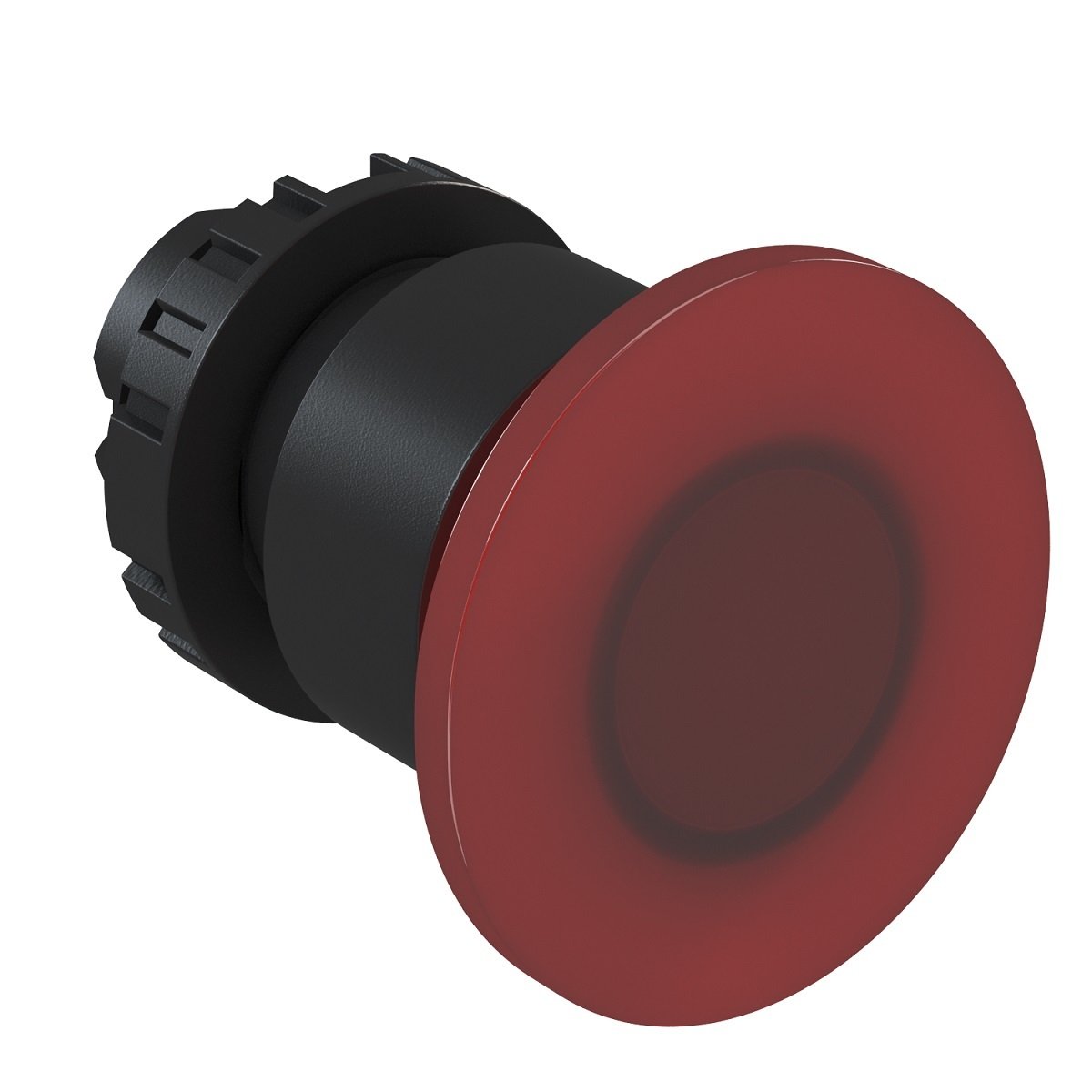

Front type	Iluminated Mushroom
Actuation form	Pulsator
Front color	Red
Actuaction signaling	Not contain
Front coating	Uncoated

Specific function	Without lettering
Emergency button monitoring	Not contain
Installation diameter	22 mm
Degree of protection	IP66
Weight	0.02 Kg

Catalogs & Information

WEG Pushbuttons and Pilot Lights - CSW Series, 22 and 30mm Catalog, 09/18/2019 (PDF, 53 Pages, 17.3MB)
WEG Pushbuttons and Pilot Lights Line Overview, 04/08/2019 (PDF, 8 Pages, 3.09MB)
WEG Pushbuttons and Pilot Lights Line Overview, 06/24/2019 (PDF, 8 Pages, 1.69MB)

About This Product

Main Characteristics

• High technology in design and manufacture;
• Modern and ergonomic design;
• Contacts and flange with quick and easy assembly system; illumination blocks with integral highly bright LED
• Long useful life of 100,000 h of operation;
• Available in the voltages 12 V AC/DC, 24 V AC/DC, 48 V AC/DC, 110-130 V AC, 125 V DC and 220-240 V AC;
• 5 options of colors: red, green, yellow, blue and white, indicated on the LED centralizer to facilitate the identification.

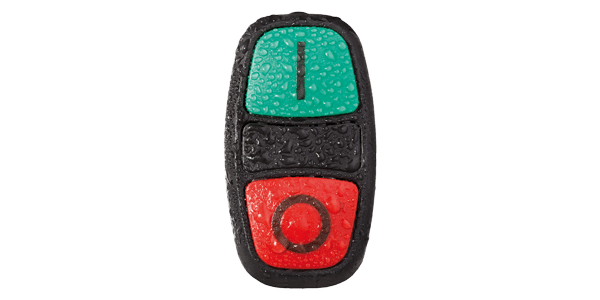

Technology

The push buttons and pilot lights of the CSW line were developed to be used in harsh environments and industrial applications with IP66.

Quick and Easy Assembly System

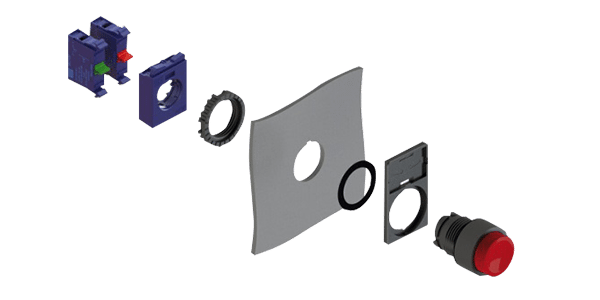

The contact latching of WEG's products (buttons, selection switches and pilot lights) use special, quick fitting flanges. The new mehanical flange system allows its removal in a practical and quick way without requiring any tools.

The blocks allow individual assembly and removal without affecting the others. The entire series can be quickly mounted (just one “click”) and may be disassembled using a common acrewdriver.

The ergonomic design of the new fixing ring allows manual tightening of the device, not requiring the use of other tools. A lighter and safer tightening method to assemble WEG's Pushbuttons and Pilot Lights.

Contact Blocks - Safety and Reliability

• High reliability and self-cleaning contact blocks;
• Contacts made with special silver alloys, ensuring high reliability of the command circuits with low current and voltage levels (5mA / 17VDC);
• NC contacts with Positive Opening system ensure the opening and interruption of the circuit.



Available Models

• Flush;
• Flush illuminated;
• Mushroom;
• Illuminated mushroom;
• Extended illuminated;
• Guarded;
• Double;
• Mushroom with lash;
• Mushroom - key release;
• Emergency - Twist-to-release;
• Emergency - Pull-push;
• Key release emergency stop.

Accessories

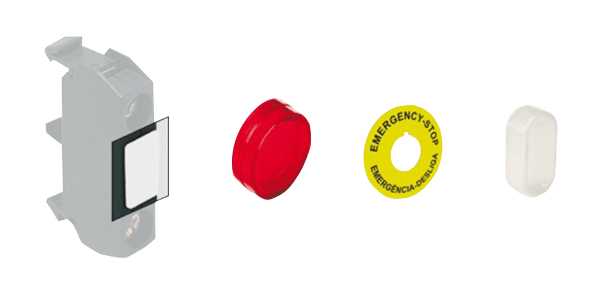

Wide range of accessories including plate holders, emergency plate, protective covers for pushbuttons, fxing and extracting tools for lamps and mounting rings, spare lenses and covers.

Available enclosures include Type 3R Raintight, Type 12 Dusttight, Type 4 Watertight and Type 4X Corrosion Resistance. Standard products range up to 250Hp at 460Vac (300A); higher horsepower ratings are available as customs panels
