AC Horsepower Ratings
HP Rating: 1HP-120V 2HP-240V

Electrical Specifications
Amperage: 20 A
Dielectric Voltage: Withstands 1500V for 1 minute
Max. Amperage: 16 Amp
Temperature Rise: Maximum 30 degrees C rise
Voltage: 120/277 VAC

Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40°C to 65°C

Material Specifications
Actuator Material: Polycarbonate
Base Material: PBT
Body Material: Thermoplastic
Color: Ivory
Contacts: Silver-Cadmium .031 Thick
Cover Material: Nylon
Strap Material: Steel
Terminal Screws: Steel 8-32
Toggle: Polycarbonate

Mechanical Specifications
Product ID: Stamped on Strap
Terminal Accom.: 14-12 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side Wire
Torque Range: 12-14 inch pounds

Product Features
Color: Ivory

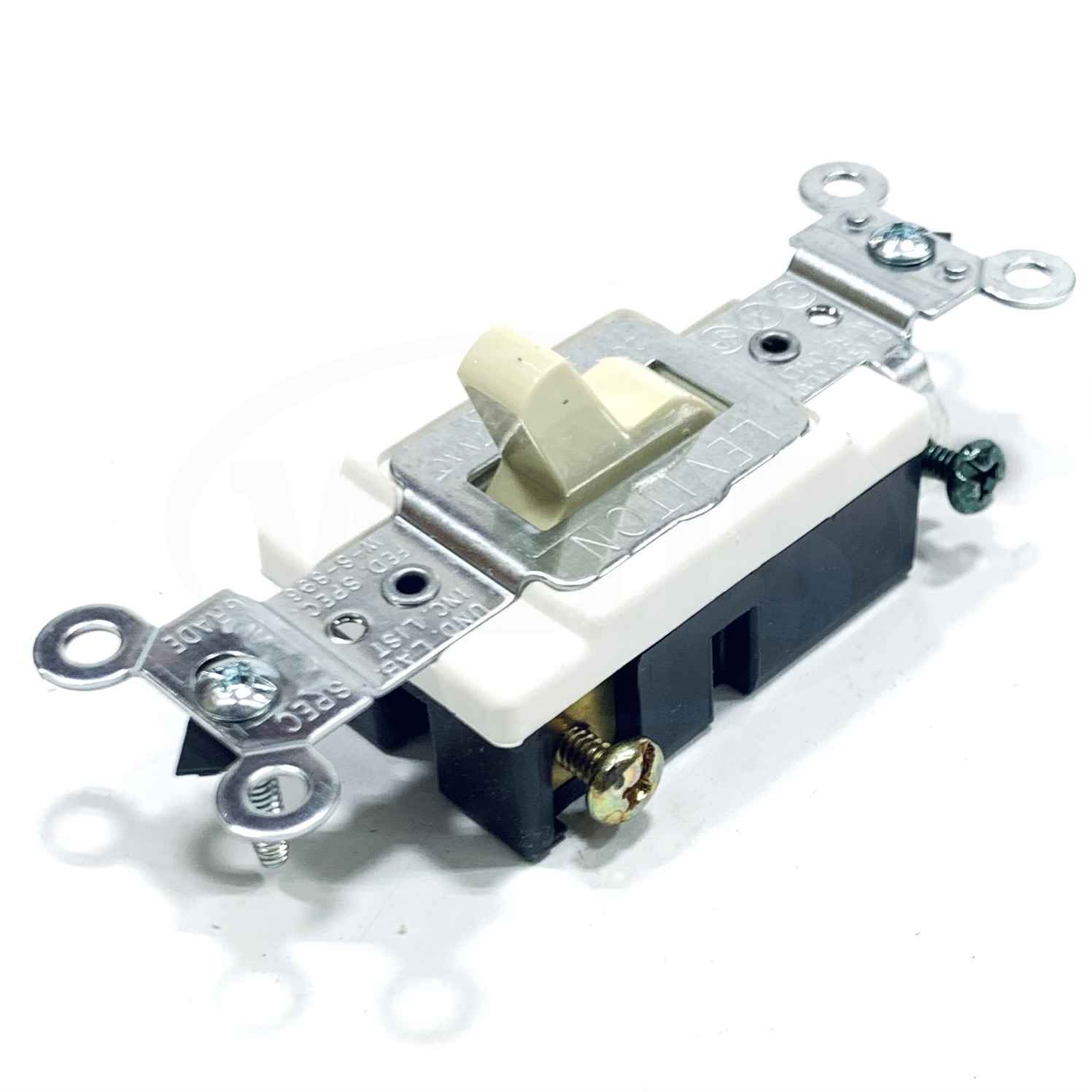

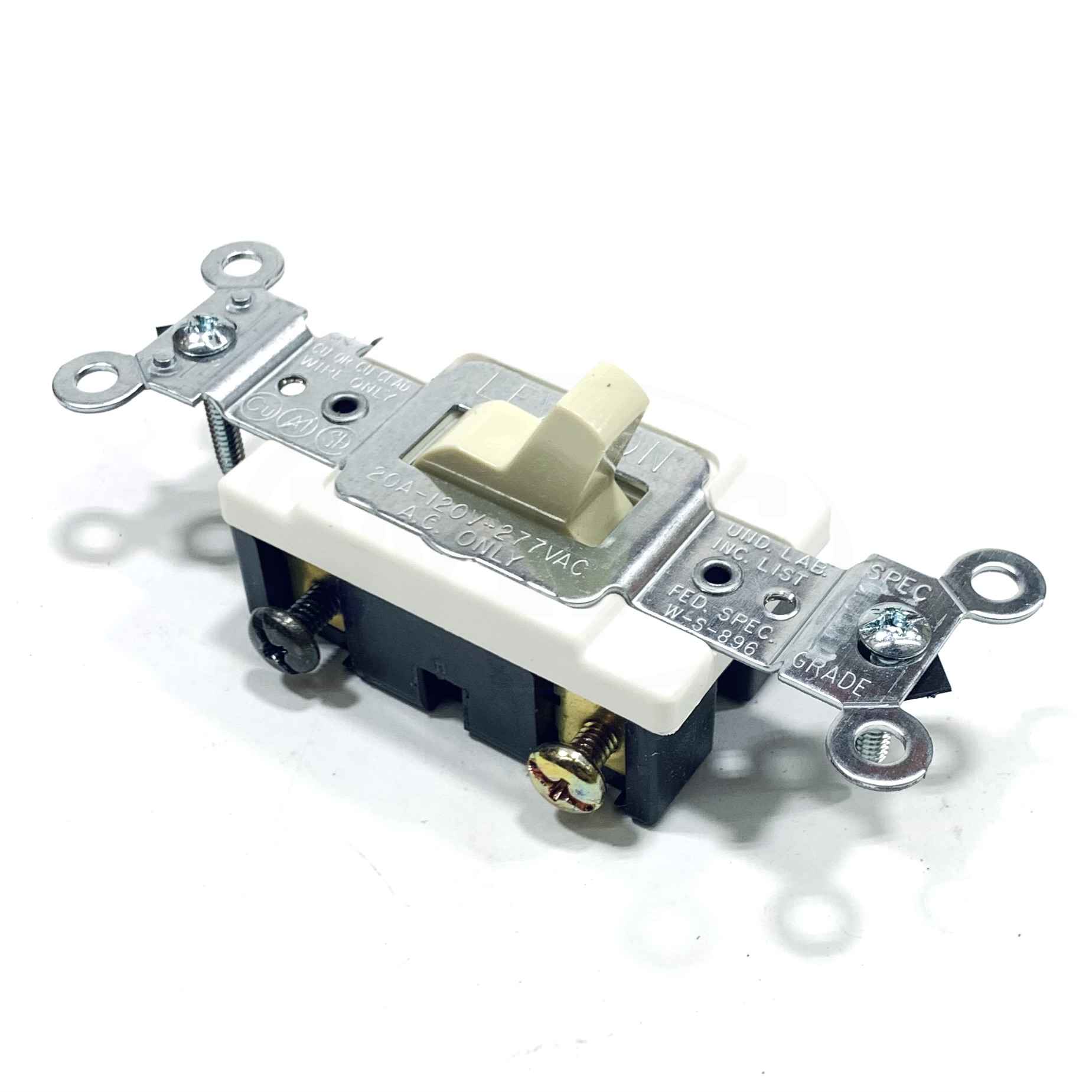

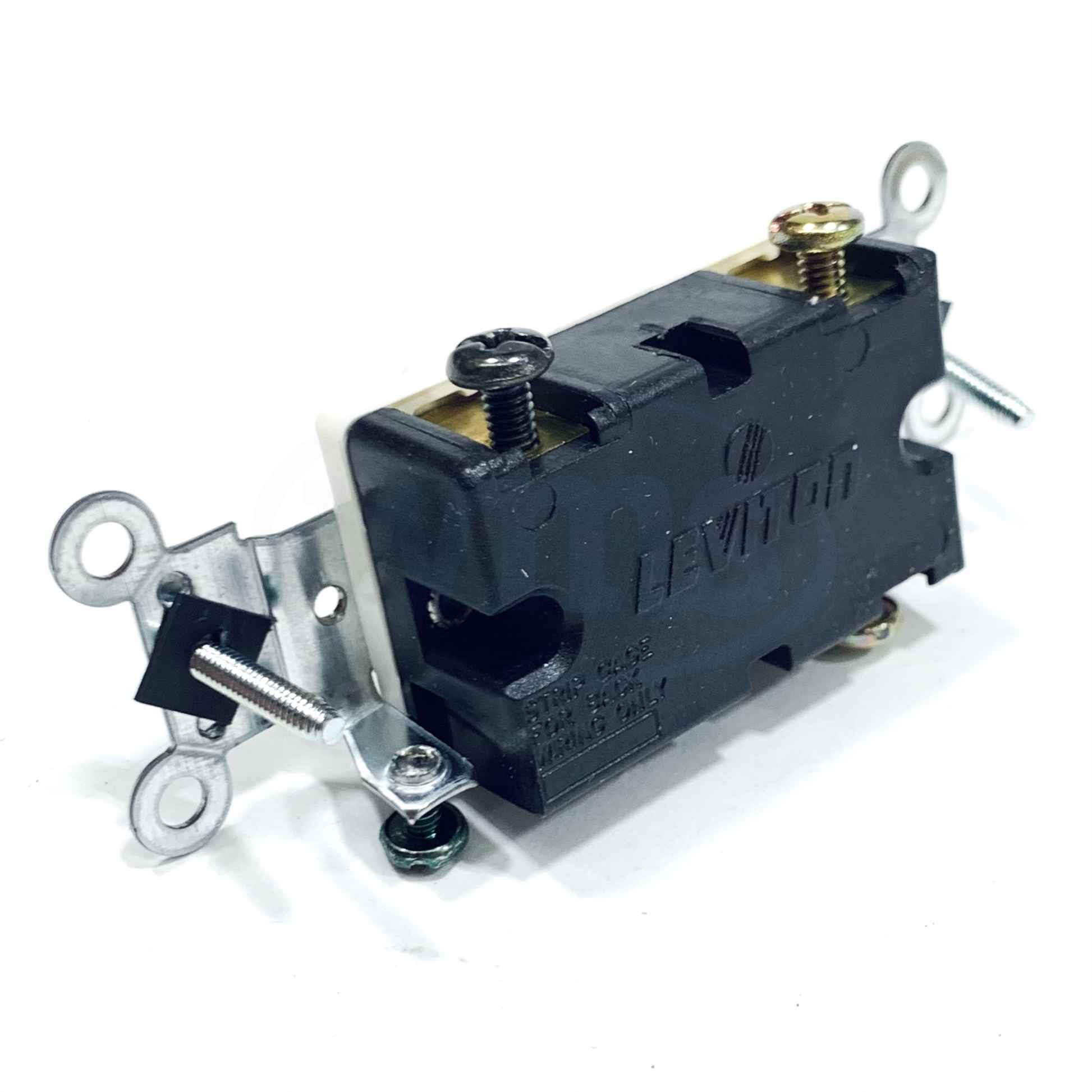

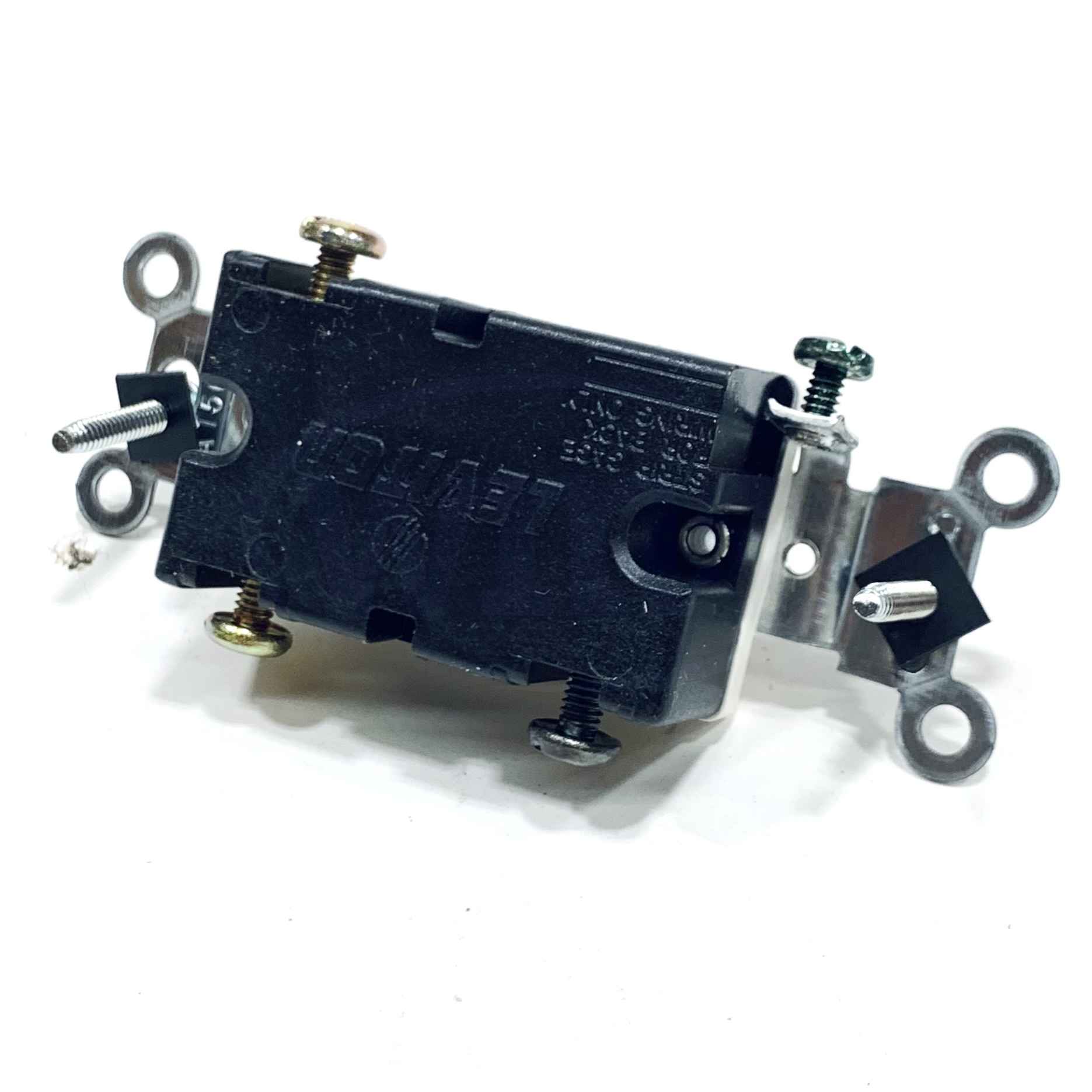

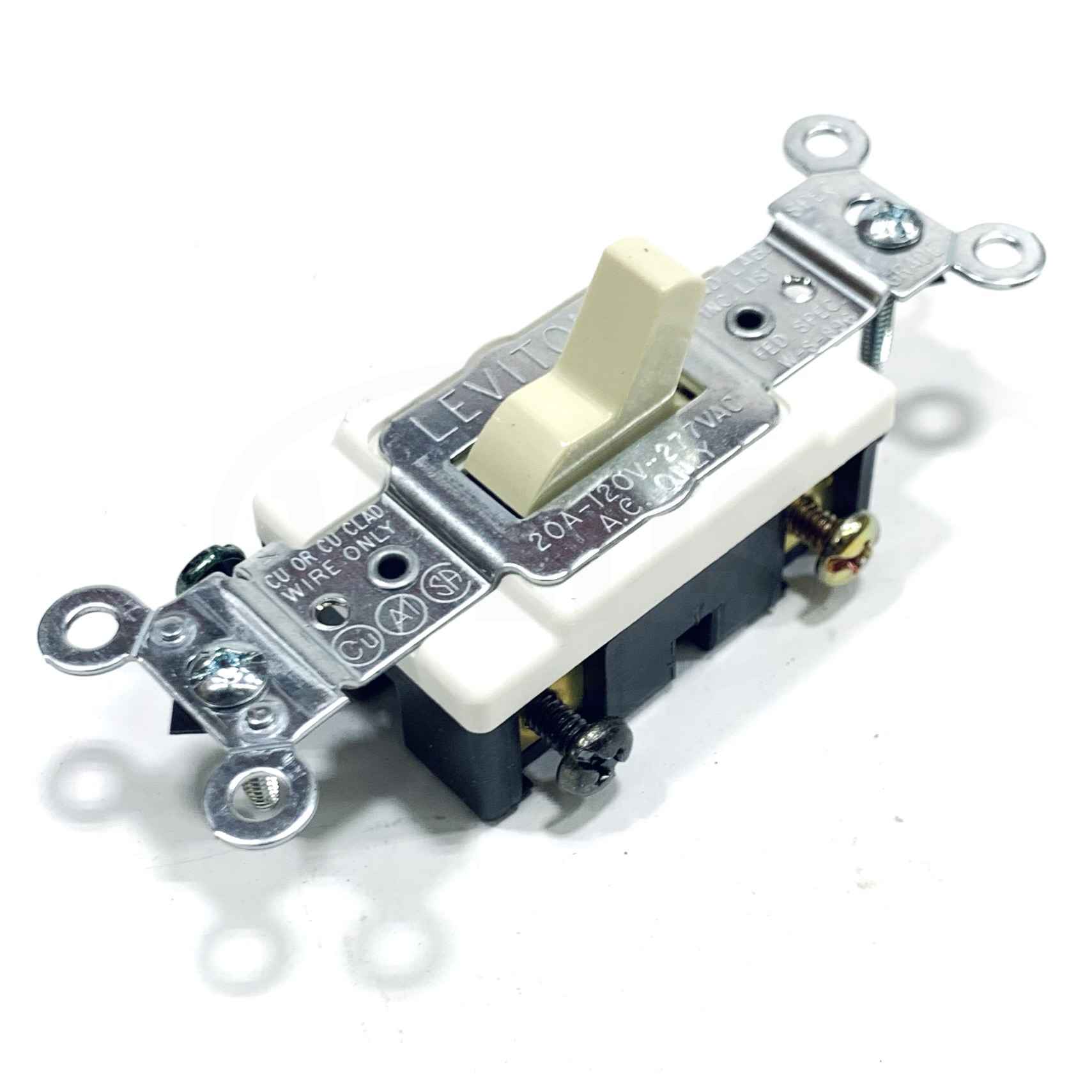

Device Type: Toggle Switch
Function: 3-Way
Grade: Commercial Specification Grade

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
UL Fed Spec WS896E: File #E7458
UL Standard: UL 20
