/Products/Electric Motors/Single Phase/Century/Air Compressor/CP1502L Century 5HP Air Compressor Electric Motor, 3450RPM

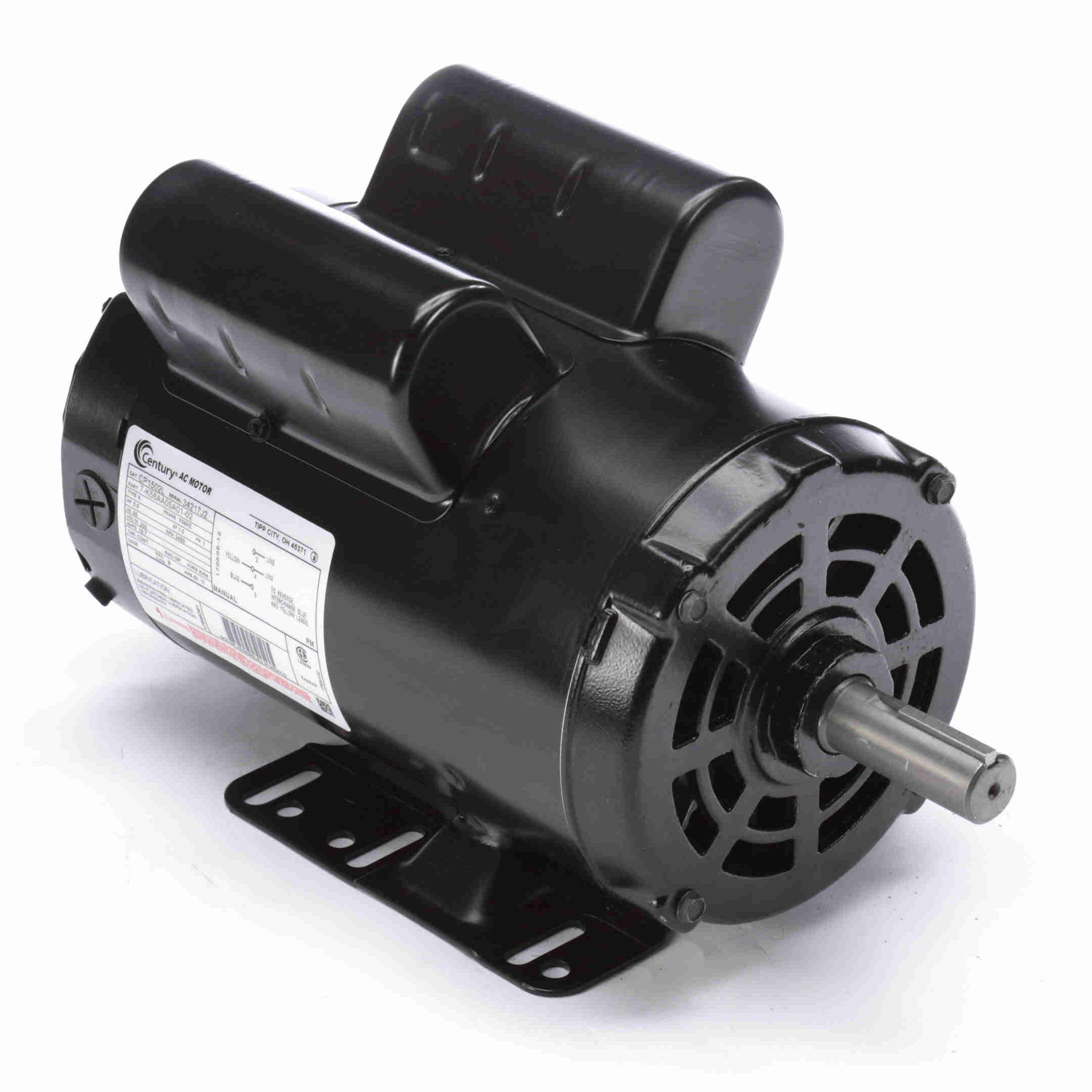

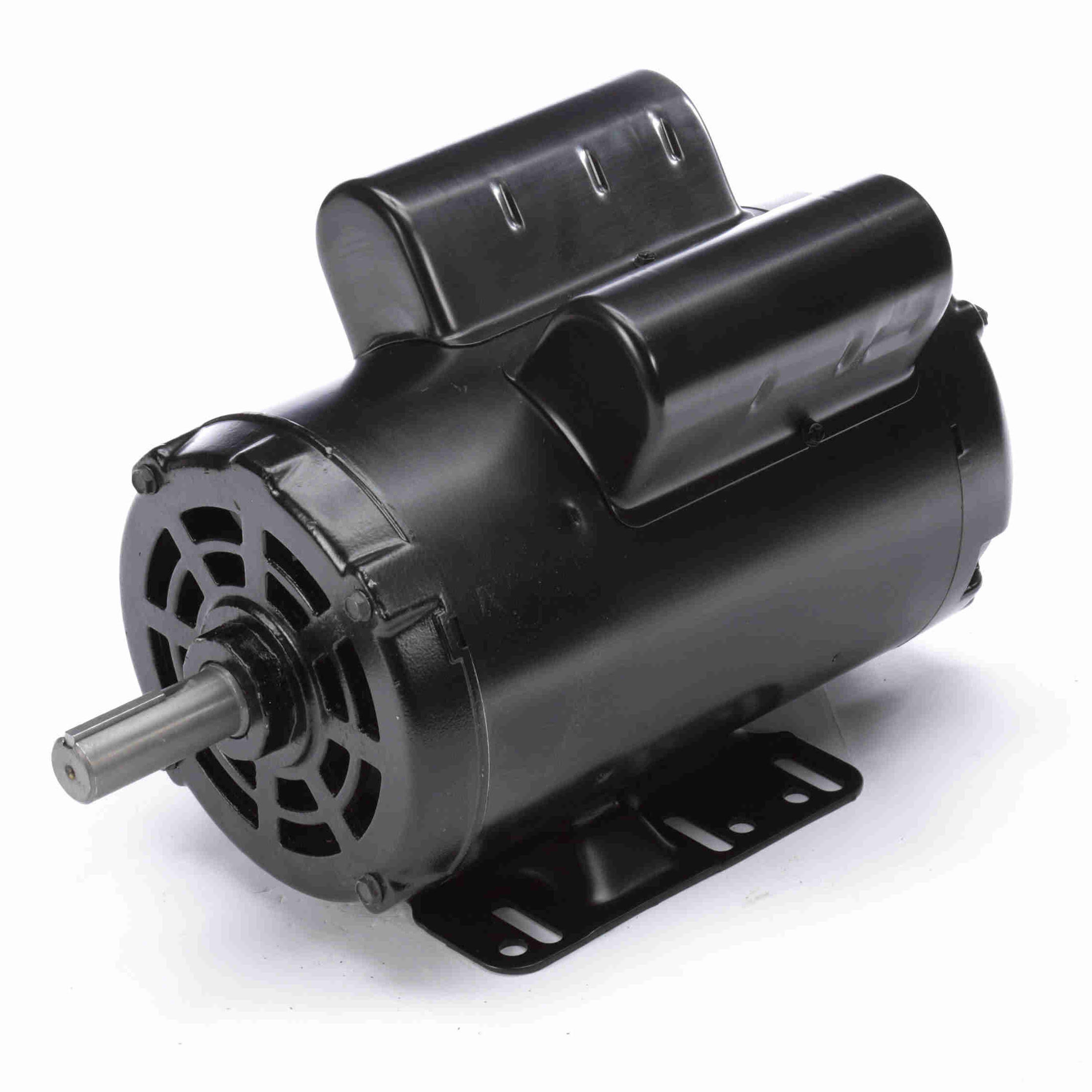

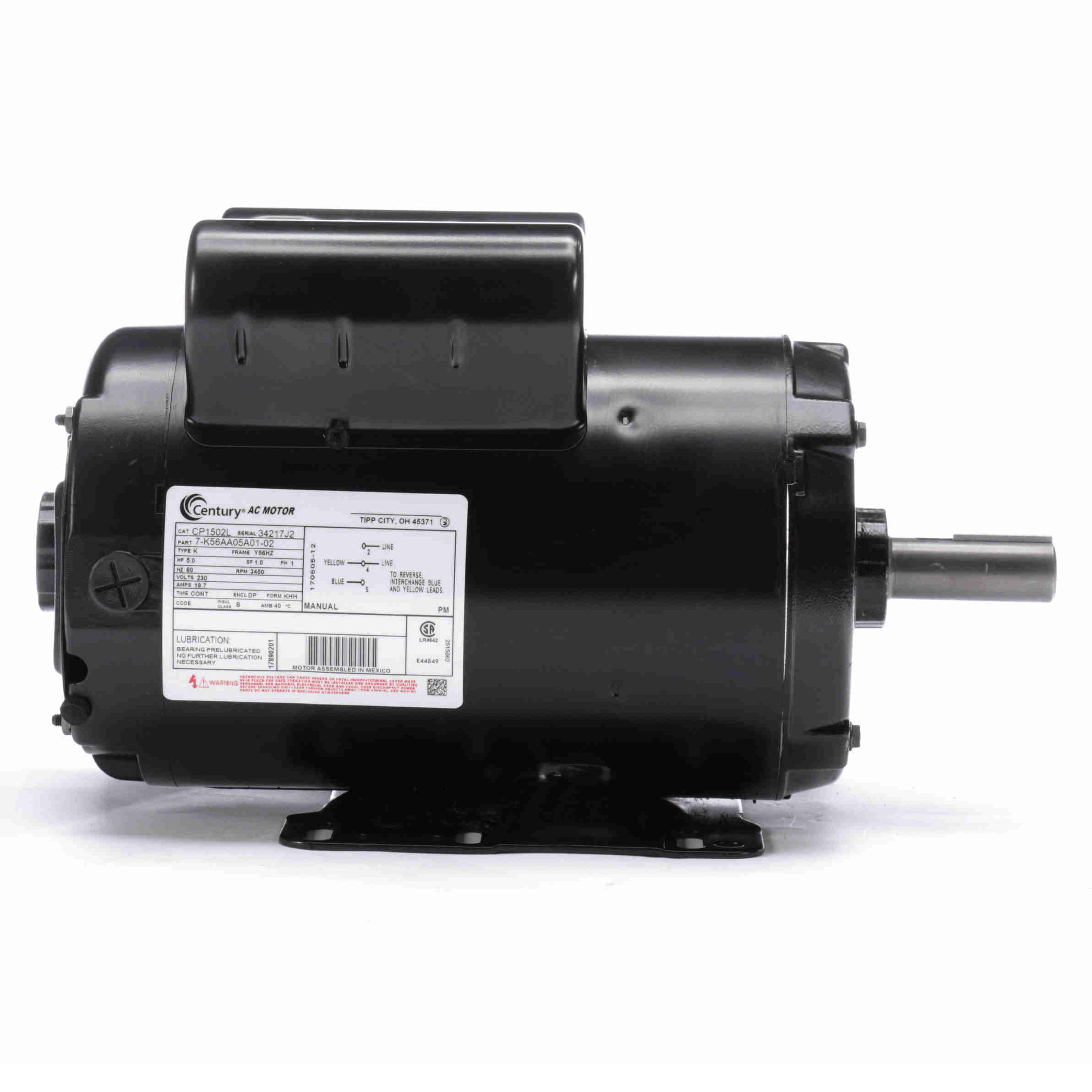

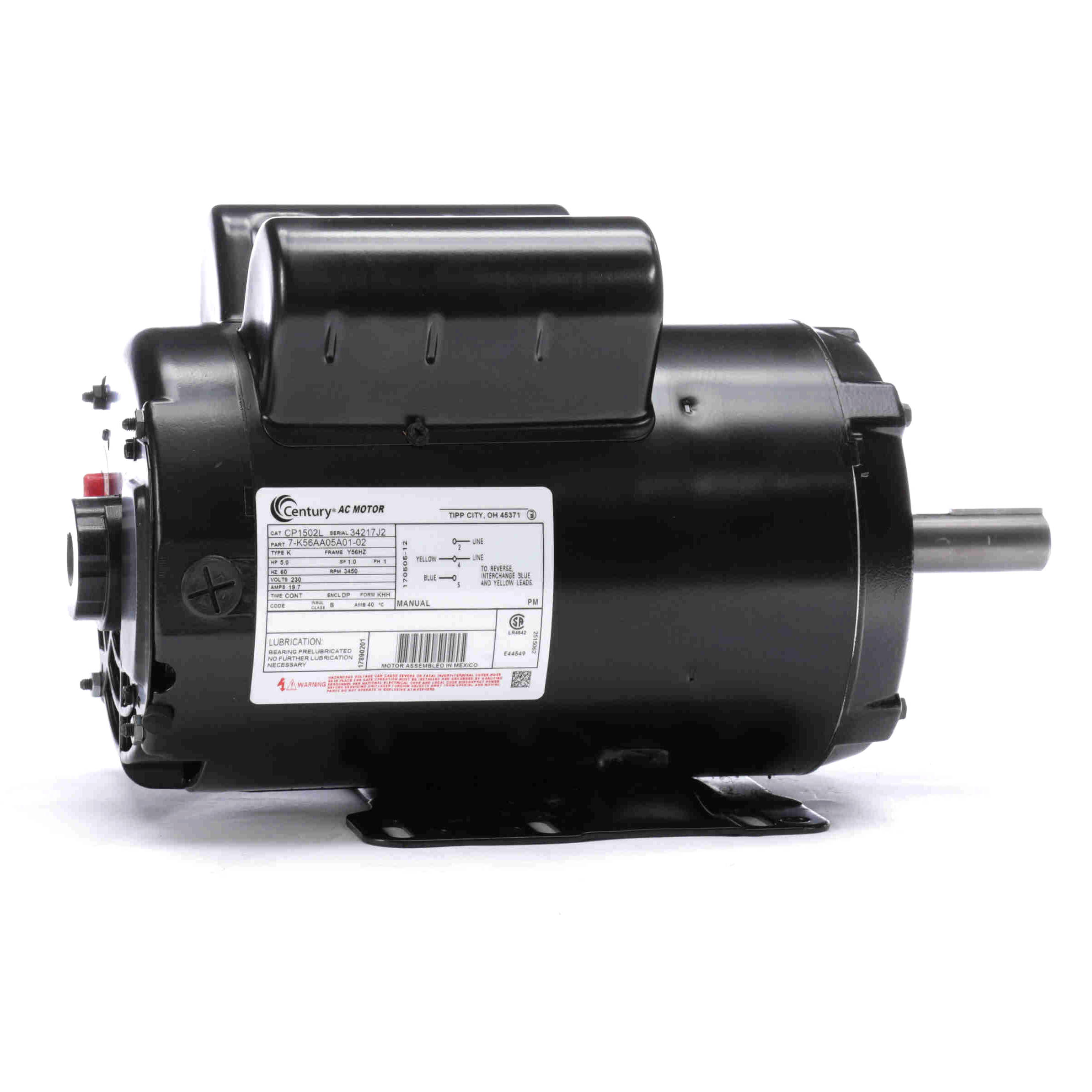

Click Image to Expand

Product ID: CP1502L

CP1502L Century 5HP Air Compressor Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: CP1502L

Selected accessories will also be added to cart
$522.97 / Each
Quantity:
Drip Proof, 56HZ Frame, 230V Single Phase 60Hz, Rigid Base, Capacitor Start, Capacitor Run

Features

Features
  • High starting and breakdown torque
  • Heavy gauge steel frame and base

General Specifications

General Specifications
Model : Catalog No :CP1502L
Part Description :5,3450,DP,56HZ,1/60/230 Category :Air Compressor
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :5.0 Hp Output KW :3.7 kW
Frequency :60 Hz Voltage :230 V
Current :19.7 A Speed :3450 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :Y56HZ Enclosure :Drip Proof
Overload Protector :Manual Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :2 Rotation :Reversible Clockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :14.06 in
Frame Length :8.25 in Shaft Diameter :0.875 in
Shaft Extension :2.31 in UPC :786674017222
Weight :44.00 LB
