/Products/Electric Motors/Single Phase/Century/Air Compressor/CP1302L Century 3HP Compressor Duty Electric Motor, 3450RPM
Click Image to Expand

Product ID: CP1302L

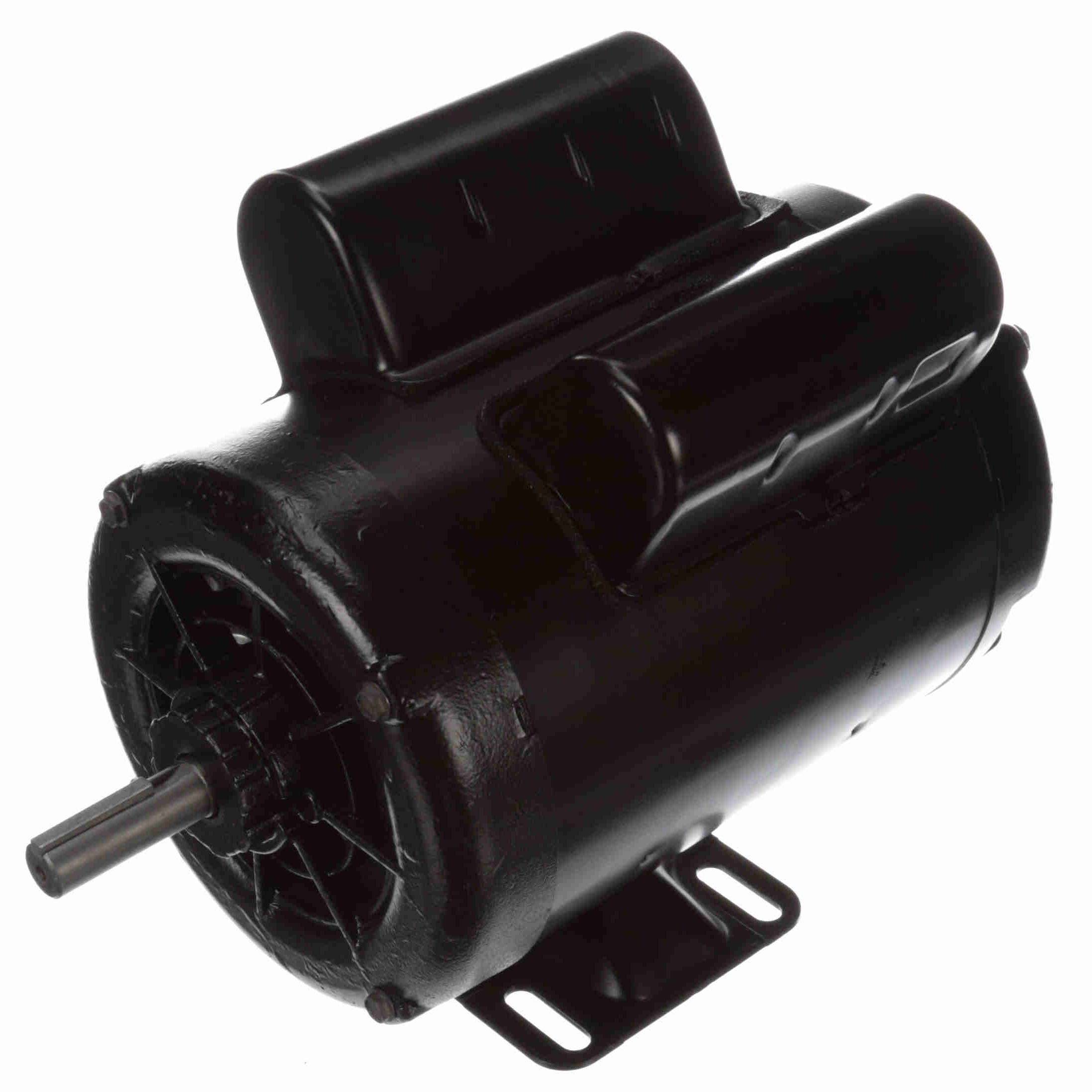

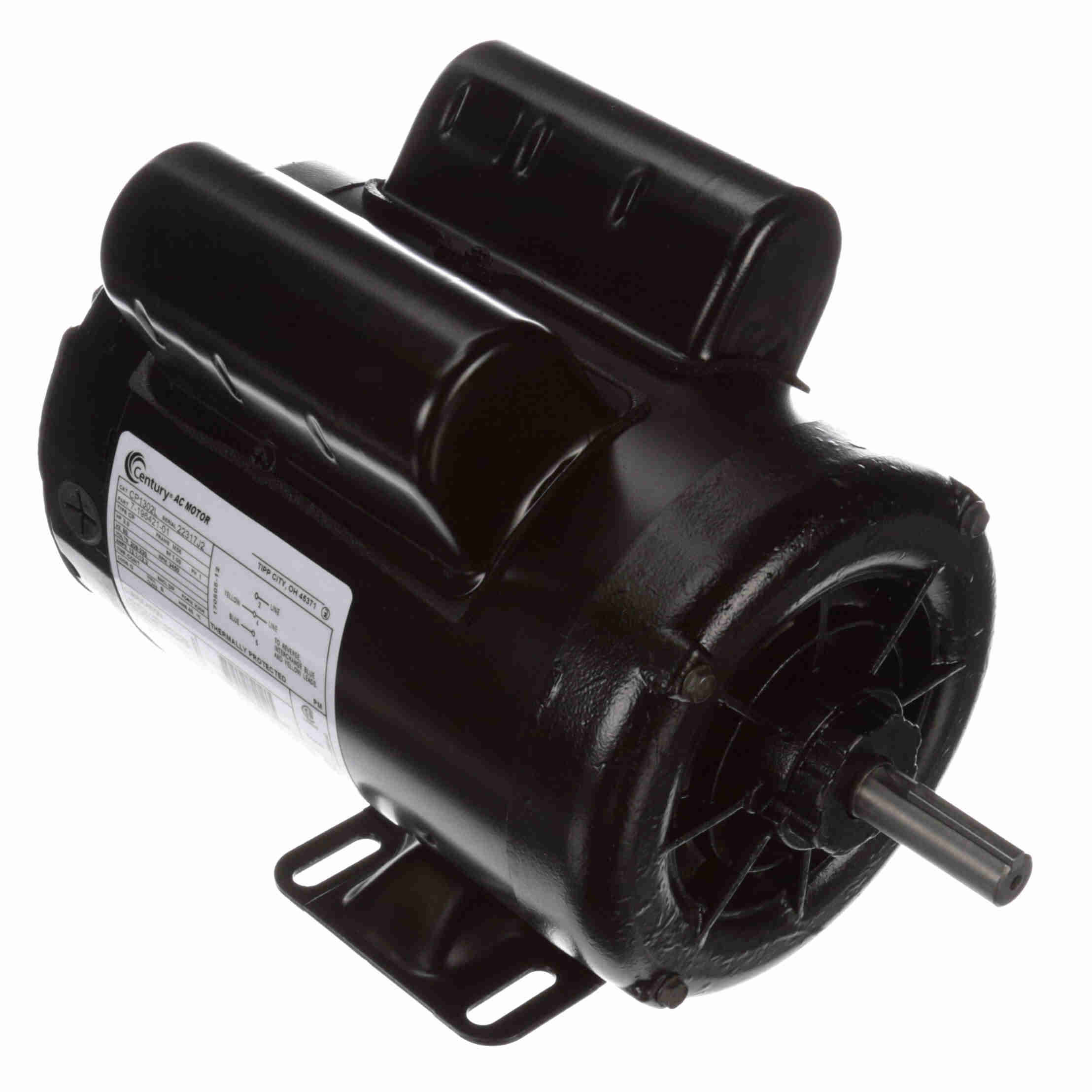

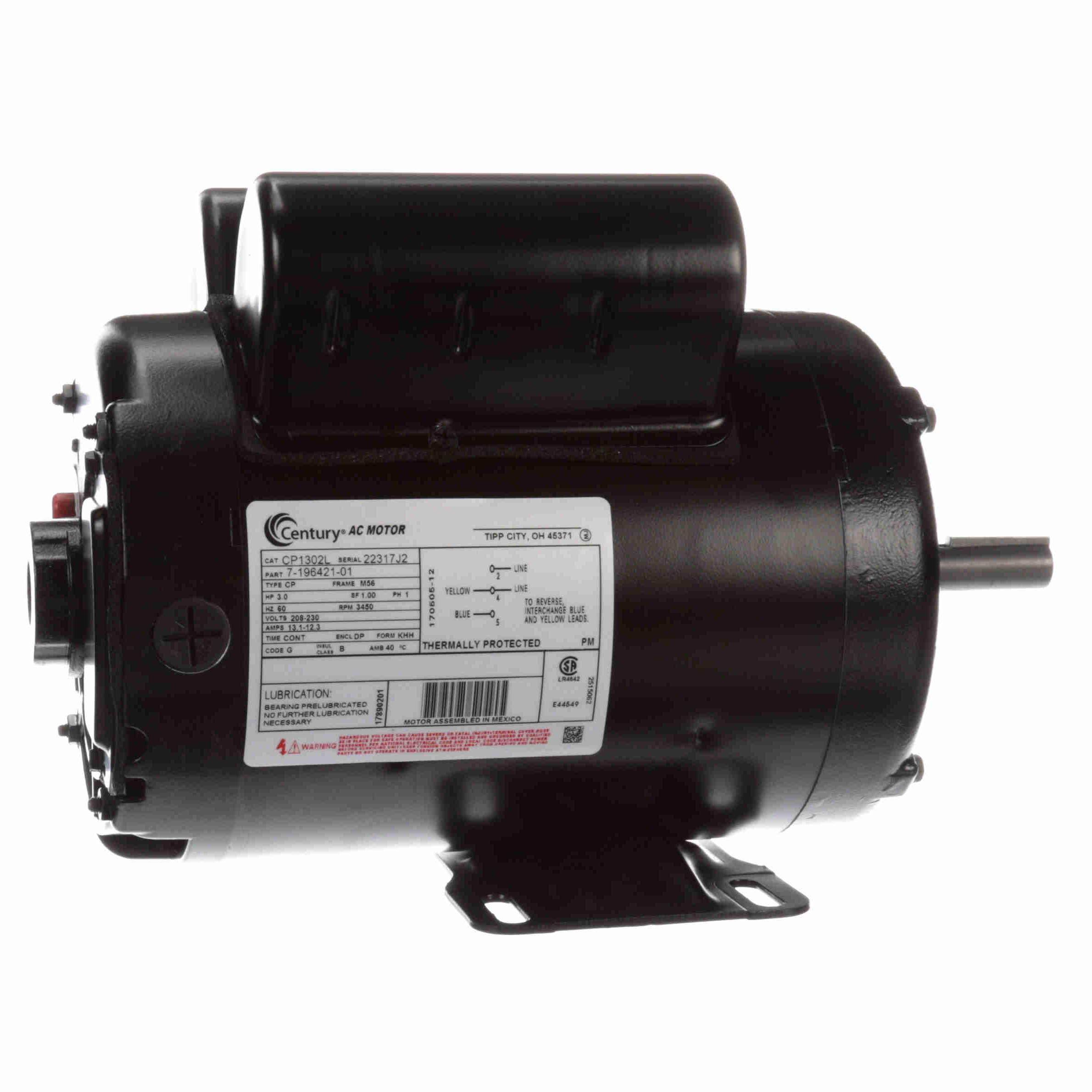

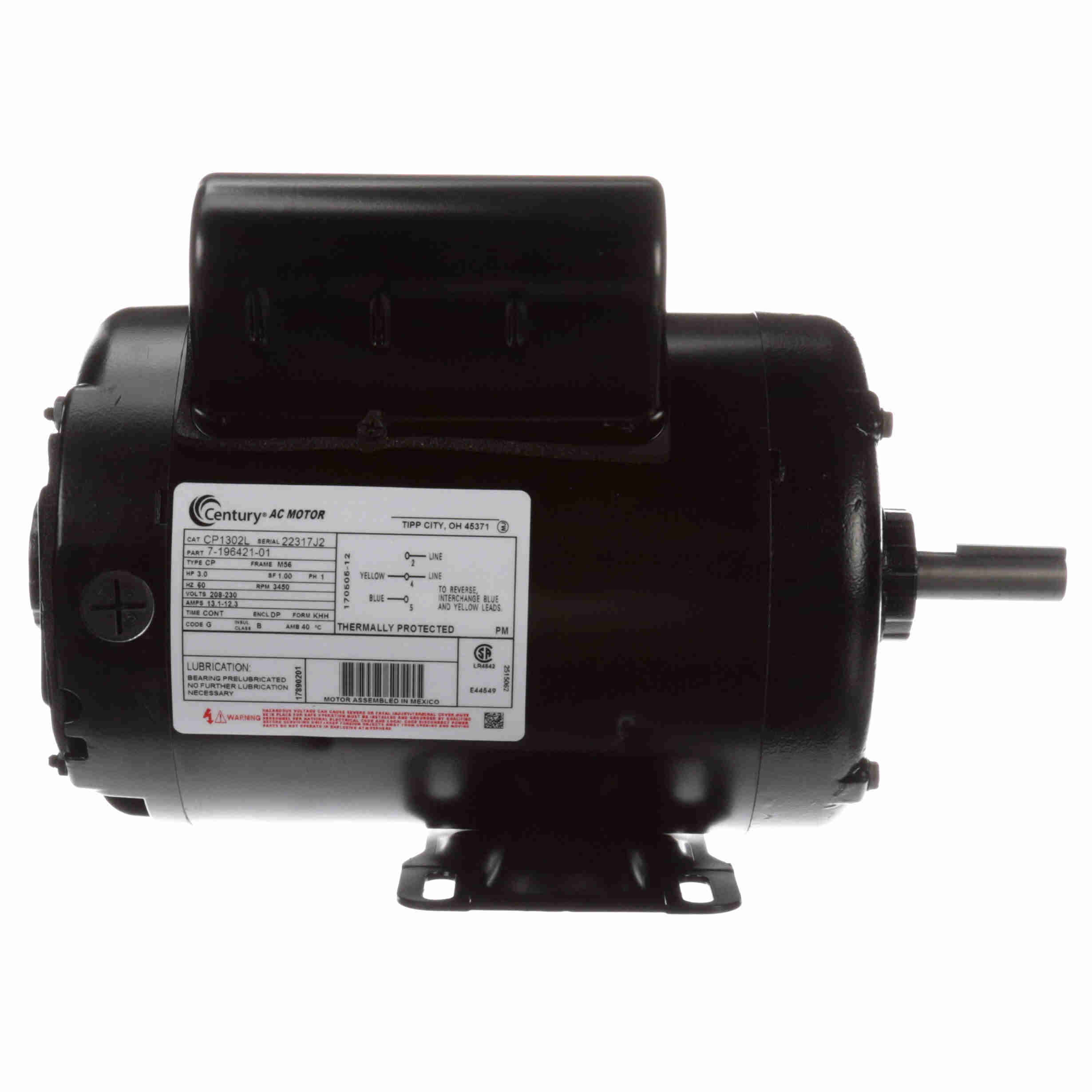

CP1302L Century 3HP Compressor Duty Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: CP1302L

Selected accessories will also be added to cart
$470.97 / Each
Quantity:
DP, 56 Frame, 208-230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 5/8" Shaft

Features

Features
  • High starting and breakdown torque
  • Heavy gauge steel frame and base

General Specifications

General Specifications
Model : Catalog No : CP1302L
Part Description : 3,3450,DP,56,1/60/208-230 Category : Air Compressor
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 3.0 HP Output KW : 2.2 kW
Frequency : 60 Hz Voltage : 208-230 V
Current : 13.1-12.3 A Speed : 3450 RPM
Service Factor : 1 Phase : 1
Duty : Continuous Insulation Class : B
Frame : M56 Enclosure : Drip Proof
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method : Across The Line
Poles : 2 Rotation : Reversible Counterclockwise
Mounting : Rigid Base Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Keyed Overall Length : 12.69 in
Frame Length : 6.75 in Shaft Diameter : 0.625 in
Shaft Extension : 1.94 in UPC : 786674017215
Weight : 33.00 LB

Speed & Load Characteristics
