/Products/Electric Motors/Single Phase/Century/Air Compressor/CP1102L Century 1HP Compressor Duty Electric Motor, 3450RPM

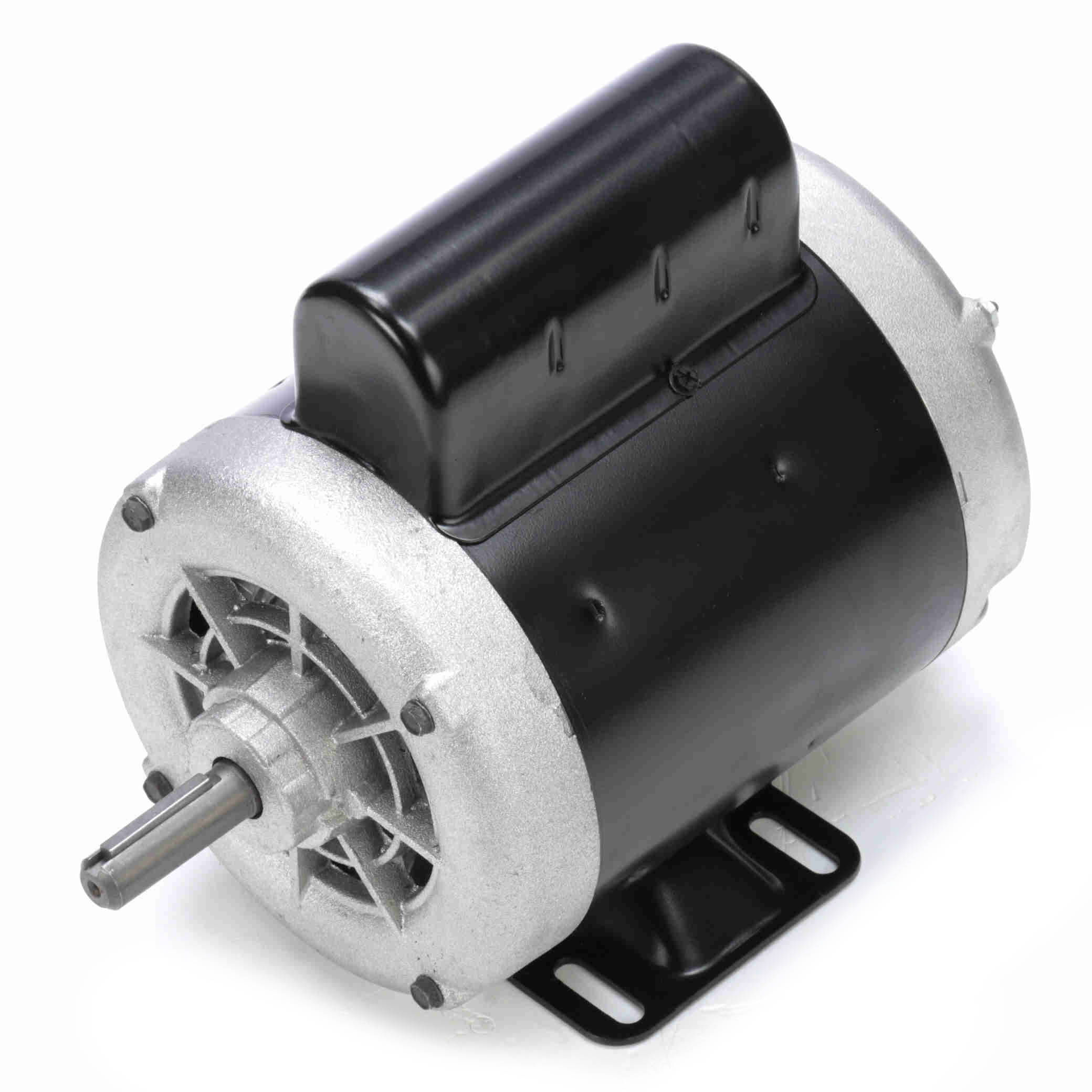

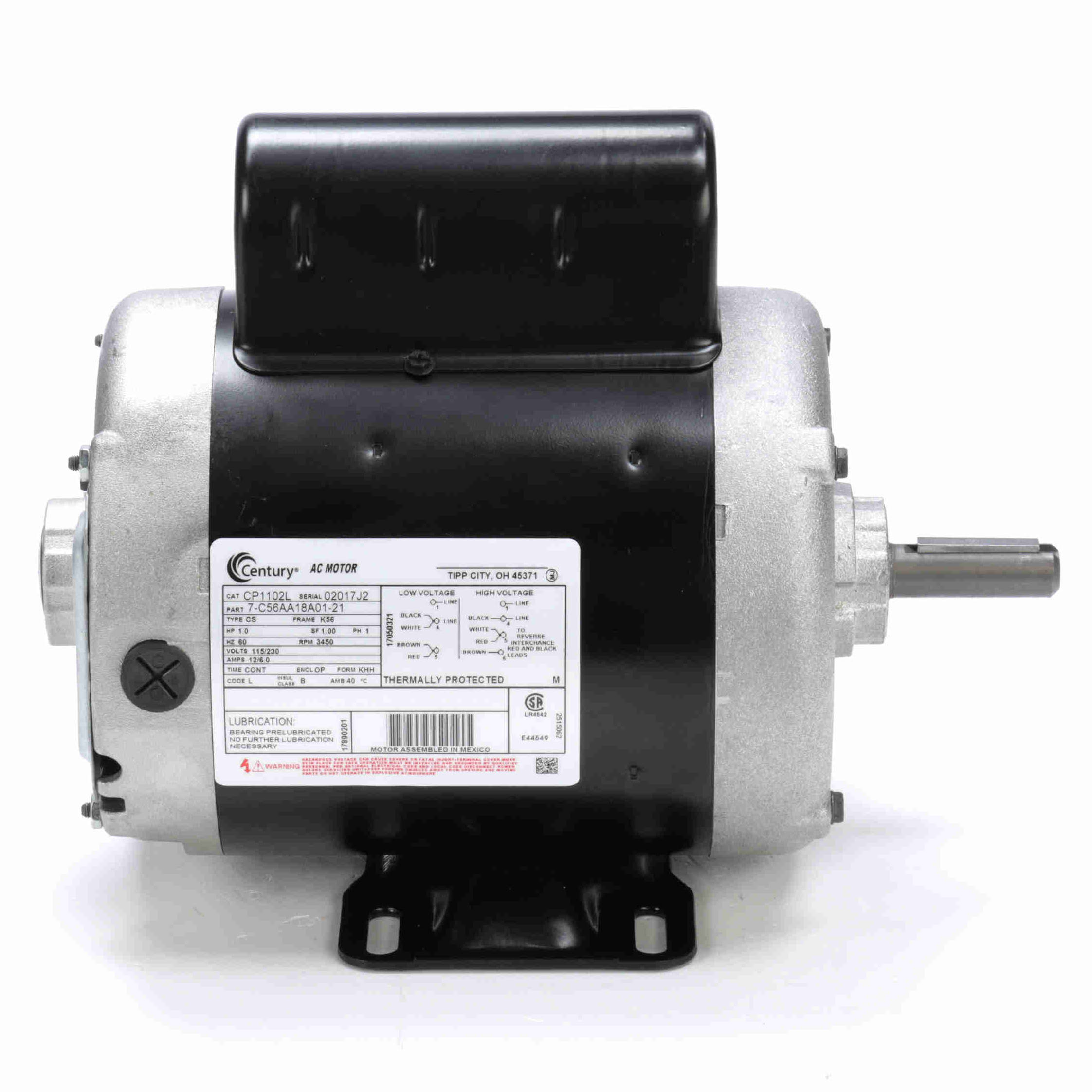

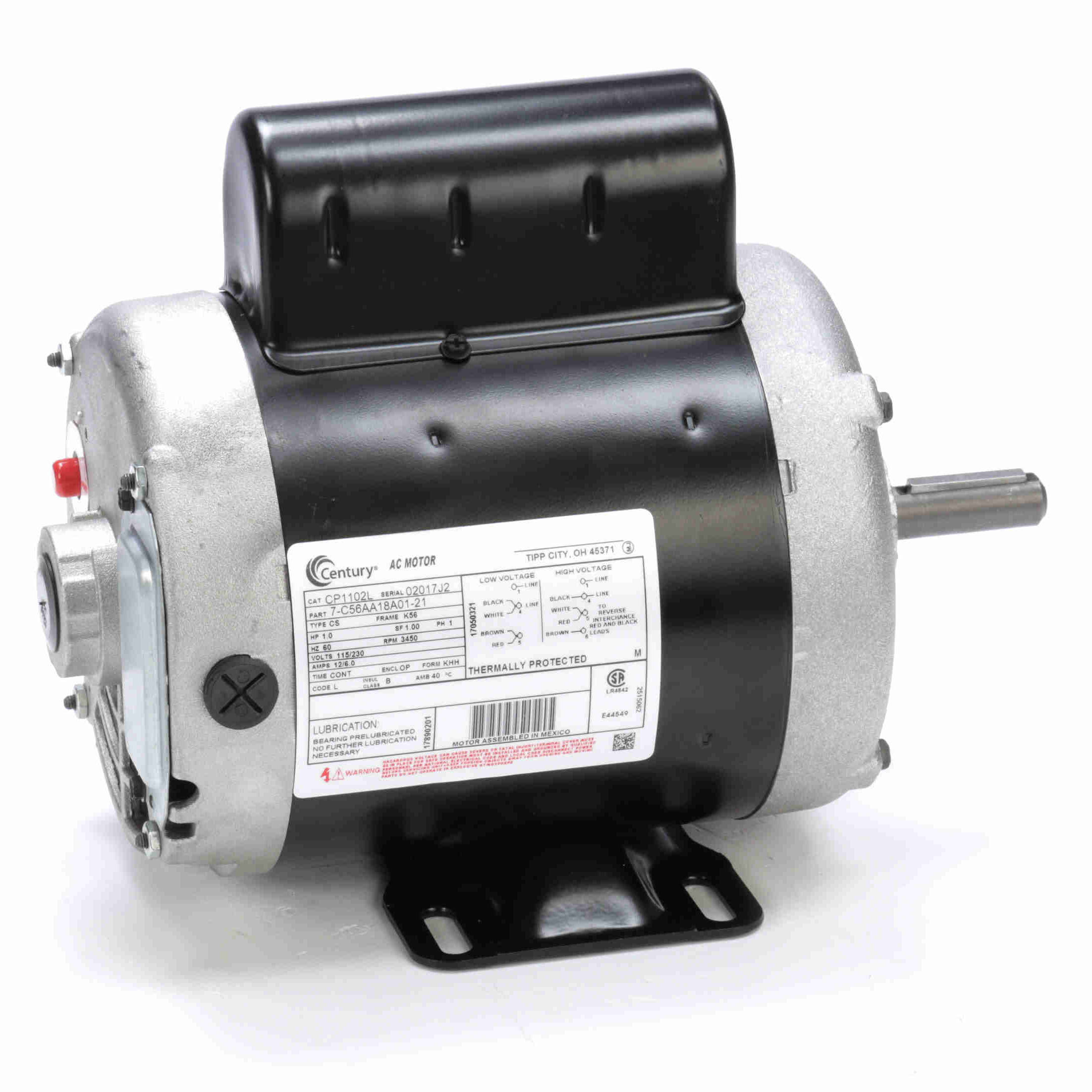

Click Image to Expand

Product ID: CP1102L

CP1102L Century 1HP Compressor Duty Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: CP1102L

Available Stock: 1
Selected accessories will also be added to cart
Discontinued by Manufacturer
ODP, K56 Frame, 115/230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 5/8" Shaft

Features

Features
  • High starting and breakdown torque
  • Heavy gauge steel frame and base

General Specifications

General Specifications
Model : Catalog No : CP1102L
Part Description : 1,3450,ODP,56,1/60/115/230 Category : Air Compressor
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 1.0 HP Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 12/6.0 A Speed : 3450 RPM
Service Factor : 1 Phase : 1
Duty : Continuous Insulation Class : B
Frame : K56 Enclosure : Open Drip Proof
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method : Across The Line
Poles : 2 Rotation : Reversible
Mounting : Rigid Base Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Keyed Overall Length : 11.44 in
Frame Length : 5.50 in Shaft Diameter : 0.625 in
Shaft Extension : 1.94 in UPC : 786674017185
Weight : 26.00 LB

Speed & Load Characteristics
