/Products/Phase Converters/Maxiphase/230 Volt, CNC, ODP/CNC 5 Maxiphase Rotary Phase Converter
Click Image to Expand

Product ID: CNC 5

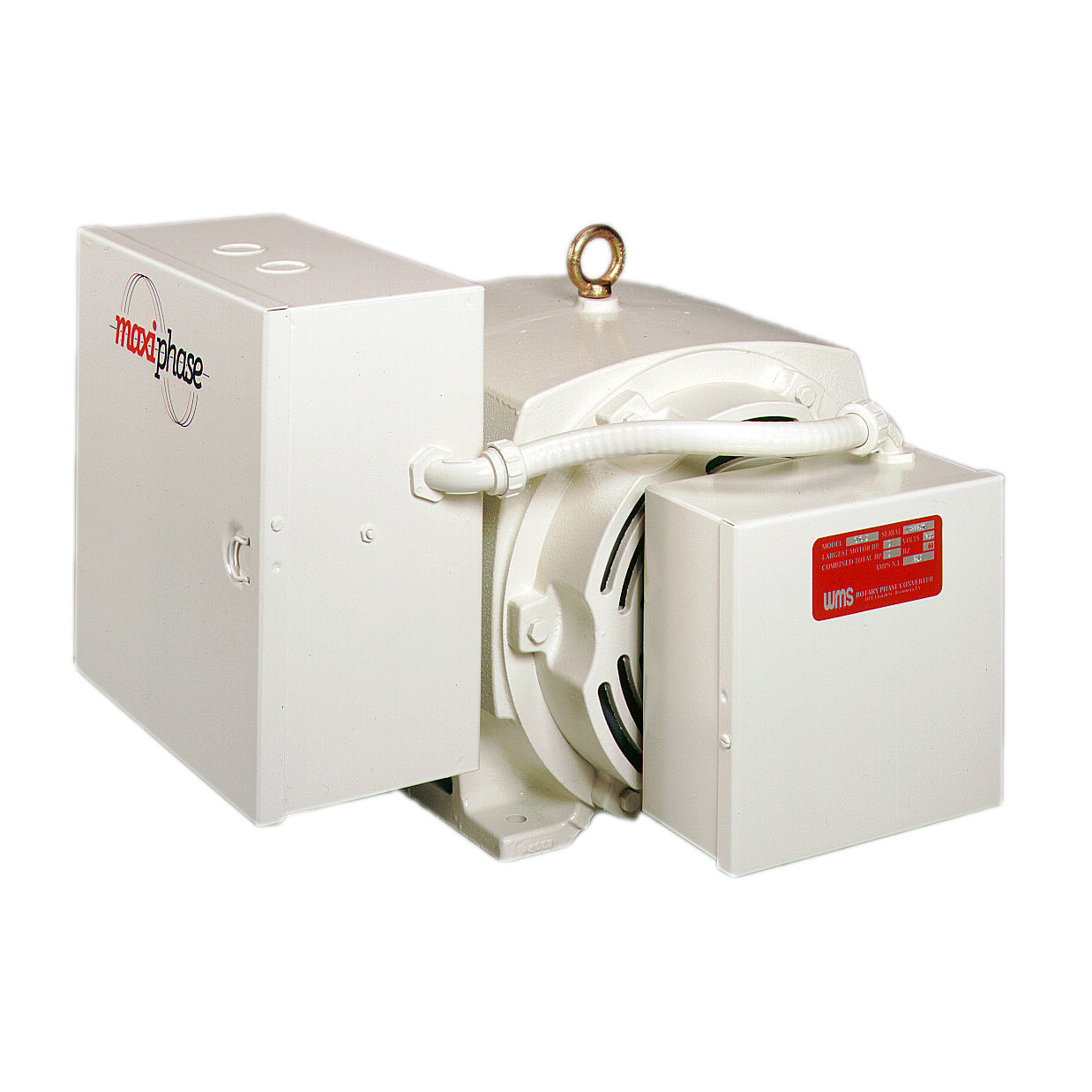

CNC 5 Maxiphase Rotary Phase Converter

MFG: Witmer Motor Service
MFG Part Number: CNC 5

Selected accessories will also be added to cart
$2,340.00 / Each
Quantity:
Largest HP: 5, Combined HP: 5, No Load Amps: 10.0

Specifications

Model CNC 5
Largest Single Load 5 HP
Maximum Combined Load 5 HP
Voltage 230 Volts
Frequency 60Hz
No Load Amperage 10.0 Amps
"a" Dimension 20 Inches
"b" Dimension 20 Inches
"c" Dimension 21 Inches
Motor Enclosure ODP
Open Drip Proof
Motor Frame Size
Input Circuit Breaker Rating 50 Amp
Input Wire Size #8 Minimum
Approximate Weight 282 lbs
Notes

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
WMS Maxiphase
Brand
Model
Description
HP
Enclosure
Voltage
Hz
