/Products/Phase Converters/Maxiphase/230 Volt, CNC, ODP/CNC 20 Maxiphase Rotary Phase Converter
Click Image to Expand

Product ID: CNC 20

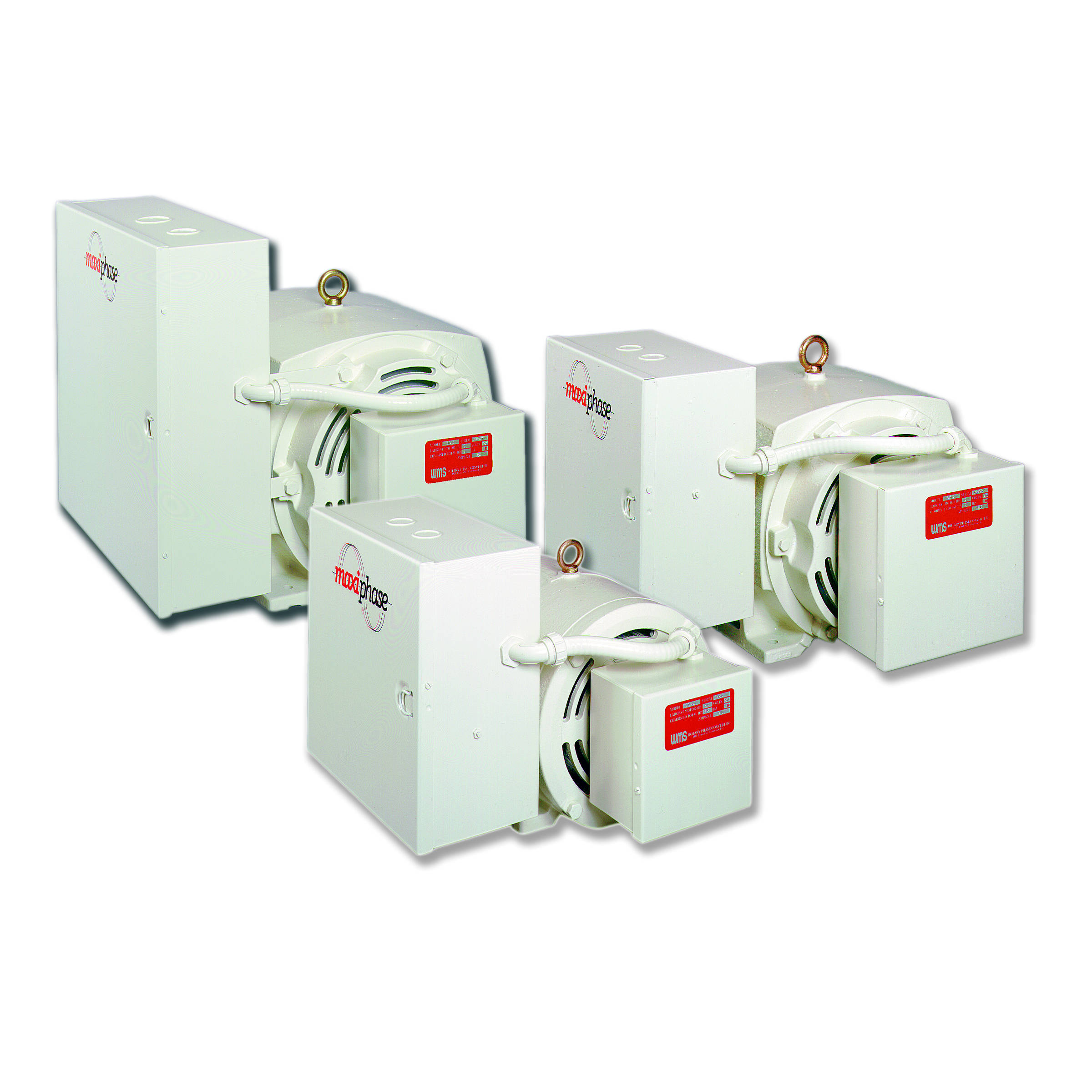

CNC 20 Maxiphase Rotary Phase Converter

MFG: Witmer Motor Service
MFG Part Number: CNC 20

Selected accessories will also be added to cart
$7,250.00 / Each
Quantity:
Largest HP: 20, Combined HP: 20, N.L. Amps: 32.0

Specifications

Model CNC 20
Largest Single Load 20 HP
Maximum Combined Load 20 HP
Voltage 230 Volts
Frequency 60Hz
No Load Amperage 32.0 Amps
"a" Dimension 25 Inches
"b" Dimension 18 Inches
"c" Dimension 28 Inches
"d" Dimension 36 Inches
"e" Dimension 30 Inches
"f" Dimension 12 Inches
Motor Enclosure ODP
Open Drip Proof
Motor Frame Size
Input Circuit Breaker Rating 150 Amp
Input Wire Size #1 Minimum
Approximate Weight 870 lbs
Notes Rotary unit and capacitor enclosure are seperate on this unit and must be field connected with user supplied wire and conduit.

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
WMS Maxiphase
Brand
Model
Description
HP
20 HP
Enclosure
Voltage
Hz
