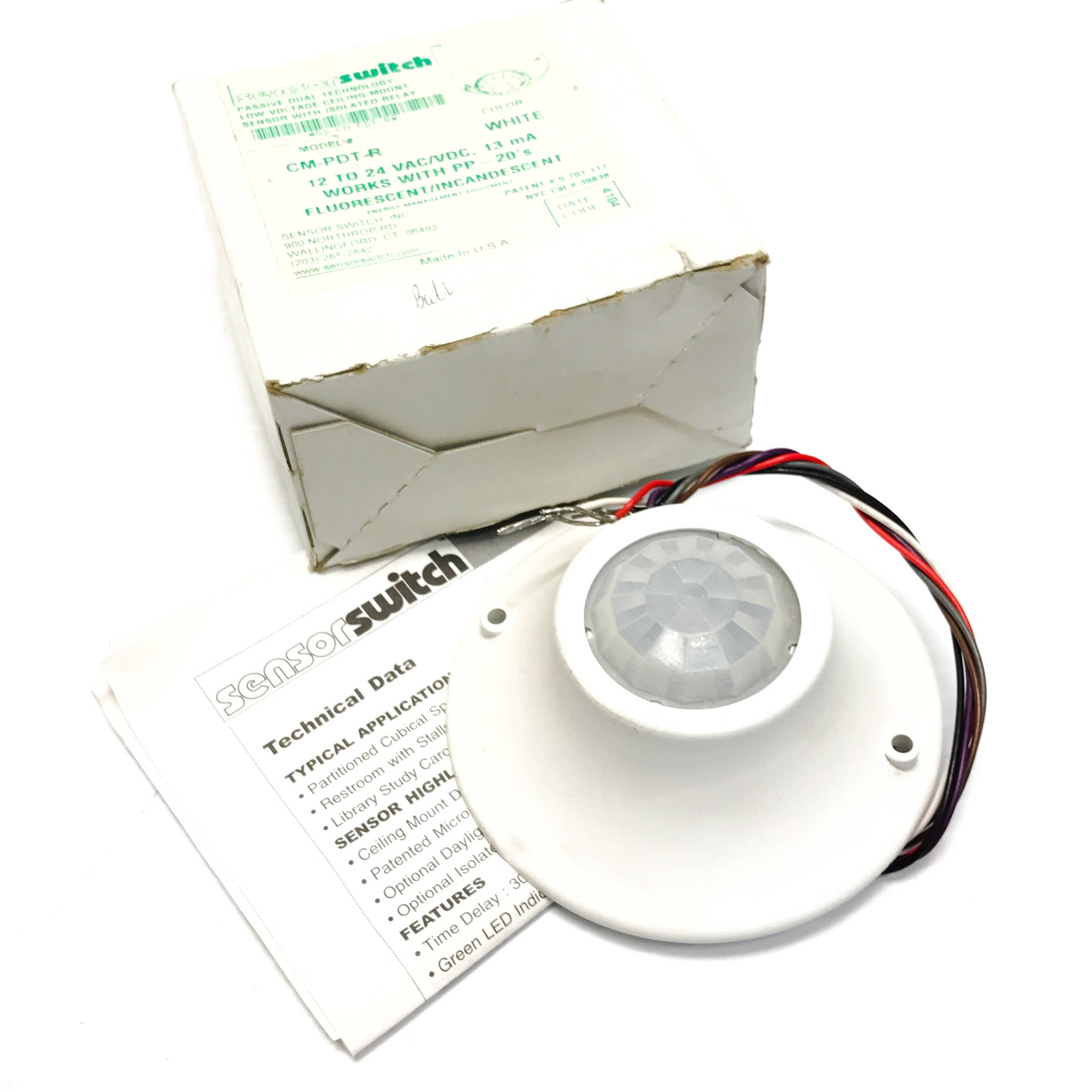

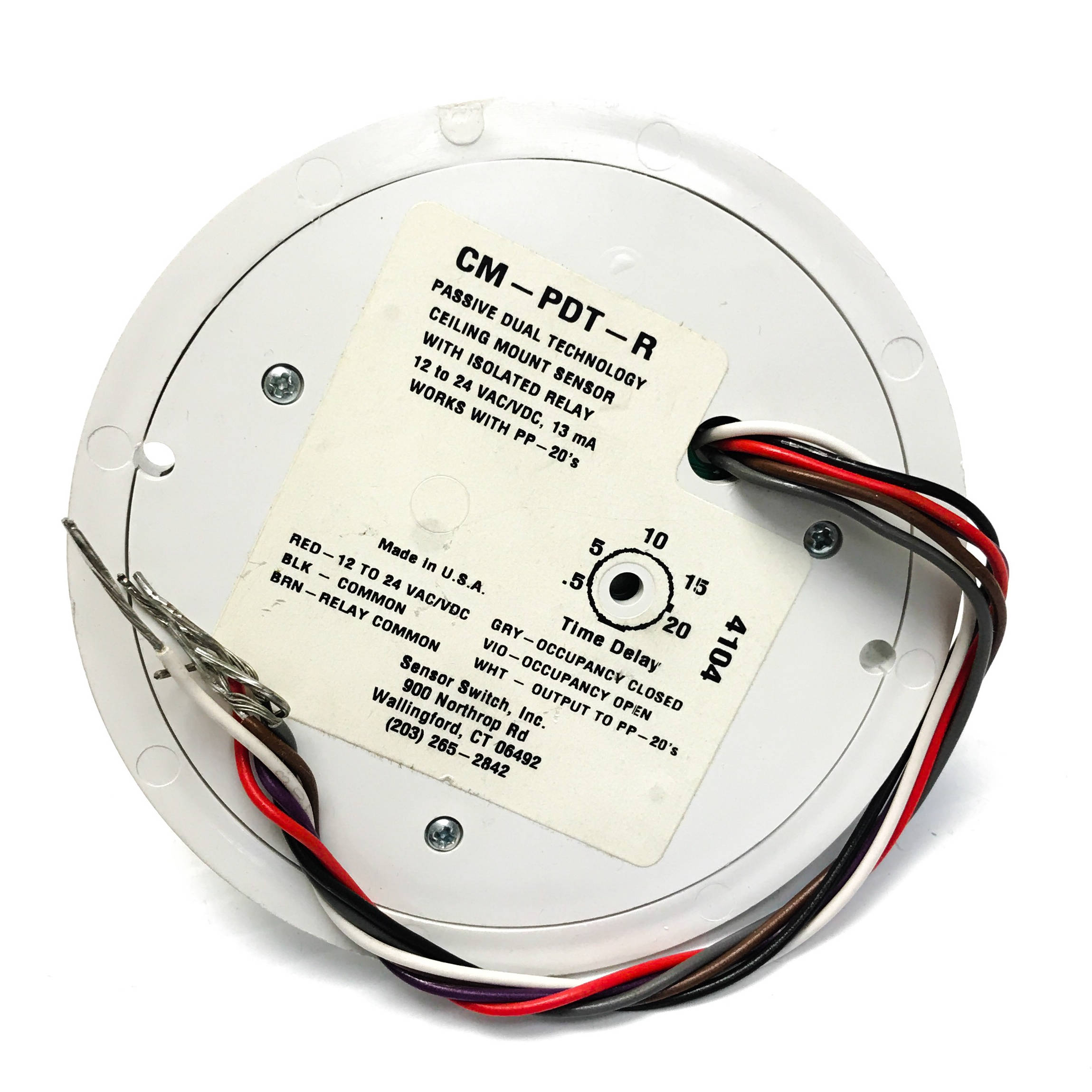

Sensorswitch CM-PDT-R Passive, Dual-Technology, Ceiling Mount OVERVIEW
The CM family of ceiling mount occupancy sensors provide a range sensor solutions for applications with
finished ceilings (e.g. ceiling tiles, sheetrock, plaster). CM family sensors utilize 100% digital Passive
Infrared (PIR) detection and are available with several lens options, providing flexibility for multiple
mounting height and coverage pattern requirements. Dual technology (PDT) occupancy detection can also
be added as an option for applications where occupants are stationary for long periods of time.
FEATURES
• 360° coverage pattern
• Push- button programmable, adjustable time delays, and multiple operating modes
• 100 hr lamp burn-in timer
• No field calibration or sensitivity adjustments required
• Convenient test mode
• Green LED indicator
SPECIFICATIONS
Size: 4.55” diameter and 1.55” deep
Weight: 6 oz
Mounting: 3.5” octagon box, ceiling tile surface, single gang box
Color: White
Operating Voltage: 12-24 VAC/VDC
Current Draw: Standard, 4 mA w/ R option, 16 mA
Dimming Load: Sinks <20 mA; ~40 Ballasts @ .5 mA each
Power Pack>Relay Rating: 1A @ 24VAC/VDC
Rcmd. Power Pack: PP20
