/Products/Electric Motors/Single Phase/Marathon/CG111 Marathon 3/4HP General Purpose Electric Motor, 3600RPM
Click Image to Expand

Product ID: 5KC37LN91

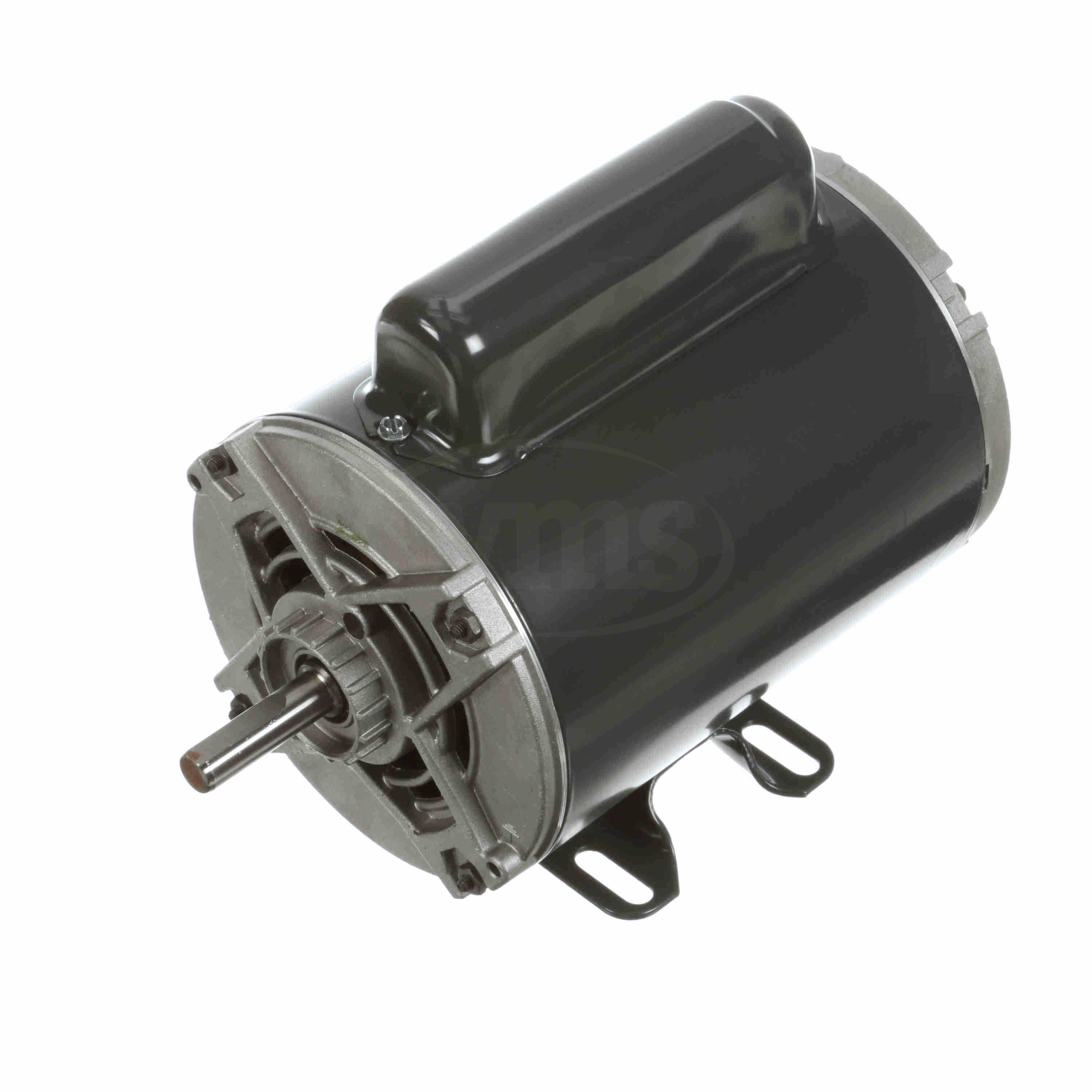

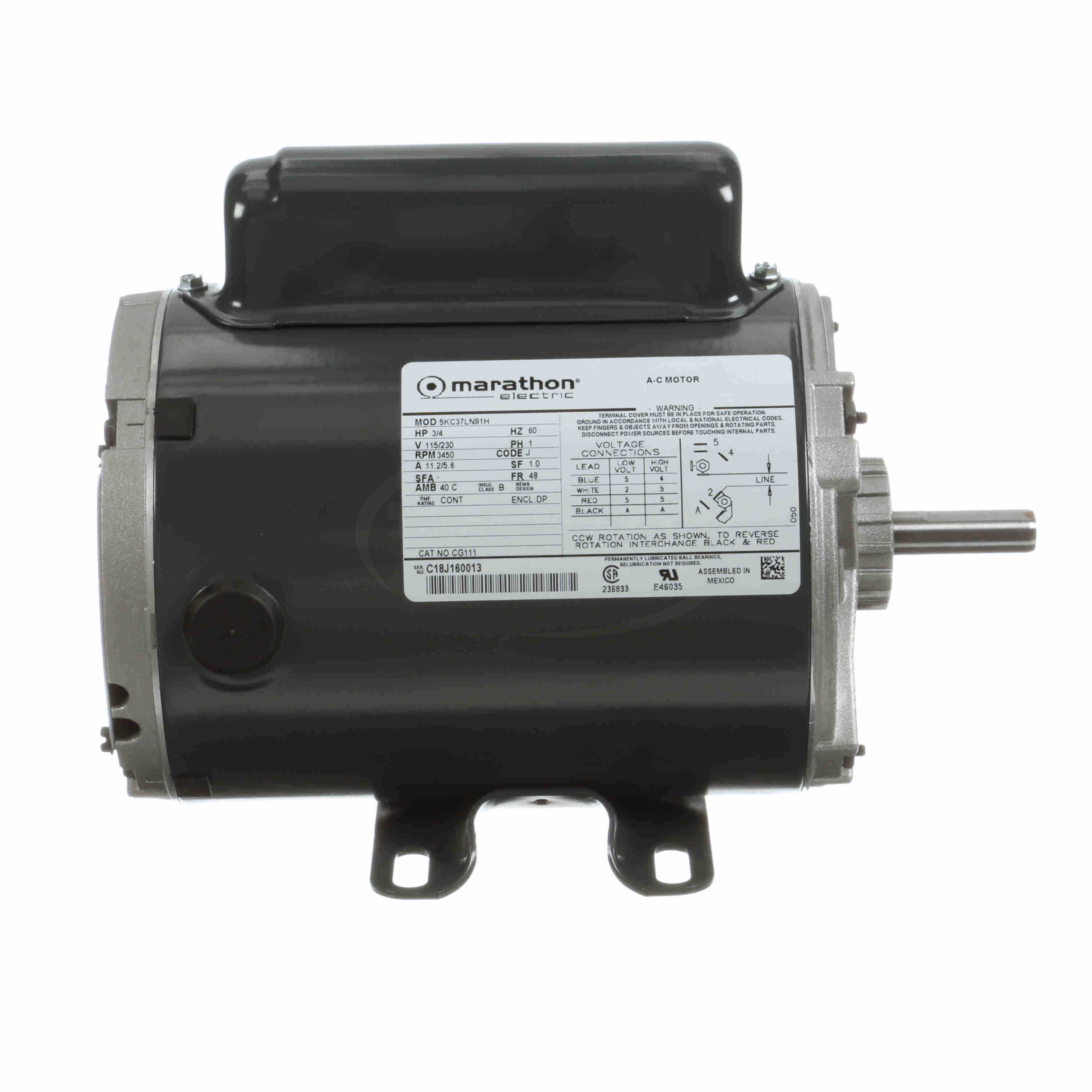

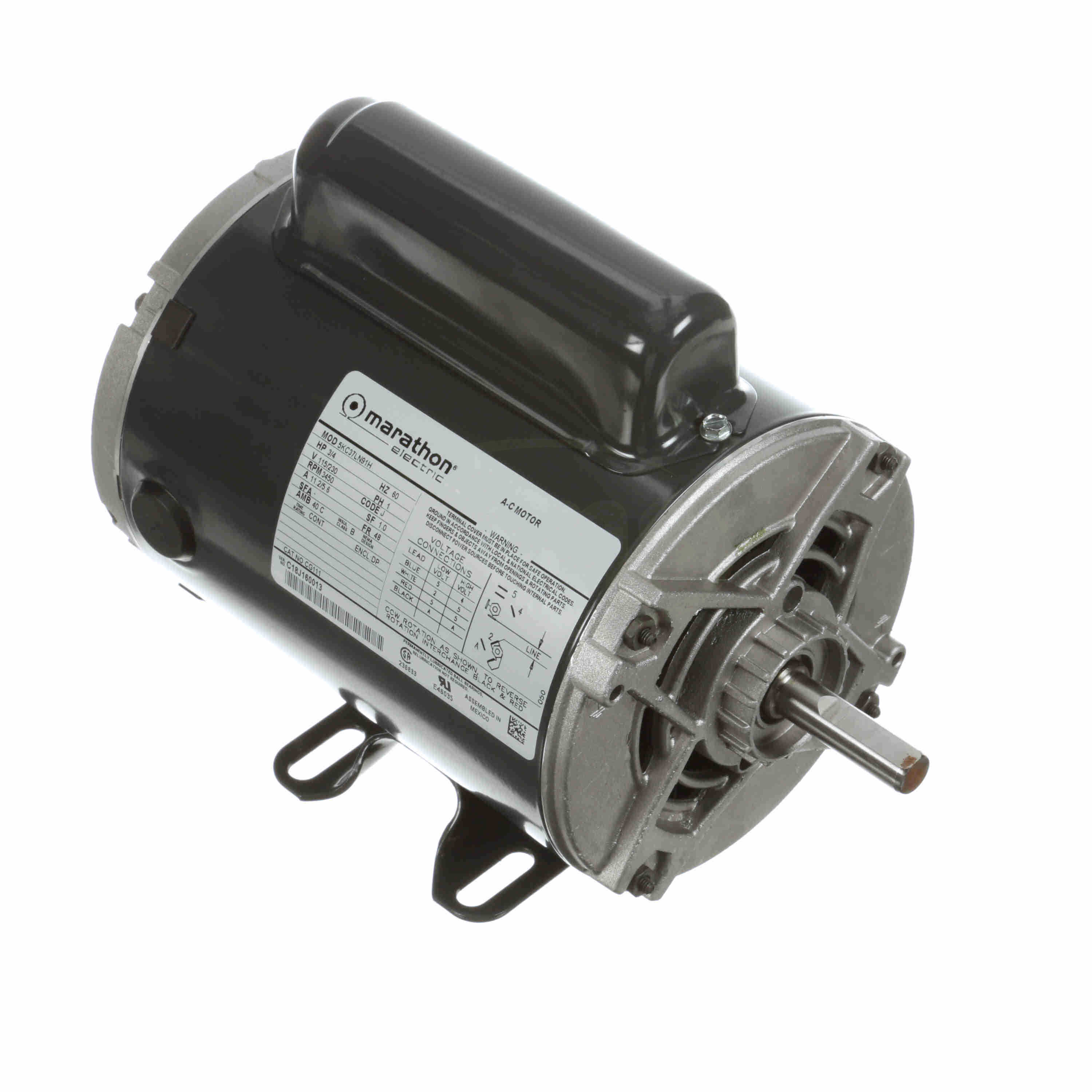

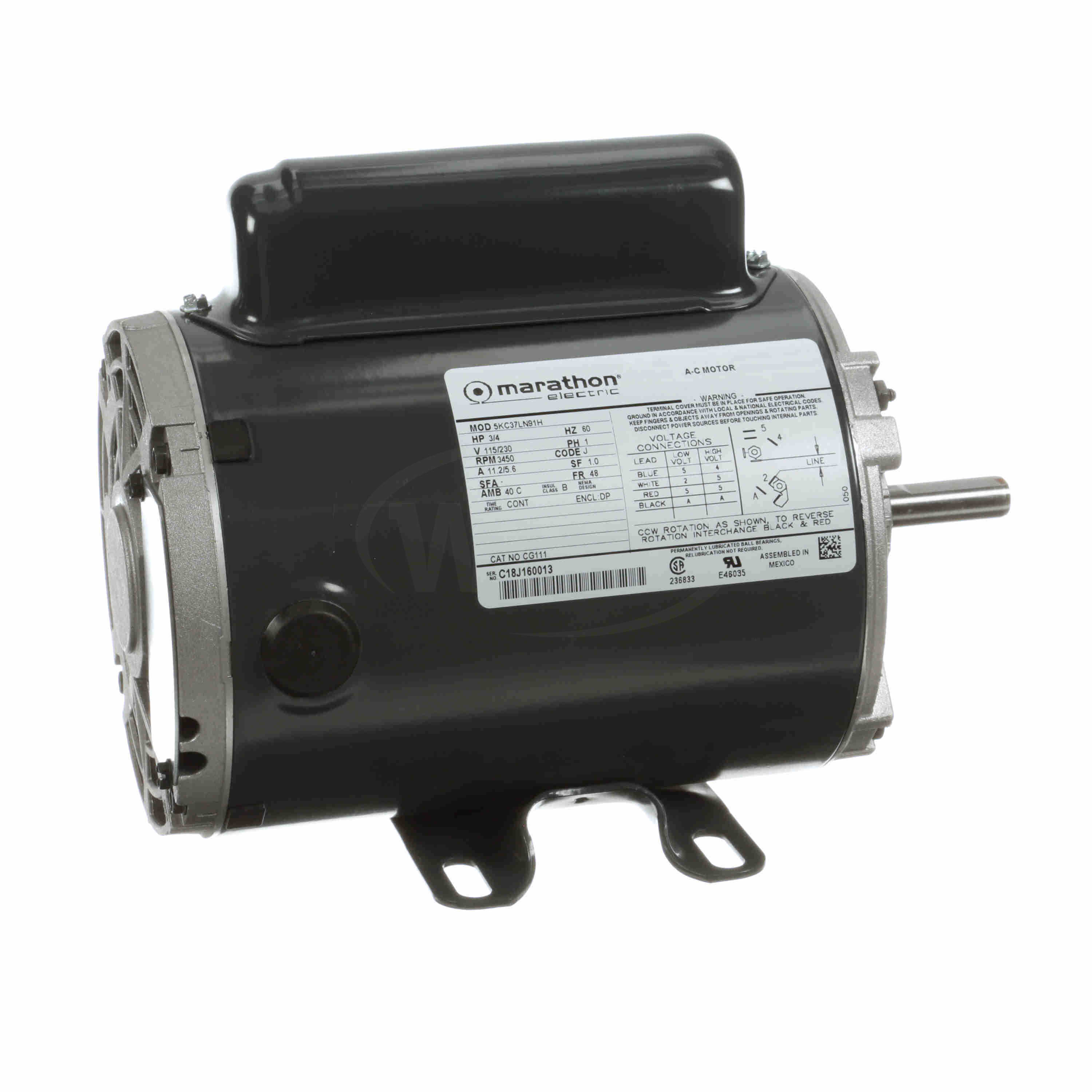

CG111 Marathon 3/4HP General Purpose Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 5KC37LN91

Available Stock: 9
Selected accessories will also be added to cart
$299.97 / Each
Quantity:
DP, 48 Frame, 115/230VAC 60hz Single Phase, Rigid Base, Rolled Steel, 1/2" Shaft Diameter

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.

General Specifications

UPC: 722856007025 Weight: 19.00 LB
Packaged Length: 12.63 IN Packaged Width: 6.94 IN
Packaged Height: 7.5 IN HTC: 8501.40.4040
Country of Origin: Mexico

Nameplate Specifications

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 11.2,5.6 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 66 % Power Factor: 0
Duty: Continuous Insulation Class: B
KVA Code: J Frame: 48
Enclosure: Drip Proof Thermal Protection: No Protection
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: SM
Poles: 2 Rotation: Counterclockwise/Clockwise
Mounting: Rigid Base Motor Orientation: ANY
Drive End Bearing: BALL Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Overall Length: 10.06 in
Frame Length: 6.62 in Shaft Diameter: 0.500 in
Shaft Extension: 1.5 in
