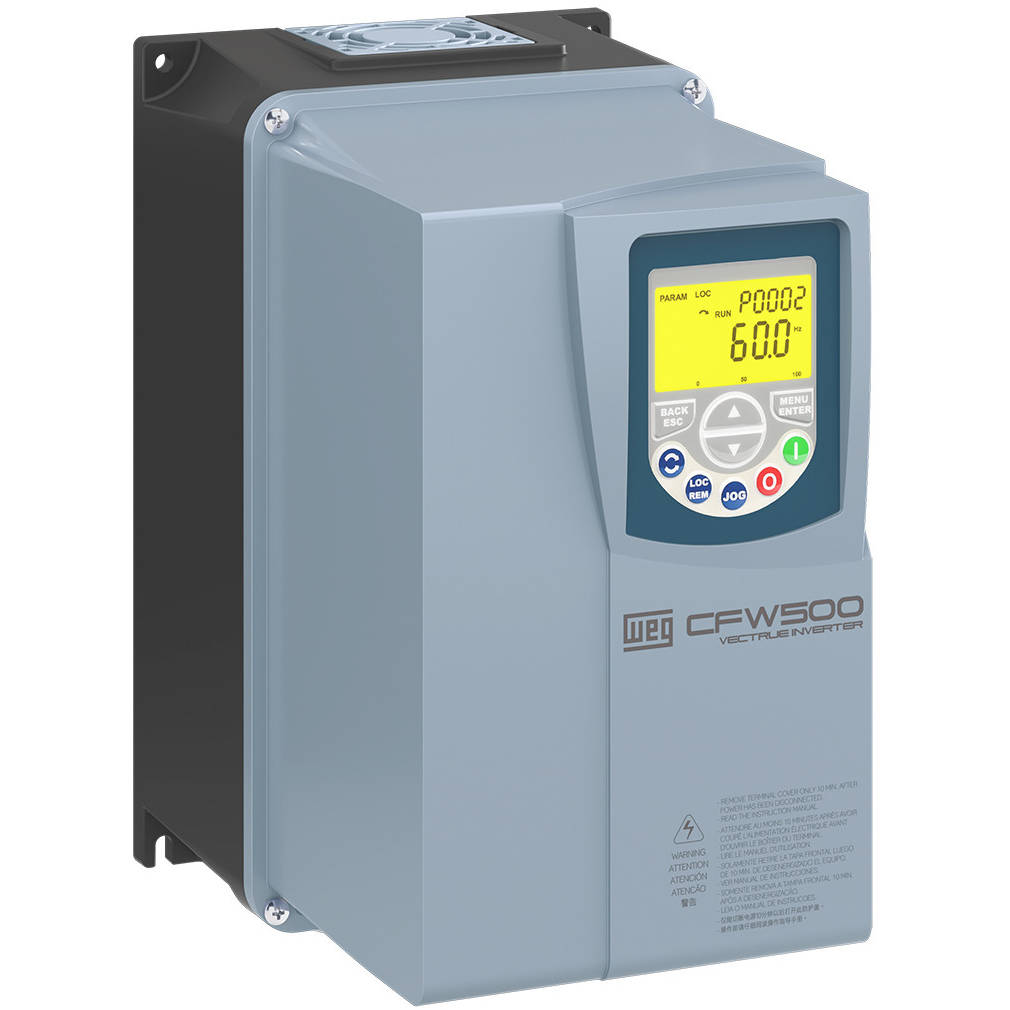

| Power Supply |
Tolerance: -15% to +10%
Frequency: 50/60Hz (48 to 62 Hz) |
| Enclosure |
NEMA 4X / IP66
Indoor / Outdoor Mounting |
| Control Modes |
Volts per Hertz (Scalar)
Sensorless Voltage Vector
VVW: Voltage vector control
Vector control with encoder |
| Power Output |
Sinusoidal PWM (Space Vector Modulation)
IGBT Transistors |
| Switching Frequency |
2.5kHz to 15kHz |
| Frequency Range |
0-500 Hz, resolution of 0.015 Hz |
| Overload Capacity |
150% for 60 seconds, repeatable every 10 minutes |
| Inputs |
4 Programmable isolated digital inputs, 24V DC, NPN (Active Low) or PNP (Active High)
1 Programmable isolated analog input; programmable for current or voltage (0-10V, 4-20mA or 0-20mA) |
| Outputs |
1 Programmable relay output: Form C (One NO & NC contact), 240 V / 0.5 A
1 Programmable isolated open collector digital output (transistor Output); 24VDC
1 Programmable isolated analog output; programmable for current or voltage (0-10V, 4-20mA or 0-20mA) |
| Power Supply |
24 VDC, +/- 20%, Max. 150 mA
10 VDC, Max. 2 mA |
| Communication |
Isolated RS485 (One Port)
Modbus-RTU with max. communication of 38.4 kbps |
| Safety Protections |
Motor over current
Motor overload
Output phase-to-phase short circuit
Output phase-to-ground short circuit
Programming error
DC link over voltage
DC link under voltage
Drive over temperature
External fault |
| Ambient |
Temperature: 14 - 104°F (-10 to 40°C), up to 122°F (50°C) with 2% / 1.8°F (1°C) output current derating.
Humidity: 5-95% Non Condensing
Altitude:0-3300 ft (1000m), up to 13,200 ft (4000m) with 1% / 328ft (100 m) output current
derating. |
| Safety Standards |
UL 508C
UL 840
IEN/EN 61800-5-1
EN 50178
IEC/EN 60204-1
IEC/EN 60146
IEC/EN 61800-2 |
| Electromagnetic Compatibility (EMC) |
IEC/EN 61800-3
CISPR 11
IEC/EN 61000-4-2/3/4/5/6. |
| Mechanical Construction |
IEC/EN 60529
UL 50
IEC/EN 60721-3-3 |
| Special Functions |
Linear and “S” ramp accel and decel
local/remote control
FWD/REV selection
DC braking
manual and auto torque boost
motor slip compensation
electronic pot
two skip frequencies
maximum and minimum adjustable frequency limits
adjustable output current
DC bus regulaiton
Speed/Torque Control
PID |
| Keypad |
Three lines of Display (Main display, Secondary display & Bar display) displaying three parameters, LDC; 9 keys
Readouts for: output frequency (Hz), output current (A), output voltage (V), motor torque (%) in vector mode, DC bus voltage (V), value proportional to frequency (Ex.: RPM), heatsink temperature, fault and status messages |
