/Products/VFD's & Soft Starters/WEG/CFW500 G2/IP20, Safety Module/CFW500A04P3B2NB20Y2 WEG 1.5HP Variable Speed Drive, 200-240VAC Single or 3 Phase

Product ID: CFW500A04P3B2NB20Y2

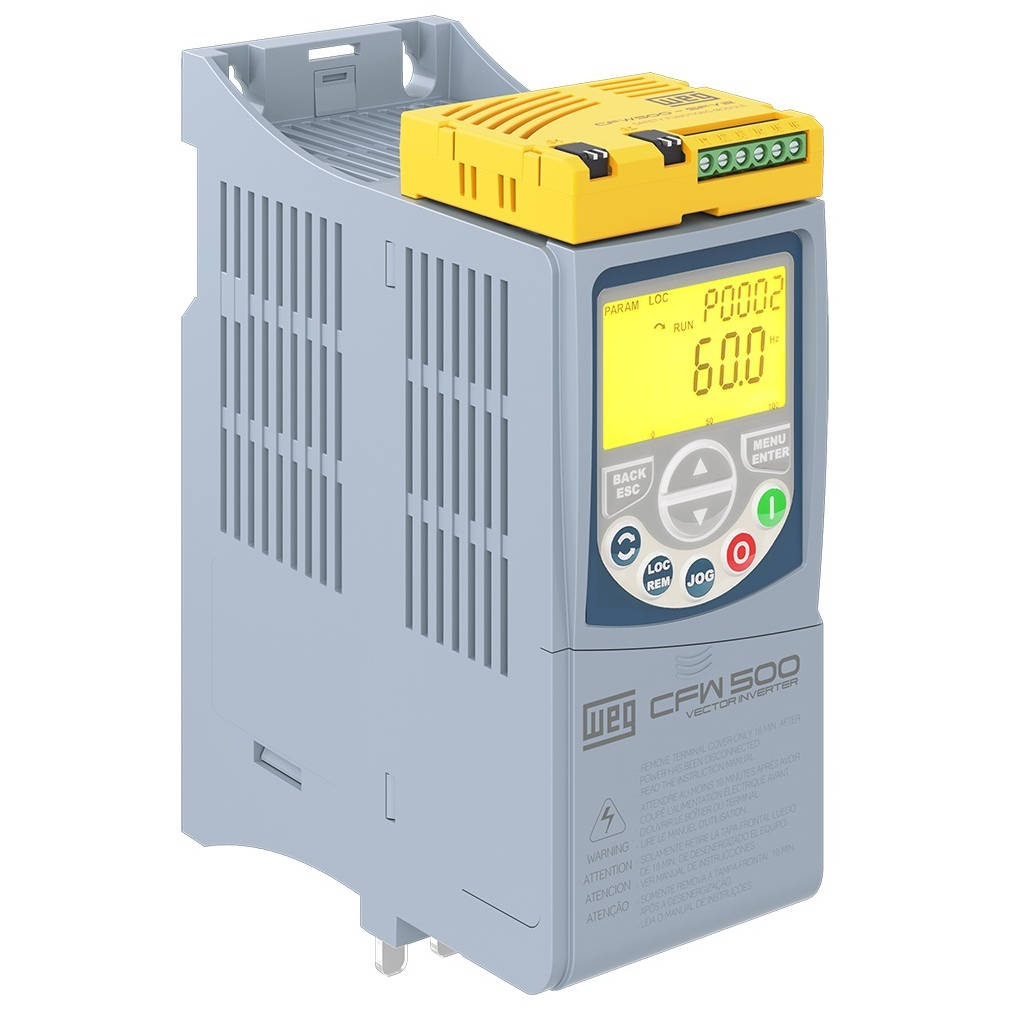

CFW500A04P3B2NB20Y2 WEG 1.5HP Variable Speed Drive, 200-240VAC Single or 3 Phase

MFG: WEG Electric Corporation
MFG Part Number: CFW500A04P3B2NB20Y2

Selected accessories will also be added to cart

$329.46 / Each

Quantity:

4.3 Amps Output, A Frame Size, 230VAC 3 Phase Output, 15013143, IP20, No Braking Transistor, Safety Module

Accessories

Select any of the accessories below to purchase them with this inventory item:

CFW500-CCAN WEG CANopen Communication Plug-in Module
$82.80 / Each
CFW500-CEMB-TCP WEG Modbus-TCP Plug-In Communication Module
$299.40 / Each
CFW500-CEPN-IO WEG PROFINET IO Plug-in Communication Module
$299.40 / Each
CFW500-CETH-IP WEG EtherNet/IP Plug-in Communication Moduel
$299.40 / Each
CFW500-CPDP WEG PROFIBUS DP Communication Plug-in Module
$243.00 / Each
CFW500-CRS232 WEG RS-232 Communication Plug-in Module
$82.80 / Each
CFW500-CUSB WEG USB Communication Plug-In Module Kit
$126.00 / Each
CFW500-ENC WEG Encoder Input Plug-in Module
$126.00 / Each
CFW500-HMIR WEG Remote Operating Interface Module
$101.40 / Each
CFW500-IOAD WEG Digital & Analog I/O Plug-in Module
$109.20 / Each
CFW500-IOR-B WEG Relay Output Plug-in Module
$75.00 / Each
CFW500-MMF WEG Flash Memory Module
$113.40 / Each
CFW500-RHMIF WEG HMI Door Frame Kit
$15.00 / Each

Details
Purchase Components

Description

The WEG CFW500 Wash series is a redesign of our most successful CFW500 series product line. Engineer improvements have produced one of the most compact and full featured washdown drives on the market.

The new version, with IP66/NEMA 4X protection rating, increases the product robustness, ensuring protection against the ingress of dust and water jets from any direction, which allows its use and installation both indoors and outdoors.

Specifications

Brand	WEG
Catalog Number	14975888 CFW500A02P6T4DB66G2
Input Power	380-480VAC 3 Phase
Motor Voltage	460VAC 3 Phase
Motor HP	2 (HD)
Drive Amps	2.6 (HD)
Braking Transistor	Yes
Safety Module	No
Disconnect	No
Enclosure	IP66 NEMA 4X
Frame Size	A
Dimensions (HxWxD)	10.4" x 6.5" x 8.9"
Weight	22.0 lbs

Applications

Pumps
Fans
Blowers
Conveyors
Rollout Tables
Agitators
Mixers
Any Washdown Applications

Features

Same programming as other WEG VFDs including CFW500-IP20.
Built-in SoftPLC.
Scalar, Vector Control (Senseless and closed loop with encoder feedback) & VVW PM (suitable for fan, Pump and compressor).
NEMA 4X(IP66) Enclosure.
Available with and without disconnect switch.
Suitable for indoor and Outdoor use.
200-240V, 380-480V or 500-600 input voltage.
Heavy Duty rated - 150% current overload capacity.
0 to 500 Hz output frequency.
2.5 to 15 kHz adjustable switching frequency (5 kHz standard)
Built-in 24Vdc Power supply (max. 150 mA).
Built-in RS-485 (Modbus RTU) communication.
Four isolated programmable digital inputs.
One programmable relay output (1NO, 1NC, 240vac 0.5A).
One programmable transistor output.
One isolated programmable analog input (0-10V, 0/4-20mA).
One isolated programmable analog output (0-10V, 0/4-20mA).
Protective features: Over current (Phase-Phase short circuit in the output or phase-ground short circuit in the output), Under/overvoltage, overtemperature in heatsink, motor overload, IGBT overload and external fault.
Control features: Linear and “S” ramp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profile, maximum and minimum adjustable frequency limits, two skip frequencies, adjustable output current limit, JOG, ride-thru, flying start and PID regulator.
Same keypad with backlight as of CFW500 product line with Main display line, secondary display line and bar graph display.
Ambient: 14ºF (-10ºC) to 104ºF (40ºC), 3300ft (1000m) altitude, 5-95% humidity, non-condensing.
WLP and WPS (only 230VAC and 460VAC Models) compatible.

Technical Specifications

Power Supply	Tolerance: -15% to +10% Frequency: 50/60Hz (48 to 62 Hz)
Enclosure	NEMA 4X / IP66 Indoor / Outdoor Mounting
Control Modes	Volts per Hertz (Scalar) Sensorless Voltage Vector VVW: Voltage vector control Vector control with encoder
Power Output	Sinusoidal PWM (Space Vector Modulation) IGBT Transistors
Switching Frequency	2.5kHz to 15kHz
Frequency Range	0-500 Hz, resolution of 0.015 Hz
Overload Capacity	150% for 60 seconds, repeatable every 10 minutes
Inputs	4 Programmable isolated digital inputs, 24V DC, NPN (Active Low) or PNP (Active High) 1 Programmable isolated analog input; programmable for current or voltage (0-10V, 4-20mA or 0-20mA)
Outputs	1 Programmable relay output: Form C (One NO & NC contact), 240 V / 0.5 A 1 Programmable isolated open collector digital output (transistor Output); 24VDC 1 Programmable isolated analog output; programmable for current or voltage (0-10V, 4-20mA or 0-20mA)
Power Supply	24 VDC, +/- 20%, Max. 150 mA 10 VDC, Max. 2 mA
Communication	Isolated RS485 (One Port) Modbus-RTU with max. communication of 38.4 kbps
Safety Protections	Motor over current Motor overload Output phase-to-phase short circuit Output phase-to-ground short circuit Programming error DC link over voltage DC link under voltage Drive over temperature External fault
Ambient	Temperature: 14 - 104°F (-10 to 40°C), up to 122°F (50°C) with 2% / 1.8°F (1°C) output current derating. Humidity: 5-95% Non Condensing Altitude:0-3300 ft (1000m), up to 13,200 ft (4000m) with 1% / 328ft (100 m) output current derating.
Safety Standards	UL 508C UL 840 IEN/EN 61800-5-1 EN 50178 IEC/EN 60204-1 IEC/EN 60146 IEC/EN 61800-2
Electromagnetic Compatibility (EMC)	IEC/EN 61800-3 CISPR 11 IEC/EN 61000-4-2/3/4/5/6.
Mechanical Construction	IEC/EN 60529 UL 50 IEC/EN 60721-3-3
Special Functions	Linear and “S” ramp accel and decel local/remote control FWD/REV selection DC braking manual and auto torque boost motor slip compensation electronic pot two skip frequencies maximum and minimum adjustable frequency limits adjustable output current DC bus regulaiton Speed/Torque Control PID
Keypad	Three lines of Display (Main display, Secondary display & Bar display) displaying three parameters, LDC; 9 keys Readouts for: output frequency (Hz), output current (A), output voltage (V), motor torque (%) in vector mode, DC bus voltage (V), value proportional to frequency (Ex.: RPM), heatsink temperature, fault and status messages

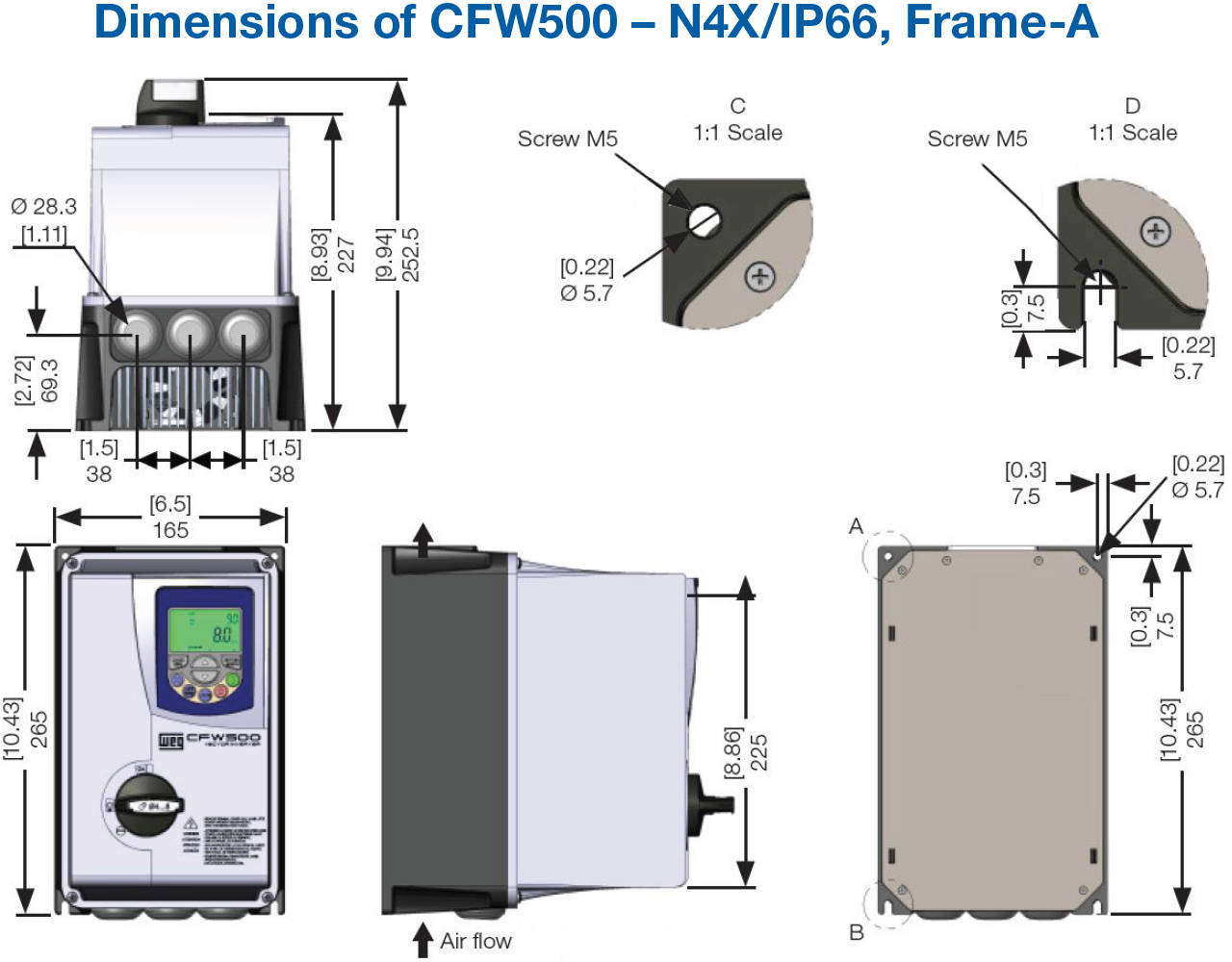

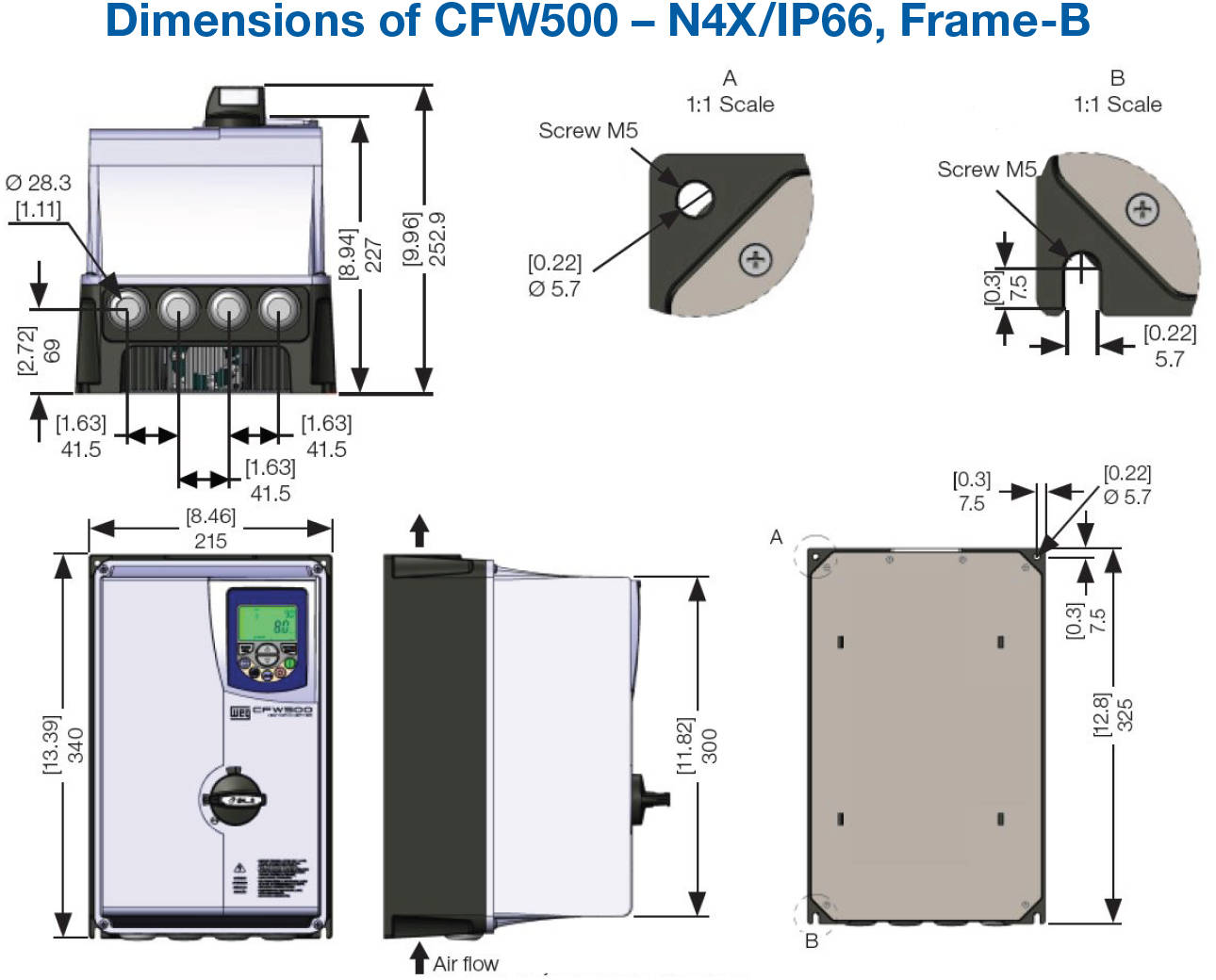

Dimensions

Specifications

Brand	WEG
Catalog Number	CFW500A04P3B2NB20Y2
Input Power	200-240VAC Single or 3 Phase
Motor Voltage	230VAC 3 Phase
Motor HP	1.5 (ND/VT) 1.5 (HD/CT)
Drive Amps	4.3 (ND/VT) 4.3 (HD/CT)
Braking Transistor	No
Safety Module	Yes
Enclosure	IP20
Frame Size	A
Dimensions (HxWxD)	7.5" x 3.0" x 5.9"
Weight	1.8 lbs

Applications

Extruders
Conveyor Belts
Roller Tables
Fan / Exhausters
Centrifugal Pumps
Granulators / Palletizers
Cutting and Welding Machines
Dryers and Rotary Ovens
Process Dosing Pumps
Stirrers / Mixers
Rotary Filters
Winding Machines / Uncoiling Machines

Features

Special engineering units (RPM, ºC, Nm, mA, %, kW, kWh)
Password to protect the parameters
Backup of all parameters (via SuperDrive G2 software, or plugin memory MMF)
Possibility to save up to two different settings on the memory of the CFW500
Setting of the switching frequency according to the application requirements
Speed reference via electronic potentiometer
Multispeed with up to eight programmable speeds
Slip compensation
Manual or automatic torque boost (V/F scalar mode) or self-adjustment (VVW and vector modes)
Permanent magnet motor control: VVW PM
Acceleration/deceleration ramps
“S” type ramp
DC braking
Internal dynamic braking (except frame size A)
PID controller to control processes in closed loop
Flying start / Ride-through
Sleep mode
Skip frequencies or frequency ranges function adjustable
Overload and overtemperature protection
Overcurrent protection
DC link voltage supervision
Fault log
Safety functions: STO and SS1

Technical Specifications

Power Supply	Tolerance: -15 to +10% Frequency: 50/60Hz (48 to 62 Hz) Phase Imbalance: =3% of the rated phase-phase input voltage Transient Voltages and Overvoltages according to Category III (EN 61010/UL 508C) Maximum of 10 (line) connections per hour (1 every 6 minutes) Typical efficiency: =97%
Control Method	V/F (scalar) VVW: voltage vector control Vector without encoder (sensorless) and closed loop vector with encoder PM VVW: voltage vector control for permanent magnet motors
Output Frequency	0 to 500 Hz 0.015 Hz Resolution
Analog Inputs	1 isolated input. Levels: (0 to 10) V or (0 to 20) mA or (4 to 20) mA Linearity error =0.25% Impedance: 100 kO for voltage input, 500 O for current input Programmable functions, including PTC input Maximum voltage accepted in the inputs: 30 VDC
Digital Inputs	4 isolated inputs Programmable functions: Active high (PNP): maximum low level of 15 VDC; minimum high level of 20 VDC Active low (NPN): maximum low level of 5 VDC; minimum high level of 9 VDC Maximum input voltage of 30 VDC Input current: 4.5 mA Maximum input current: 5.5 mA
Analog Outputs	1 isolated output. Levels (0 to 10) V or (0 to 20) mA or (4 to 20) mA Linearity error =0.25% Programmable functions RL =10 kO (0 to 10 V) or RL =500 O (0 to 20 mA / 4 to 20 mA)
Relay Outputs	1 relay with NO/NC contact Maximum voltage: 240 VAC Maximum current of 0.5 A Programmable functions
Transistor Outputs	1 isolated open sink digital output (using as reference the 24 V dc power supply) Maximum current of 150 mA (maximum capacity of the 24 V dc power supply) Programmable functions
Power Supply	24 VDC power supply Maximum capacity: 150 mA Power supply of 10 VDC Maximum capacity: 2 mA
Communication Options	Fieldbus: Modbus-RTU, CANopen, DeviceNet, Profibus-DP, EtherNet/IP, Modbus-TCP, PROFINET IO, USB, RS485 and RS232 ports
Safety Protection	Phase-Phase / Phase-Ground overcurrent / Short Circuit Undervoltage/Overvoltage Heatsink Overtemperature Motor Overload Power Module (IGBTs) Overload External fault / alarm Programming error
Operating Interface	9 keys: Run/Stop, Increment, Decrement, Direction of rotation, Jog, Local/Remote, Back/Esc and Enter/Menu LCD Display
Protection Degree	IP20 – Sizes A, B, C, D, E, F and G NEMA1 – Sizes A, B, C, D, E, F and G with NEMA1 Kit
Altitude	Up to 1,000 m (maximum altitude under normal conditions) 1,000 to 4,000 m: current derating of 1% for each 100 m above 1,000 m of altitude
Humidity	5% to 95%, Non-condensing
Operating Temperature	-10 °C to 50 °C - IP20 (sizes A to E) -10 °C to 40 °C - NEMA 1 (sizes A to E) -10 °C to 40 °C - IP20, NEMA 1 (size F) -10 °C to 45 °C - IP20, NEMA 1 (size G)
