/Products/VFD's & Soft Starters/WEG/CFW100 G2/CFW100B02P6S220G2 WEG 0.75HP Variable Speed Drive, 200-240VAC Single Phase

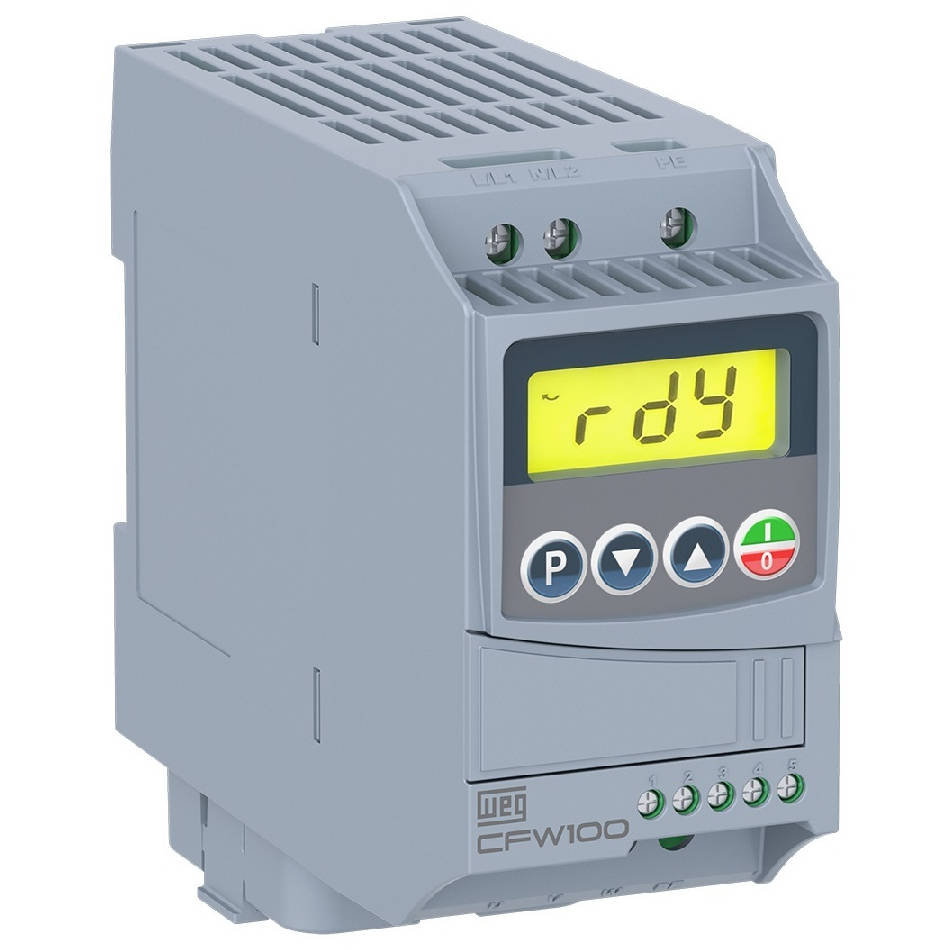

CFW100B02P6S220G2 WEG 0.75HP Variable Speed Drive, 200-240VAC Single Phase
Enlarge Photo

Product ID: CFW100B02P6S220G2

CFW100B02P6S220G2 WEG 0.75HP Variable Speed Drive, 200-240VAC Single Phase

MFG: WEG Electric Corporation
MFG Part Number: CFW100B02P6S220G2

Selected accessories will also be added to cart
$154.57 / Each
Quantity:
2.6 Amp Output, B Frame Size, Generation 2, IP20, 14248097

Description

The CFW100 is a an extremely small, high performance variable speed drive for three-phase induction motors suitable for manufacturers of small machines. It features selectable scalar (V/F) or voltage vector (VVW) control, HMI, and Plug & Play philosophy for fast and simple accessory installation. It also offers SoftPLC, which adds the functionalities of PLC to the drive, and free programming and monitoring software applications.

Specifications

Brand WEG
Catalog Number CFW100B02P6S220G2
Input Power 200-240VAC
Single Phase
Motor Voltage 230VAC
3 Phase
Maximum Applicable Motor 0.5 HP (220VAC 60Hz IEC)
0.37 kW (220VAC 60Hz IEC)
0.75 HP (230VAC 60Hz UL)
Output Current 2.6 Amps
Frame Size B
Enclosure IP20
Dimensions (HxWxD) 4.60" x 2.17" x 5.08"
Weight 1.25 lbs

Applications

  • Small Manual Applications
  • Stirrers, Mixers, Granulators and Palletizers
  • Rotary Filters
  • Roller Tables
  • Centrifugal Pumps & Process Dosing Pumps
  • Fans & Exhausters
  • Dryers

Features

  • The smallest VSD on the market
  • Single-phase power supply
  • Built-in inputs and outputs
  • Status information is easily viewed on the screen
  • Selectable modes
  • Functions for improved performance
  • High overload capacity
  • Lead free, international certifications
  • Online monitoring, programming and configuration
  • Plug & Play accessories can be easily installed
  • Able to operate in up to 50 °C ambient temperature without derating
  • Ideal for small industrial, commercial or home applications
  • 1 slot for functions or I/O expansion accessory
  • Simple operation, reliable displays, remote operating interface (accessory)
  • Green product, it contributes to the environmental conservation and complies with national and international standards
  • Easy, intuitive and free development software

Technical Specifications

Supply Voltage Tolerance: -15%, +10%
Frequency: 50/60 Hz ±2Hz
Transient voltages and overvoltages according to category III (EN 61010/UL 508 C)
Maximum of 10 (line) connections per hour (1 every 6 minutes)
Efficiency =97%
Control Method V/F (scalar)
VVW (voltage vector control)
Output Frequency 0 to 400 Hz
0.1 Hz Resolution
Analog Inputs Available through accessory plug-in modules
Digital Inputs 4 isolated inputs
Programmable functions:
- Active high (PNP): maximum low level 10 V dc, maximum high level 20 V dc
- Active low (NPN): maximum low level 5 V dc, minimum high level 10 V dc
Maximum input voltage 30 V dc
Input current: 11 mA
Maximum input current: 20 mA
Analog Outputs Available through accessory plug-in modules
Relay Outputs Available through accessory plug-in modules
Communication Available through accessory plug-in modules
Safety Protection Overcurrent/phase-phase short circuit in the output
Under/overvoltage at the power
Motor overload
Power module (IGBTs) overload
External fault / alarm
Configuration error
HMI 4 keys: Run/Stop, Increment, Decrement and LCD Display Settings
It allows accessing/changing all the parameters
Accuracy of the indications:
- Current: 10% of the rated current
- Speed resolution: 0.1 Hz
