/Products/Electric Motors/3 Phase/Baldor/TE - C-Face, Foot Mounted/CEM3546 Baldor 1HP Electric Motor, 1760RPM

Product ID: CEM3546

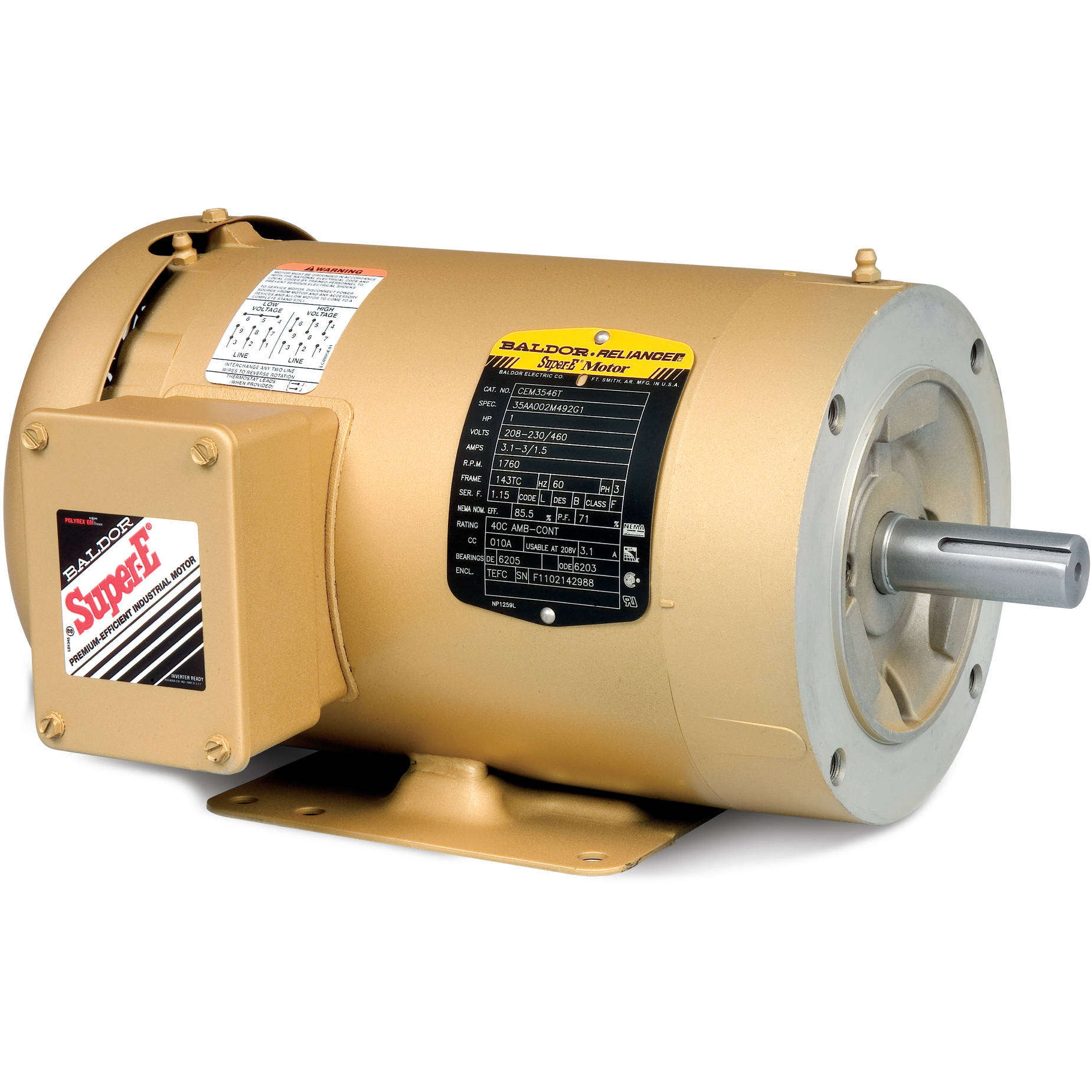

CEM3546 Baldor 1HP Electric Motor, 1760RPM

MFG: Baldor Electric Company
MFG Part Number: CEM3546

Selected accessories will also be added to cart
$918.97 / Each
Quantity:
TEFC, 56C Frame, 230/460V 3-Phase 60Hz, 3520M, Foot Mount, C-Face

Specifications

Specs

Output 1.000 hp
Phase 3
Synchronous Speed 1,800 rpm
Frequency 60.00 Hz
Voltage 460 V
230 V
Frame Material Steel
Frame 56C
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CSA
CSA EEV
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Blower None
Current 3.1 A @ 208 V
3.0 A @ 230 V
1.5 A @ 460 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5%
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device No feedback
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 1.5 A
Insulation Class F
Inverter Code Inverter ready
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 3520M
Number of Poles 4
Overall Length 12.23 in
Power Factor 71
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status RoHS Compliant
Service Factor 1.15
Shaft Diameter 0.625 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 1,760 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Applications

Features

Nameplate

Nameplate

CAT.NO. CEM3546
SPEC 35A012M492G1
HP 1
VOLTS 230/460
AMPS 3/1.5
RPM 1760
FRAME 56C HZ 60 PH 3
SF 1.15 CODE L DES B CLASS F
NEMA NOM. EFF 85.5 PF 71
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 3.1
ENCL TEFC SER
DE 6205 ODE 6203
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
50Hz 1HP 190/380V 3.6/1.8A SF1.0
NP3441LUA

Performance

Performance

Performance at 460 V, 60 Hz, 1 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 15 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 36° C
Temp. Rise @ S.F. Load 42° C
Start Configuration DOL
Break-Down Torque 13.5 LB-FT
Pull-Up Torque 8.25 LB-FT
Locked-Rotor Torque 8.52 LB-FT
Starting Current 12.4 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 29.0 46.0 60.0 69.0 75.0 79.0 75.0
Efficiency 0.0 74.2 82.9 85.4 85.8 85.4 84.5 85.4
Speed (RPM) 1,799 1,790 1,781 1,771 1,760 1,749 1,736 1,754
Line Amps 1.07 1.11 1.24 1.39 1.59 1.83 2.11 1.69

Performance Curves

Performance at 230 V, 60 Hz, 1 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 3.75 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 36° C
Temp. Rise @ S.F. Load 42° C
Start Configuration DOL
Break-Down Torque 13.5 LB-FT
Pull-Up Torque 8.25 LB-FT
Locked-Rotor Torque 8.52 LB-FT
Starting Current 24.8 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 29.0 46.0 60.0 69.0 75.0 79.0 74.0
Efficiency 0.0 74.2 82.9 85.4 85.8 85.4 84.5 85.6
Speed (RPM) 1,799 1,790 1,781 1,771 1,760 1,749 1,736 1,754
Line Amps 2.14 2.22 2.48 2.78 3.18 3.66 4.22 1.69

Performance Curves
