/Products/Electric Motors/DC/Baldor/Washdown Permanent Magnet/CDPWD3575 Baldor 1.5HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

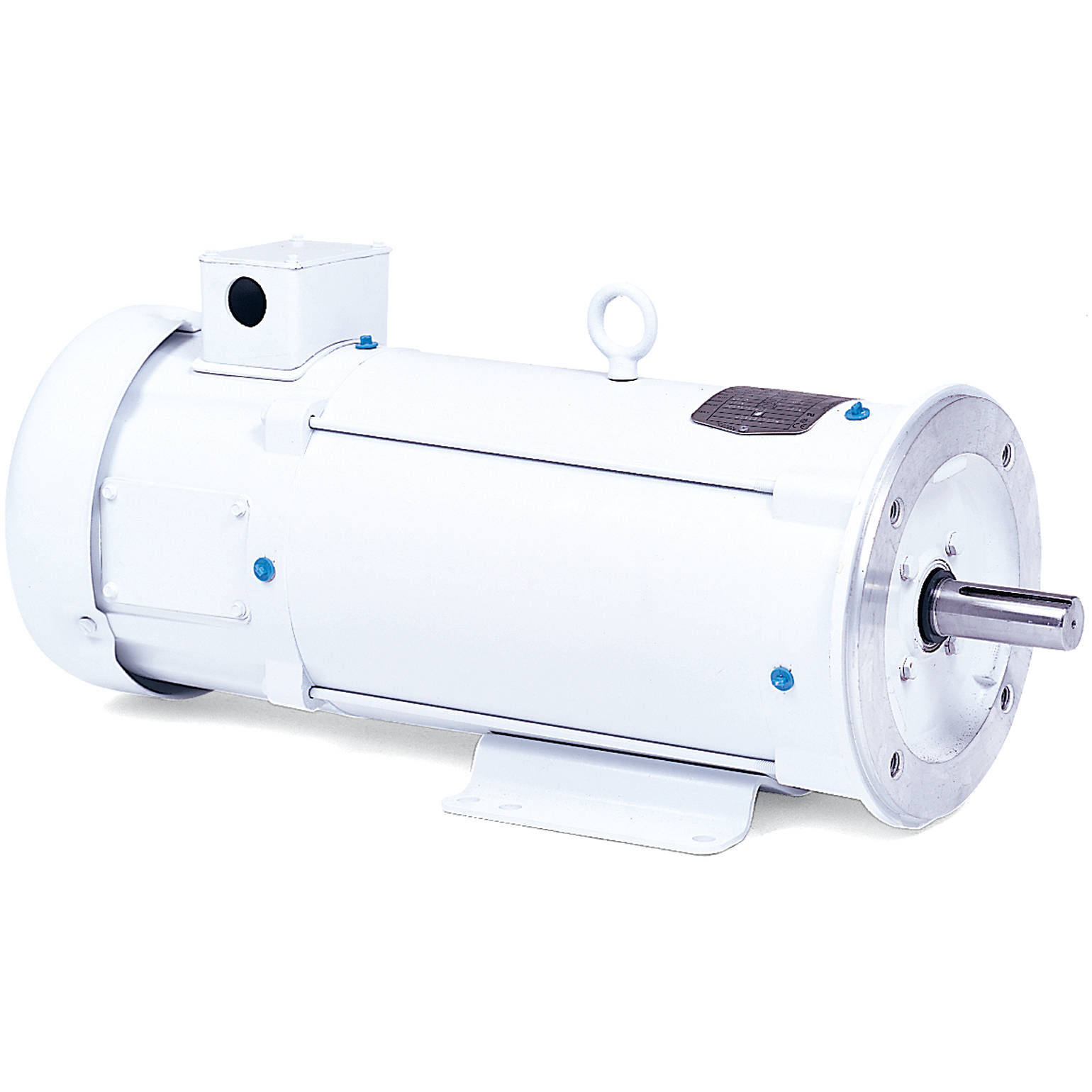

CDPWD3575 Baldor 1.5HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3575

CDPWD3575 Baldor 1.5HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3575

Selected accessories will also be added to cart
$3,499.97 / Each
Quantity:
TEFC, 145TC Frame, 180VDC, 3536P, Rolled Steel, Rigid Base, C-Face, 7/8" Keyed Shaft

Specifications

Specs

Armature Voltage 180 V
Base Speed 1750 rpm
Enclosure TEFC
Frame 145TC
Frame Material Steel
Output Power 1.500 HP
XP Class and Group None
Agency Approvals CE
CSA
UR
WEEE
Ambient Temperature 40 °C
Armature Current 7.7 a
Armature Inertia 30.342 lb-ft2
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A
Mounting Arrangement F1
Overall Length 17.17 IN
Product Family Wash Down
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator Shaft Slinger
Motor Standards NEMA
XP Division Not Applicable

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO. CDPWD3575
SPEC. 35P523Z164
HP 1.5 ENCL TEFC
RPM 1750
FRAME 145TC TYPE 3536P
ARM V 180 ARM A 7.7
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY K
BRG/DE 6205 BRG/ODE 6205
BRUSHES 2/BP5000T15
IC411 BLANK 1/MIN
SER.
BLANK IP55 KW 1.12 KG 29
APRV-CSA APRV-UL APRV-CE
NP1509
