/Products/Electric Motors/DC/Baldor/Washdown Permanent Magnet/CDPWD3330 Baldor 1/2HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

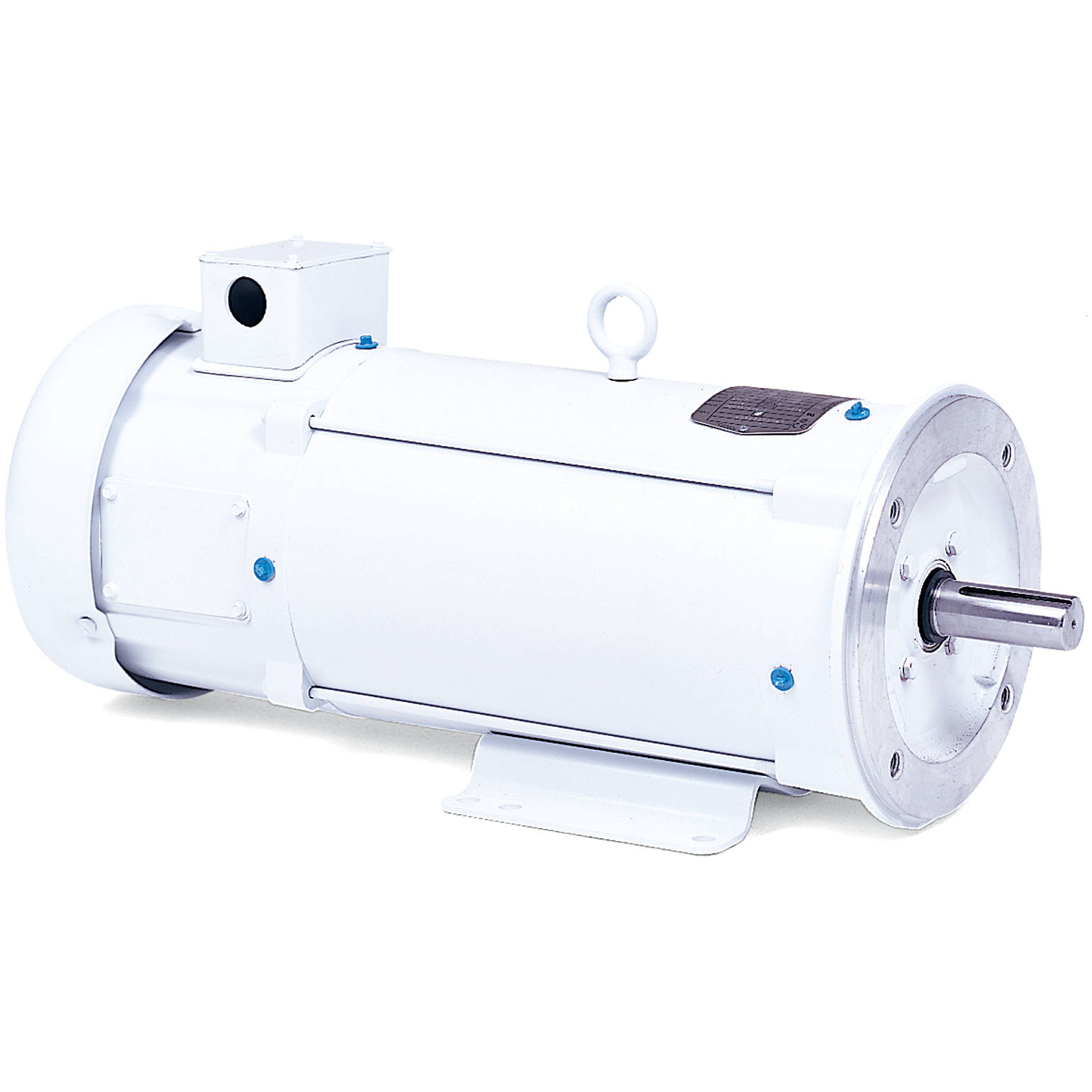

CDPWD3330 Baldor 1/2HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3330

CDPWD3330 Baldor 1/2HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3330

Selected accessories will also be added to cart
$1,199.97 / Each
Quantity:
TENV, 56C Frame, 90VDC, SCR Drive, 3336P, C-Face, Foot Mount

Specifications

Specs

Armature Voltage 90 V
Base Speed 1,750 rpm
Frame 56C
Frame Material Steel
Output Power 0.5 hp
Brand Baldor-Reliance
Agency Approvals CE
CSA
UR
WEEE
Ambient Temperature 40 °C
Armature Current 4.8 A
Armature Inertia 14.047lb-ft2
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device No feedback
Heater Indicator No heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG, A
Motor Lead Termination Flying Leads
Motor Standards NEMA
Overall Length 14.94 in
Product Family Wash Down
Pulley End Bearing Type Sealed Bearing
RoHS Status RoHS Compliant
Service Factor 1.00
Shaft Diameter 0.625 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO. CDPWD3330
SPEC. 33-2142Z122
HP .5 ENCL TENV
RPM 1750
FRAME 56C TYPE 3336P
ARM V 90 ARM A 4.8
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY 1.3
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5011T01
IP55 BLANK
SER.
BLANK
APRV-CSA APRV-UL APRV-CE
NP1509

Performance

Performance

Performance at 90 Arm V, 0.5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 1.22 ohms
Series Winding Resistance
Armature Inductance 15.574 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia
Maximum Allowable Inrush Amps 44

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.474 2.065 3.656 5.247 6.838 8.429 10.02
RPM 1995 1920 1846 1772 1698 1624 1550
Torque 0 0.5 1 1.5 2 2.5 3

Performance Curves

Performance at 90 Arm V, 0.5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 1.2779 ohms
Series Winding Resistance
Armature Inductance 15.798 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.24 1.25 2.1 3.15 4.05 5.36 6.25
RPM 1835 1793 1721 1672 1648 1584 1549
Torque 0 0.38 0.76 1.14 1.5 1.9 2.28

Performance Curves

Performance at 90 Arm V, 0.5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 1.2525 ohms
Series Winding Resistance
Armature Inductance 15.413 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.24 1.15 2.35 3.16 4.07 5.37 6.3
RPM 1835 1770 1723 1683 1624 1588 1559
Torque 0 0.38 0.76 1.14 1.5 1.9 2.28

Performance Curves

Performance at 90 Arm V, 0.5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 1.22 ohms
Series Winding Resistance
Armature Inductance 15.574 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia 14.0472 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.32 6.51 12.7 18.89 25.08 31.28 39.3
RPM 2000 1682 1365 1047 729 412 0.1
Torque 0 2 4 6 8 10 12.59

Performance Curves
