/Products/Electric Motors/DC/Baldor/Washdown Permanent Magnet/CDPWD3306 Baldor 1/4HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

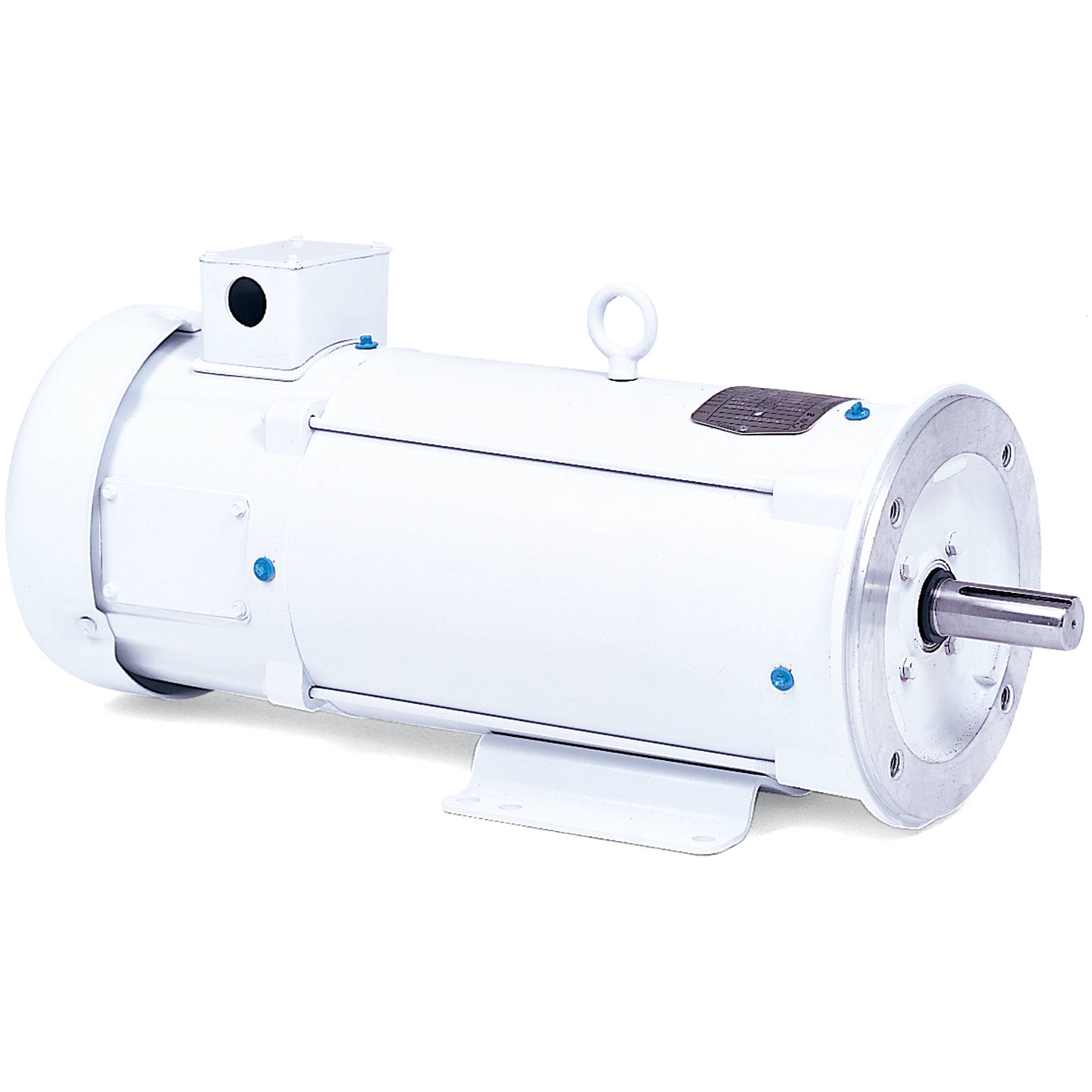

CDPWD3306 Baldor 1/4HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3306

CDPWD3306 Baldor 1/4HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3306

Selected accessories will also be added to cart
$999.97 / Each
Quantity:
TENV, 56C Frame, 180VDC, 3320P, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage 180 V
Base Speed 1750 rpm
Enclosure TENV
Frame 56C
Frame Material Steel
Output Power 0.250 HP
Agency Approvals CE
CSA
UR
WEEE
Ambient Temperature 40 °C
Armature Current 1.3 a
Armature Inertia 4.680 lb-ft2
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 18 AWG
Mounting Arrangement F1
Overall Length 12.25 IN
Product Family Wash Down
Pulley End Bearing Type Sealed Bearing
Service Factor 1.00
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Motor Standards NEMA

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO. CDPWD3306
SPEC. 33-2154Z132
HP .25 ENCL TENV
RPM 1750 1/MIN IC410
FRAME 56C TYPE 3320P
ARM V 180 ARM A 1.25
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY 1.3
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5011CV01
IP55 BLANK
SER.
BLANK KW.18 KG10
APRV-CSA Y APRV-UL Y APRV-CE Y
NP1509
