/Products/Electric Motors/DC/Baldor/Paint Free Washdown PM/CDPSWD3410 Baldor 1/4HP Paint Free Washdown DC Electric Motor, 1750RPM

Product ID: CDPSWD3410

CDPSWD3410 Baldor 1/4HP Paint Free Washdown DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPSWD3410

Selected accessories will also be added to cart

$1,299.97 / Each

Quantity:

TEFC, 56C Frame, 90VDC, 3413P, Stainless Steel, C-Face, Foot Mount

Details
Purchase Components

Specifications

Specs

Armature Voltage 90 V

Base Speed 1,750 rpm

Frame 56C

Frame Material Stainless Steel

Output Power 0.25 hp

XP Class and Group NONE

Brand Baldor-Reliance

Agency Approvals CSA
UR

Ambient Temperature 40 °C

Armature Current 2.7 A

Armature Inertia 5.073lb-ft2

Base Indicator Rigid

Bearing Grease Type POLYREX EM (-20F +300F)

Drip Cover No Drip Cover

Duty Rating CONT

Feedback Device No feedback

Heater Indicator No heater

Insulation Class F

Lifting Lugs No Lifting Lugs

Motor Lead Exit KO Box

Motor Lead Quantity/Wire Size 2 @ 14 AWG

Motor Lead Termination Flying Leads

Motor Standards NEMA

Overall Length 12.16 in

Product Family Wash Down Paint Free

Pulley End Bearing Type Sealed Bearing

RoHS Status RoHS Compliant

Service Factor 1.00

Shaft Diameter 0.625 in

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible

Shaft Slinger Indicator Shaft Slinger

XP Division Not Applicable

Applications

Food Processing
Packaging

Features

Class F insulation
20:1 constant torque speed range
Moisture resistant 200°C magnet wire
Sealed ball bearings with moisture resistant grease
Contact lip seals on shaft extensions
Neoprene gaskets
300 series stainless steel motor frame, base, shaft and hardware

Nameplate

CAT.NO.	CDPSWD3410
SPEC.	34-6694-3673G1
HP	.25			ENCL	TEFC
RPM	1750
FRAME	56C			TYPE	3413P
ARM V	90		ARM A		2.7
FLD V				FLD A
INSUL	F			AMB.	40
DUTY	CONT			SUPPLY		1.5
BRG/DE	6203			BRG/ODE			6203

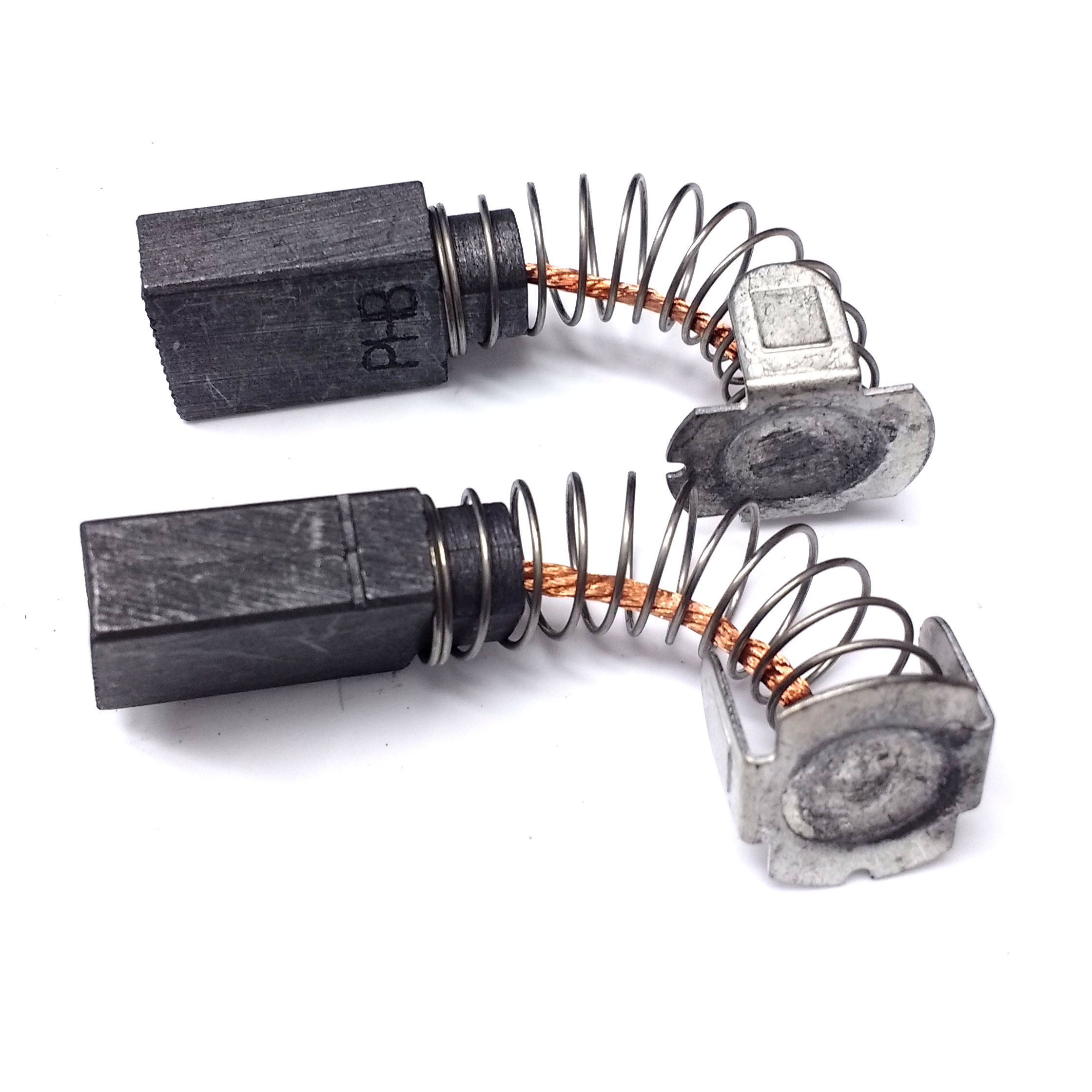

BRUSHES	2/BP5000AW14
				BLANK
SER.
BLANK
APRV-CSA		APRV-UL
	NP1502
