/Products/Electric Motors/DC/Baldor/Low Voltage Permanent Magnet/CDP3445-V12 Baldor 1HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

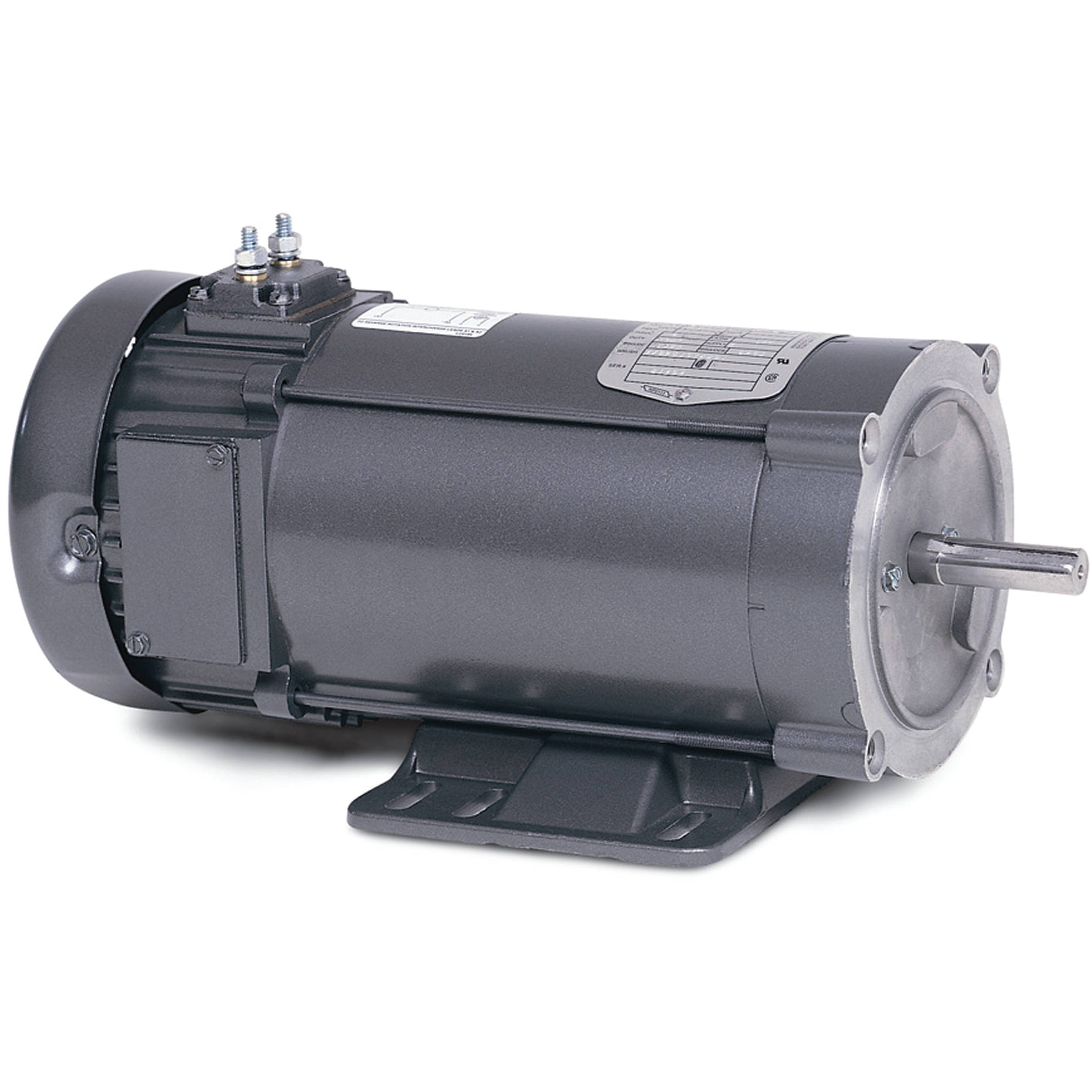

CDP3445-V12 Baldor 1HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM
Enlarge Photo

Product ID: CDP3445-V12

CDP3445-V12 Baldor 1HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

MFG: Baldor Electric Company
MFG Part Number: CDP3445-V12

Selected accessories will also be added to cart
$2,099.97 / Each
Quantity:
TEFC, 56C Frame, 12VDC Armature, 3435P, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage 12 V
Base Speed 1800 rpm
Enclosure TEFC
Frame 56C
Frame Material Steel
Output Power 1.000 HP
XP Class and Group None
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 85.6 a
Armature Inertia 12.052 lb-ft2
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Heater Indicator No Heater
Insulation Class H
Lifting Lugs No Lifting Lugs
Motor Lead Exit SPECIAL (OLD)
Motor Lead Termination Ring Terminals
Motor Lead Quantity/Wire Size 2 @ 8 AWG
Mounting Arrangement F3
Overall Length 15.89 IN
Product Family General Purpose
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
XP Division Not Applicable

Applications

  • Battery operation for portable pumps
  • Fans
  • Augers
  • Winches
  • Lifts

Features

  • NEMA C-face
  • Class F insulation
  • Double sealed ball bearings
  • Top-mounted terminal studs for power connection on ratings of 40 Amps and above

Nameplate

Nameplate

CAT.NO. CDP3445-V12
SPEC. 34-7074Z621G1
HP 1 ENCL TEFC
RPM 1800
FRAME 56C TYPE 3435P
ARM V 12 ARM A 85.6
FLD V FLD A
INSUL H AMB. 40
DUTY CONT SUPPLY A
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5112AU01
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L
