/Products/Electric Motors/DC/Baldor/Low Voltage Permanent Magnet/CDP3430-V12 Baldor 1/2HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

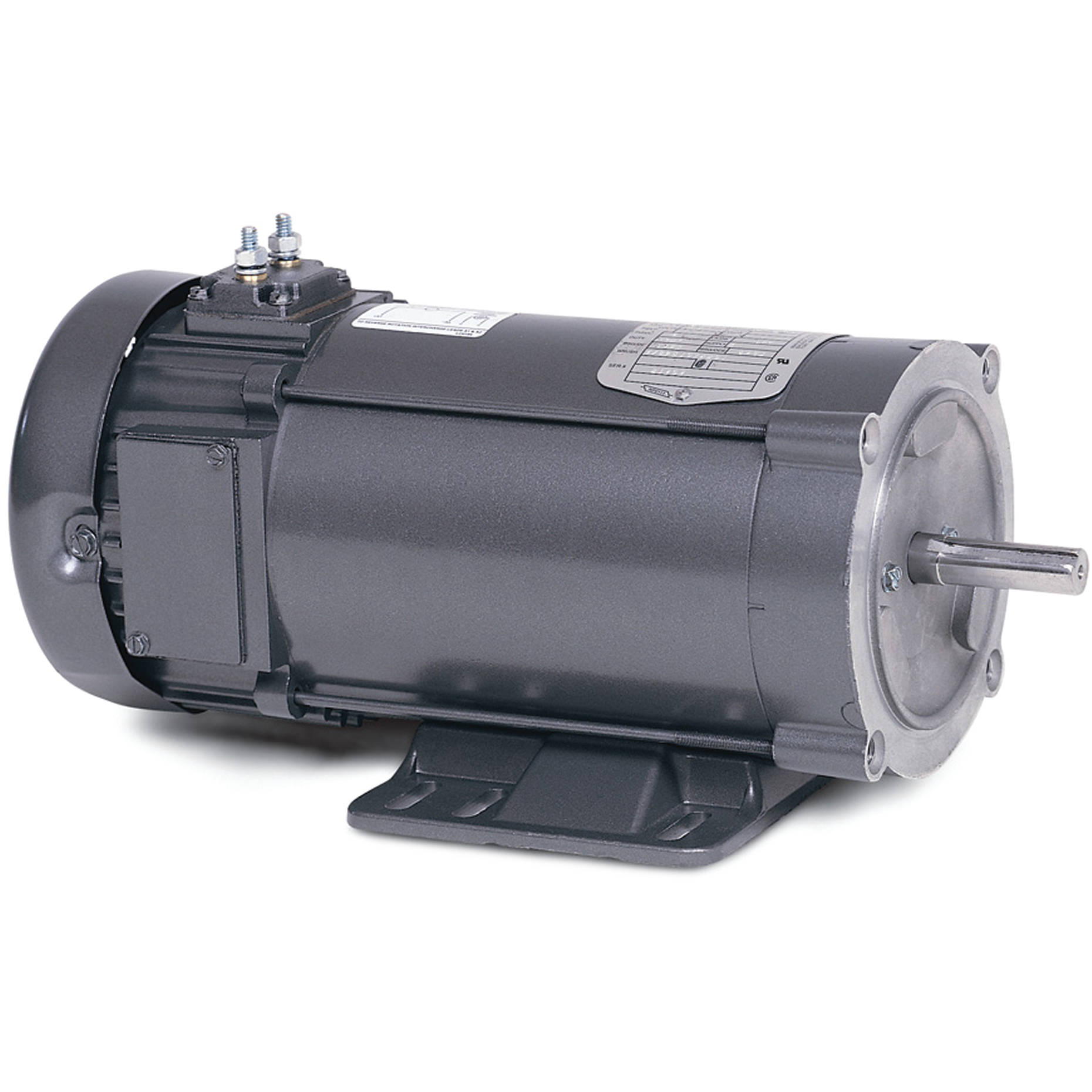

CDP3430-V12 Baldor 1/2HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM
Enlarge Photo

Product ID: CDP3430-V12

CDP3430-V12 Baldor 1/2HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

MFG: Baldor Electric Company
MFG Part Number: CDP3430-V12

Selected accessories will also be added to cart
$989.97 / Each
Quantity:
TENV, 56C Frame, 12VDC Armature, 3420P, C-Face, Foot Mount

Specifications

Specs

Armature Voltage 12 V
Base Speed 1,800 rpm
Frame 56C
Frame Material Steel
Output Power 0.5 hp
XP Class and Group NONE
Brand Baldor-Reliance
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 40.0 A
Armature Inertia 6.887lb-ft2
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device No feedback
Heater Indicator No heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit SPECIAL (OLD)
Motor Lead Quantity/Wire Size 2 @ 10 AWG
Motor Lead Termination Ring Terminals
Motor Standards NEMA
Overall Length 12.10 in
Product Family General Purpose
Pulley End Bearing Type Sealed Bearing
Service Factor 1.00
Shaft Diameter 0.625 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
XP Division Not Applicable

Applications

  • Battery operation for portable pumps
  • Fans
  • Augers
  • Winches
  • Lifts

Features

  • NEMA C-face
  • Class F insulation
  • Double sealed ball bearings
  • Top-mounted terminal studs for power connection on ratings of 40 Amps and above

Nameplate

Nameplate

CAT.NO. CDP3430-V12
SPEC. 34-7080Z609G1
HP .5 ENCL TENV
RPM 1800
FRAME 56C TYPE 3420P
ARM V 12 ARM A 40
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY A
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5104BV01
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L

Performance

Performance

Performance at 12 Arm V, 0.5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 0.0213 ohms
Series Winding Resistance
Armature Inductance 0.1689 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia 6.887 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 4.44 12.86 21.28 29.7 38.12 46.54 54.97
RPM 2054 1990 1926 1863 1799 1736 1672
Torque 0 0.375 0.75 1.125 1.5 1.875 2.25
