/Products/Electric Motors/DC/Baldor/Low Voltage Permanent Magnet/CDP3410-V24 Baldor 1/4HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

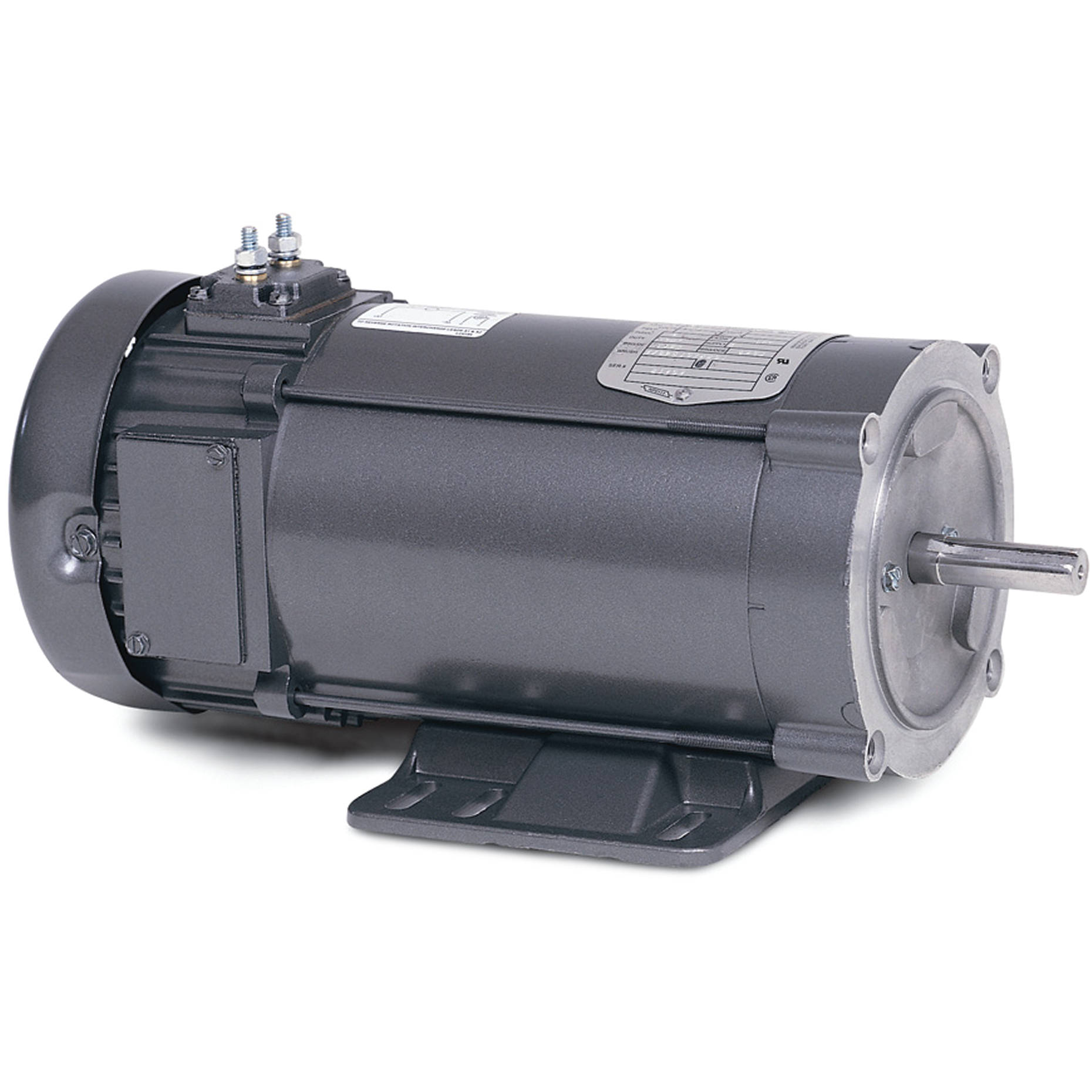

CDP3410-V24 Baldor 1/4HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM
Enlarge Photo

Product ID: CDP3410-V24

CDP3410-V24 Baldor 1/4HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

MFG: Baldor Electric Company
MFG Part Number: CDP3410-V24

Selected accessories will also be added to cart
$819.97 / Each
Quantity:
TENV, 56C Frame, 24VDC Armature, 3416P, C-Face, Foot Mount

Specifications

Specs

Armature Voltage 24 V
Base Speed 1,800 rpm
Frame 56C
Frame Material Steel
Output Power 0.25 hp
XP Class and Group NONE
Brand Baldor-Reliance
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 10.6 A
Armature Inertia 5.510lb-ft2
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device No feedback
Heater Indicator No heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Overall Length 11.60 in
Product Family General Purpose
Pulley End Bearing Type Sealed Bearing
Service Factor 1.00
Shaft Diameter 0.625 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
XP Division Not Applicable

Applications

  • Battery operation for portable pumps
  • Fans
  • Augers
  • Winches
  • Lifts

Features

  • NEMA C-face
  • Class F insulation
  • Double sealed ball bearings
  • Top-mounted terminal studs for power connection on ratings of 40 Amps and above

Nameplate

Nameplate

CAT.NO. CDP3410-V24
SPEC. 34-6943Z610G1
HP .25 ENCL TENV
RPM 1800
FRAME 56C TYPE 3416P
ARM V 24 ARM A 10.6
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY A
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5104BV01
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L

Performance

Performance

Performance at 24 Arm V, 0.25 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 0.129 ohms
Series Winding Resistance
Armature Inductance 0.936 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia 5.5096 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 2.4 5.05 7.74 10.65 13.4 16.01 18.82
RPM 1825 1795 1753 1707 1666 1635 1596
Torque 0 0.25 0.5 0.75 1 1.25 1.5

Performance Curves
