/Products/Electric Motors/DC/Baldor/Shunt Wound/CD6218 Baldor 1HP Shunt Wound DC Electric Motor, 1750RPM

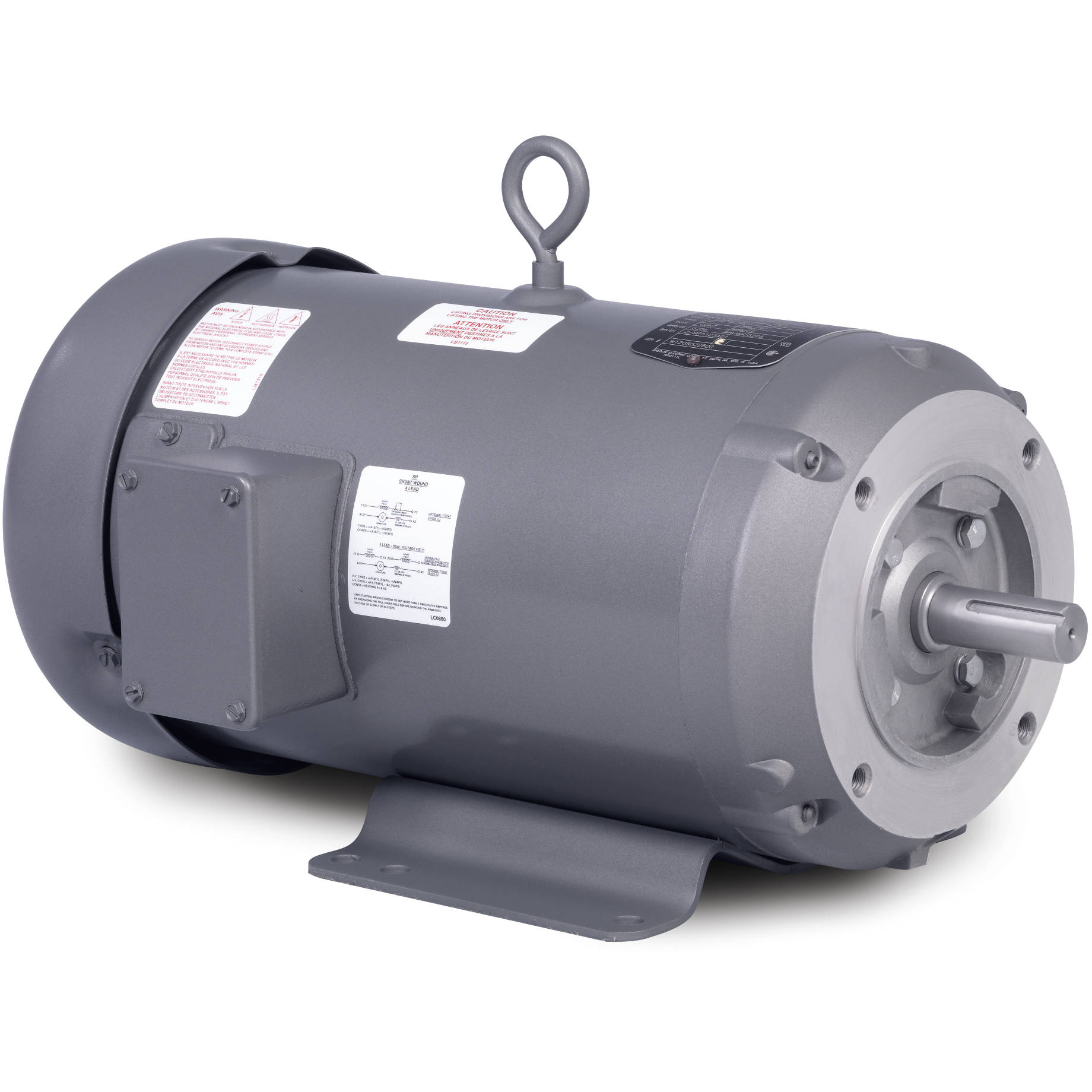

CD6218 Baldor 1HP Shunt Wound DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CD6218

CD6218 Baldor 1HP Shunt Wound DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CD6218

Selected accessories will also be added to cart
$2,399.97 / Each
Quantity:
TEFC, 184C Frame, 100/200VDC Field, 180VDC Armature, 3623D, Rolled Steel, Rigid Base, C-Face, 7/8" Keyed Shaft

Specifications

Specs

Armature Voltage 180 V
Base Speed 1750 rpm
Enclosure TEFC
Field Voltage 100 V
200 V
Frame 184C
Frame Material Steel
Output Power 1.000 HP
XP Class and Group None
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 5.0 a
Armature Inertia 19.385 lb-ft2
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type SHUNT
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 4 @ 18 AWG
2 @ 12 AWG
Mounting Arrangement F1
Overall Length 15.63 IN
Product Family General Purpose
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS NON-COMPLIANT
Service Factor 1.00
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
XP Division Not Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO. CD6218
SPEC. 36-5257Z110
HP 1 ENCL TEFC
RPM 1750
FRAME 184C TYPE 3623D
ARM V 180 ARM A 5
FLD V 200/100 FLD A .25/.5
INSUL F AMB. 40
DUTY CONT SUPPLY ----
BRG/DE 6206 BRG/ODE 6205
BRUSHES 2/BP5125A01
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L
