/Products/Electric Motors/DC/Baldor/Shunt Wound/CD6215 Baldor 1.5HP Shunt Wound DC Electric Motor, 1750RPM

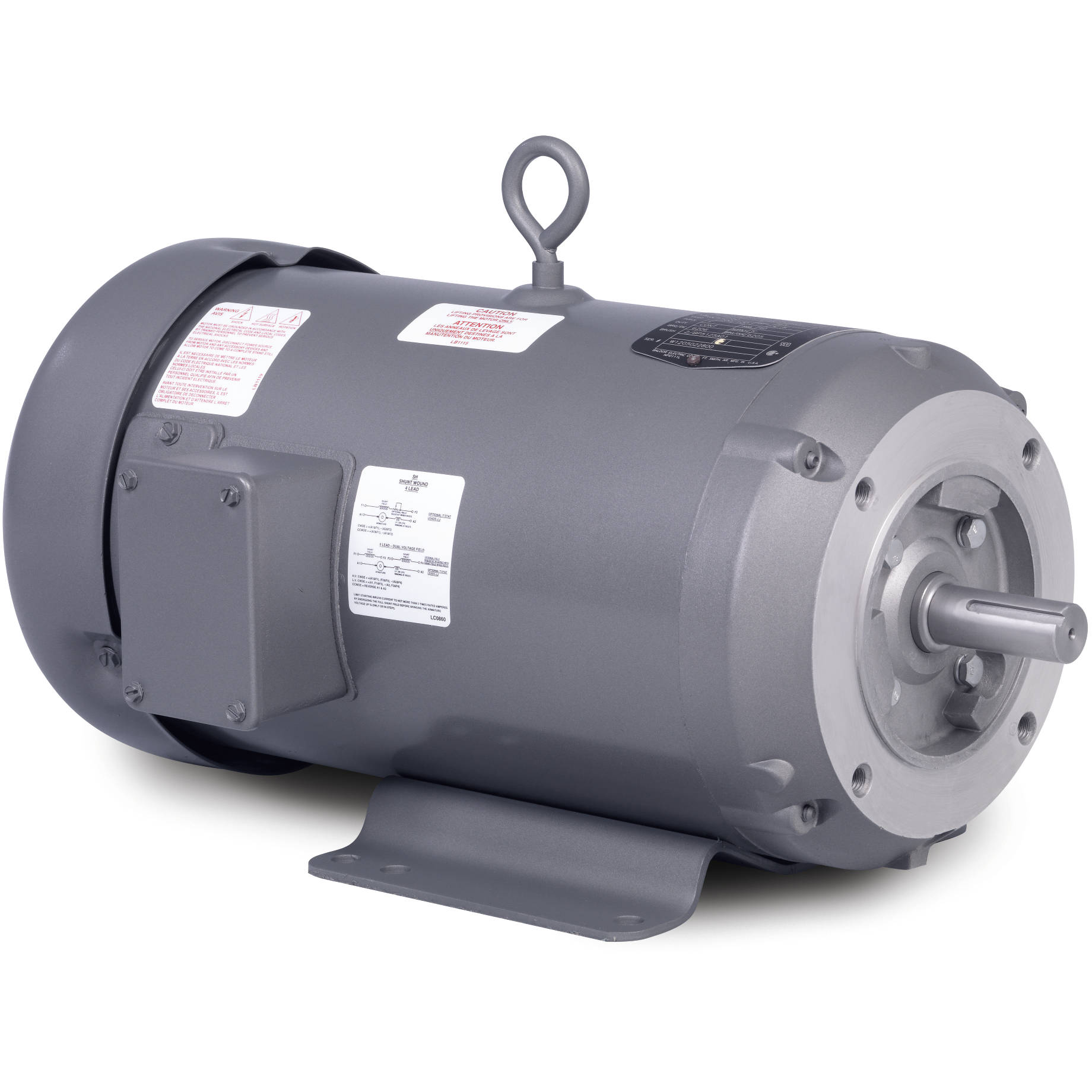

CD6215 Baldor 1.5HP Shunt Wound DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CD6215

CD6215 Baldor 1.5HP Shunt Wound DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CD6215

Selected accessories will also be added to cart
$2,699.97 / Each
Quantity:
TEFC, 184C Frame, 180VDC Armature, 100/200VDC Field, 3636D, C-Face, Foot Mount

Specifications

Specs

Armature Voltage 180 V
Base Speed 1,750 rpm
Field Voltage 200 V
100 V
Frame 184C
Frame Material Steel
Output Power 1.5 hp
XP Class and Group NONE
Brand Baldor-Reliance
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 7.5 A
Armature Inertia 30.342lb-ft2
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device No feedback
Field Winding Type SHUNT
Heater Indicator No heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG
2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Overall Length 17.41 in
Product Family General Purpose
Pulley End Bearing Type Sealed Bearing
RoHS Status RoHS Compliant
Service Factor 1.00
Shaft Diameter 0.875 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
XP Division Not Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO. CD6215
SPEC. 36-5257Z106
HP 1.5 ENCL TEFC
RPM 1750
FRAME 184C TYPE 3636D
ARM V 180 ARM A 7.5
FLD V 200/100 FLD A .25/.5
INSUL F AMB. 40
DUTY CONT SUPPLY ----
BRG/DE 6206 BRG/ODE 6205
BRUSHES 2/BP5125A01
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L

Performance

Performance

Performance at 180 Arm V, 1.5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 0.885 ohms
Series Winding Resistance
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance 0.698 ohms
Shunt Winding Resistance 623 ohms
Armature Inertia
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.4 2 3.7 5.4 6.95 8.6 10.3
RPM 1747 1718 1687 1660 1645 1629 1622
Torque 0 1.125 2.25 3.375 4.5 5.625 6.75

Performance Curves

Performance at 180 Arm V, 1.5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 0.8797 ohms
Series Winding Resistance
Armature Inductance 13.549 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance 0.5855 ohms
Shunt Winding Resistance 311.7 ohms
Armature Inertia 30.342 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.54 2 3.55 5.23 6.61 8.27 10.48
RPM 1782 1788 1777 1769 1779 1778 1779
Torque 0 1.13 2.26 3.39 4.5 5.63 6.75

Performance Curves
