/Products/Electric Motors/DC/Baldor/Shunt Wound/CD5375 Baldor 3/4HP Shunt Wound DC Electric Motor, 1750RPM

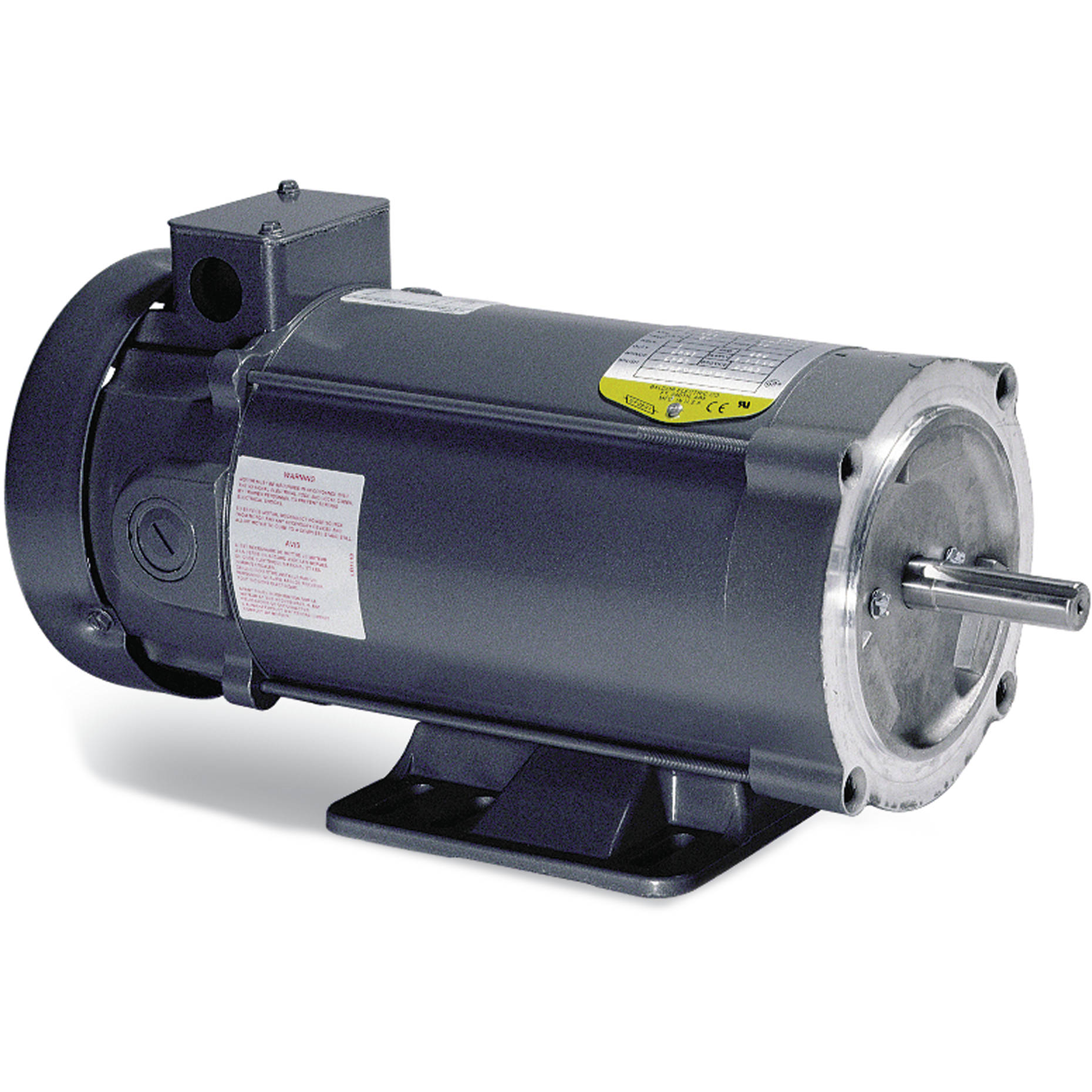

CD5375 Baldor 3/4HP Shunt Wound DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CD5375

CD5375 Baldor 3/4HP Shunt Wound DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CD5375

Selected accessories will also be added to cart
$1,699.97 / Each
Quantity:
TEFC, 56C Frame, 50/100VDC Field, 90VDC Armature, 3528D, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage 90 V
Base Speed 1750 rpm
Enclosure TEFC
Field Voltage 100 V
50 V
Frame 56C
Frame Material Steel
Output Power 0.750 HP
XP Class and Group None
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 8.0 a
Armature Inertia 10.926 lb-ft2
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type SHUNT
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Lead Hole
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 4 @ 18 AWG
2 @ 14 AWG
Mounting Arrangement F1
Overall Length 16.29 IN
Product Family General Purpose
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
XP Division Not Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO. CD5375
SPEC. 35P442Z389
HP .75 ENCL TEFC
RPM 1750
FRAME 56C TYPE 3528D
ARM V 90 ARM A 8
FLD V 100/50 FLD A .6/1.2
INSUL F AMB. 40
DUTY CONT SUPPLY 1.3
BRG/DE 6205 BRG/ODE 6203
BRUSHES 2/BP5000T07
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L
