/Products/Electric Motors/DC/Baldor/Shunt Wound/CD3475 Baldor 3/4HP Shunt Wound DC Electric Motor, 1750RPM

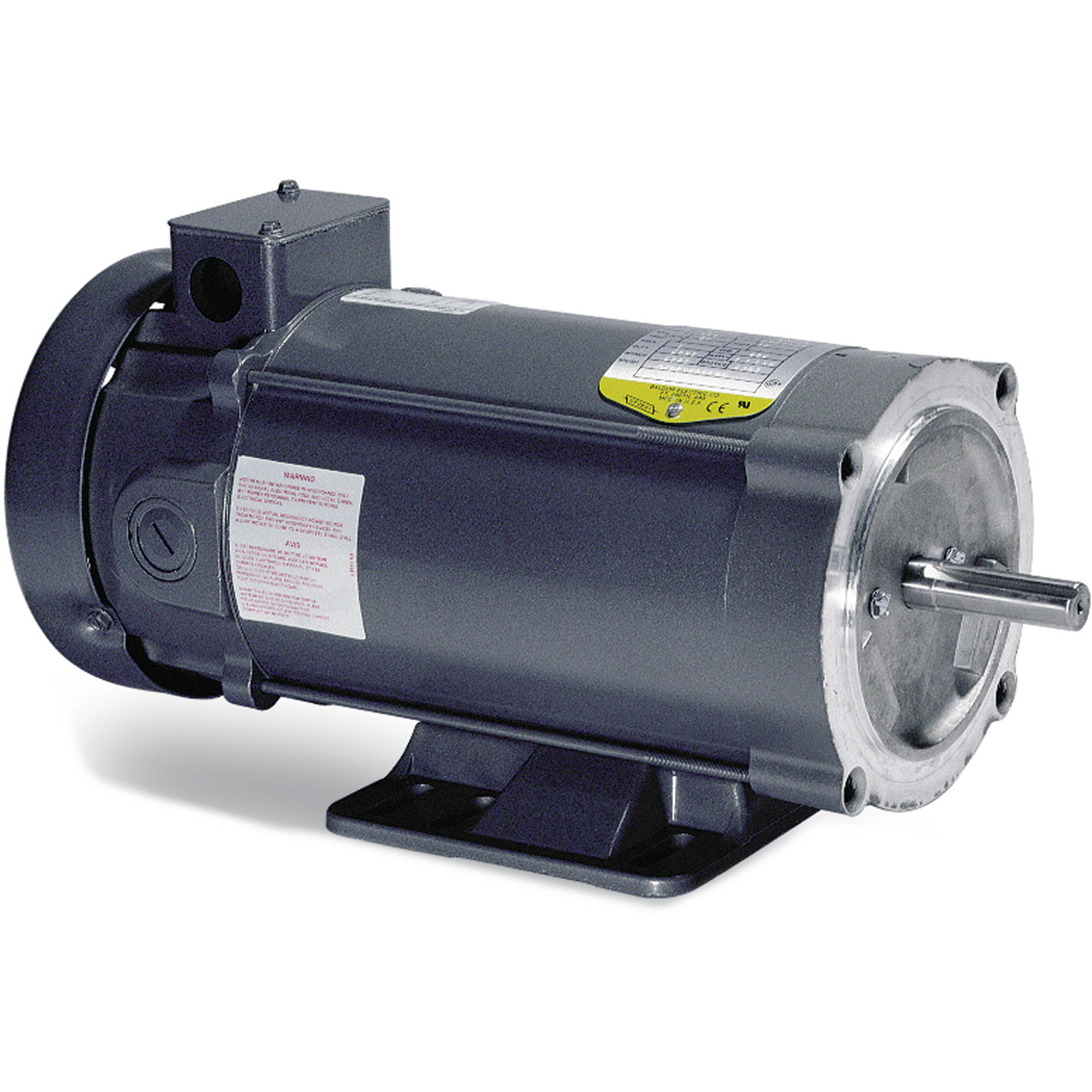

CD3475 Baldor 3/4HP Shunt Wound DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CD3475

CD3475 Baldor 3/4HP Shunt Wound DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CD3475

Selected accessories will also be added to cart
$1,299.97 / Each
Quantity:
TEFC, 56C Frame, 50/100VDC Field, 90VDC Armature, 3428D, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage 90 V
Base Speed 1750 rpm
Enclosure TEFC
Field Voltage 100 V
50 V
Frame 56C
Frame Material Steel
Output Power 0.750 HP
XP Class and Group None
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 7.8 a
Armature Inertia 6.552 lb-ft2
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type SHUNT
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 14 AWG
4 @ 18 AWG
Mounting Arrangement F3
Overall Length 14.84 IN
Product Family General Purpose
Pulley End Bearing Type Sealed Bearing
Service Factor 1.00
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Motor Standards NEMA
XP Division Not Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO. CD3475
SPEC. 34-6172-1483
HP .75 ENCL TEFC
RPM 1750
FRAME 56C TYPE 3428D
ARM V 90 ARM A 7.8
FLD V 100/50 FLD A .6/1.2
INSUL F AMB. 40
DUTY CONT SUPPLY 1.3
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5000H03
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L
