/Products/Electric Motors/DC/Baldor/Shunt Wound/CD3434 Baldor 1/3HP Shunt Wound DC Electric Motor, 1750RPM

Product ID: CD3434

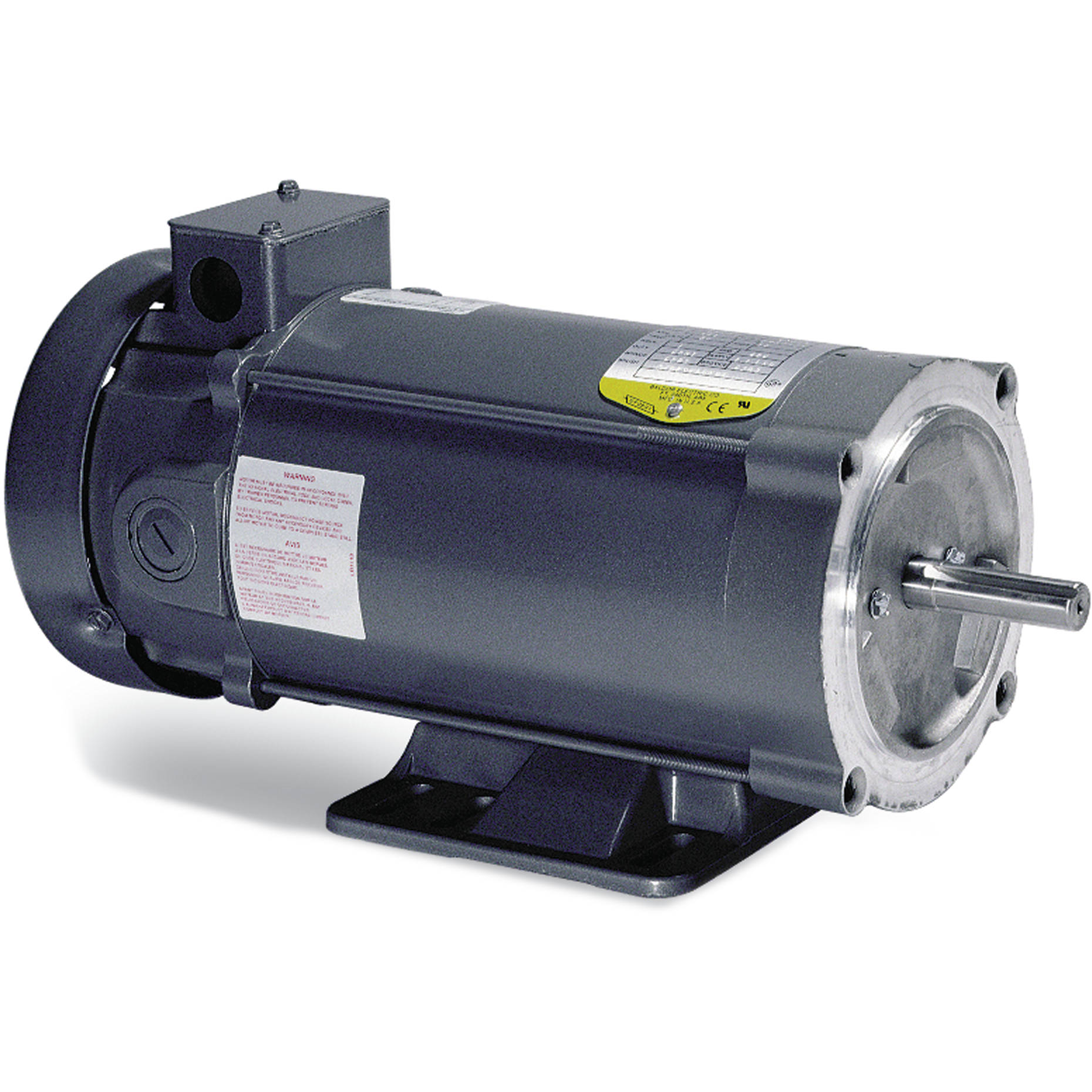

CD3434 Baldor 1/3HP Shunt Wound DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CD3434

Selected accessories will also be added to cart

$889.97 / Each

Quantity:

TEFC, 56C Frame, 100/200VDC Field, 180VDC Armature, 3413D, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Details
Purchase Components

Specifications

Specs

Armature Voltage 180 V

Base Speed 1750 rpm

Enclosure TEFC

Field Voltage 100 V
200 V

Frame 56C

Frame Material Steel

Output Power 0.330 HP

XP Class and Group None

Agency Approvals CSA
UR

Ambient Temperature 40 °C

Armature Current 1.9 a

Armature Inertia 3.042 lb-ft2

Base Indicator Rigid

Bearing Grease Type Polyrex EM (-20F +300F)

Drip Cover No Drip Cover

Duty Rating CONT

Feedback Device NO FEEDBACK

Field Winding Type SHUNT

Heater Indicator No Heater

Insulation Class F

Lifting Lugs No Lifting Lugs

Motor Lead Exit Ko Box

Motor Lead Termination Flying Leads

Motor Lead Quantity/Wire Size 2 @ 14 AWG
4 @ 18 AWG

Mounting Arrangement F3

Overall Length 13.34 IN

Product Family General Purpose

Pulley End Bearing Type Sealed Bearing

Service Factor 1.00

Shaft Diameter 0.625 IN

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible

Shaft Slinger Indicator No Slinger

Motor Standards NEMA

XP Division Not Applicable

Applications

Conveyors
Printing and textile equipment
Machine tools

Features

Designed for use with NEMA type K SCR control
20:1 constant torque speed range
NEMA C-face and removable base
NEMA 182 frame and larger – normally closed thermostat on field winding
Class F insulation
1.0 Service Factor

Nameplate

CAT.NO.	CD3434
SPEC.	34-6172-4006
HP	.33					ENCL			TEFC
RPM	1750
FRAME	56C				TYPE			3413D
ARM V	180					ARM A				1.9
FLD V	200/100					FLD A				.21/.42
INSUL	F		AMB.			40
DUTY	CONT					SUPPLY					1.3
BRG/DE	6203		BRG/ODE				6203

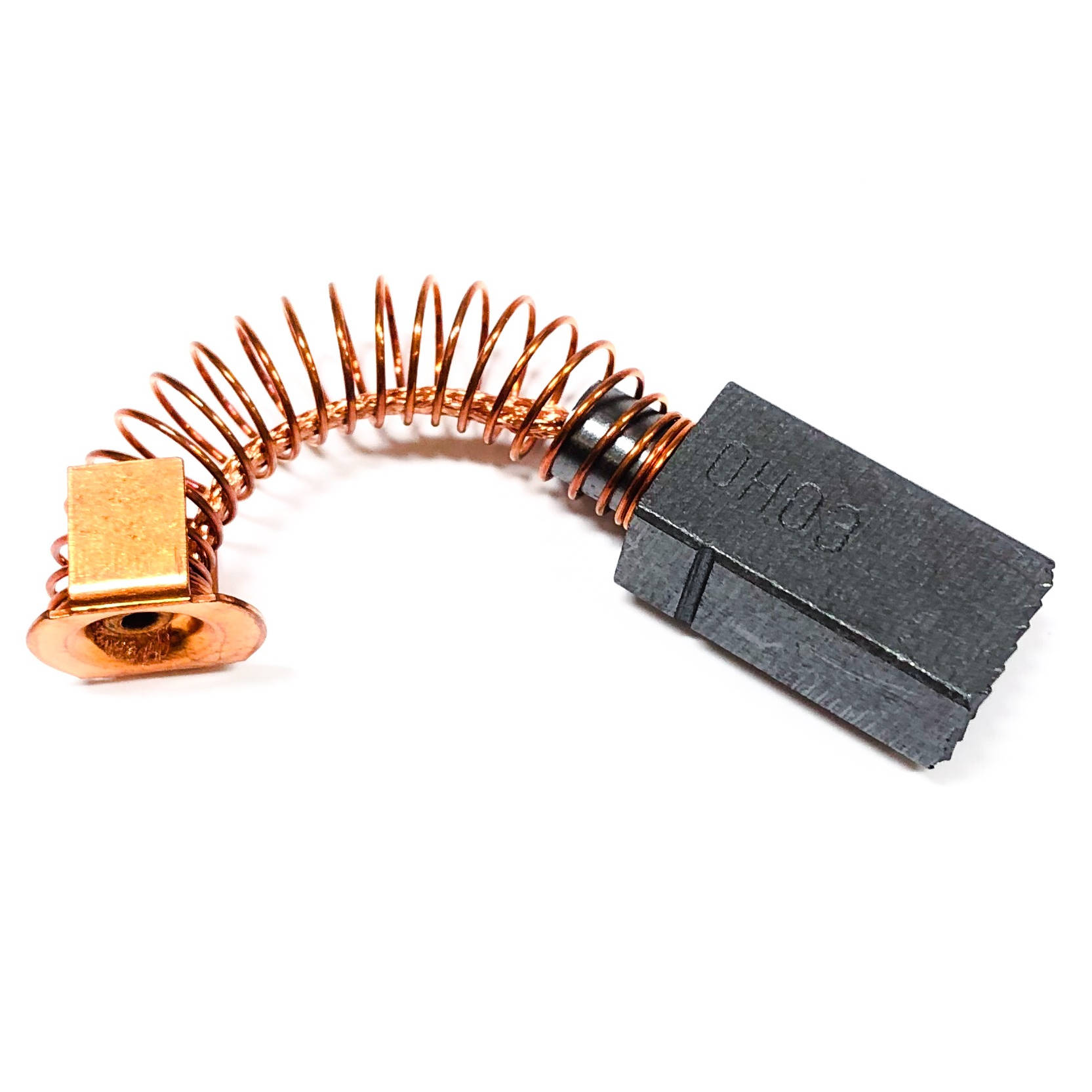

BRUSHES	2/BP5000H03
				BLANK
SER.
BLANK
APRV-CSA		APRV-UL
	NP0111L
