/Products/Electric Motors/3 Phase/TechTop/Cobra Line NEMA Aluminum Series/CB3-AL-TF-56HC-4-B-D-1.5 Techtop 1.5HP Cobra Electric Motor,1800RPM
Click Image to Expand

Product ID: CB3-AL-TF-56HC-4-B-D-1.5

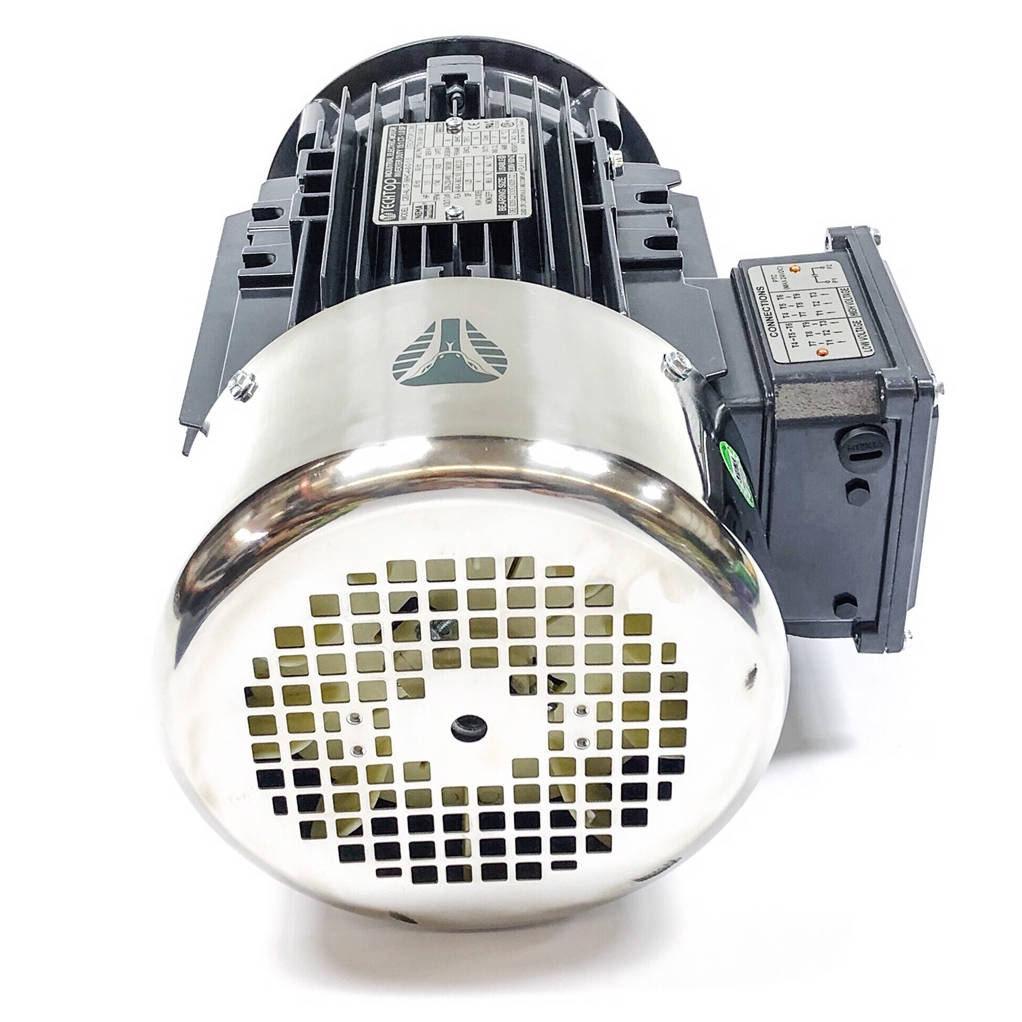

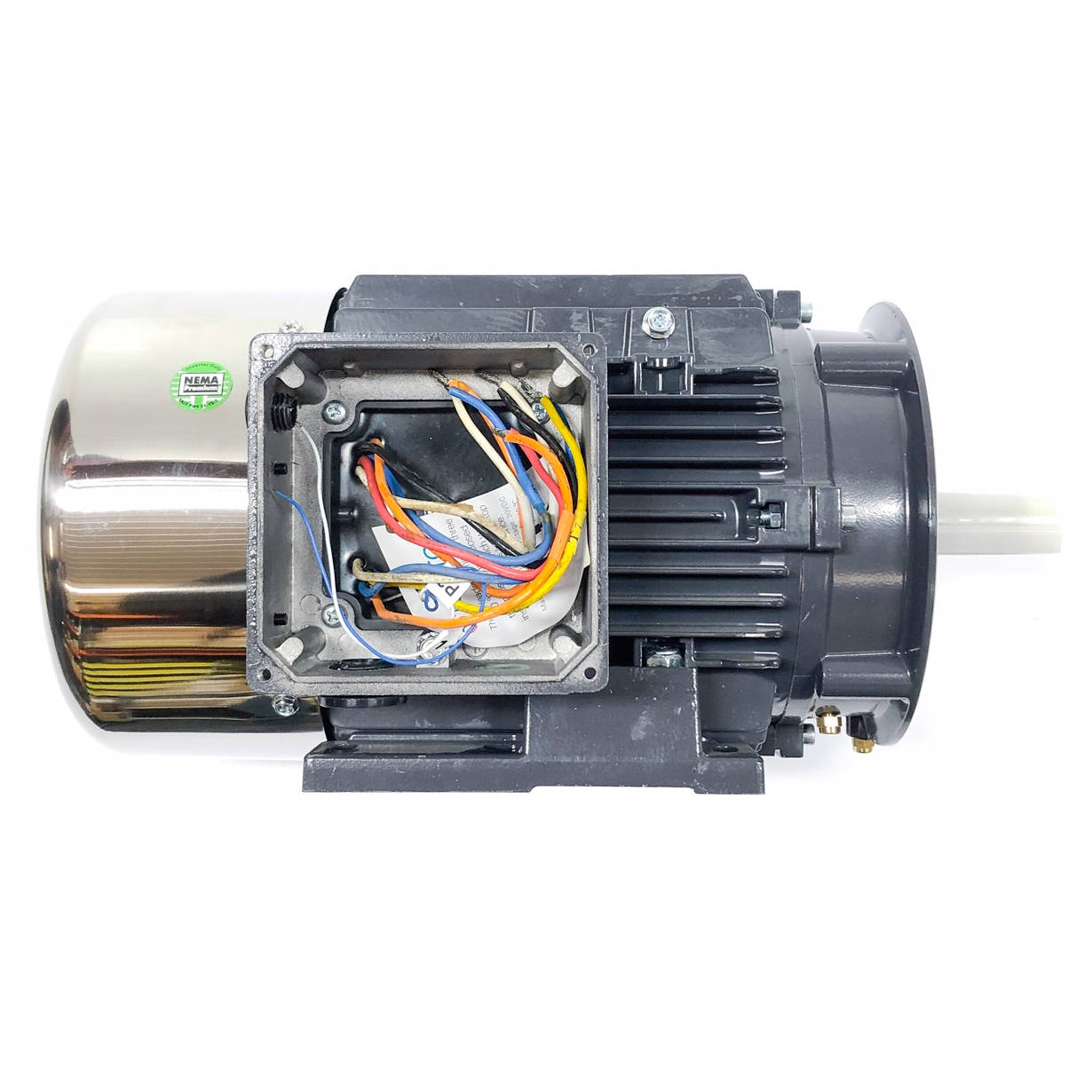

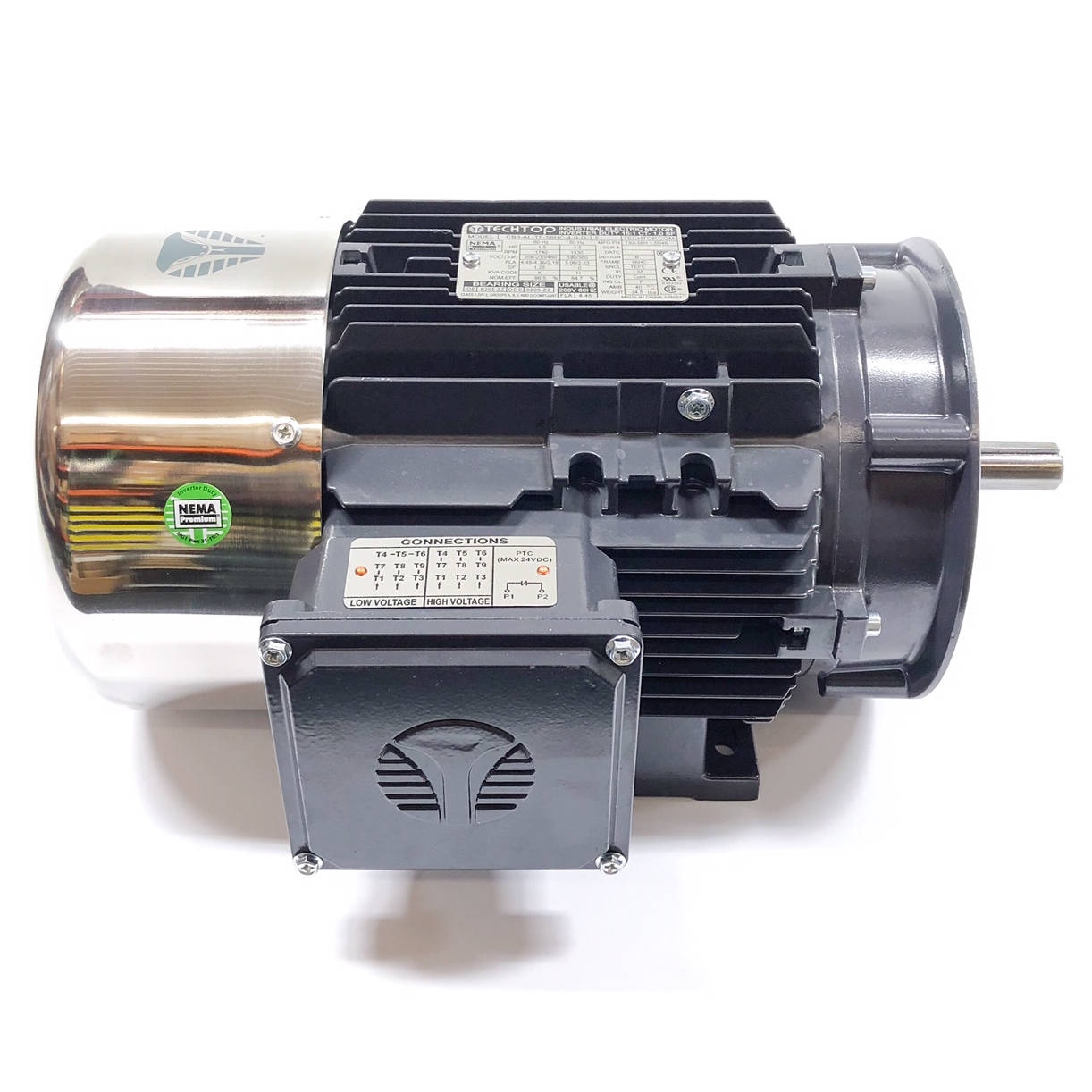

CB3-AL-TF-56HC-4-B-D-1.5 Techtop 1.5HP Cobra Electric Motor,1800RPM

MFG: TechTop Industries, Inc.
MFG Part Number: CB3-AL-TF-56HC-4-B-D-1.5

Available Stock: 6
Selected accessories will also be added to cart
$375.75 / Each
Quantity:
1800 RPM, 56HC Frame, TEFC, 208-230/460V, W/ Shaft Grounding Ring, Brake Kit Ready, Encoder Ready
Specifications Basic Specifications
  • NEMA Premium Efficiency
  • 1-1/2 HP
  • 3-Phase
  • 1800 RPM (4-Pole)

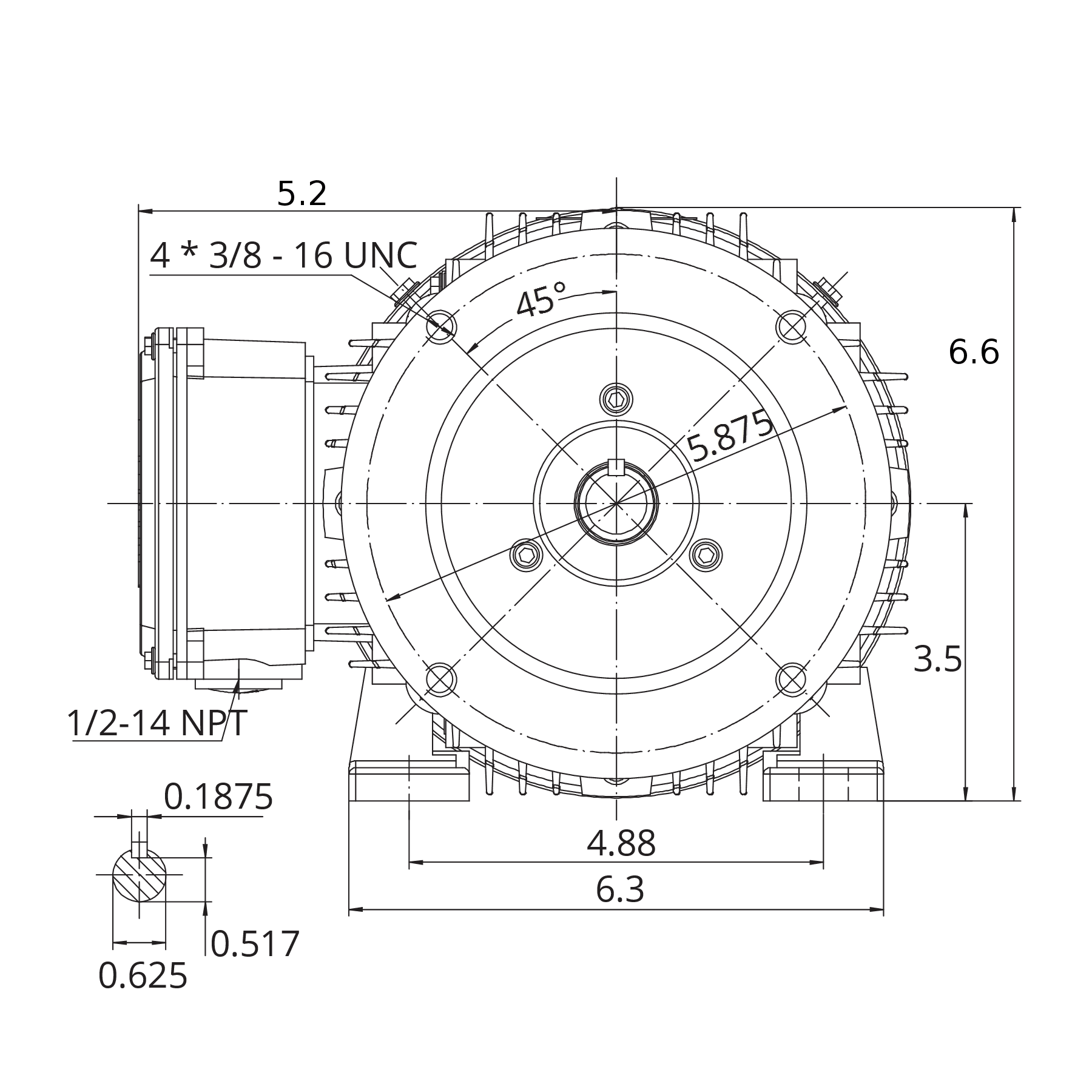

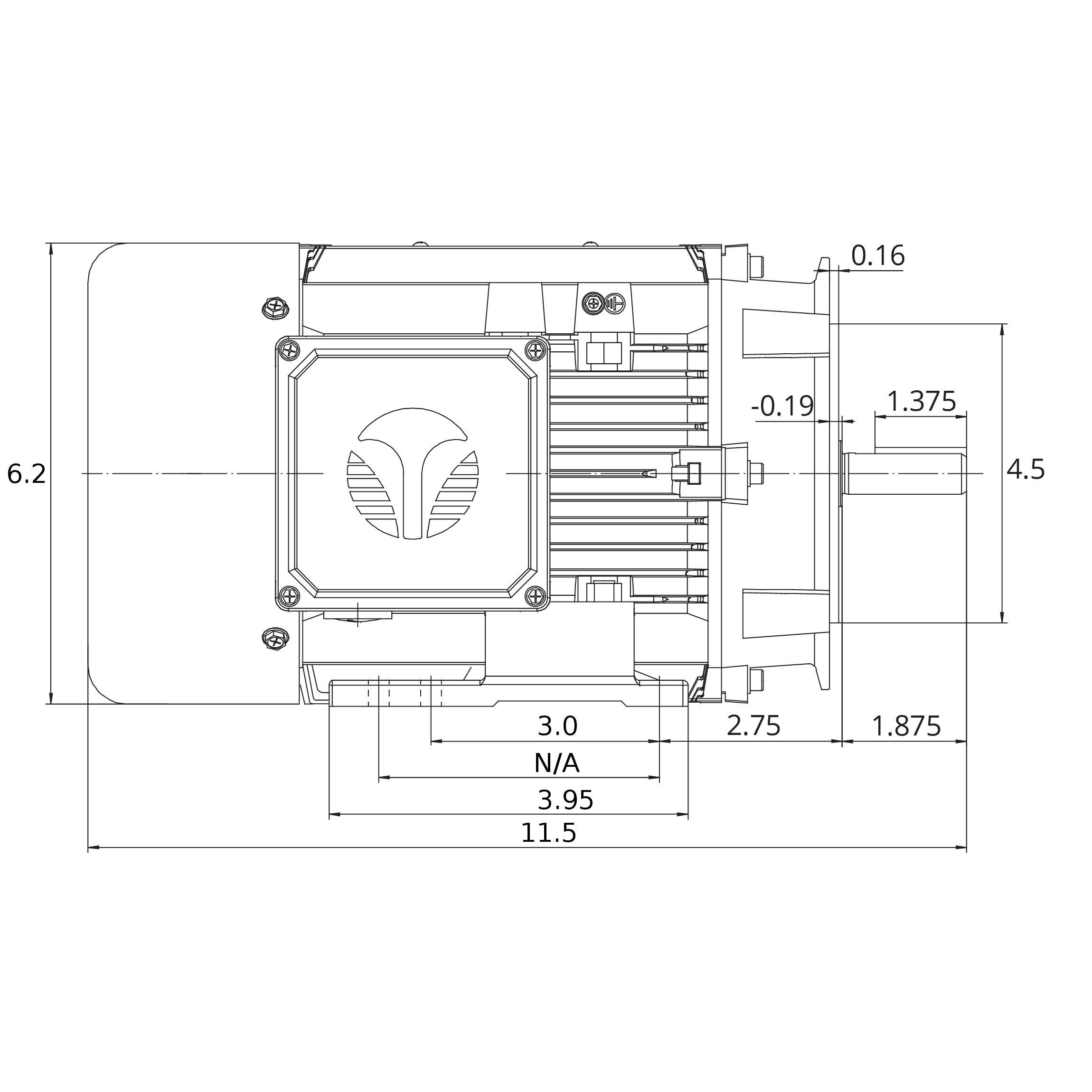

  • NEMA Frame 56HC
  • 230/460V @ 60 Hz (50Hz Capable; Usable at 208V)
  • 4.26 Amps @ 230V
    2.13 Amps @ 460V
  • Full Load Efficiency 86.5%
  • Totally Enclosed Fan Cooled (TEFC)
  • 34.5 lbs
Operating Parameters
  • Continuous (S1) Duty
  • Ambient Temperatures up to 104°F (40°C)
  • Installation up to 3300 Feet (1000 Meters)
Ingress Protection
  • IP 55
Inverter and Insulation Rating
  • Inverter Rated 15:1 Constant Torque (1.0 S.F. on VFD Power) per NEMA MG 1 Part 31
  • Class F Insulation
  • Designed to Class B Temperature Rise
  • Vacuum Pressure Impregnated Stator
Motor Features Motor Features
  • Shaft Grounding Brush Installed
  • Fully Epoxy Potted Conduit Box Entry
  • Stainless Steel Anti-Corrosion Fan Cover
  • Brake Kit & Encoder Kit Ready
  • PTC Thermal Protection Installed

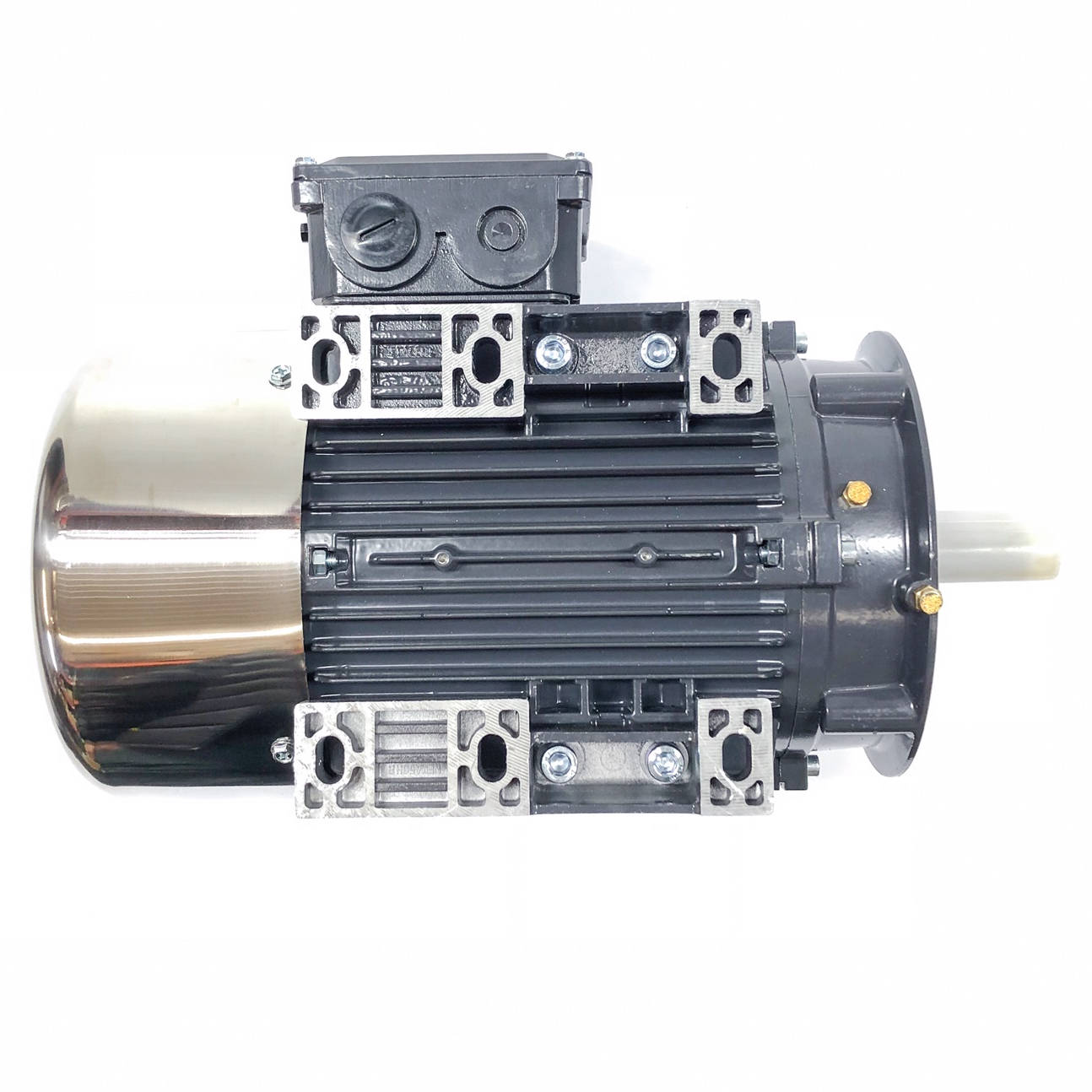

  • Multi-Mount Removable Feet; F1, F2, F0 Convertible
  • 1.25 Service Factor with 60Hz TEFC Operation
  • Conduit Base 90° Rotatable
  • Full Die-Cast Aluminum Frame
  • Anti-microbial (Tropicalization) Coating on Stator
  • Over-sized Shielded Bearings
  • Viton™ Double Lip Shaft Seal
  • TENV Capable at 1.0 SF
  • 1045 Steel Shaft
  • Stainless Steel Nameplate
  • Corrosion Resistant Blue Zinc Hardware
  • Class 1, Division II, Groups A, B, C and D Compliant
Surface Finish
  • Powder Coated RAL7024 - Graphite Gray
Warranty
  • 36 Months from date of Purchase
