/Products/Electric Motors/Single Phase/Century/Ventilation Fan/C782RB Century 1HP Belt Drive Fan Electric Motor, 1725RPM
Click Image to Expand

Product ID: C782RB

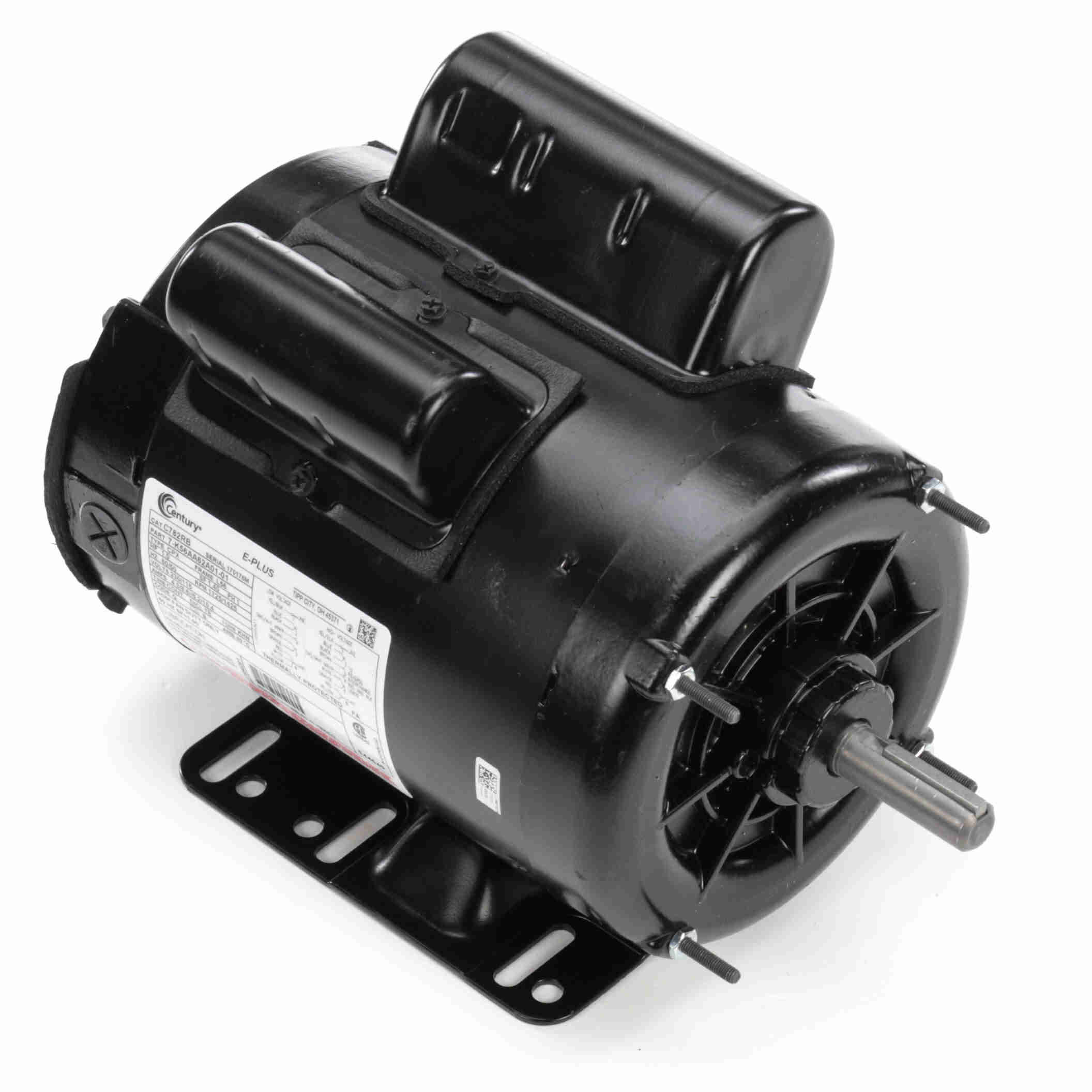

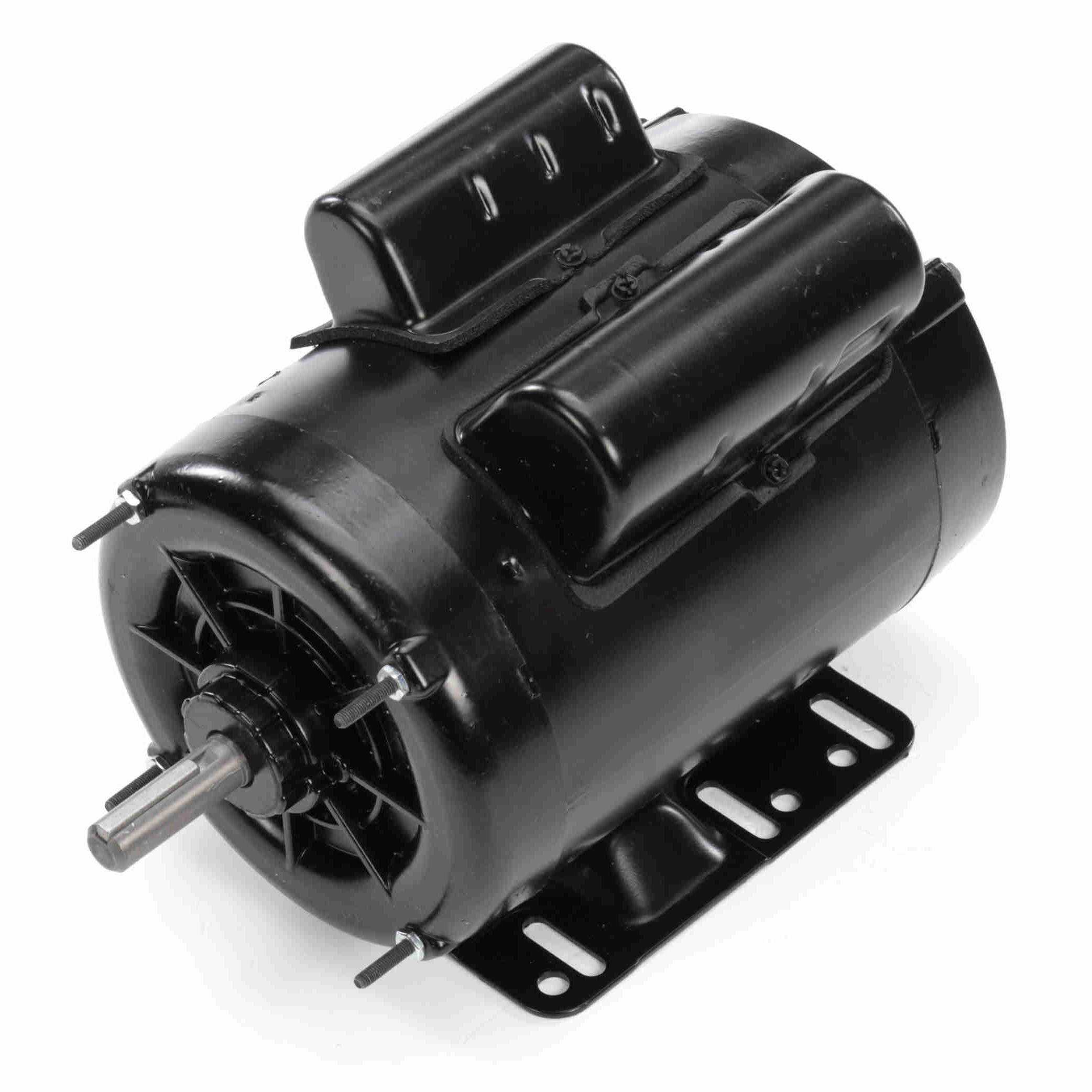

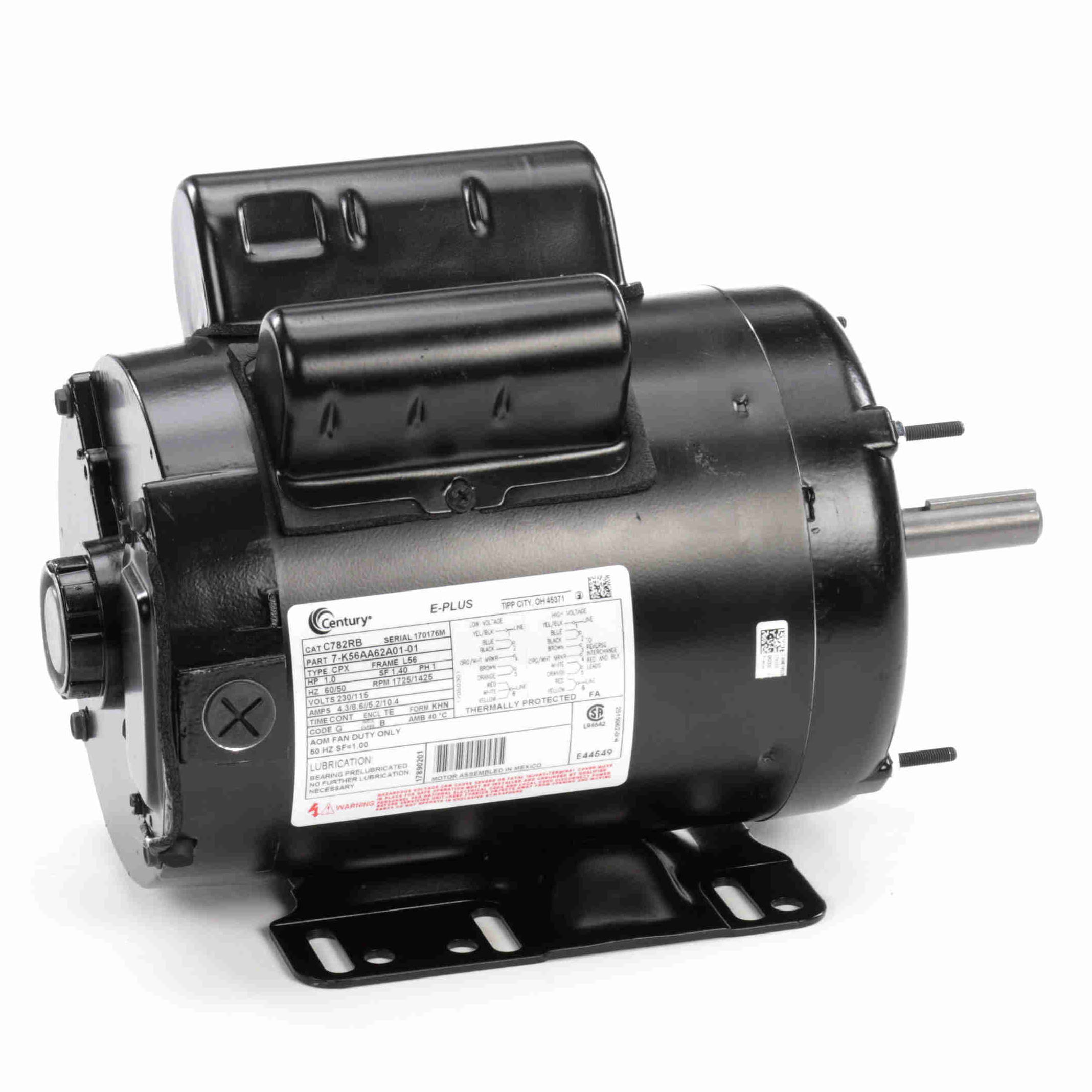

C782RB Century 1HP Belt Drive Fan Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C782RB

Selected accessories will also be added to cart
$360.97 / Each
Quantity:
TENV, L56 Frame, 115/230V Single Phase 60Hz, Removeable Base
Features
  • Suitable for belted loads
  • Automatic reset thermal protector
  • Fully gasketed
General Specifications
Model : Catalog No :C782RB
Part Description :1,1725,TENV,56,1/60/230/115 Category :Belt Drive Fan
Stock :Yes
Nameplate Specifications
Output HP :1.0 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :230/115 V
Current :4.3/8.6//5.2/10.4 A Speed :1725/1425 rpm
Service Factor :1.4 Phase :1
Duty :Continuous Insulation Class :B
Frame :L56 Enclosure :Totally Enclosed Non Ventilated
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N
Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, Low Starting Torque, Single Or Dual Voltage Starting Method :Across The Line
Poles :4 Rotation :Reversible Clockwise
Mounting :Removable Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :12.19 in
Frame Length :6.25 in Shaft Diameter :0.625 in
Shaft Extension :1.94 in UPC :786674057068
Weight :38.00 LB
